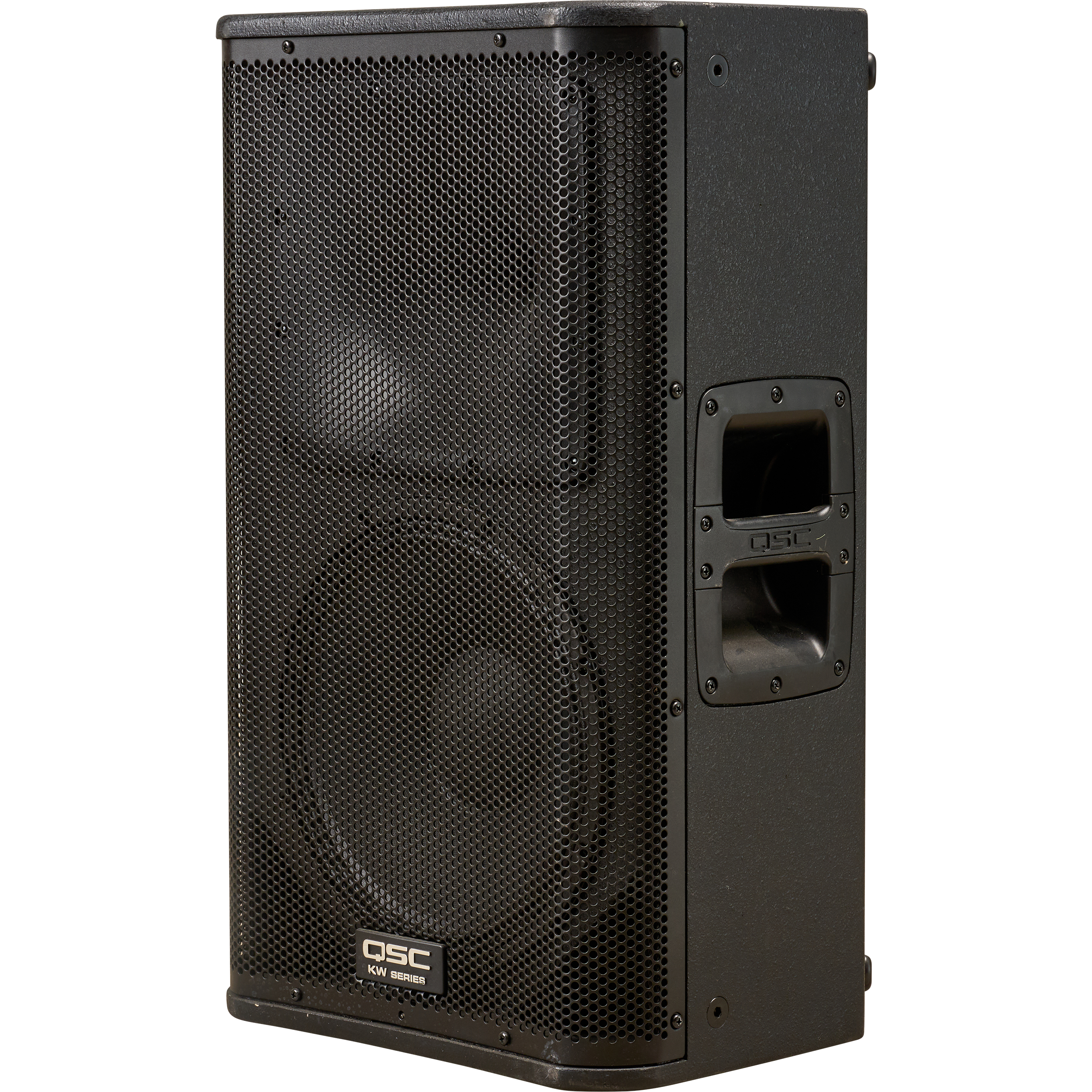

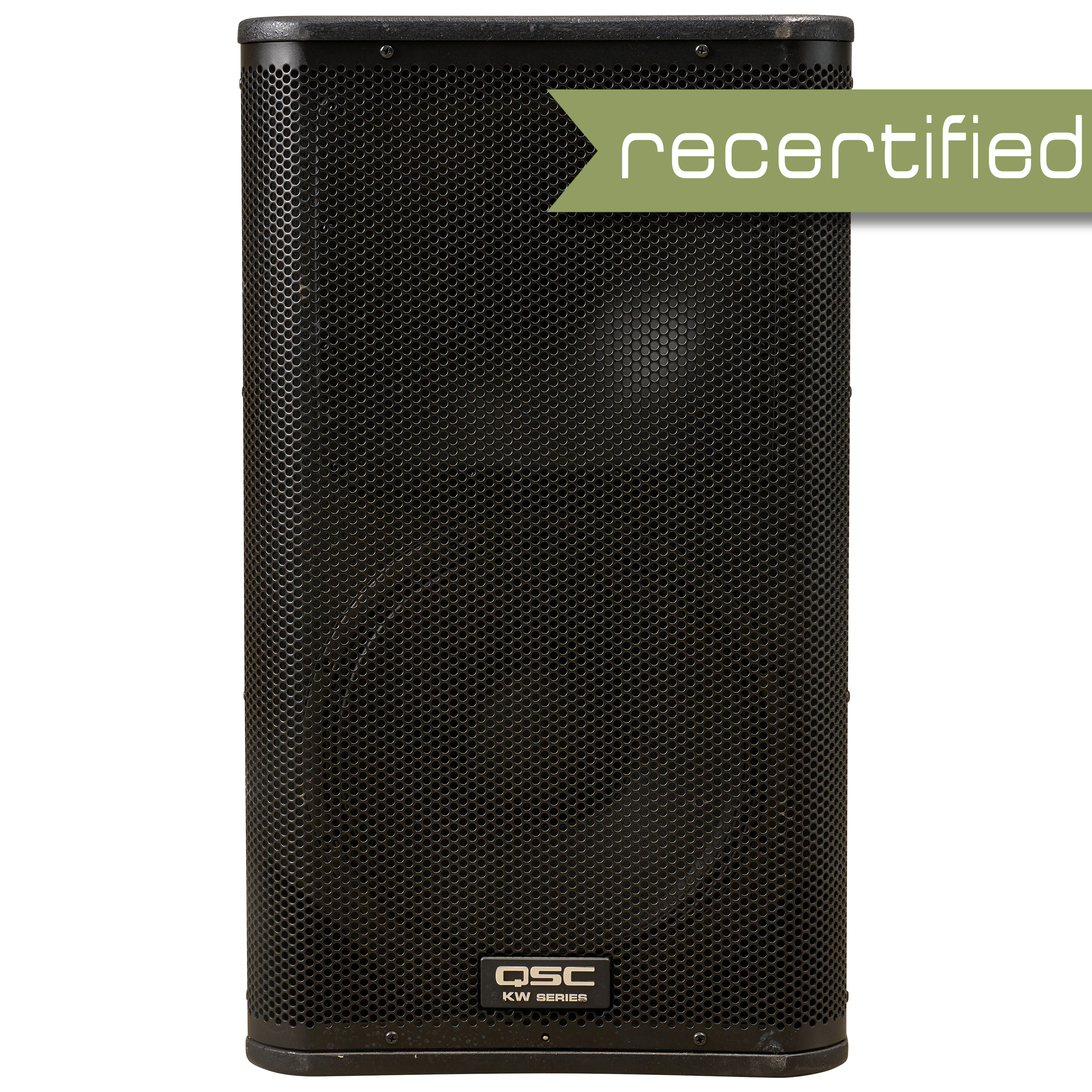

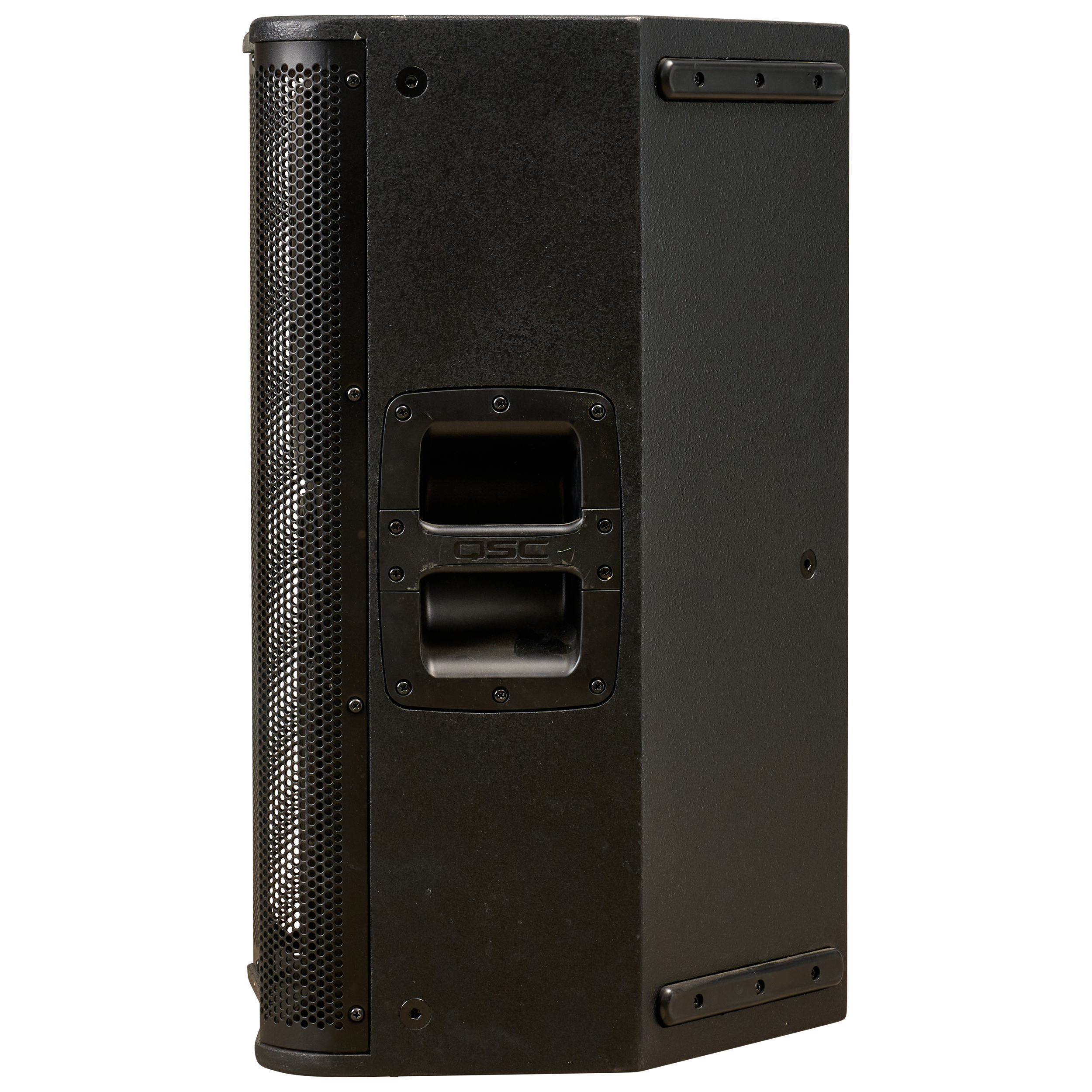

Elevate your sound experience with the QSC KW122 Active Loudspeaker, a versatile powerhouse designed to deliver exceptional audio performance in a range of applications. This used speaker boasts a robust 12-inch woofer and 1.75-inch compression driver, powered by a highly efficient Class D amplifier, providing crisp highs, deep lows, and incredible clarity. With its advanced DSP for precise sound shaping, convenient onboard mixer, and flexible connectivity options including XLR, TRS, and RCA inputs, the KW122 adapts effortlessly to any setup or venue. Whether you're a musician performing live, a DJ rocking the party, or a venue owner seeking premium sound reinforcement, this reliable and road-tested speaker promises to elevate your sound to new heights, all at a fraction of the cost of new.
• 12” Woofer
• 1.75” diaphragm compression driver
• 75° Nominal coverage angle
• Maximum SPL 131 dB peak
• Also functions as monitor floor wedge
• 1000-watt Class D power modules in all models (2 × 500 W continuous)
• Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
• Extensive DSP featuring DEEP™ and Intrinsic Correction™ enhances system performance
• DMT™ (Directivity Matched Transition) ensures uniform coverage across the entire sound field
• Rugged, texture-painted birch enclosures
• Four-position Mic/Line gain (full-range models)
• Tour-grade 16 gauge steel grilles
• Comfortable ergonomic handles
• 35 mm pole sockets with Tilt-Direct™
• M10 rigging points for suspended installation
Configuration: 12" 2-way multipurpose
Low Frequency Transducer: 12” cone
High Frequency Transducer: 1.75" diaphragm compression driver
Frequency Response (-6 dB): 53 Hz - 18 kHz
Frequency Range (-10 dB): 50 Hz - 20 kHz
Nominal Coverage (-6 dB): 75° axisymmetric
Maximum SPL (1 meter): 131 dB peak
Power Output: 1000 W Class D (500 W LF, 500 W HF) continuous, 2000 W Peak
Input Impedance (ohms), Channel A XLR / ¼", 0 dB: Balanced 38 kOhms, Unbalanced 19 kOhms
Input Impedance (ohms), Channel A XLR / ¼", +12 dB: Balanced 10k Ohms, Unabalanced 5k Ohms
Input Impedance (ohms), Channel A XLR / ¼", +24 dB: Balanced 2.66 kOhm, Unabalanced 5 kOhm
Input Impedance (ohms), Channel A XLR / ¼", +36 dB: Balanced 660 Ohms, Unabalanced 330 Ohms
Input Impedance (ohms), Channel B XLR / ¼": Balanced 38 kOhms, Unabalanced 19 kOhms
Controls: Power, Gain A, Gain B, Channel A Input Gain (0 dB / 12 dB / 24 dB / 36 dB), LF Mode (Ext Sub/Norm/DEEP™), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
Indicators: Power, Signal A, Signal B, Standby, Limit, Mic (24 dB and 36 dB settings)

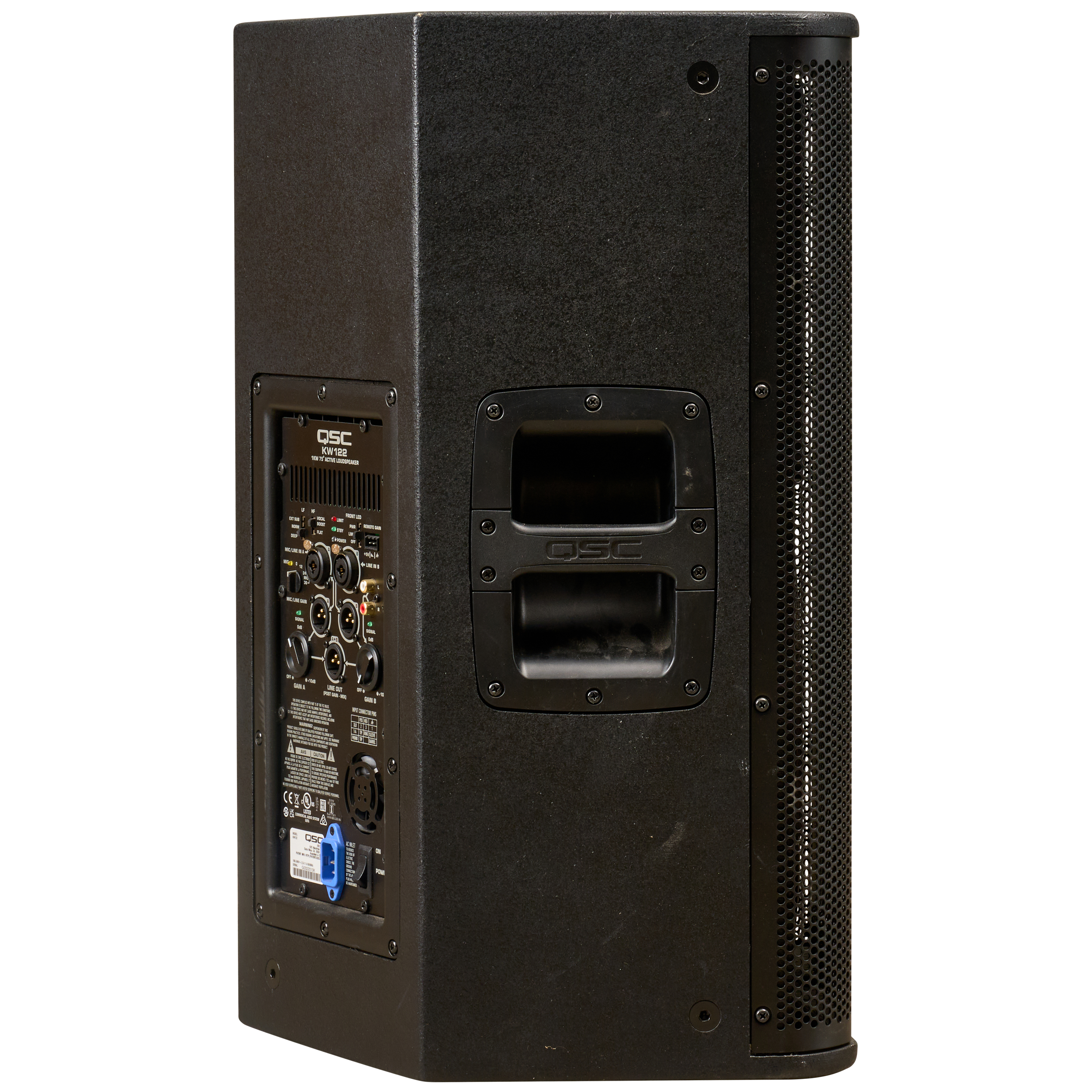

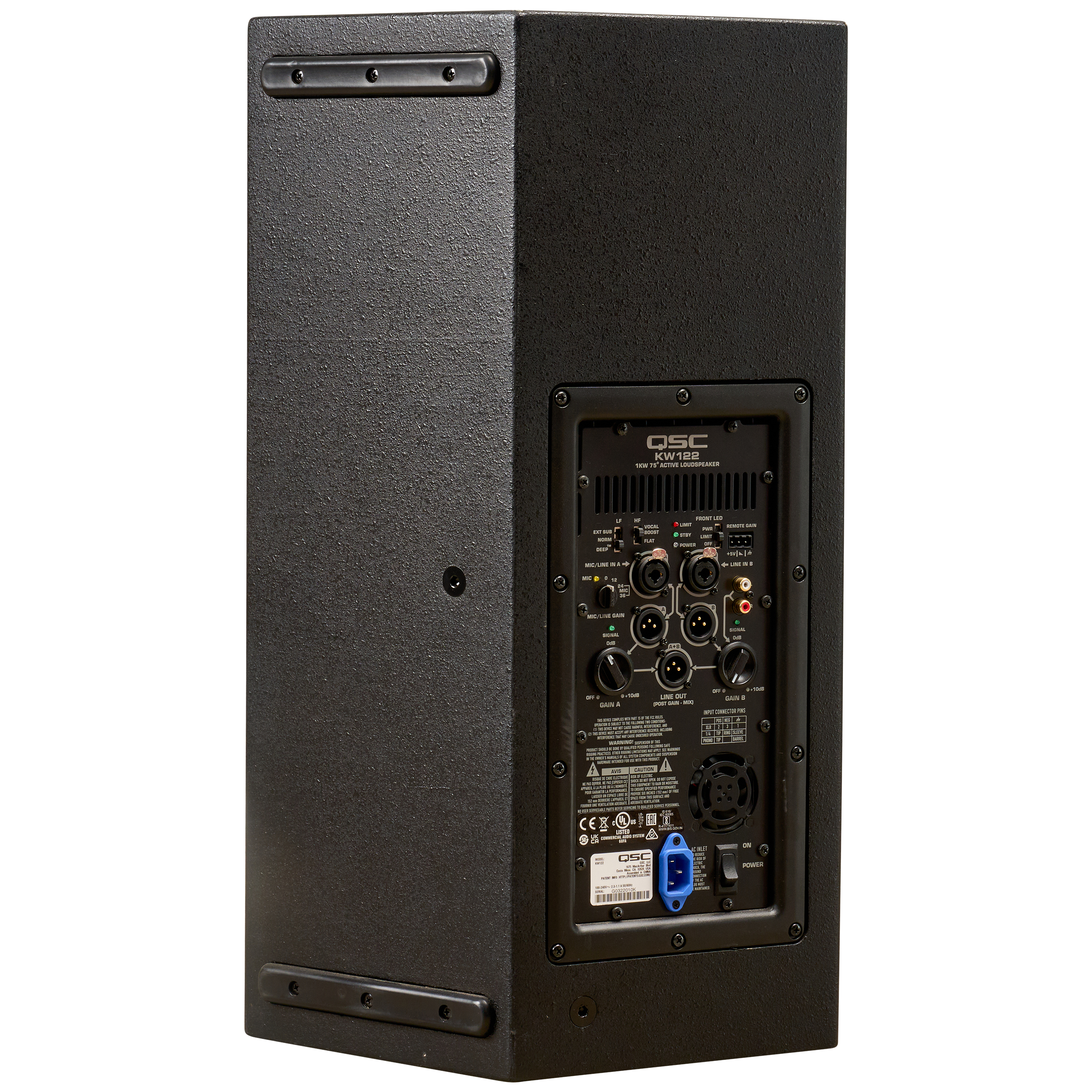

Connectors: Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector
Cooling: On demand, 50 mm variable speed fan
Amplifier Protection: Thermal limiting, output overcurrent, overtemperature muting, GuardRail™
Transducer Protection: Thermal limiting, excursion limiting
AC Power Input: Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption (1/8 Power): 100 VAC: 2.3 A, 120 VAC: 2.01 A, 230 VAC: 1.13 A
Material: 15mm painted birch plywood
Finish: Black textured paint
Grille: Black powder coated 16 gauge steel
Dimensions (HWD): 26" x 15" x 15.4" 660 mm x 381 mm x 391 mm
Weight (Net): 49 lbs (22.2 kg)
Input Impedance (ohms), Channel B RCA: 10 kOhm
(1) QSC KW122 Powered Full Range 12" Speaker
