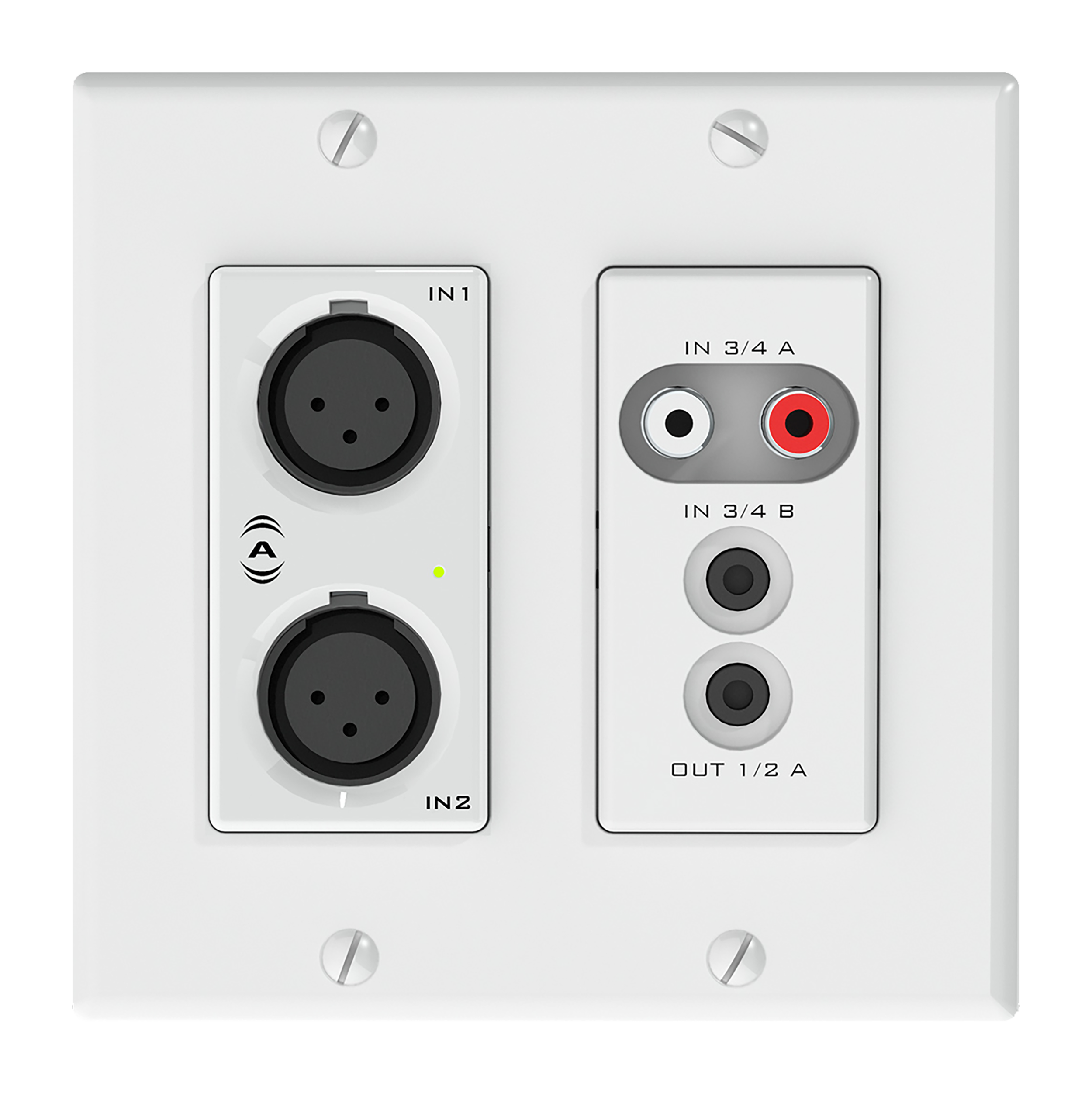

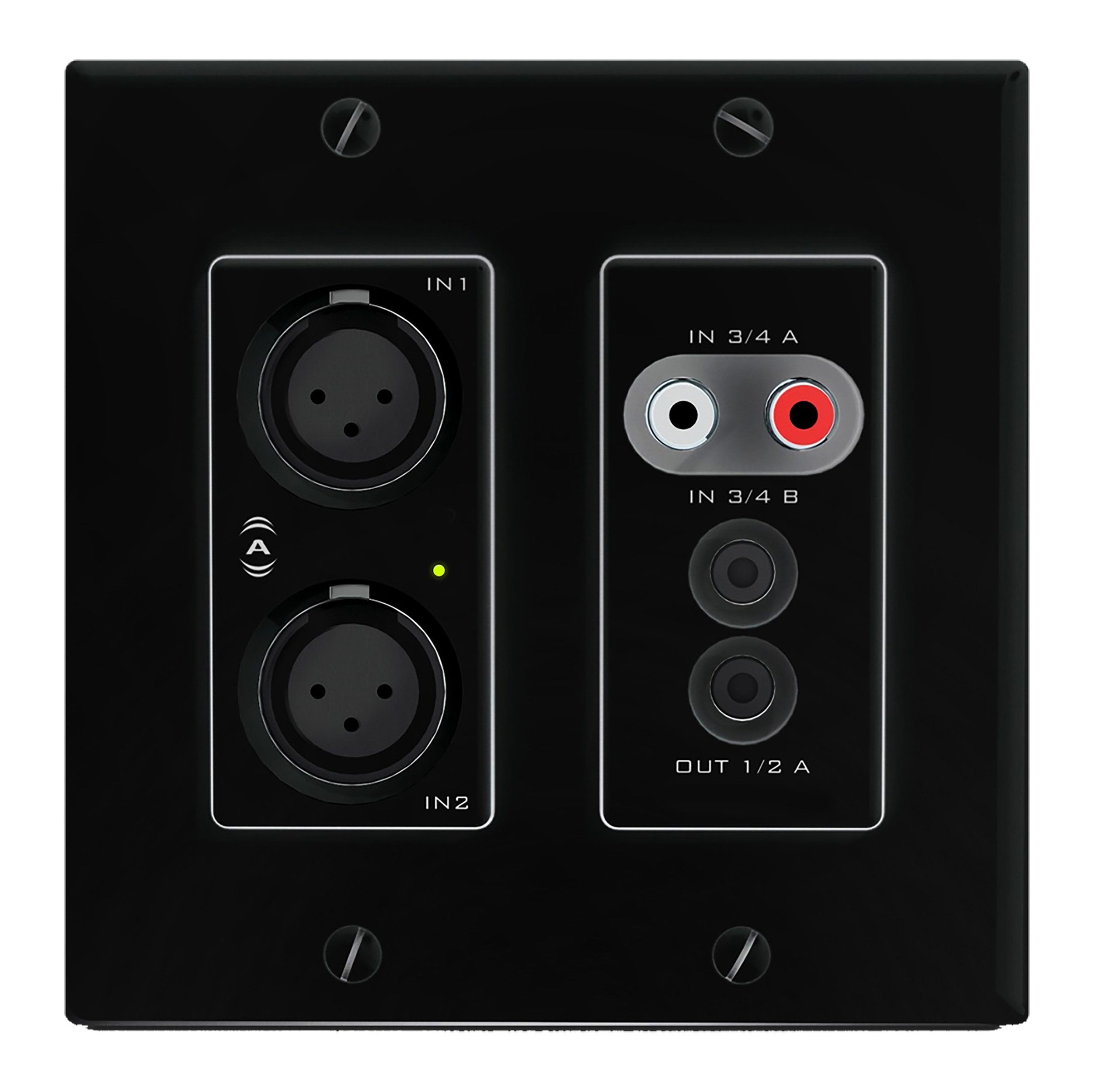

The Attero Tech unD6IO is a cost-effective, multi-IO Dante network audio wallplate, featuring XLR, RCA and 3.5 mm inputs along with one 3.5 mm and two balanced outputs in a dual-gang form factor. The unD6IO is PoE enabled, delivering all connectivity (power, control and audio data) with a single CAT-5e/6 cable. The size and I/O density of the unD6IO make it easy to put Dante connectivity wherever it is needed - near the audio source or sink - thereby eliminating costly and interference-prone analog wiring.

FEATURES
    • 2 x balanced XLR mic/line inputs, 2 x RCA and 1 x 3.5 mm input
    • 1 x 3.5 mm output and 2x balanced outputs on a side-mounted depluggable connector, with software-controllable volume
    • Q-SYS Extension allows for drag-and-drop integration into your Q SYS design
    • PoE capable
    • Three software-selectable gain levels are available on the XLR input to accommodate a wide variety of input levels and devices.
    • +48 V phantom power
    • Dante Domain Manager-ready
    • Three software-selectable gain levels are available on the XLR input to accommodate a wide variety of input levels and devices.
SPECIFICATIONS
    • Input Type: 2 x XLR (balanced and RF filtered) 2 x RCA (stereo unbalanced) 1 x 3.5 mm (stereo unbalanced)
    • Gain: -18 dB, -3 dB, +25 dB and +40 dB, software selectable (Inputs 1/2)
    • Maximum input levels: +20 dBu @ -18 dB gain,, +6 dBu @ - 3 dB gain,, -23 dBu @ +25 dB gain, -38 dBu @ +40 dB gain (Inputs 1/2), +12 dBu ( Inputs 3/4 A & B)
    • Phantom Power: +48 V (inputs 1 & 2 only)
    • Output type: Two balanced line level with automatic muting on loss of Dante signal on 6-pin Depluggable Euroblock (Outputs 1/2 B) Two unbalanced line level outputs on stereo 3.5 mm TRS (Outputs 1/2 A)
    • Attenuation Range: -60 dB to 0 dB (software-controlled)
    • Maximum output levels: +12 dBu at 0 dB attenuation (output 1/2 A) +20 dBu at 0 dB attenuation (output 1/2 B)
    • Physical level: Standard Ethernet
    • Connector: Single RJ-45
    • Cable Type: CAT-5e or higher
    • Supported sample rates: 44.1 kHz, 48 kHz
    • Power: PoE (802.3af)
    • Dimensions (HWD): 4.2 x 3.5 x 2 in (114.3 x 88.9 x 50.8 mm) Decora wall plate (2 gang): 4.87 x 4.94 x 0.08 in (123.7 x 125.48 x 2.03 mm)
    • Weight: 0.6 lb (.27 kg)
CONTENTS
    (1) QSC unD6IO
