The Radial Highline is ideal for players who utilize amp simulators on their pedalboard. The Highline features premium Jensen 1:1 transformers that retain the full volume from the amp sim while providing isolation that breaks up ground loops and protects against phantom power, along with a balanced output that can be run over long distances without signal degradation.
• No loss of signal strength or tone when connecting to a mixer
• Radial's renowned reliability and build quality
• Precision-wound Jensen Transformer delivers exceptional clarity and warmth
• Passive, plug-and-play design requires no external power
• Audio Circuit Type: Passive, transformer based
• Transformer: Jensen JT-11-YMPC
• Number of Channels: Single channel (mono)
• Frequency Response: 20Hz - 20kHz (±0.05dB)
• Signal to Noise Ratio: 110dB
• Total Harmonic Distortion + Noise:
- <0.03% from 20Hz - 20kHz @ -10dBV
- <0.0002% @ 1kHz @ -10dBV
• Phase Deviation: ±0.3° from 20Hz - 20kHz @ -10dBV

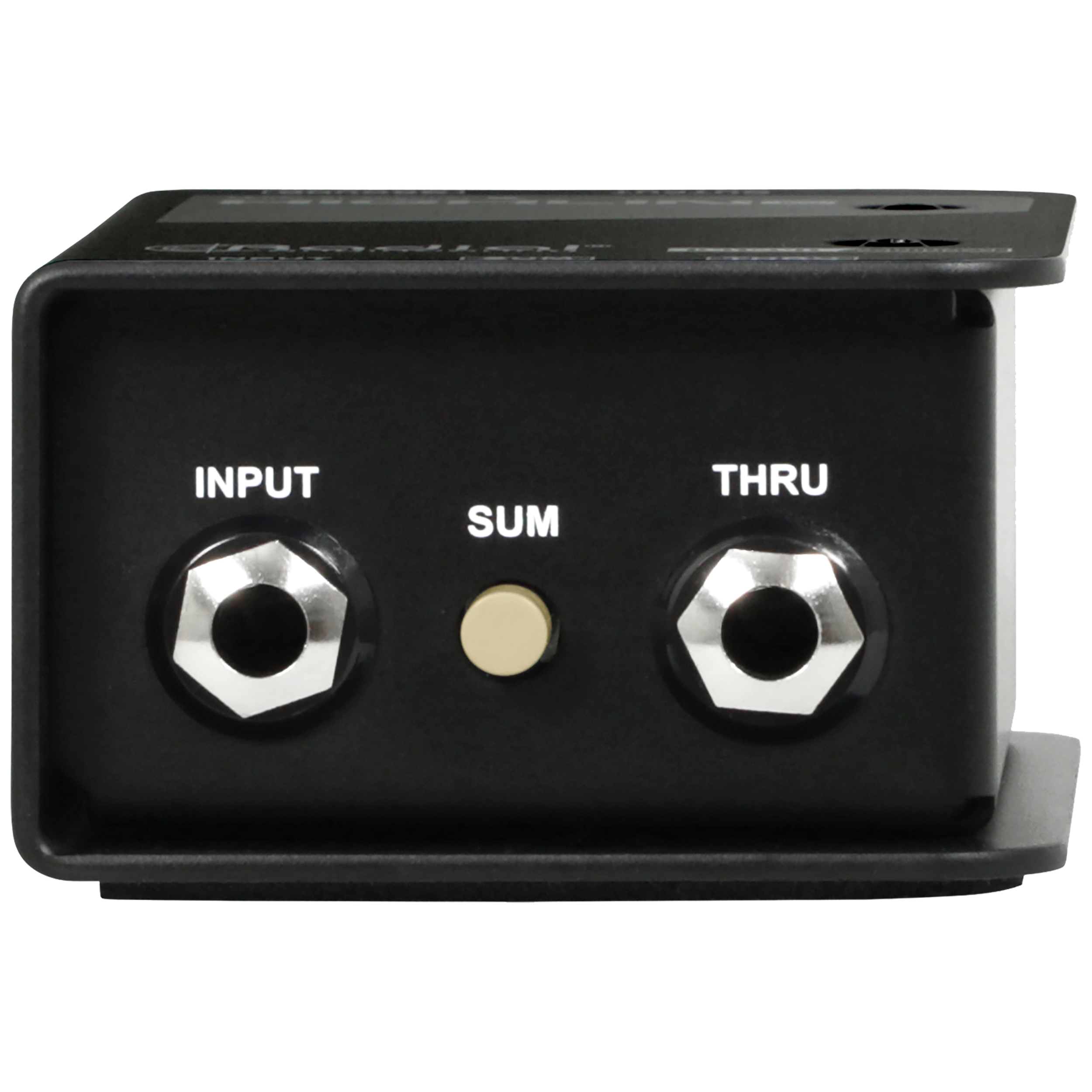

• Features: Ground Lift, Input + Thru Sum
General
• Construction: 14 gauge steel Outer Shell & 16 gauge Chassis
• Finish: Durable Powder Coat
• Size (L x W x D): 4.25" x 2.75" x 1.75" (108mm x 70mm x 44mm)
• Weight: 1.01lbs (0.496kg)
• Power: Passive, no power required
• Conditions: For use in dry locations only between 5°C and 40°C
• Warranty: Radial 3-year, transferable
(1) Radial Highline Passive Line Isolator
