Product SKU
    22362
$149.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Mint Condition
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTIONS

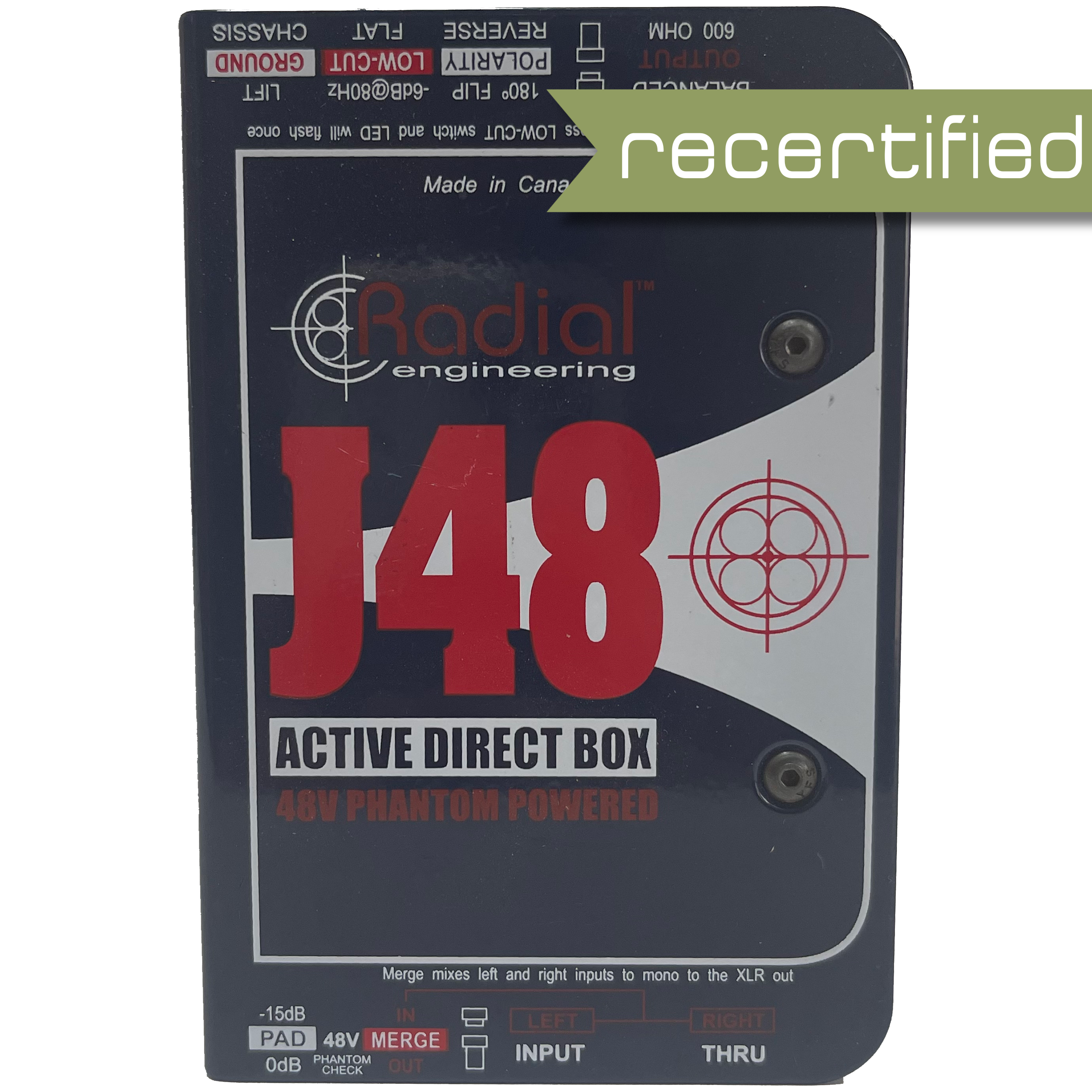

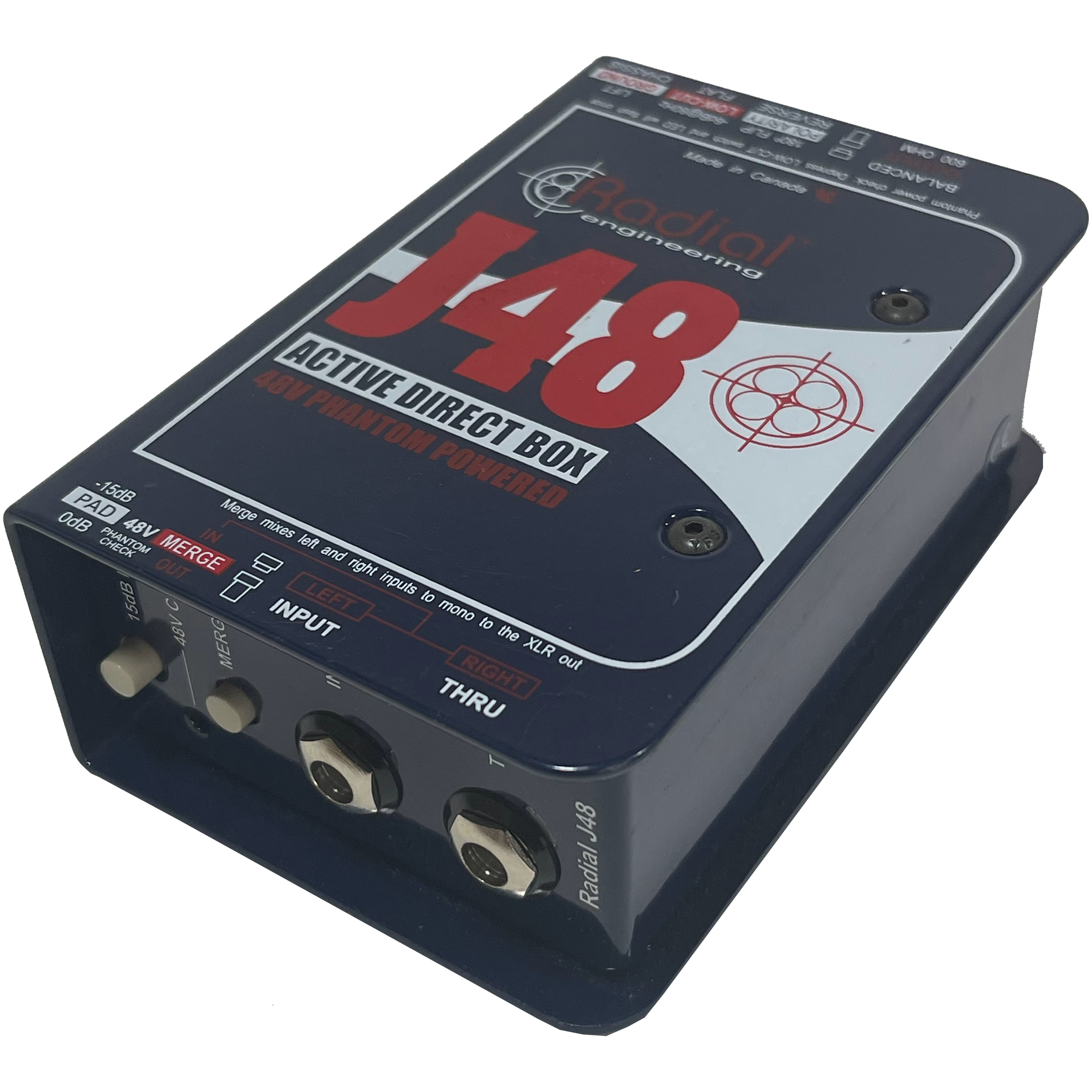

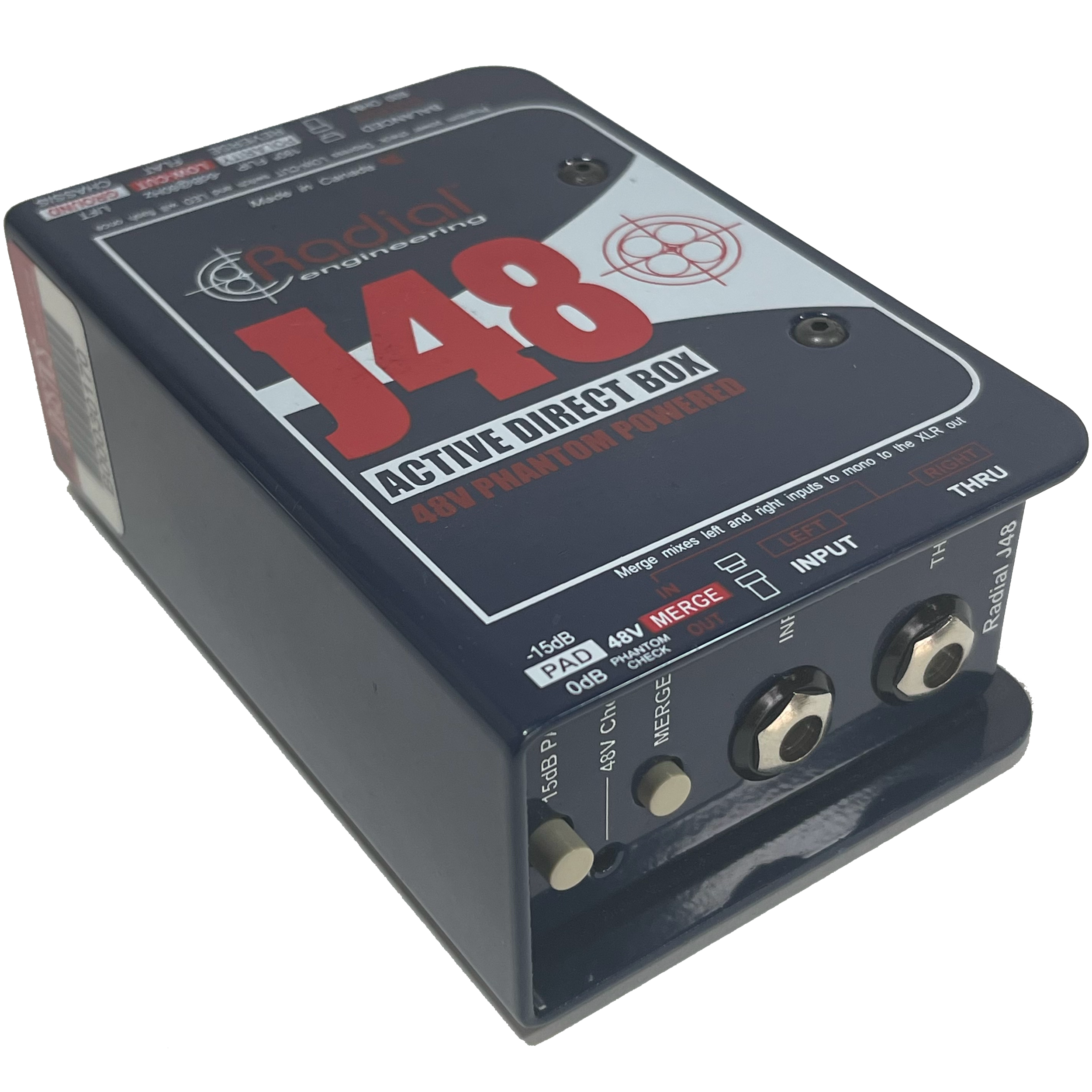

The Radial J48 Premium Active DI is a high-performance direct box designed for professional audio applications. It features 48V phantom power operation, making it ideal for stage and studio environments where maximum headroom and low distortion are essential. The J48 is renowned for its pristine signal transfer, retaining the natural tone of instruments while preventing noise or distortion, thanks to its innovative internal switching power supply. With a frequency response extending from 20Hz to 40kHz, it handles a wide range of signals with clarity, including high-output active basses and acoustic guitars. Its rugged, road-ready construction ensures durability, and features like a -15dB pad, ground lift, and polarity reverse offer versatility in demanding live or recording setups.
FEATURES
    • Ultra low distortion of all types
    • Exceptional headroom & dynamic range
    • Retains instrument's natural sound
    • The perfect DI for bass & acoustic guitar
    • Powered by 48V phantom
SPECIFICATIONS
    • Audio circuit type: Proprietary analog circuit with low-noise op-amp
    • Frequency range: 10Hz ~ 40kHz
    • Frequency response: +0dB /-0.5dB 20Hz ~ 20kHz
    • Signal to noise: 108.4dB @ maximum output
    • Noise floor: -140dB
    • Maximum input: +9 Volts
    • Phase deviation: +10º at 20Hz | 0º at 1kHz | 0º at 20kHz
    • Total harmonic distortion: 0.001%@20Hz | 0.001%@1kHz | 0.002%@10kHz
    • Inter-modulation: 0.002% @ +0dB

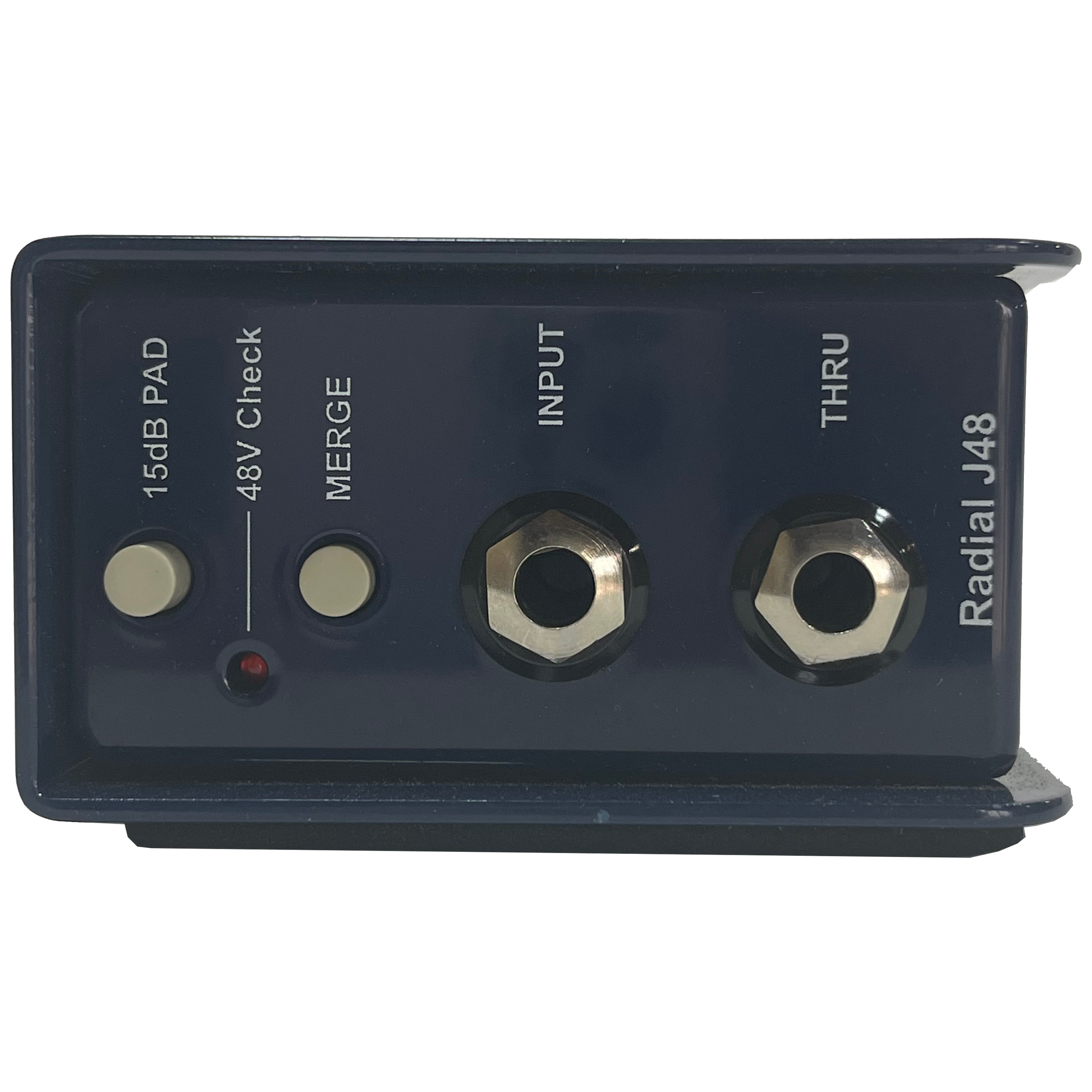

    • Inputs: ¼" jack for INPUT - ¼" jack for THRU
    • Merge function: Stereo to mono mix using the IN and THRU jacks for left and right
    • Input impedance: 220kO at the ¼" INPUT jack
    • Input pad: -15dB

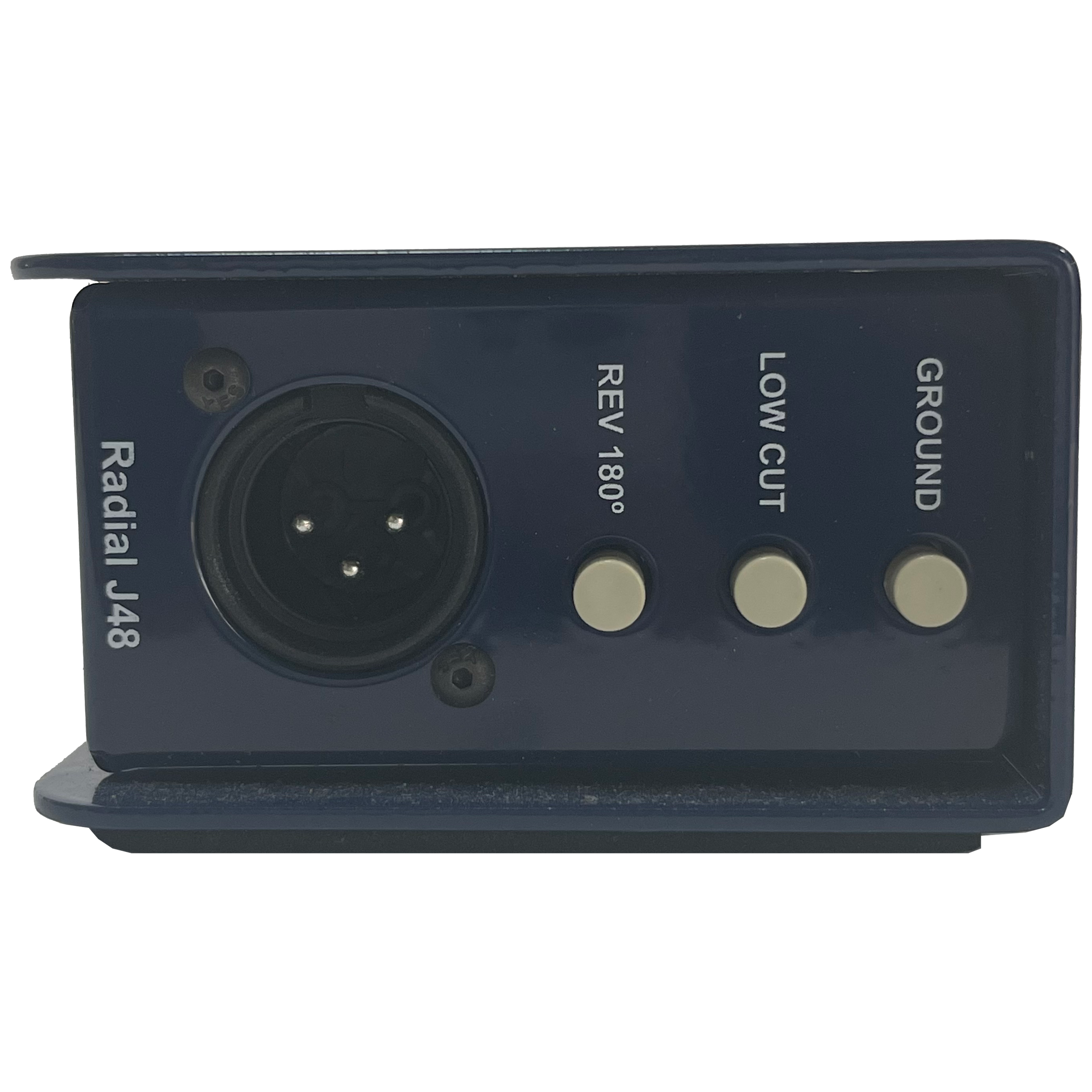

    • Output impedance: 200O - Balanced XLR-M connector
    • Polarity: 180º reverse switch
    • Filter: High-pass filter -3dB@80Hz (Low-cut)
    • XLR configuration: AES standard – pin-1 ground, pin-2 hot
    • Power: 48V phantom - proprietary digital switching
    • Ground lift: LIFT switch - XLR out pin-1
    • Construction: 14 gauge steel chassis and outer shell, baked enamel finish
    • Size: 3.3" x 5.0" x 2" (84 x 127 x 48mm)
    • Weight: 1.55 lb (720 g)
    • FCC approval: Complies with section 15 of the FCC Rules
    • Warranty: Radial 3-year, transferable
CONTENTS
    (1) Radial Engineering J48 Phantom Powered Active Direct Box
