Continue ShoppingRadial JS Mic Splitters

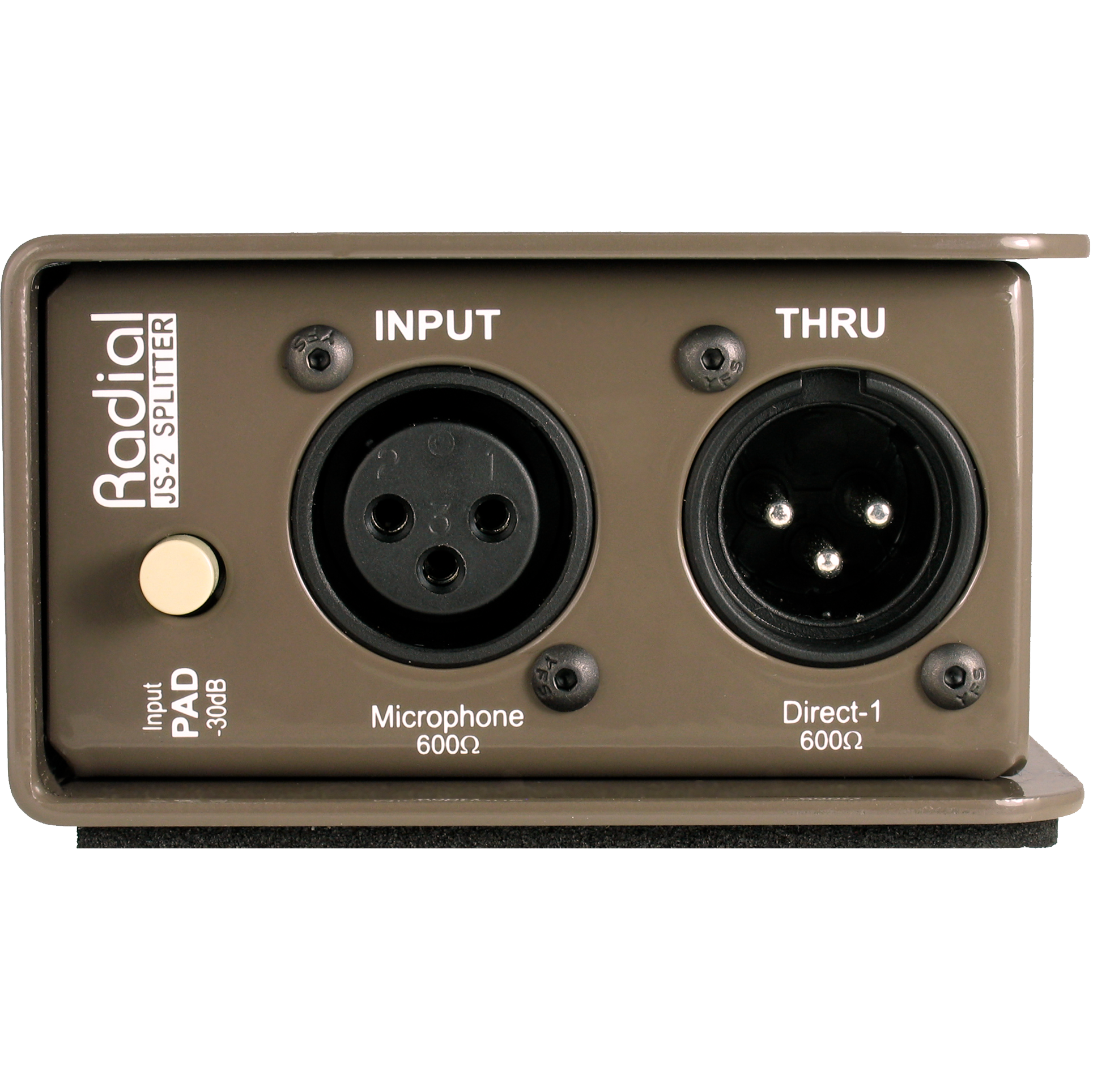

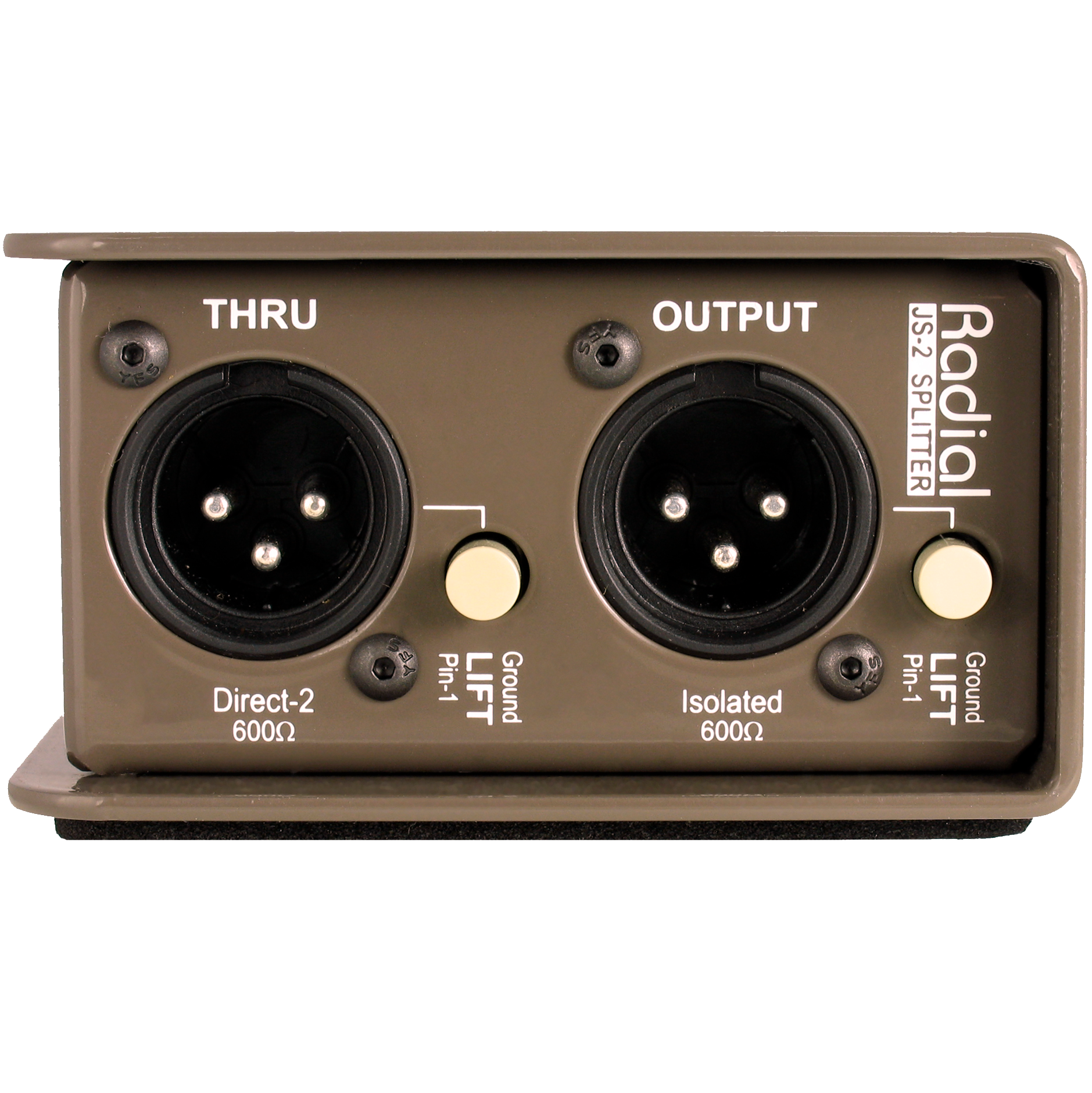

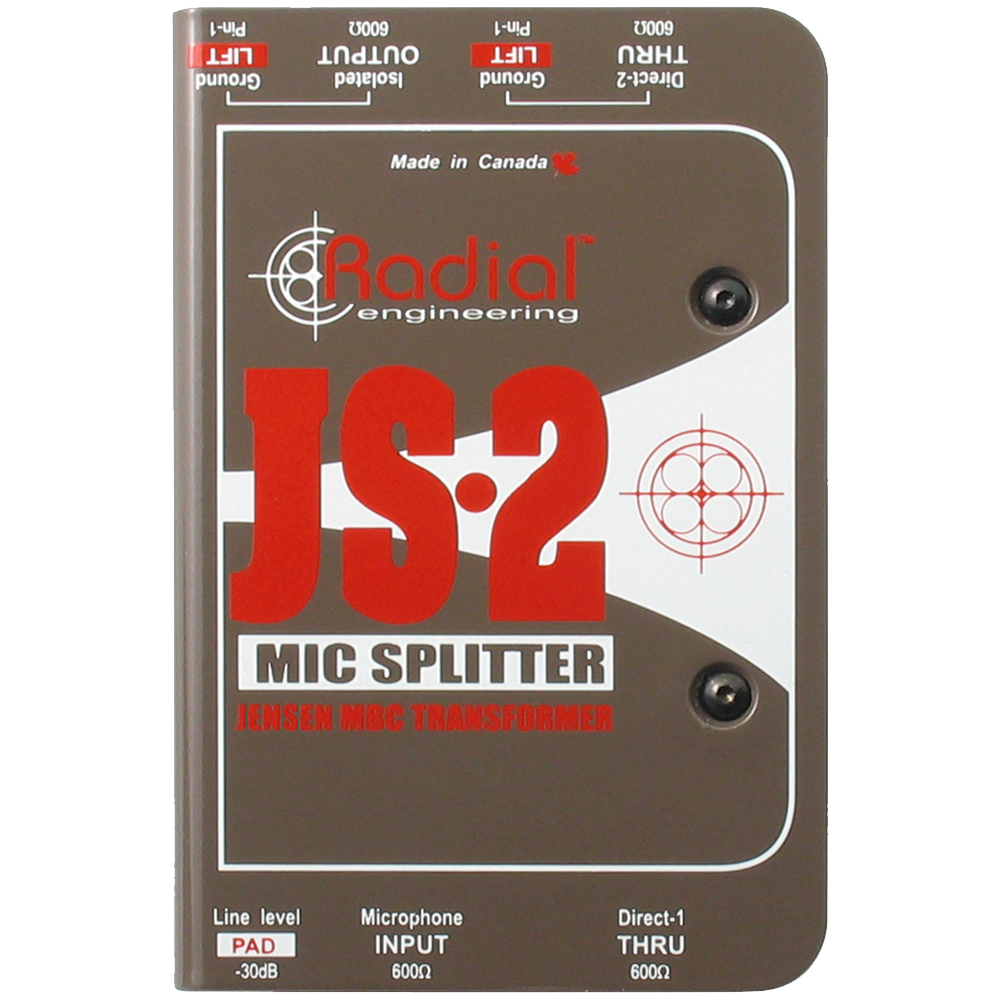

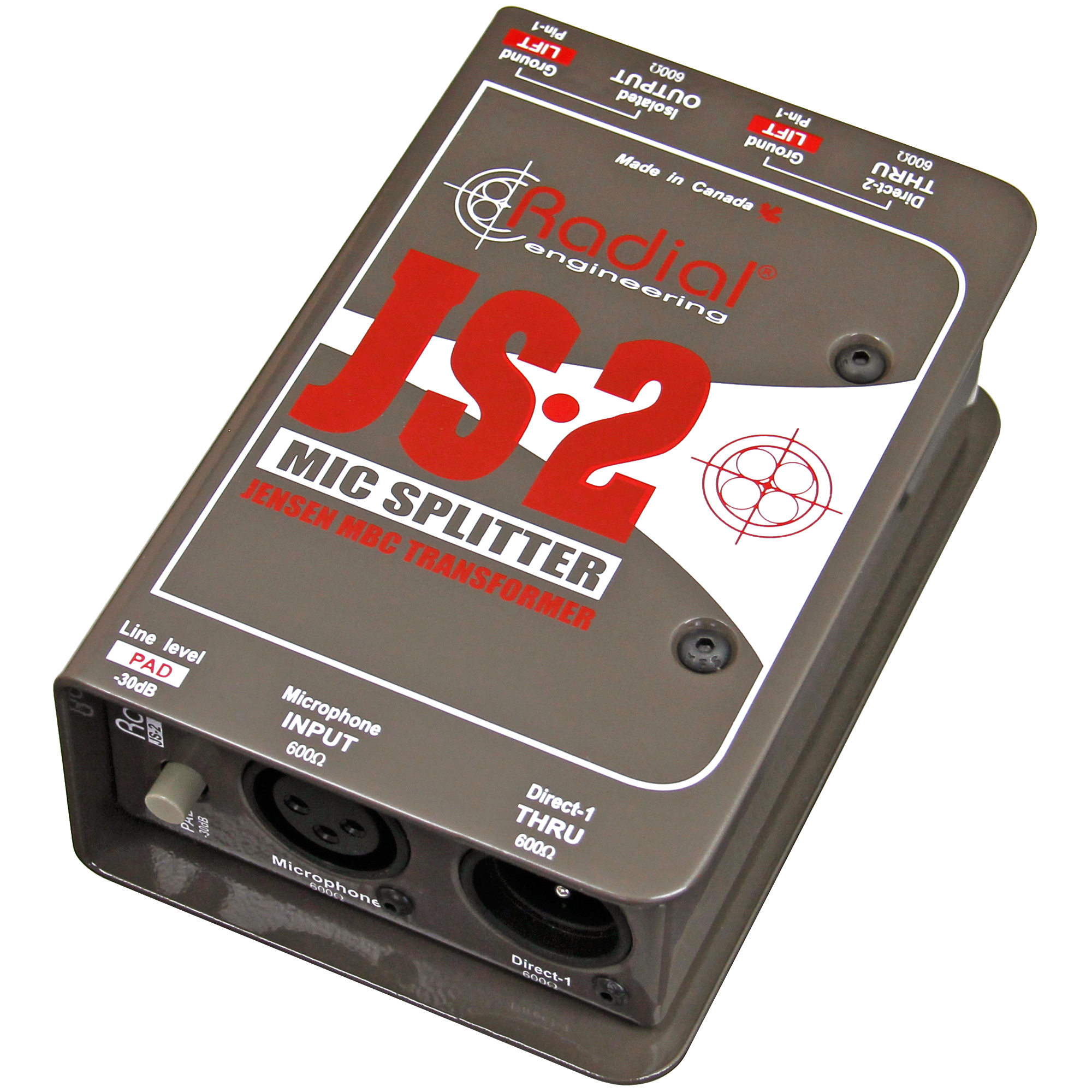

The JS is a professional mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A premium Jensen transformer inside provides galvanic isolation to eliminate buzz and hum from ground loops, while maintaining an extremely wide bandwidth with ultra-low distortion and phase shift. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to connected as well. Both the JS2 and the JS3 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.
Audio circuit type | Passive mic/line splitter, transformer based |
Transformer | JT-MB-CPC, 1:1 ratio |
Number of channels | Three-way splitter (one in/three out) |
Frequency response | 20Hz ~ 20KHz (+0dB/ -2dB) |
Dynamic range | 140dB |
Total harmonic distortion | 0.0005% @ 1kHz |
Phase Deviation | 0.7° @ 100Hz; 2.8° @ 20Hz |
Input Impedance | 2.4k Ohms, unbalanced |
Output Impedance | 150 Ohms, balanced |
Maximum Input | +25dBu @ 1kHz |
