Product SKU
    34718

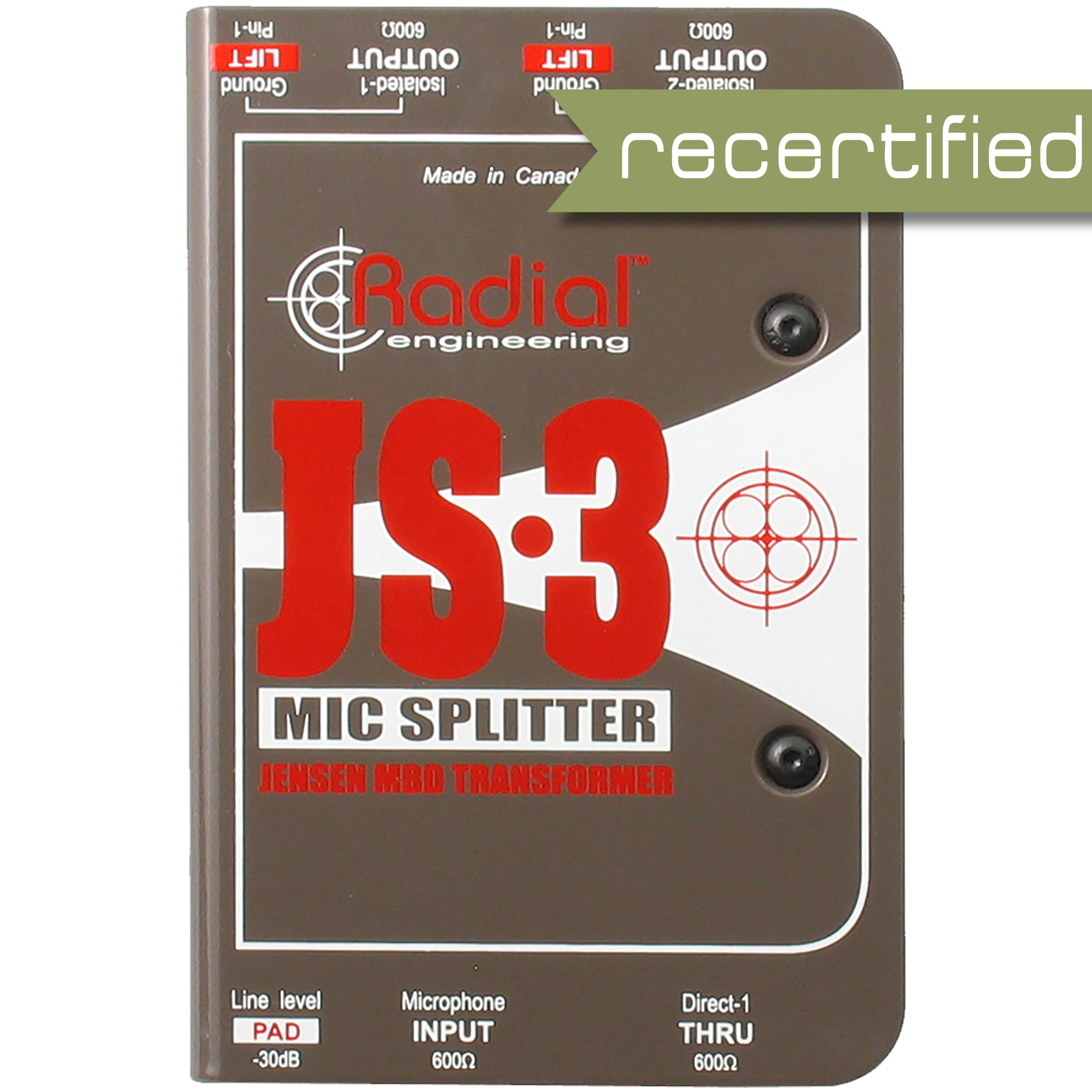

Radial JS3 Microphone Splitter

$269.99

PICK UP TODAY

recertifiedBYFP (1).png__PID:3dfb27ce-5af4-41e0-8bcb-81e313e4a56f
  • Used and Well Maintained
  • Performs Like New
  • 90 Day Guarantee

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The JS3 is a professional mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A premium Jensen transformer inside provides galvanic isolation to eliminate buzz and hum from ground loops while maintaining an extremely wide bandwidth with ultra-low distortion and phase shift. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to be connected as well. Both the JS2 and the JS3 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.

FEATURES
    • Send one microphone signal to three destinations simultaneously
    • Jensen transformer-equipped for exceptional audio quality
    • Eliminates hum and buzz caused by ground loops
    • Dual isolated outputs provide optimal noise rejection
SPECIFICATIONS
    • Audio circuit type: Passive mic/line splitter, transformer based
    • Transformer: JT-MB-DPC, 1:1:1 ratio
    • Number of channels: Three-way splitter (one in/three out)
    • Frequency response: 20Hz ~ 20KHz (+0dB/ -2dB)
    • Dynamic range: 140dB
    • Total harmonic distortion: 0.0005% @ 1kHz
    • Phase Deviation: 0.7° @ 100Hz; 2.8° @ 20Hz
    • Input Impedance: 2.4k Ohms, unbalanced
    • Output Impedance: 2.4k Ohms, unbalanced
    • Maximum Input: +25dBu @ 1kHz
    • Features: Input pad, Ground lift
    • Input Connectors: XLR-F in
    • Output Connectors: Two isolated outputs
    • Construction: 14-gauge steel chassis & outer shell
    • Product Dimensions (L x W x D): 3.3" x 5" x 2"
    • Weight: 1.55 lb
    • Power: Passive, no power required
    • Conditions: For use in dry locations only between 5°C and 40°C
    • Warranty: Radial 3-year, transferable
CONTENTS
    (1) Radial JS 3-Way Passive Microphone Splitter
    (1) User Manual
