Radial power clean surge suppressors give musicians, engineers, producers, studio owners, commercial facilities, and anyone working with valuable electronic equipment protection from power surges that can damage or destroy music equipment instantaneously. Eight rear panel outlets are provided (four with wall-wart spacing to accommodate any PSU size), along with three front panel outlets and a USB charging port to easily power personal devices. A heavy-duty power on/off switch, rugged outlet connectors, and steel construction ensure that the Power-1 performs night after night without fail.
Unlike competitive products that utilize low quality MOV's (Metal Oxide Varistor) for surge protection, both Radial Power units are built using a USA made MOV. This critical component has been proven to offer superior thermal protection and have a much longer lifespan than the alternatives. Both units utilize shunt mode technology and are non-ground contaminating for lower system noise. A high-rejection RF interference filter is used to keep high frequencies and AM radio signals out of the power line, preventing contamination of audio signals.

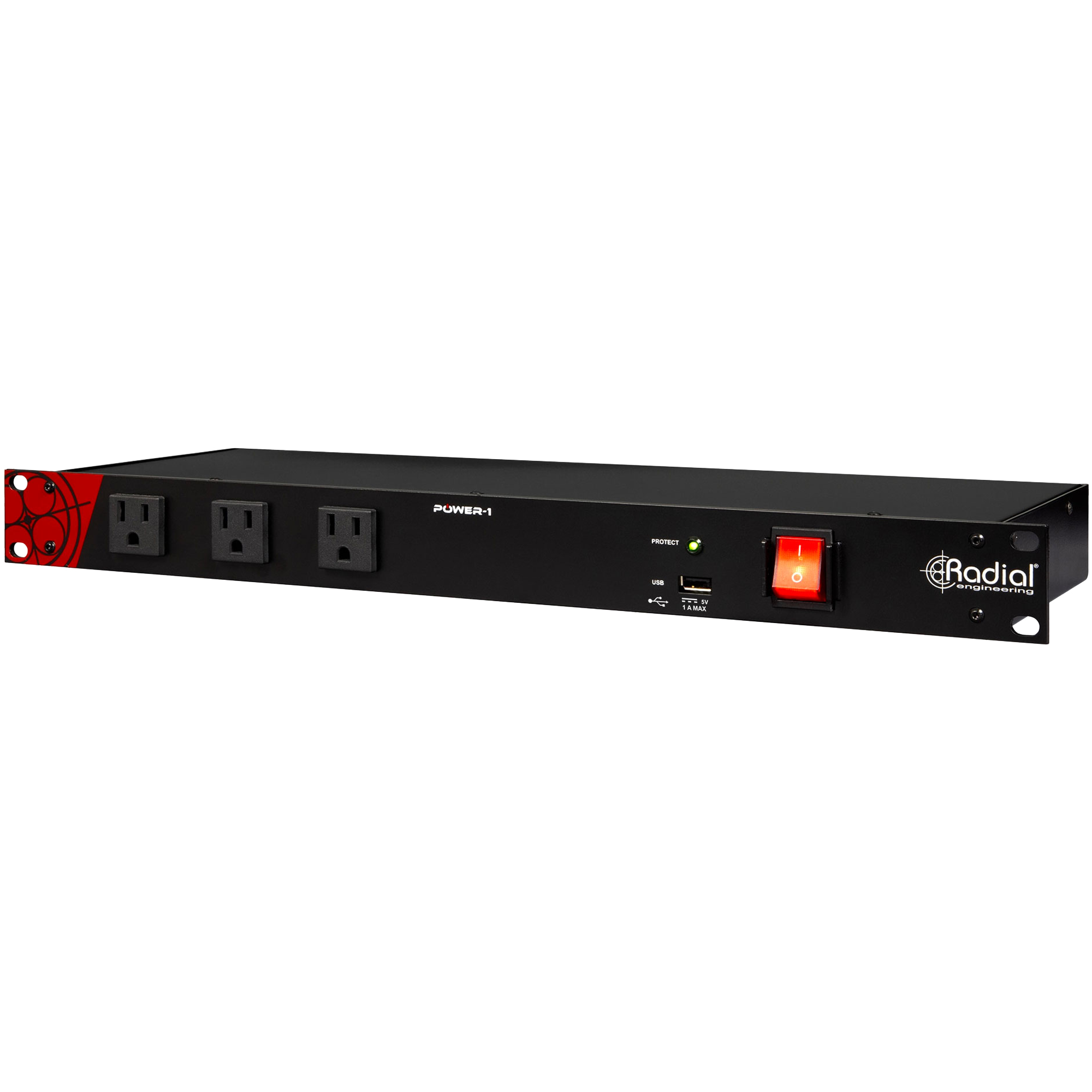

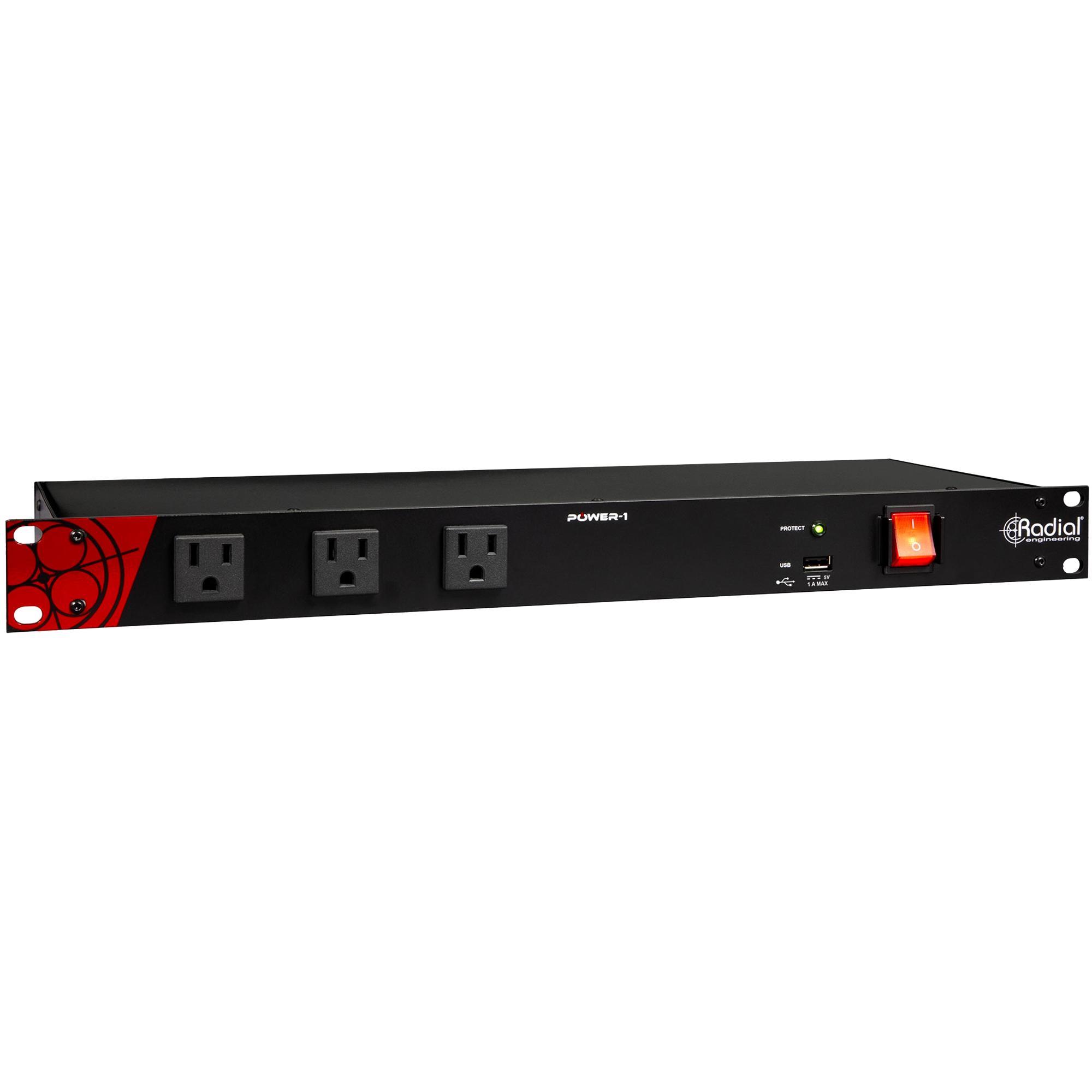

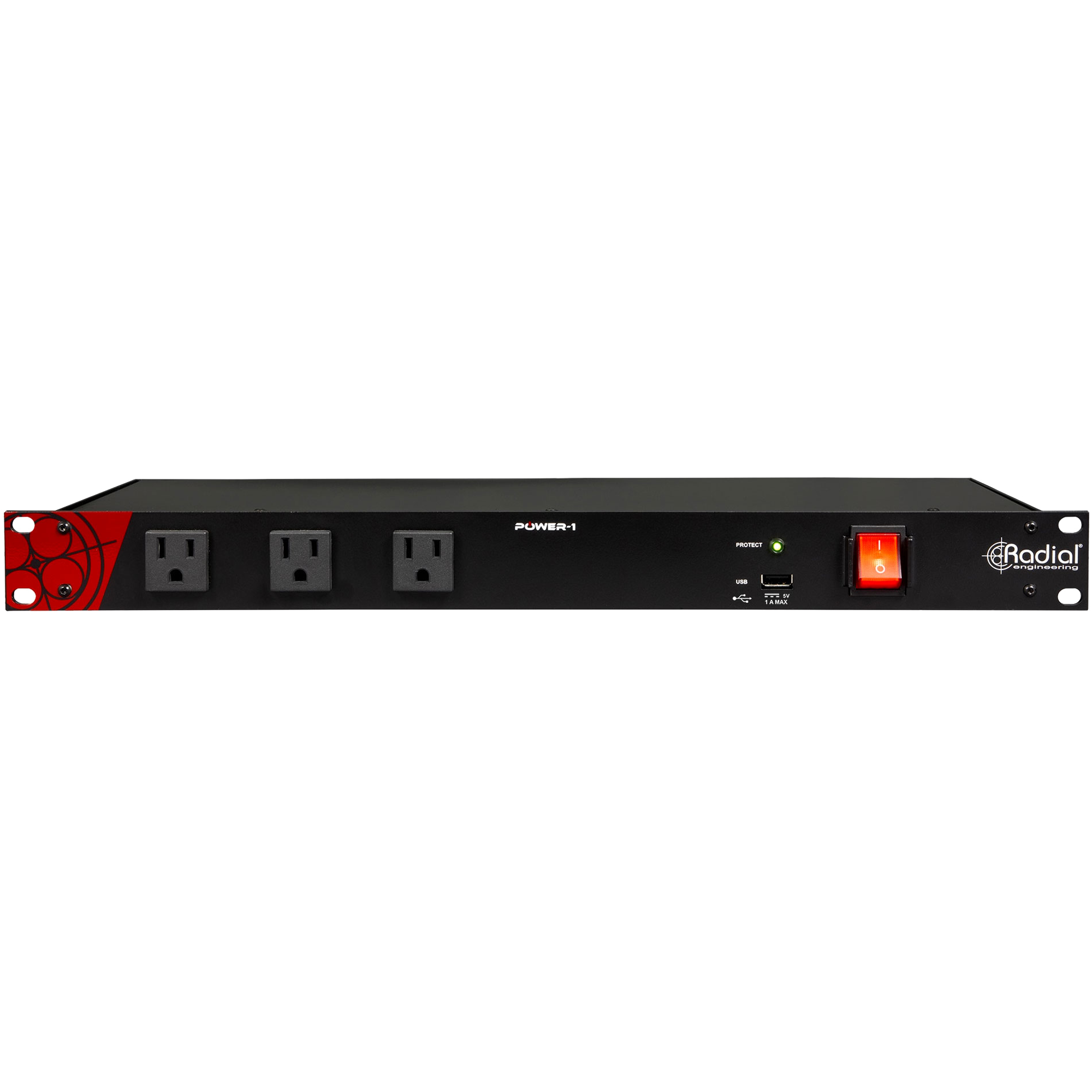

Front Panel Outlets - These outlets will supply power even when the device is switched off, allowing you to easily connect and charge devices without powering on the entire rack.
USB Charging Ports - 5V/1A USB Type-A charging port for mobile devices such as smartphones and tablets
Fault Protection Indicator - This LED illuminates when the Power-1's Metal Oxide Varistor (MOV) is actively working. The MOV is designed to provide continuous protection for your equipment, against varying resistance and high-voltage spikes from the AC main power source.
On/Off - Backlit LED switch, which activates the eight rear panel power outlets
Circuit Breaker - To help prevent damage to the Power-1 and connected devices, the circuit breaker will pop if the load exceeds 15A of current.

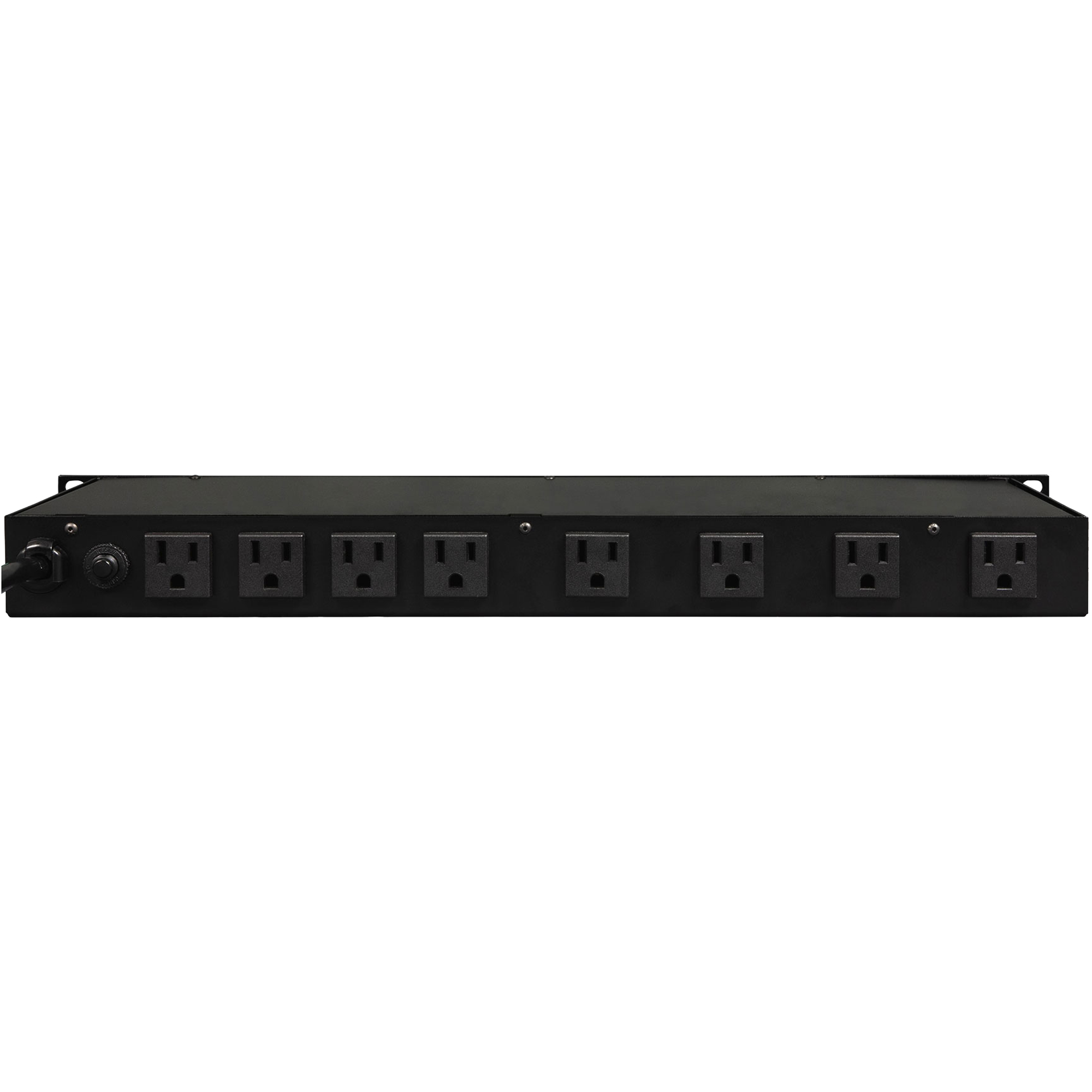

Rear Panel Outlets - The Power-1's eight rear power outlets are controlled by the front panel on/off switch. Four of these include additional spacing between each other to accommodate large 'wall-wart' power supplies
Heavy duty power cable, Approx. 9.5'
IEC Power: 120V, 50/60Hz USB: 5V
IEC Power: 15A total, 15A per outlet USB: 1A
American-made Metal Oxide Varistor (MOV), 15A circuit breake
For use in dry locations only between 5°C and 40°C
Conforms to UL Std 1419, 60950-1 and 60065 in USA, CSA Std 60950-1, C22.2 No. 62368 in Canada
19? x 6.38? x 1.47? (482.6mm x 162.0mm x 37.4mm)
3.1kg (6.5lb) - includes cord
(1) Radial Power-1 Power Conditioner (1) Operator's Instructions
