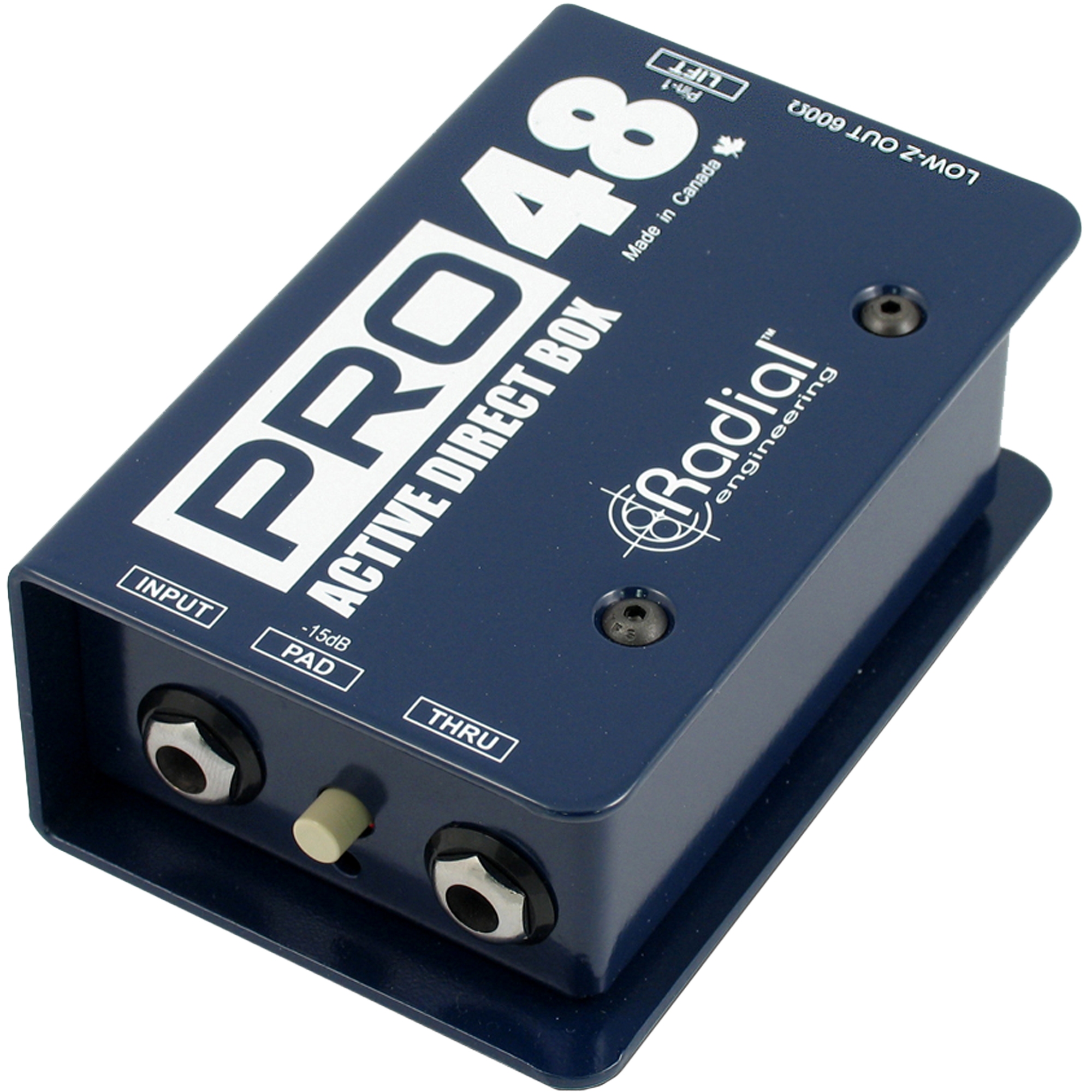

The Radial Pro48 is a high-performance 48V phantom powered active direct box designed specifically for today's higher output instruments.
The Pro48's inovative digital switching power supply significantly increases headroom and allows for less distortion while yielding a smooth, linear response extending from 20Hz to well above 100kHz resulting in natural, uncolored signal transfer. This superior performance makes the Pro48 an ideal candidate for use with today's battery powered active basses and acoustic guitars that tend to overload other direct boxes.

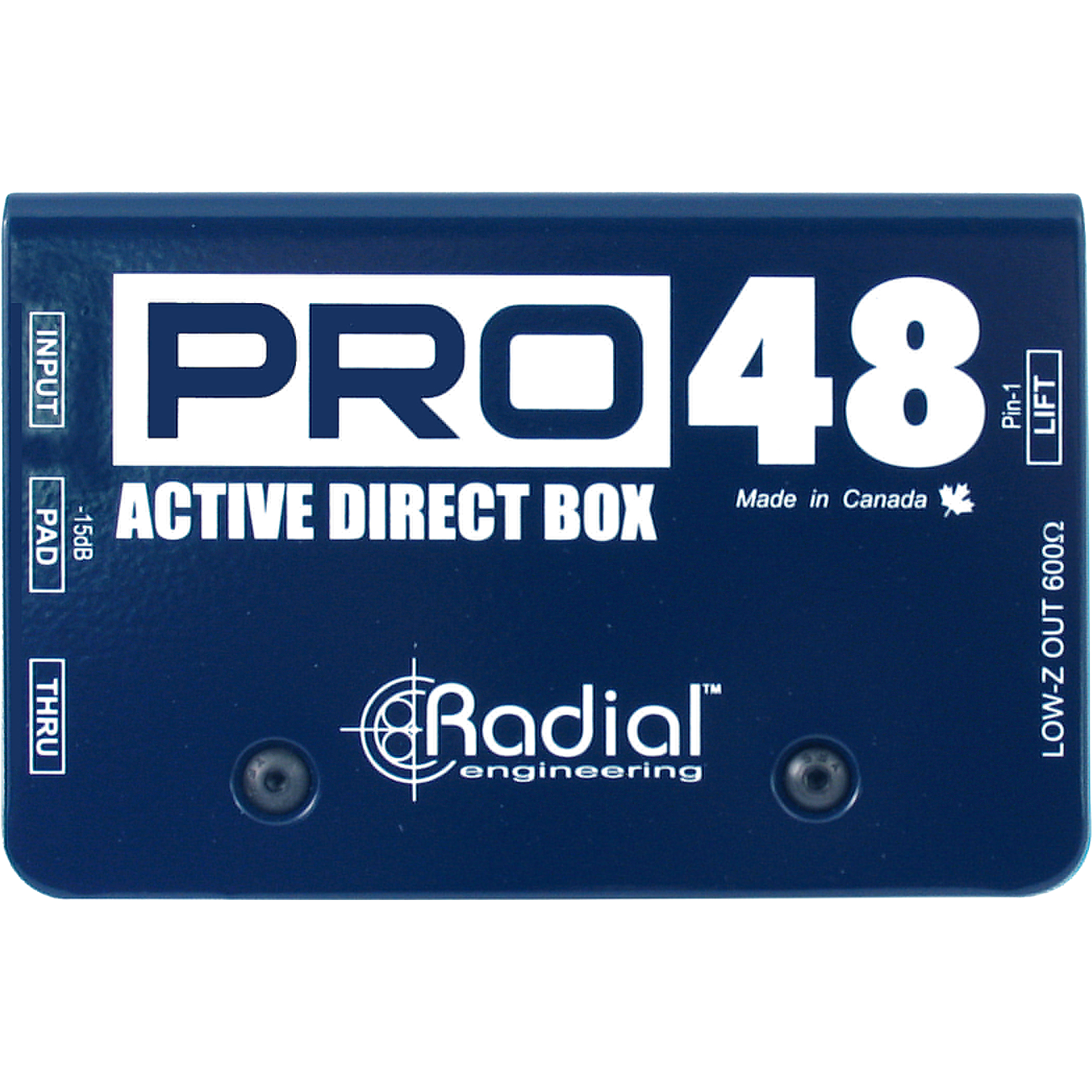

The compact Pro48 is built road-ready with 14 gauge steel in our unique book-end™ design that provides protective zones around the switches and connectors. The internal welded I-beam construction assures outside stress will not torque the PC board thus assuring longer product life.
Exceptional sonic performance, great natural tone at an affordable price; the Radial Pro48 truly represents a breakthrough in value!
High resolution active direct box
Increased dynamic range and headroom
48V phantom powered with digital switching
Compact, rugged book-end design
Ideal for active guitars and basses
Audio Circuit Type
Proprietary analog circuit with low-noise op-amp
Frequency Response
20Hz ~ 20kHz (± 1.5 dB)
Dynamic Range
99dB
Noise Floor
-82dB below 0dBu
Equivalent Input Noise
-86dBu
Maximum Input
+9dBu
Phase Deviation
+28º at 20Hz; +1º at 1kHz; -2º at 20kHz
Total Harmonic Distortion
0.001% @ 0 dBu
Inter-modulation Distortion
0.002% @ 0 dBu
Input Impedance
220 kOhm (1/4" Input)
Output Impedance
600 Ohm (XLR Output)

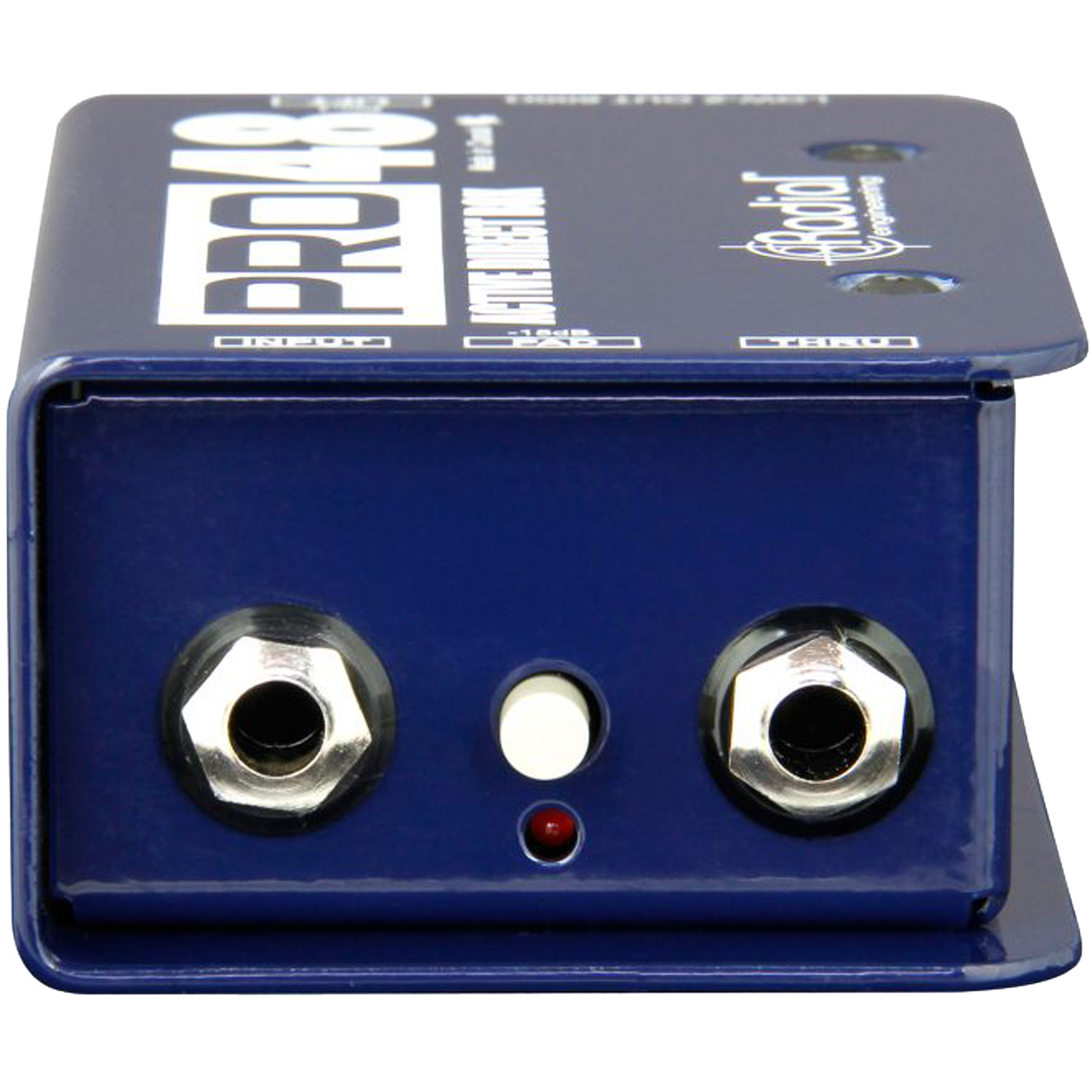

Input Pad
-15 dB
Ground Lift

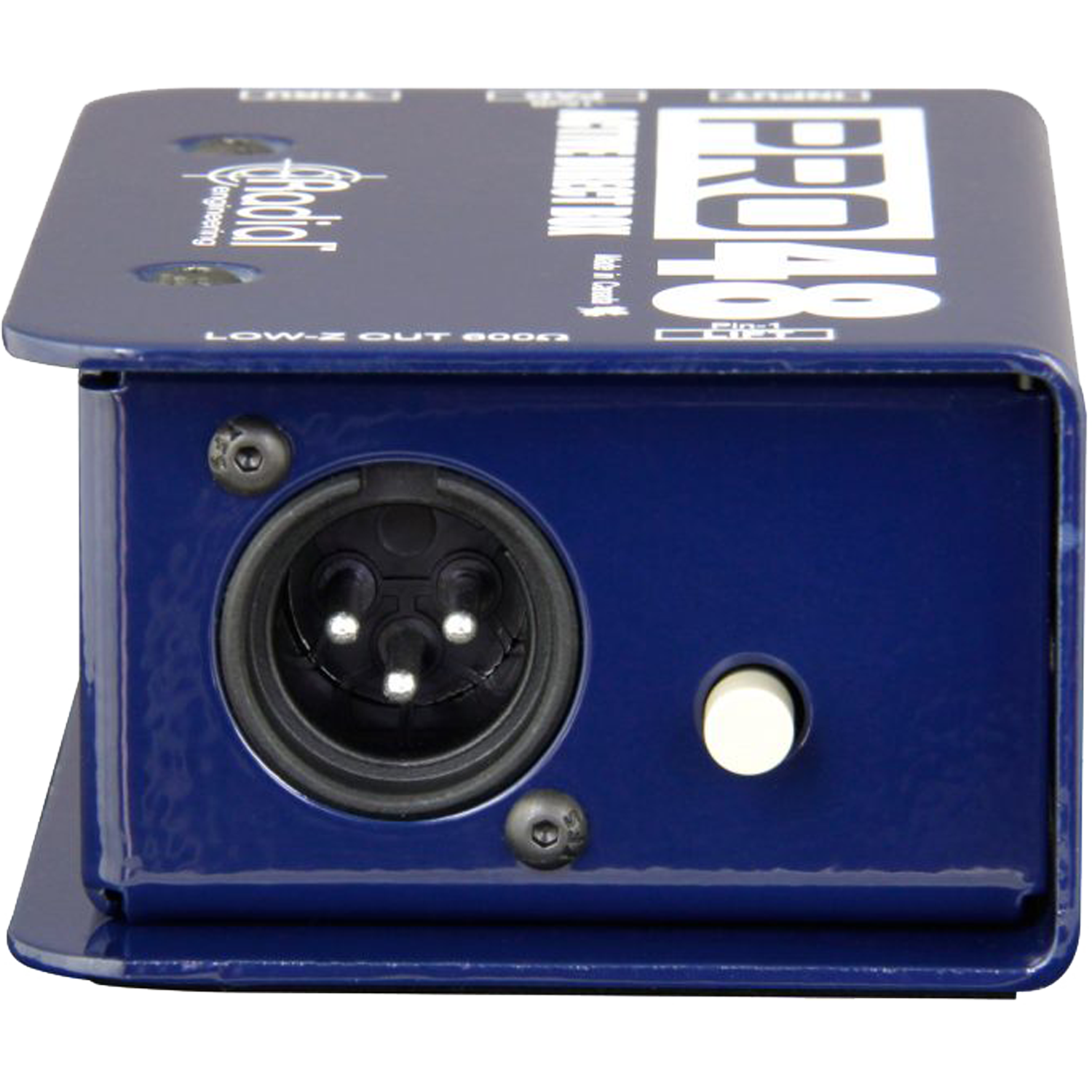

Disconnects pin 1 at XLR output
XLR Configuration
AES Standard (Pin-2 Hot)
Power
48V phantom - proprietary digital switching
Construction
14 gauge steel chassis and outer shell, baked enamel finish
Size
2.75" x 4.25" x 1.75" (70 x 108 x 45mm)
Weight
1.2 lb (544 g)
(1) Radial Engineering PRO 48 Phantom Powered Active D (1) Operator's Instructions
