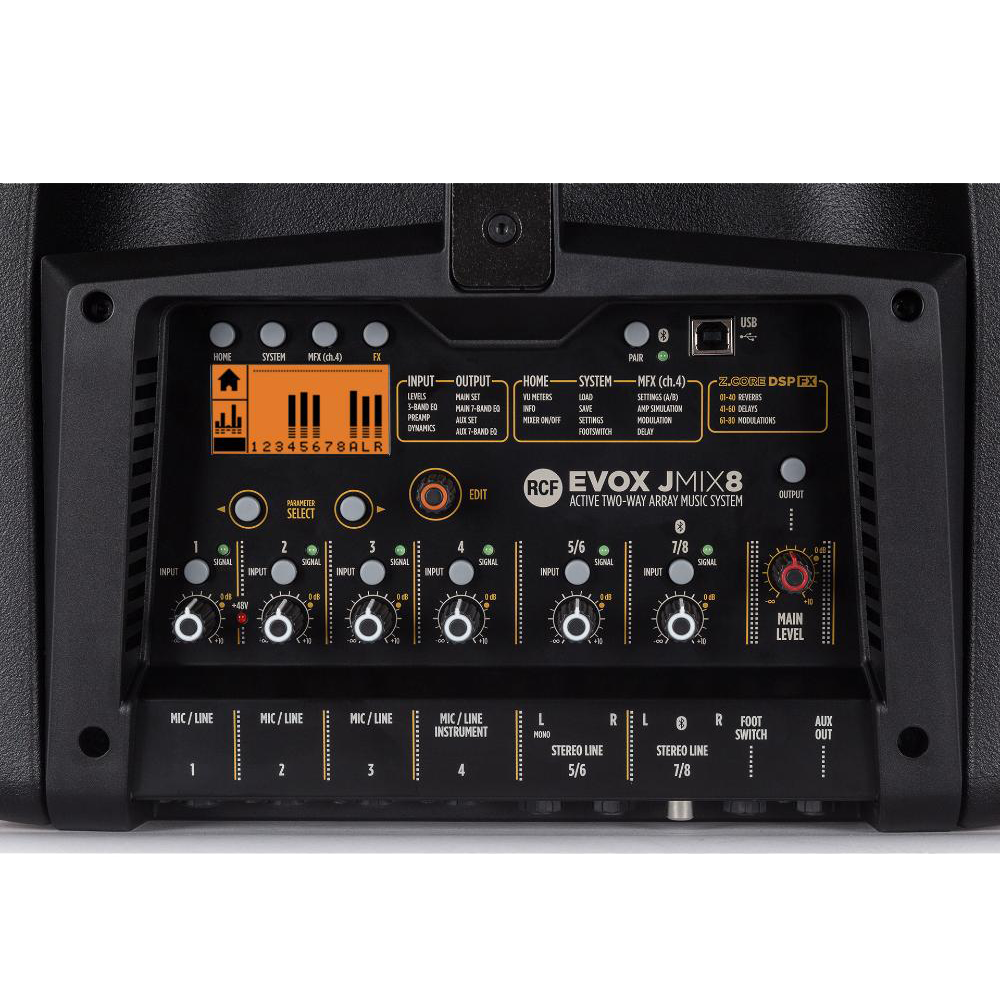

Taking the EVOX J Series one step further, RCF has added an 8-input digital mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows you to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input, the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote-controllable 8-channel digital mixer.

FEATURES
    • 128 dB Max SPL
    • 1400 Watt 2-way power
    • 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
    • DSP Processing with FiRPHASE
    • 12" woofer, high power 2.5" voice coil
    • 8 x 2" ultra compact fullrange 1.0" voice coil
    • 2350 x 350 x 450 mm 92.5 x 13.77 x 17.71 in (HxWxD)
SPECIFICATIONS
    • Frequency Response: 40 Hz ÷ 20000 Hz
    • Max SPL @ 1m: 128 dB
    • Horizontal coverage angle: 120°
    • Vertical coverage angle: 30°
    • Full Range: 8 x 2.0'', 1.0'' v.c
    • Woofer: 1 x 12'', 2.5'' v.c
    • Input signal: bal/unbal
    • Input connectors: XLR, Jack
    • Output connectors: XLR
    • Input sensitivity: -2 dBu/+4 dBu
    • Crossover Frequencies: 220 Hz
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter
    • Controls: Volume, Boost, Mic/Line
    • Total Power: 1400 W Peak, 700 W RMS
    • High frequencies: 400 W Peak, 200 W RMS
    • Low frequencies: 1000 W Peak, 500 W RMS
    • Cooling: Convection
    • Connections: VDE
    • THD+N, 20dB gain, 0dBu out: 0.004% A-Weighted
    • Processing Channels: 8
    • Signal Processing: 32 Bit Floating Point
    • A/D-D/A conversion: 24 Bit @ 48.0 kHz
    • Dynamic range: 108
    • Mic: 4
    • Remote Controlled Storable Gain: Yes
    • Gain Range: 0 dB ÷ 45 dB
    • Input Noise Level: -114 dBu A-Weighted
    • Mic Inputs Impedance: 3 kohm
    • Low Cut: 20 Hz ÷ 1000 ...tput: 1
    • Main Out Impedance: 150 ohm
    • Main Out Level: 19 dBu
    • Aux Out Impedance (ohm): 150 ohm
    • Aux Out Level: 19 dBu
    • D/A Dynamic Range: 108 dB
    • RCF Compressors: 4 mono (6 preset)
    • Input Channels EQ: 1 Semi Parametric / 2 Shelving
    • Description: 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency
    • Description: Graphic 7 Band EQ on Main Mix and AUX send
    • AUX: 1 PRE/POST
    • FX POST: 1
    • Send Effects: 1
    • MultiFX Insert Effects: 1
    • Main OUT processors: 1
    • Play trk: 2
    • Footswitch: Yes
    • Power supply: Internal
    • Safety agency: CE compliant
    • Cabinet/Case Material: PP Composite
    • Handles: 1 Top
    • Grille: Steel
    • Color: Black
    • Height: 623 mm / 24.53 inches
    • Width: 400 mm / 15.75 inches
    • Depth: 460 mm / 18.11 inches
    • Weight: 22.2 kg / 48.94 lbs
    • Package Height: 676 mm / 26.61 inches
    • Package Width: 451 mm / 17.76 inches
    • Package Depth: 581 mm / 22.87 inches
    • Package Weight: 29 kg / 63.93 lbs
CONTENTS
    • (1) RCF EVOX JMIX8 Speaker System
    • (1) Operator's Instructions
    • (1) NL2 SpeakON Cable
    • (1) Power Cable
    • (1) Pole Mount
