Product SKU
    35524

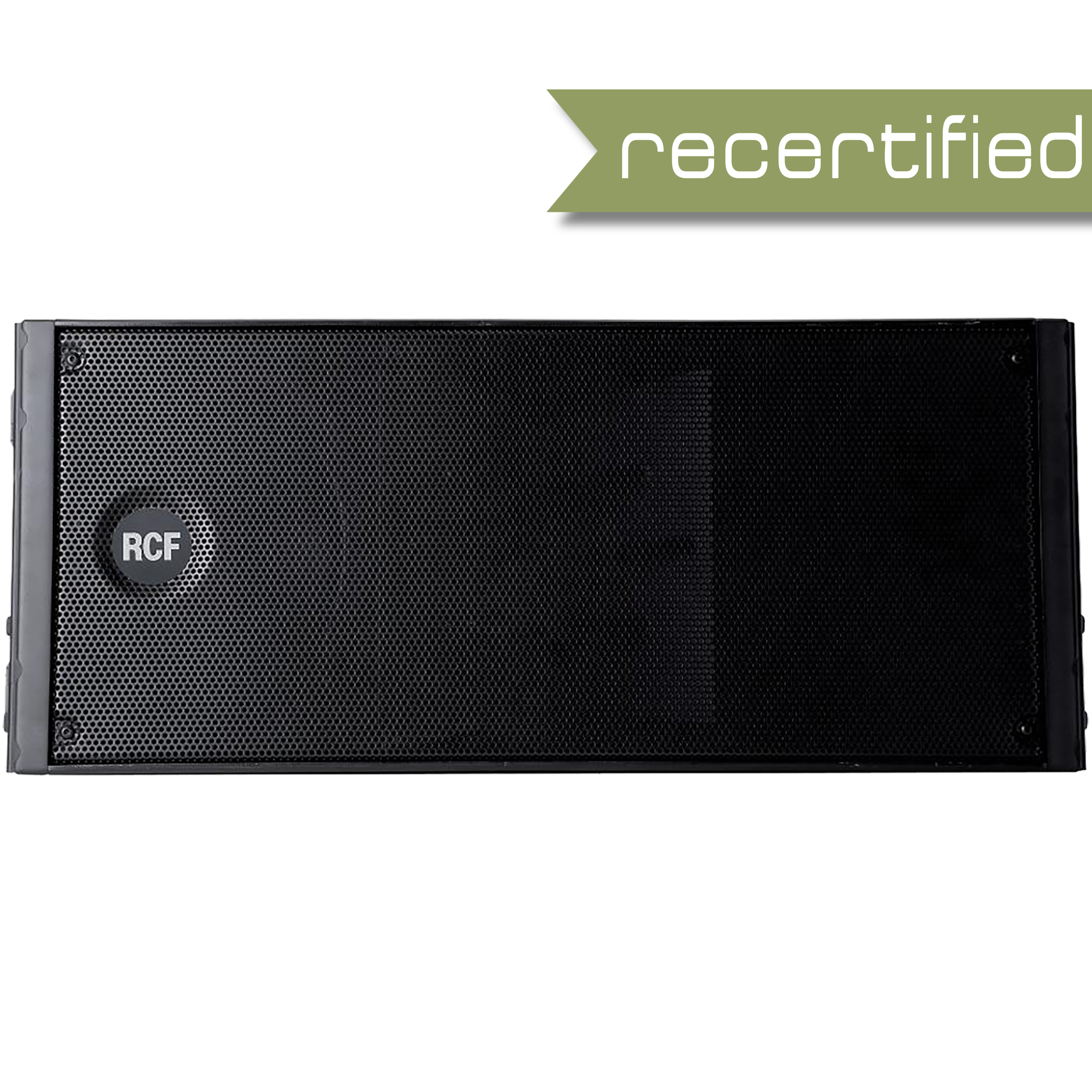

RCF HDL20-A Line Array

$2,599.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The careful acoustic design, no-compromise transducers, and a unique, composite cabinet design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable in installed situations. The HDL 20-A is the ideal choice when line array performance is needed and a fast and easy setup is a must. The system is powered by a 1400-watt peak power 2-way digital amplifier, and sound is processed by a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high-curving situations. The system features state-of-the-art RCF transducers, two powerful 10” speakers for a solid bass reproduction, and a large-format 3” voice coil compression driver to deliver vocal clarity and high definition with incredible dynamics. The HDL 18-AS is the ideal flyable bass complement for the HDL 20-A array system.

FEATURES
    • 1400 Watt Peak power - 700 Watt RMS
    • 135 dB max SPL
    • 55 Hz 20 kHz frequency response
    • 2 x 10" Woofers
    • 1 x 3" Compression Driver
    • DSP controlled Input section with selectable presets
    • Tour grade safe and solid variable mechanics
    • Composite PP enclosure structurally wooden reinforced
SPECIFICATIONS
    • Frequency Response: 55 Hz ÷ 20000 Hz
    • Max SPL @ 1m: 135 dB
    • Horizontal coverage angle: 100°
    • Vertical coverage angle: 15°
    • Compression Driver: 1 x 2.0'', 3.0'' v.c
    • Woofer: 2 x 10'', 2.5'' v.c
    • Input signal: bal/unbal
    • Input connectors: XLR
    • Output connectors: XLR
    • Input sensitivity: -2 dBu/+4 dBu
    • Crossover Frequencies: 800 Hz
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter
    • Controls: Cluster, HF, High curving, Indoor
    • Total Power: 1400 W Peak, 700 W RMS
    • High frequencies: 400 W Peak, 200 W RMS
    • Low frequencies: 1000 W Peak, 500 W RMS
    • Cooling: Convection
    • Connections: Powercon IN/OUT
    • Safety agency: CE compliant
    • Cabinet/Case Material: PP Composite
    • Hardware: Rigging flyware
    • Handles: 2 side, 2 back
    • Grille: Steel
    • Color: Black
    • Height: 294 mm / 11.57 inches
    • Width: 705 mm / 27.76 inches
    • Depth: 445 mm / 17.52 inches
    • Weight: 30.2 kg / 66.58 lbs
    • Package Height: 375 mm / 14.76 inches
    • Package Width: 800 mm / 31.5 inches
    • Package Depth: 500 mm / 19.69 inches
    • Package Weight: 33.2 kg / 73.19 lbs
CONTENTS
    (1) RCF HDL20-A
    (1) Operator's Instructions
