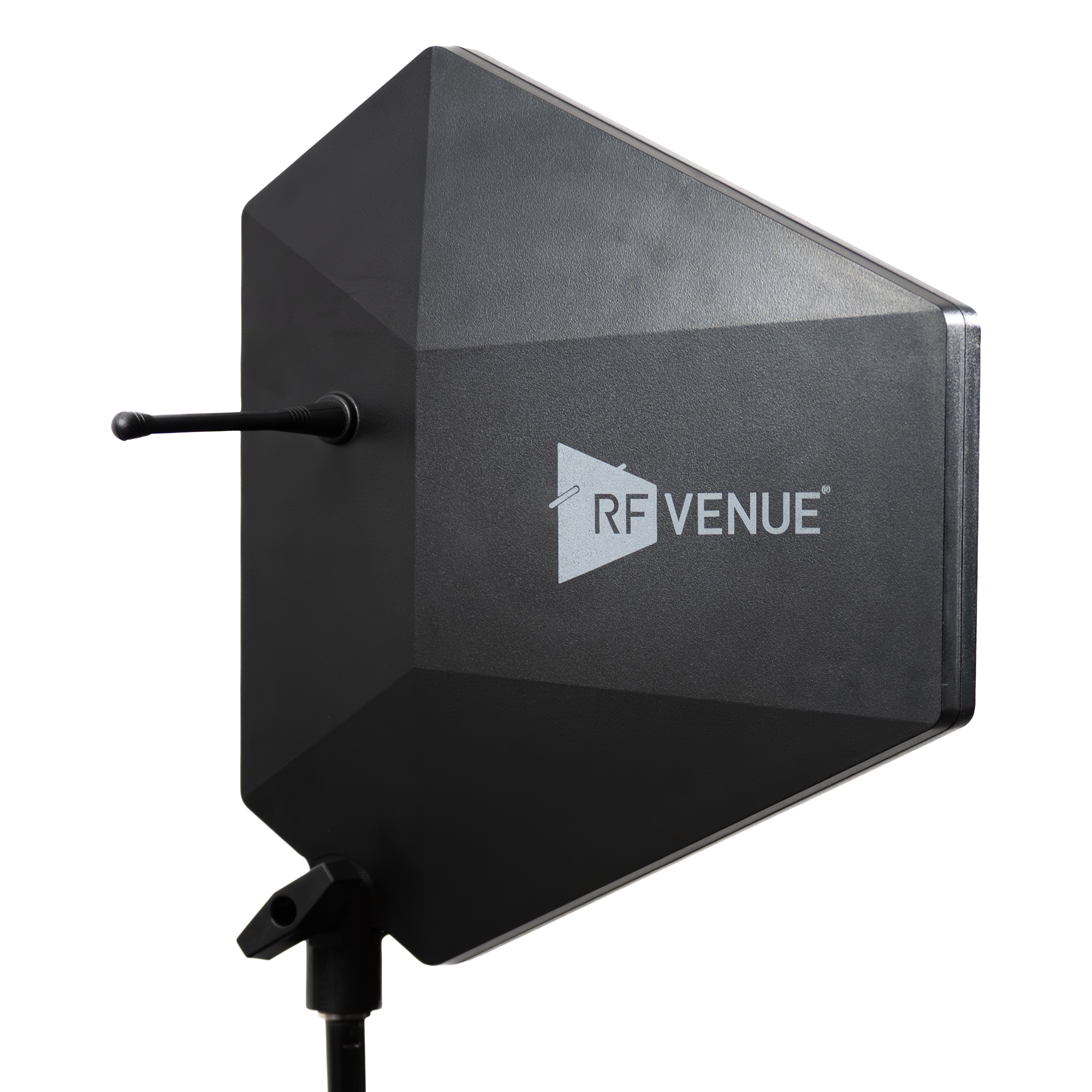

The RF Venue Diversity Fin® IPX Antenna is the next evolution of RF Venue’s industry-standard flagship antenna. Engineered to deliver the same legendary performance as the original Diversity Fin, the IPX version is built to withstand demanding touring conditions and unpredictable outdoor environments.

Designed for touring, rental systems, and permanent outdoor installations, the Diversity Fin IPX provides consistently reliable wireless microphone performance by minimizing multi-path interference and signal dropouts. Its rugged IP-rated housing combines a log-periodic dipole array (LPDA) and dipole antenna into a single enclosure, enabling the antenna to capture both vertical and horizontal RF signals.

The Diversity Fin IPX operates across a wide frequency range of 470–928 MHz, covering North American UHF bands (470–698 MHz) and the 902–928 MHz ISM band.

For optimal performance, position the antenna edgewise with the narrowest part aimed toward the wireless microphones. The left side of the antenna features labeled LPDA and Dipole BNC outputs, which should both be connected to a wireless microphone receiver or antenna distribution system to achieve true diversity operation. Maintaining clear line of sight between the antenna and wireless microphones is recommended for best results.
