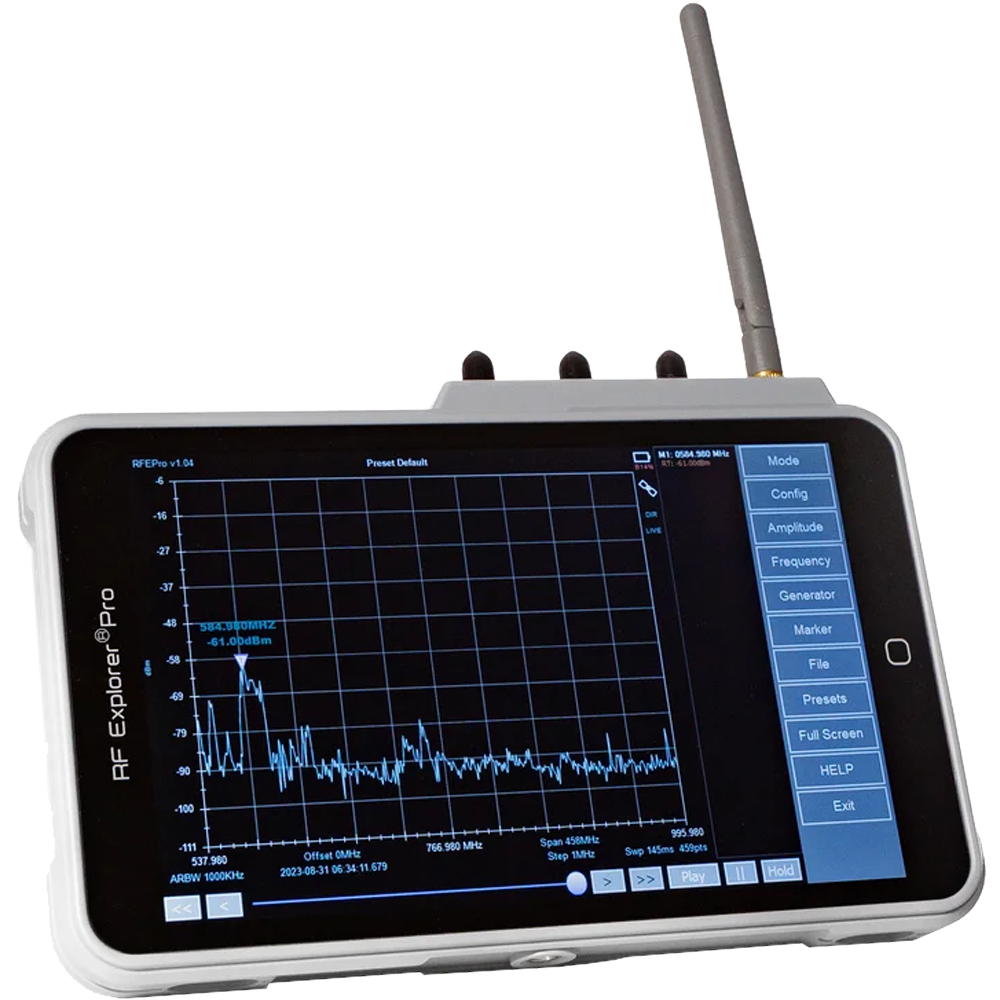

RF Explorer® Pro is a 3rd generation, high-performance 6 GHz spectrum analyzer and tracking generator for wireless audio system design, deployment, and monitoring.
FEATURES
-
• 3rd Generation Spectrum Analyzer: Features an advanced touch screen, high-resolution display, and state-of-the-art RF electronics for precise sweep spectrum analyzer scans.
• Wideband Design: With the ability to resolve 8GHz band detection events in just 100uS, our device ensures accurate and fast detection across a wide frequency range.
• Advanced Power Meter: Enjoy continuous and trigger modes for precise power measurement and analysis. The Trigger mode of this instrument enables the accurate capture of pulse and fast events that may be challenging to capture using other methods.
• Tracking Generator: This feature allows for rapid diagnostics and characterization of cables, filters, and amplifiers. When combined with a directional coupler, it can measure impedance and characterize antenna VSWR.
• Configurable Radio Standards: Easily configure channel measurements to match your specific radio standards, ensuring compatibility and accuracy.
• Integrated Internal Preamplifier LNA and Attenuators: Includes an integrated preamplifier LNA and attenuators, significantly increasing the dynamic range and enabling handling of low-level and high-level RF signals.
• Cable Tester: Perform instant and easy checks of RF cables of any length, ensuring their proper functioning.
• Heatmap Coverage Map: Utilize the external GPS assistance and internal manual operation to measure signal strength on the go, creating a heatmap of coverage areas.
• Frequency Coordination: Advanced frequency coordination tailored for A/V, wireless microphones, and inear monitors, this feature minimizes interference and intermodulation, and provides continuous monitoring.
• WiFi Analyzer: It offers the capability to detect signals present on any 2.4/5.8GHz band channel, enabling accurate identification of interference, collisions, and noise in WiFi environments.
• Record/Save/Replay Spectrum Data: Automatically save scan data on RAM for easy replay of any event. Additionally, the data can be manually or automatically saved in binary and CSV formats for later use.
• Continuous Monitoring and Alerting: Stay informed with reliable alerts, including configurable limit lines, to ensure you never miss critical events.
• Export Data to WSM/WWB6/Excel/Matlab: Seamlessly export all captured data to a USB drive for use in other software applications such as WSM, WWB6, Excel, or Matlab.
• Remote Network Control: Easily manage your RF Explorer Pro over any network. Just connect using a USB-to-Ethernet adapter and set up via VNC. Whether you're using a computer or a mobile device, any brand or model will allow you to monitor and control your system remotely.
• HDMI Output: Connect the RF Explorer Pro to an external display for monitoring RF performance in real time during an event. This is also useful for system configuration and testing to gauge wireless microphone or in-ear monitor coverage range.
SPECIFICATIONS
-
Spectrum Analyzer:
• Frequency range: 15MHz to 3.3GHz (baseline), 15MHz to 6.1GHz (license 6G) and 15MHz to 7.5GHz (license 7G)
• Frequency Span: 0 (zero span), 500KHz to 6GHz (sweep)
• RBW: 3Khz – 2.5MHz (Future firmware upgrade will enable 100Hz – 2.5MHz)
• VBW: Automatic
• Low Frequency Support: 100KHz – 240MHz with external RF Explorer Upconverter module
• Frequency resolution: 1KHz (Future firmware upgrade will enable 100Hz)
• Sweep Time: 3GHz / 280ms With RBW 2.5MHz
• Sweep Points: 512-65,000
• Frequency stability (typical): TCXO ±0.5ppm
• Amplitude stability and accuracy (typical): ±1.5dB
• Factory Calibration: 3K reference points
• Frequency accuracy (Internal reference): TCXO ±1ppm
• Aging Displayed Frequency accuracy: ±1ppm/year
• Amplitude resolution: 0.5dB (Future firmware upgrade will enable 0.25dB)
• Dynamic range (Depending on RBW and Band): Direct: -110dBm to +10dBm, Preamplifier LNA: -130dBm to -30dBm and Attenuator: -80dBm to +33dBm
• Absolute Max input power: +33dBm internal Attenuator selected
• Display Average Noise Level: -130dBm (typical LNA)
• Noise Floor: -160dBm/Hz (typical LNA)
• WiFi Analyzer: 2.4Ghz / 5.8GHz
• CPU: Advanced Intel 64bits
• DSP: High Performance Dual, DSP 32bits+16bits
• Save/Replay: 100,000 Sweeps on Memory, Unlimited Sweeps on File
• File Export: Compatible CSV and Binary formats (Suitable for WSM/WWB6/Excel/Matlab)
Wideband Power Meter:
• Frequency range: 10MHz to 8GHz
• Dynamic range (Depending on RBW and Band): Direct: -60dBm to +10dBm, Preamplifier LNA: -130dBm to -30dBm and Attenuator: -80dBm to -10dBm
• Operational Modes: Continuous, Trigger
• Event Detection: 100uS
• Samples: 2-1024 Trigger Samples, 100,000 Captures on Memory
• Amplitude resolution: 0.25dB
• Amplitude stability and accuracy (typical): ±1.5dB
• Factory Calibration: 1K reference points
Signal Tracking Generator:
• Frequency range: 24MHz to 6GHz (shared license with spectrum analyzer mode)
• Frequency step/resolution: 1Khz
• Frequency stability (typical): TCXO ±0.5ppm
• Output power accuracy: Typical ±3dB
• Output power stability: Typical ±0.5dB
• Output amplitude settling time: 500uS
• Factory Calibration: 1K reference points
• Frequency accuracy (internal reference): TCXO ±1ppm
• Output power range (nominal): -40dBm to -30dBm in 3dB steps, -10dBm to 0dBm in 3dB steps
• Operational Modes: CW, Tracking SNA, Frequency Sweep (future firmware) and Amplitude Sweep (future firmware)
• Harmonics: Typical < -10dBc
• Spurious: Typical < -50dBc
• Frequency Sweep settling: < 5ms
• Amplitude Sweep settling: < 500uS
• Sweep hops range: unlimited
• Tracking Speed: >500pts/sec
Electrical and Mechanical:
• Remote Display: VNC Compatible
• Video Output: Micro HDMI port
• USB: Type A USB 3.0
• Network: Ethernet with USB adapter (Adapter Not Included)
• Remote Control: VNC multiplatform free viewer
• Audio: Internal Speaker, Audio Jack 3.5mm
• Micro SD card: Up to 64GB (SD Card Not Included)
• Operating temperature: 5-35C
• Operating humidity: Max 90%
• Connector type: SMA 50 ohms
• Display Technology: Anti-glare 8” IPS TFT, Capacitive Touchscreen
• Display Resolution: 1280x800 pixels, 16.7M color
• Display Luminance: 250 cd/m2
• Display Contrast ratio: 800:1
• Viewing Angle: 85 deg
• Weight: 570 g
• Size: 215 x 140 x 25 mm
• Charge: USB-C 5VDC 2A (Charger Not Included)
• Charge Time: 3hs
• Internal Battery: Lithium Ion 4500mAh
• Battery Lifetime: 3.5 – 5hs (Depending on operational mode)
• Holder: Back Removable Holder
• Tripod Support: Compatible with standard 1/4-20 Camera tripod
• Certification: CE/FCC/RoHS/MSDS
CONTENTS
-
(1) RF Venue RF Explorer Pro
(1) UHF Antenna: 400MHz-900 MHz (Gray)
(1) Wideband Antenna: 900MHz-6GHz (Black)
(1) User's Manual
