Continue ShoppingRoland SR-20HD Direct AV Streaming Mixer
The Complete All-In-One Switching and Streaming Solution
Powerful, portable, and simple to operate, the SR-20HD Direct Streaming AV Mixer makes it easy to manage the modern livestreaming requirements of your business or organization. No computer is required, and everything needed to switch and stream is integrated into a single unit that anyone can use with minimal training. When consistency, dependability, and network security are top priorities, the SR-20HD delivers professional results every time.
Built for Success
The SR-20HD is designed to make everyone successful with livestream operation and management, regardless of experience. It combines an easy-to-use video switcher, audio mixer, preview screen, recorder/player, and streaming encoder in one unit, simplifying the process and reducing points of failure.
Plug In and Stream

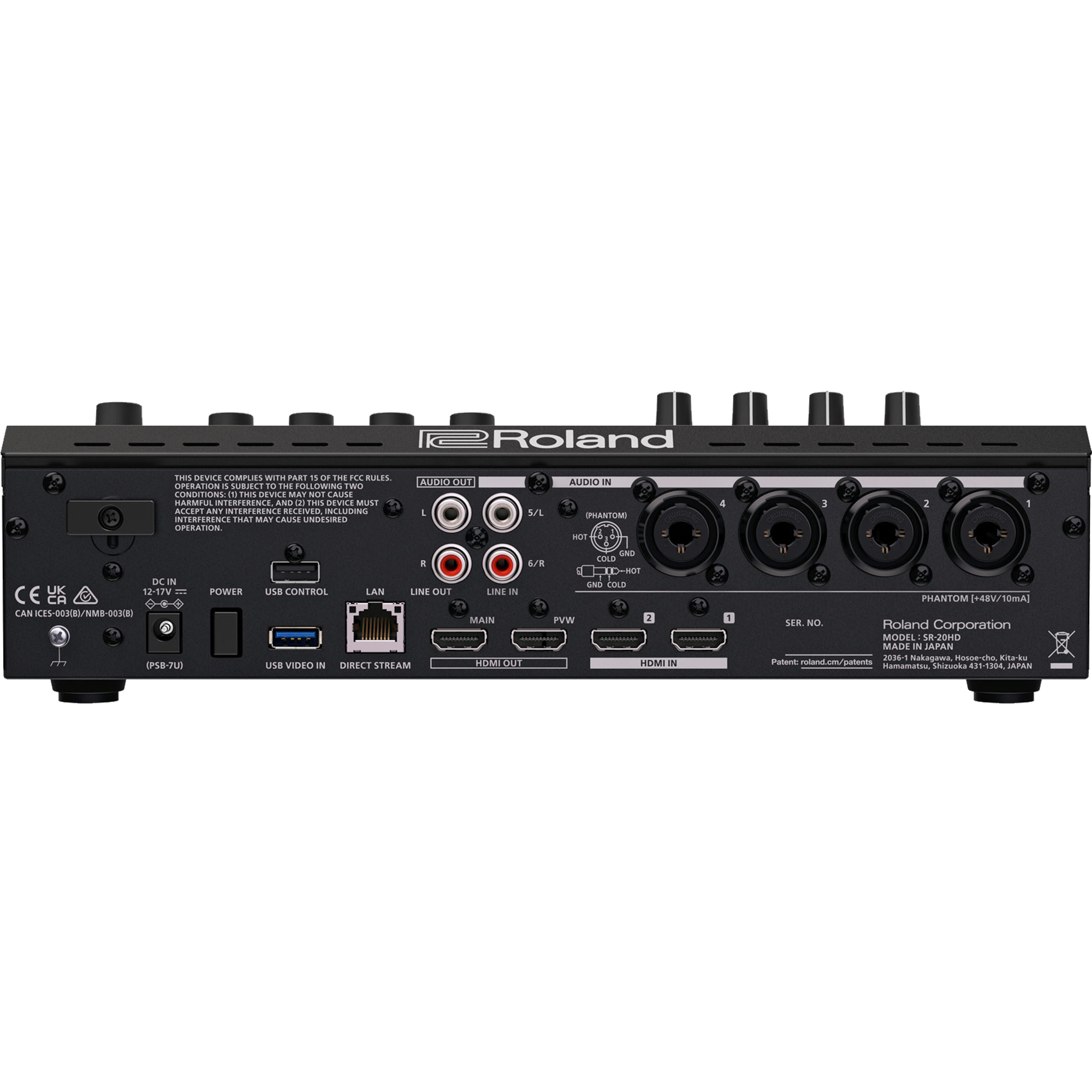

Using the two HDMI inputs, you can connect common video sources such as cameras, smartphones, tablets, and computers running presentation software. In addition, a wide range of audio inputs are available for mics, music players, electronic musical instruments, and more.
Once everything is plugged in, simply connect to your network router and begin livestreaming with team members, clients, or students on Facebook, YouTube Live, Twitch, or by RTMP to your CDN.
Secure and Reliable Operation
Packed with advanced Roland A/V technologies, the SR-20HD reduces the need for technical support and experienced staff members. Automatic functions run in the background to eliminate dropped streams and help protect your organization from broadcasting inappropriate content. And since all streaming tasks are handled within the SR-20HD, there’s no risk of malware and other issues that come with computer-based streaming on your enterprise network.
Video Processing | 4:2:2 (Y/Pb/Pr), 8-bit |
Input Formats | 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz), WXGA (1280 x 800/60Hz), FWXGA (1366 x 768/60Hz), SXGA (1280 x 1024/60Hz), |
Output Formats | HDMI OUT MAIN, PVW connectors: 1080/59.94p, 1080/50p * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz). |
Stream and Video Recorder Formats | |
File Format | MP4 |
Codec | H.264, target bitrate up to 20,000 kbps AAC LC 48kHz 16bit Stereo, target bitrate up to 384k bps |
Video Player File Format | MP4 (H.264, AAC), Average bit rate of 10,000 kbps or less, Maximum 1080p29.97 |
USB Video or Audio | |
USB Video | Maximum 720p29.97, Uncompressed (YUY2) |
USB Audio | Linear PCM, 16 bit/48 kHz, stereo |
Still Image | |
PNG File (.png), | Maximum 1920 x 1080 pixels, 24-bit color |
JPEG File (.jpg .jpeg), | Maximum 1920 x 1080 pixels, 24-bit color |
Video Effects | |
Scene | Picture in Picture, Split, Picture by Picture |
Transition | Black fade, Mix fade |
Key Composition | Luminance key, Chroma key |
Other | Output fade, Test pattern output, Stream Delay |
Audio | |
Audio Processing | 24 bits/48 kHz |
Audio Formats | HDMI |
IN/OUT connectors | Linear PCM, 24 bit/48 kHz, stereo Audio Effects Delay, High Pass Filter, Gate, Compressor, Equalizer, Limiter, Test tone output Audio |
Player File format | WAV (Lin |
