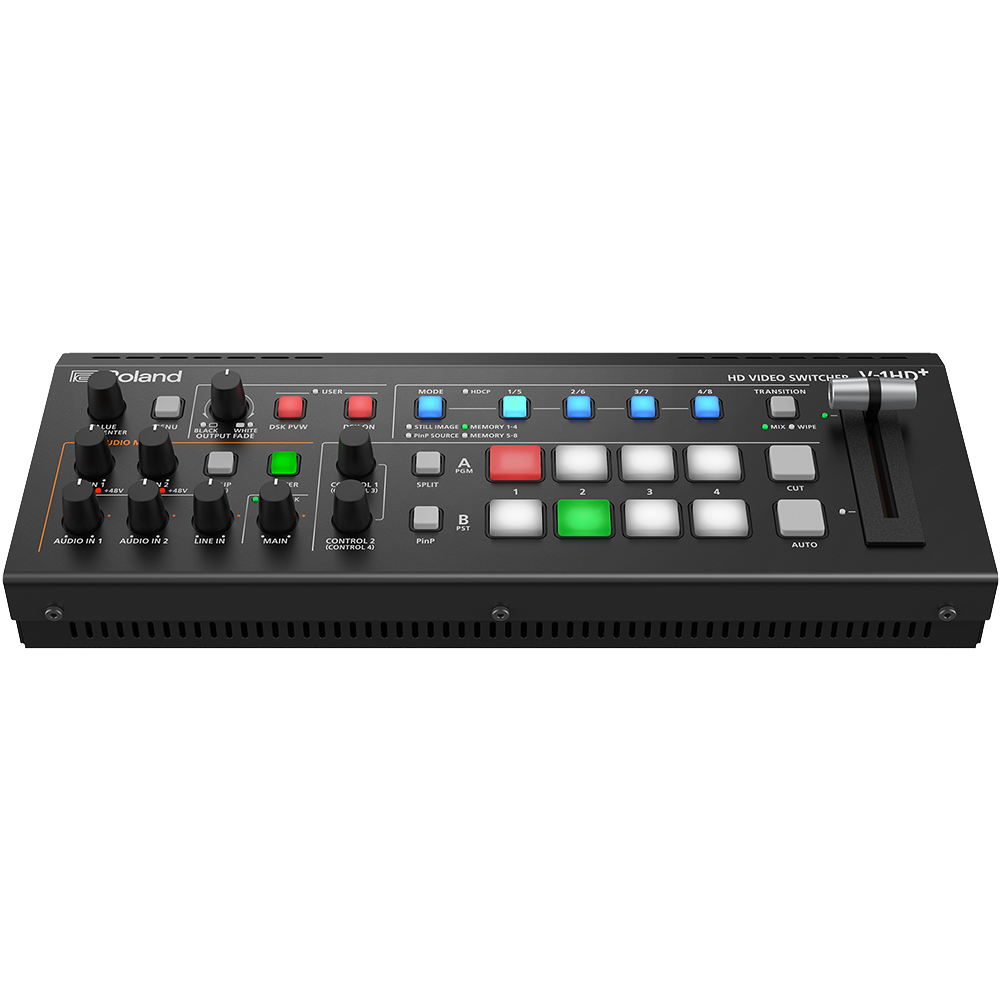

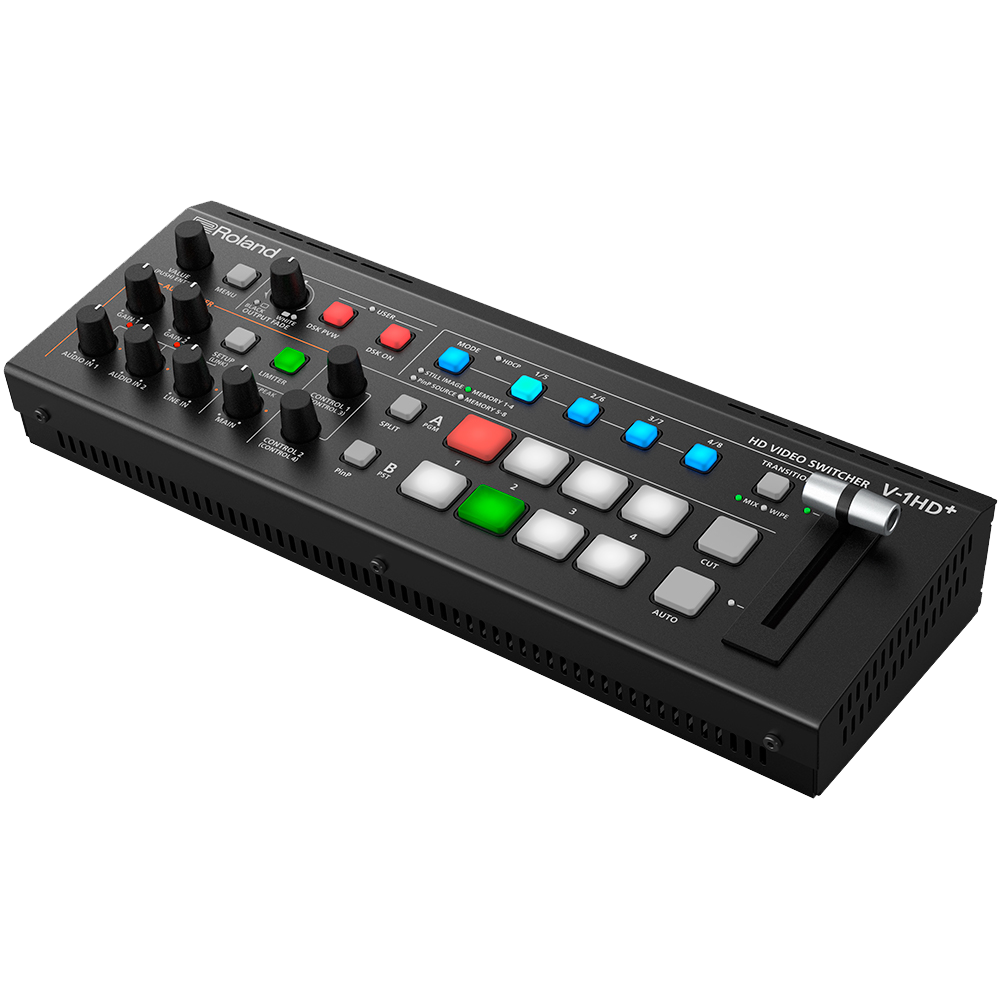

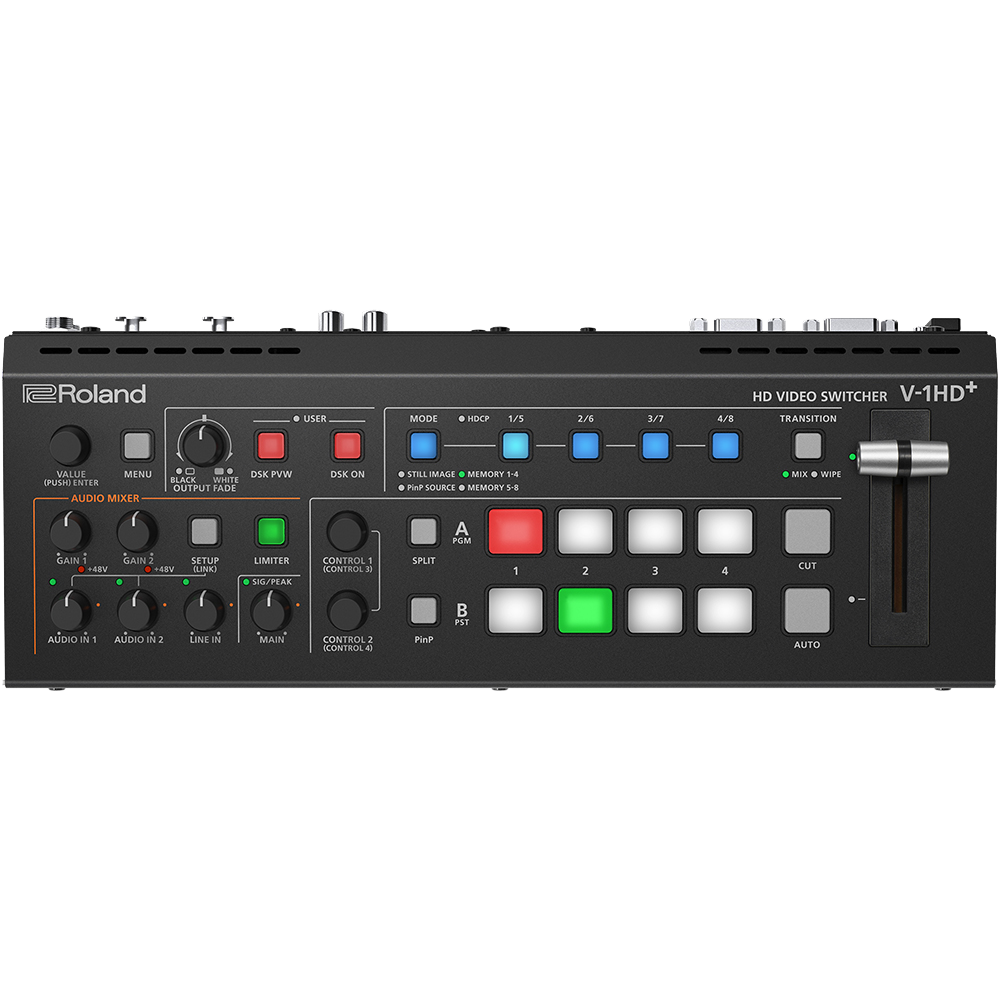

The V-1HD+ is the ultimate compact A/V switching solution for serious visual storytellers. Elevate your creative production process with versatile I/O, a familiar user interface, deep control, and essential monitoring tools that help keep your content looking great and sounding perfect. The V-1HD+ delivers the superior performance you want and the production-critical reliability you demand—plus the Roland support and training resources you deserve.
FEATURES
-
• Professional HD switching solution for live events, livestreaming, or both at once
• Compact and portable for fast set up
• Technology-assisted automatic video switching
• Pro audio I/O with legendary Roland sound quality
• Eight memory presets to recall visual layouts on cue
• Standalone video switcher and 14-channel audio mixer for single operators
• Familiar interface that’s quick to learn and easy to use
• Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
• Free iPad remote control app available
SPECIFICATIONS
-
• Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
• Input Connectors (INPUT 1--3): HDMI type A x 3 *HDCP Supported
• Input Connectors (INPUT 4): HDMI type A * HDCP Supported * Multi-format Supported
• Output Connectors: OUTPUT 1--2: HDMI type A x 2 * HDCP Supported
• Input Formats (INPUT 1--3): 720/59.94p, 720/60p *1, *3 720/50p *1, *4 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3 1080/50i, 1080/50p, 1080/25p *2, *4 1080/23.98p, 1080/24p *2
• : * The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 Hz
• Input Formats (INPUT 4): 480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1, 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2 1080/23.98p, 1080/24p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
• Input Formats (Still Image): Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed and PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color * It can store up to 4 files in the internal memory. * PNG alpha channel not supported.
• Output Formats (OUTPUT 1--2): 720/59.94p *1, *4 720/50p *1, *5 1080/59.94i *2, *4 1080/50i *2, *5 1080/59.94p *3, *4 1080/50p *3, *5 *1 SYSTEM FORMAT = 720p *2 SYSTEM FORMAT = 1080i *3 SYSTEM FORMAT = 1080p *4 FRAME RATE = 59.94 Hz *5 FRAME RATE = 50 Hz
• Video Effects (Transition): CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
• Video Effects (Composition): PinP (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer (Luminance key, Chroma key), DSK (Luminance key, Chroma key)
• Video Effects (Other): Flip horizontal, Flip vertical, Still image capture, Still image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
• Audio Processing: Sample rate: 24 bits/48 kHz
• Audio formats: Linear PCM, 24 bits/48 kHz, 2 ch

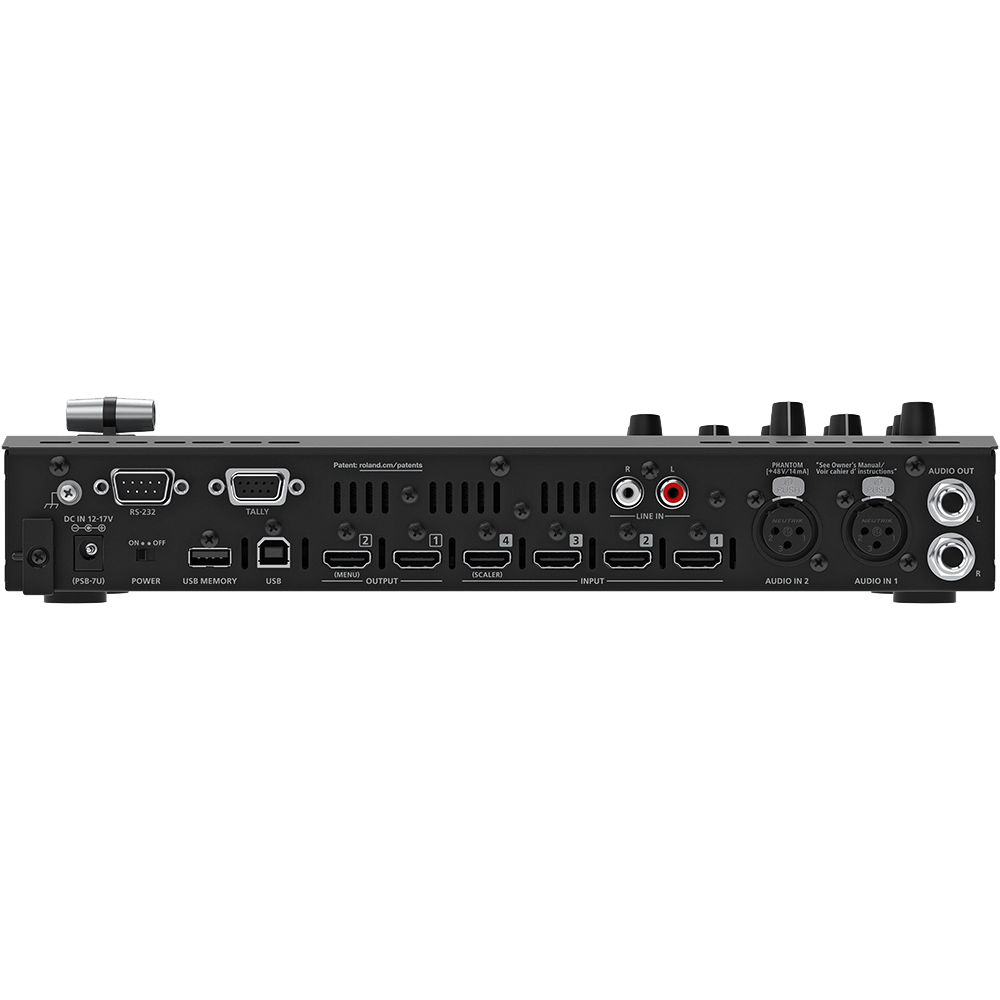

• Input Connectors (INPUT 1--4): HDMI Type A x 4
• Input Connectors (AUDIO IN 1--2): XLR-3-31 type (balanced, phantom power DC 48 V, 14 mA Max)
• Input Connectors (LINE IN): RCA phono type

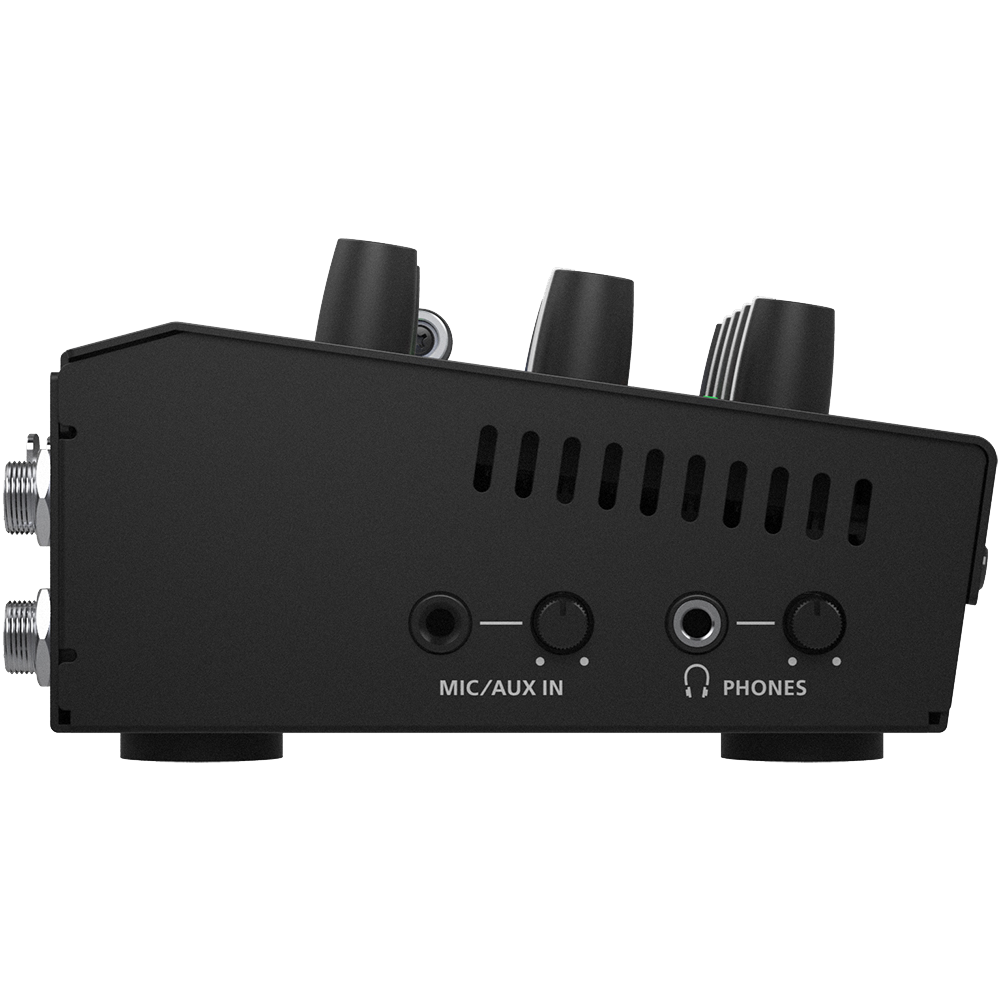

• Input Connectors (MIC/AUX IN): Stereo miniature phone type (PLUG-IN power)
• Output Connectors (OUTPUT 1--3): HDMI Type A x 2
• Output Connectors (AUDIO OUT L, R): 1/4-inch TRS phone type
• Output Connectors (PHONES): Stereo miniature phone type
• Nominal Input Level (AUDIO IN 1--2): -60 to +4 dBu (Maximum input level: +24 dBu)
• Nominal Input Level (LINE IN): -10 dBu (Maximum input level: +10 dBu)
• Nominal Input Level (MIC/AUX IN): -51 to -10 dBu (Maximum input level: +10 dBu)
• Input Impedance (AUDIO IN 1--2): 10 k ohms
• Input Impedance (LINE IN): 15 k ohms
• Input Impedance (MIC/AUX IN): 10 k ohms
• Nominal Output Level (AUDIO OUT L, R): +4 dBu (Maximum output level: +24 dBu)
• Nominal Output Level (PHONES): 72 mW + 72 mW (32 ohms load)
• Output Impedance (AUDIO OUT L, R): 600 ohms
• Output Impedance (PHONES): 10 ohms
• Audio Effects: Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone output
• Other Connectors (USB MEMORY): USB A type (for USB flash drive)
• Other Connectors (REMOTE): USB B type (for remote control)
• Other Connectors (RS-232): DB-9 type (male, for remote control)
• Other Connectors (TALLY): DB-9 type (female, for TALLY output)
• Other Functions: Preset memory (8 types), Panel lock function, EDID emulator, Auto switching and Auto input detect
• Power Supply: AC adaptor
• Current Draw: 2.1 A
• Power Consumption: 25.2 W
• Operation Temperature: +0 to +40 degrees Celsius or +32 to +104 degrees Fahrenheit
• Dimensions: 316 (W) x 121 (D) x 65 (H) mm or 12-1/2 (W) x 4-13/16 (D) x 2-9/16 (H) inches
• Weight (excluding AC adaptor): 1.4 kg or 3 lbs 2 oz
CONTENTS
-
• (1) Roland V-1HD+ Switcher
• (1) AC Adaptor with US Power Cord
• (1) Startup Guide
• (1) Leaflet "USING THE UNIT SAFELY"
