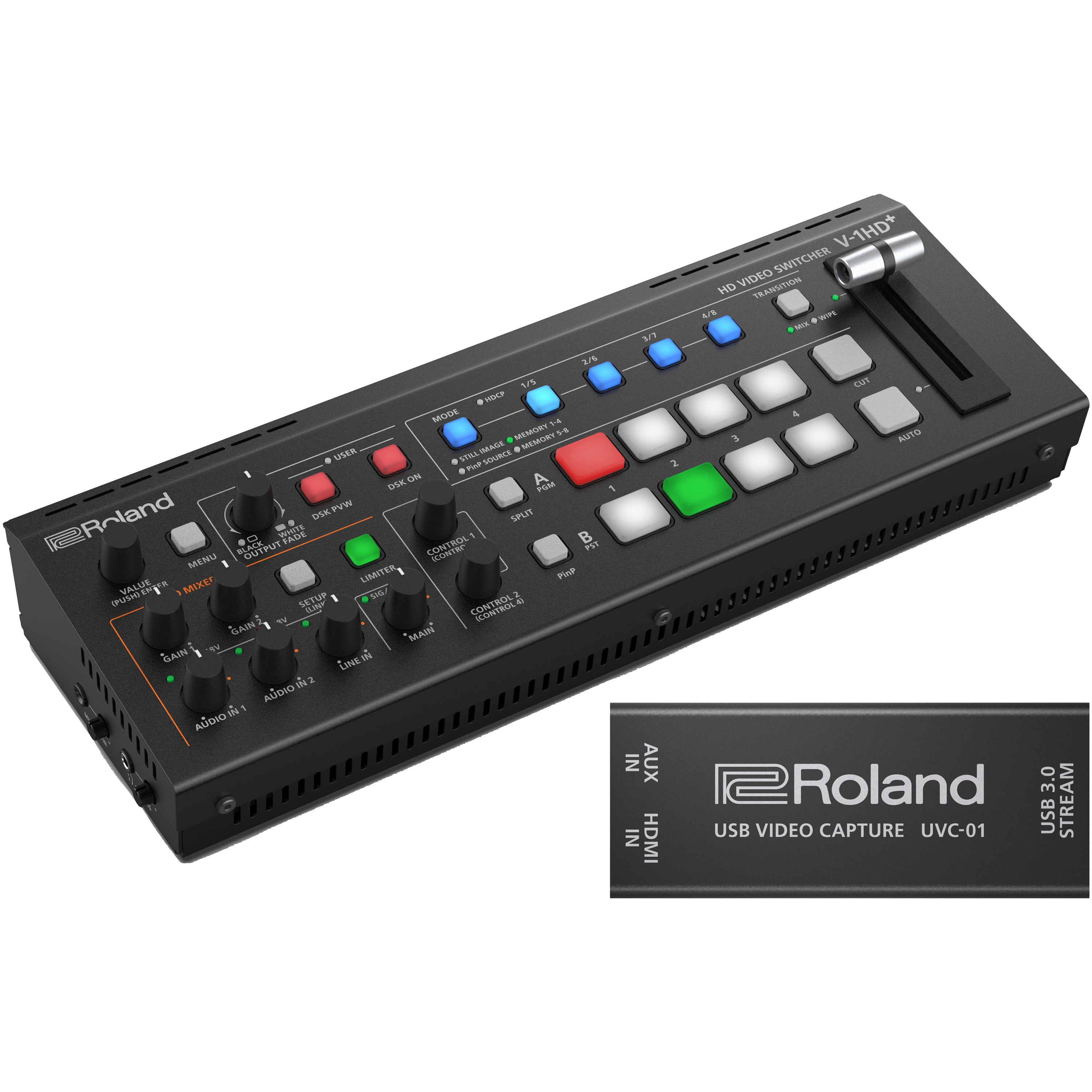

The V-1HD+ is the next generation compact A/V switching solution. Event Ready, Portable, and operator-friendly like V-1HD, with many improvements to the hardware and design. Powered by a Four Layer Effects Engine to independently combine Picture in Picture and Graphics. In addition to the switcher, the streaming bundle includes a Roland UVC-01 “Plug and Play” Encoder for efficient and simple streaming application.

Just connect to the UVC-01 via HDMI, plug into your computer’s USB 3.0 port, and start streaming to Facebook Live, YouTube, and other popular platforms. Offering plug-and-play operation in a rugged, pocket-size design, the UVC-01 is ready for action everywhere you go.

FEATURES

Roland V-1HD+ Video Switcher:
• Professional HD switching solution for live events, livestreaming, or both at once
• Compact and portable for fast set up
• Technology-assisted automatic video switching
• Pro audio I/O with legendary Roland sound quality
• Eight memory presets to recall visual layouts on cue
• Standalone video switcher and 14-channel audio mixer for single operators
• Familiar interface that’s quick to learn and easy to use
• Four-layer effects and keying engine to engage audiences with graphics, lower thirds, and social callouts
• Free iPad remote control app available

Roland UVC-01“Plug and Play” Encoder:
• High-quality HDMI to USB 3.0 video encoder
• Plug-and-play USB webcam operation for Mac and Windows computers
• Seamlessly works with all Roland V-series switchers with an HDMI output
• Also works with most HDMI-equipped cameras and camcorders
• Uncompressed 1080p HD at 60 FPS for engaging livestreams
• Dedicated analog audio line input for live music versatility
• Powered via USB

SPECIFICATIONS

Roland V-1HD+ Video Switcher:
Video:
Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors:
INPUT 1--3: HDMI type A x 3 *HDCP Supported
INPUT 4: HDMI type A * HDCP Supported * Multi-format Supported
Output Connectors: OUTPUT 1--2: HDMI type A x 2 * HDCP Supported
Input Formats:
INPUT 1--3: 720/59.94p, 720/60p *1, *3 720/50p *1, *4 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3 1080/50i, 1080/50p, 1080/25p *2, *4 1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz
*4 FRAME RATE = 50 Hz
INPUT 4: 480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1, 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2 1080/23.98p, 1080/24p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 50 Hz
Still Image: Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed and PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color * It can store up to 4 files in the internal memory. * PNG alpha channel not supported.
Output Formats:
OUTPUT 1--2: 720/59.94p *1, *4 720/50p *1, *5 1080/59.94i *2, *4 1080/50i *2, *5 1080/59.94p *3, *4 1080/50p *3, *5 *1 SYSTEM FORMAT = 720p *2 SYSTEM FORMAT = 1080i *3 SYSTEM FORMAT = 1080p *4 FRAME RATE = 59.94 Hz *5 FRAME RATE = 50 Hz
Video Effects:
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
Composition: PinP (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer (Luminance key, Chroma key), DSK (Luminance key, Chroma key)
Other: Flip horizontal, Flip vertical, Still image capture, Still image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

Audio:
Audio Processing: Sample rate: 24 bits/48 kHz
Audio formats: Linear PCM, 24 bits/48 kHz, 2 ch
Input Connectors:
INPUT 1--4: HDMI Type A x 4
AUDIO IN 1--2: XLR-3-31 type (balanced, phantom power DC 48 V, 14 mA Max)
LINE IN: RCA phono type
MIC/AUX IN: Stereo miniature phone type (PLUG-IN power)
Output Connectors:
OUTPUT 1--3: HDMI Type A x 2
AUDIO OUT L, R: 1/4-inch TRS phone type
PHONES: Stereo miniature phone type
Nominal Input Level:
AUDIO IN 1--2: -60 to +4 dBu (Maximum input level: +24 dBu)
LINE IN: -10 dBu (Maximum input level: +10 dBu)
MIC/AUX IN: -51 to -10 dBu (Maximum input level: +10 dBu)
Input Impedance:
AUDIO IN 1--2: 10 k ohms
LINE IN: 15 k ohms
MIC/AUX IN: 10 k ohms
Nominal Output Level:
AUDIO OUT L, R: +4 dBu (Maximum output level: +24 dBu)
PHONES: 72 mW + 72 mW (32 ohms load)
Output Impedance:
AUDIO OUT L, R: 600 ohms
PHONES: 10 ohms
Audio Effects: Delay, High pass filter, De-Esser, Compressor, Noise gate, Equalizer, Limiter, Reverb, Test tone output

Others:

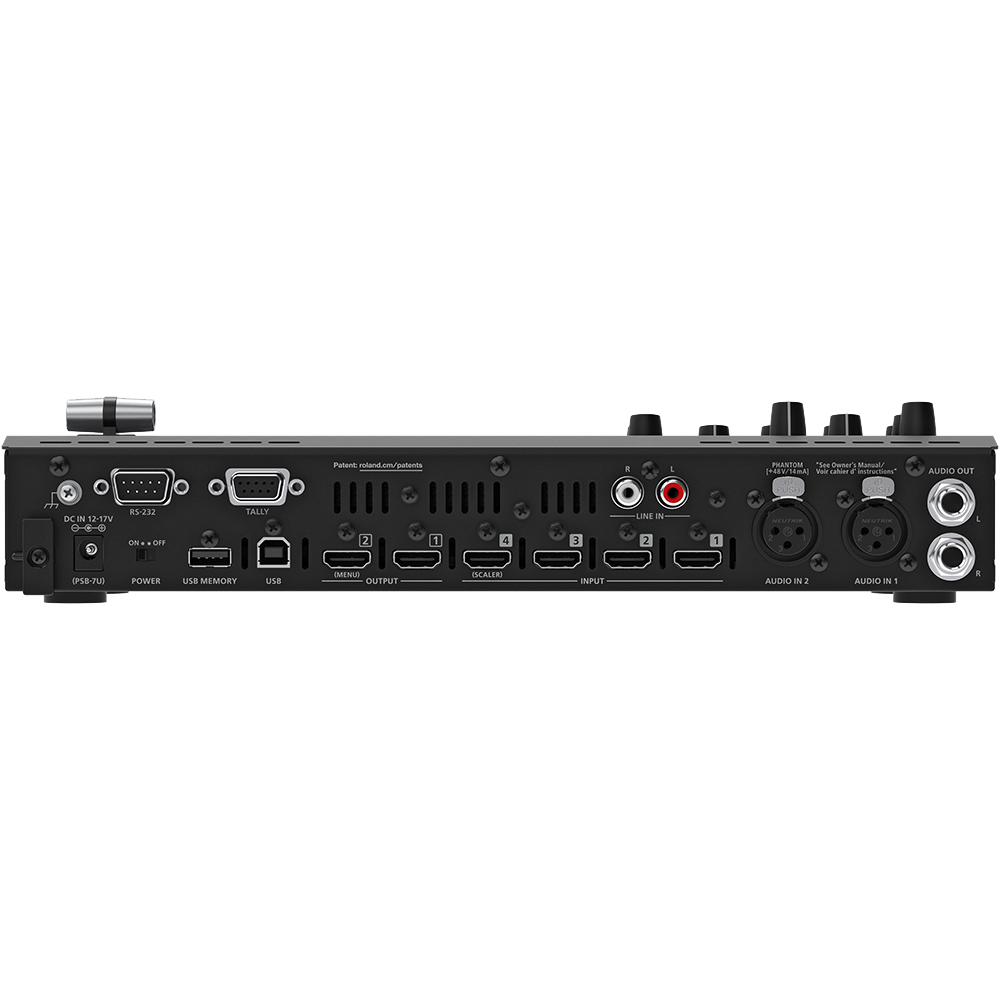

Other Connectors:
USB MEMORY: USB A type (for USB flash drive)
REMOTE: USB B type (for remote control)
RS-232: DB-9 type (male, for remote control)
TALLY: DB-9 type (female, for TALLY output)
Other Functions: Preset memory (8 types), Panel lock function, EDID emulator, Auto switching and Auto input detect
Power Supply: AC adaptor
Current Draw: 2.1 A
Power Consumption: 25.2 W
Operation Temperature: +0 to +40 degrees Celsius or +32 to +104 degrees Fahrenheit
Dimensions: 316 (W) x 121 (D) x 65 (H) mm or 12-1/2 (W) x 4-13/16 (D) x 2-9/16 (H) inches
Weight (excluding AC adaptor): 1.4 kg or 3 lbs 2 oz

Roland UVC-01“Plug and Play” Encoder:
Video:
Input Connectors: HDMI IN connector: HDMI type A * Multi-format Supported * HDCP Not Supported
Output Connectors: USB STREAM port: USB 3.0 B type
Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
USB Video Output Format: YUY2 (Uncompressed)
USB Video Output Resolution: 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1152 x 864, 1024 x 768, 1024 x 576, 960 x 540, 856 x 480, 800 x 600, 768 x 576, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 * The maximum frame rate is 60 fps.

Audio:
Audio formats:
HDMI IN connector: Linear PCM, 48 kHz / 44.1 kHz, 24 bits / 20 bits / 16 bits, stereo
USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo
Input Connectors:
HDMI IN connector: HDMI type A
AUX IN jack: Stereo miniature phone type
Output Connectors: USB STREAM port: USB 3.0 B type
Nominal Input Level: AUX IN jack: -10 dBu (Maximum input level: +8 dBu)
Input Impedance: AUX IN jack: 10 k ohms

Others:
Power Supply: Supplied from the computer via USB
Current Draw: 500 mA
Operation Temperature: +0 to +40 degrees Celsius or +32 to +104 degrees Fahrenheit
Dimensions: 90 (W) x 37 (D) x 23 (H) mm or 3-9/16 (W) x 1-1/2 (D) x 15/16 (H) inches
Weight (excluding AC adaptor): 96 g or 4 oz

CONTENTS

(1) Roland V-1HD+ Video Switcher
(1) AC Adaptor with US Power Cord
(1) Startup Guide
(1) Leaflet "USING THE UNIT SAFELY"
(1) Roland UVC-01“Plug and Play” Encoder
