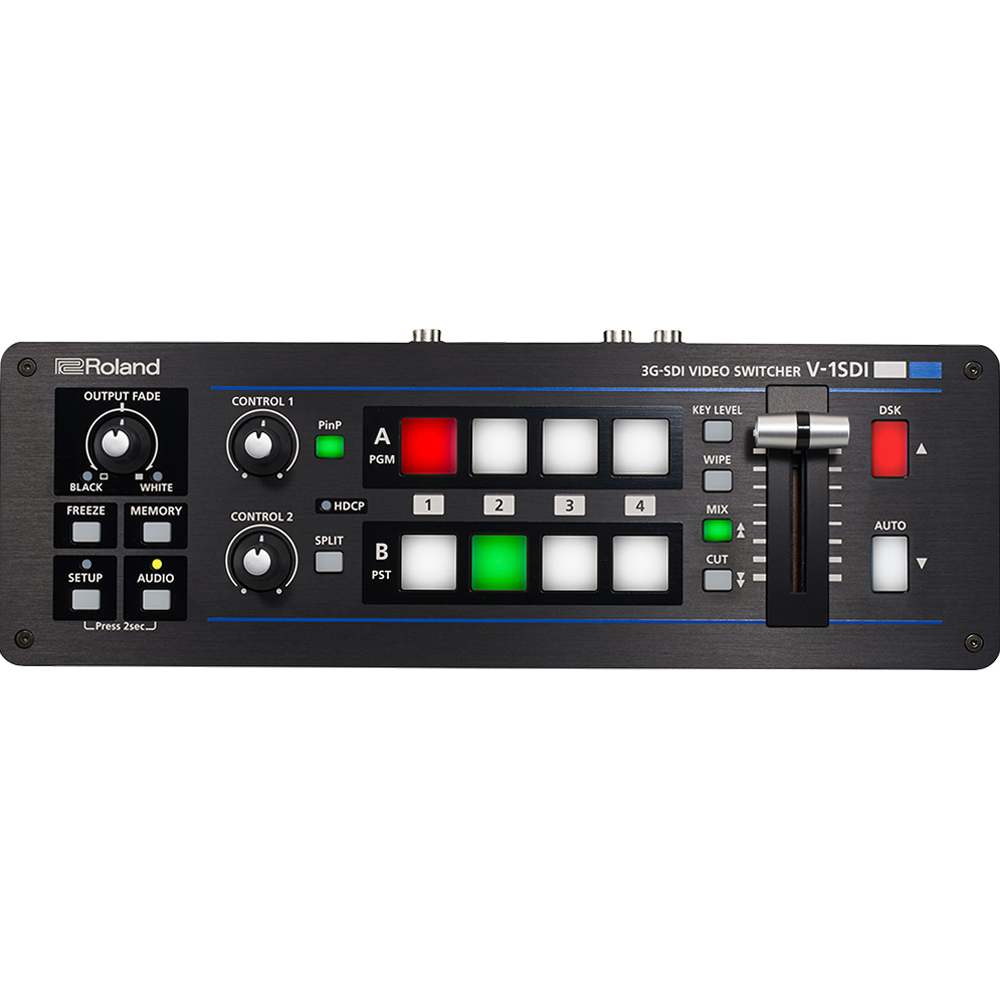

The V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources, including cameras, smartphones, computers, tablets, and Blu-ray players.

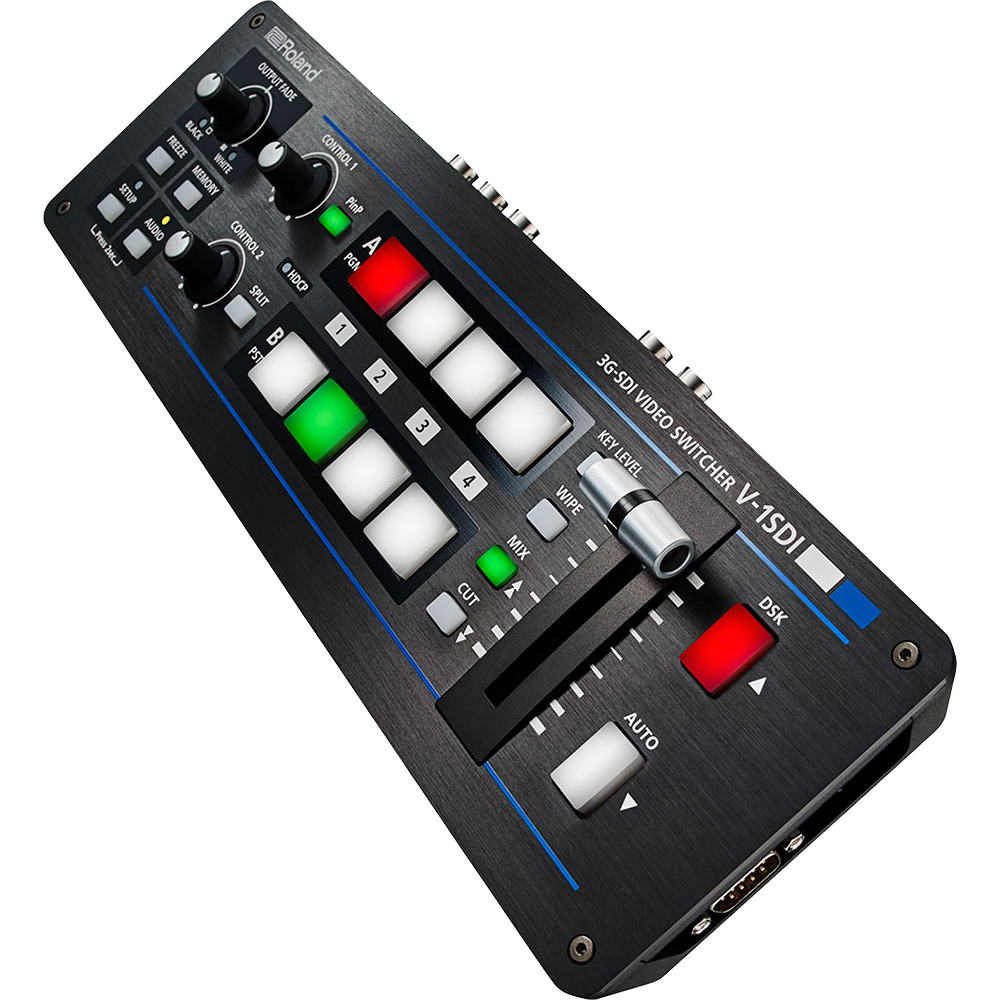

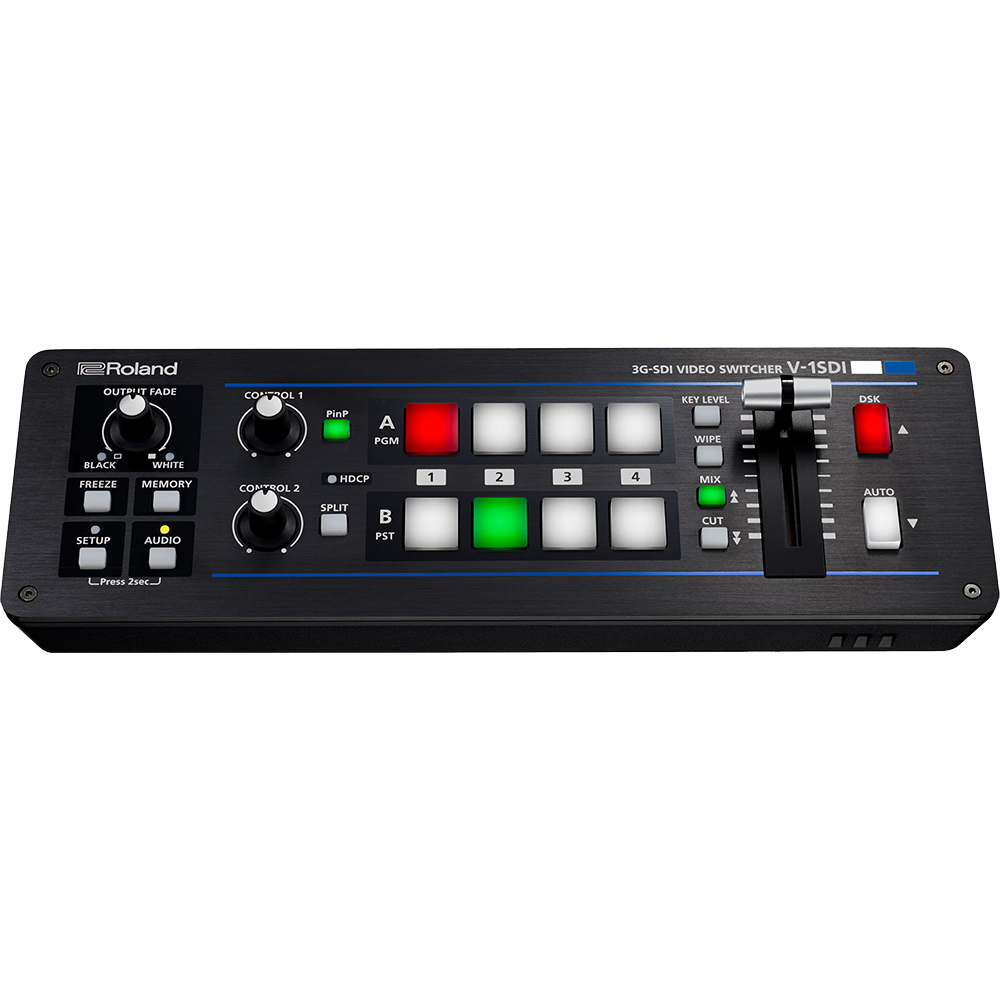

Compact and portable, the V-1SDI delivers professional switching results with its easy-to-use hardware interface complete with T-Fader and easy-to-see backlit buttons.
With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI, making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.
FEATURES
-
• Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
• Easy to operate with hardware controls
• Compact size
• PSB-7U, provided AC adaptor or Battery operation
• Supports up to Full HD 1080p
• 3 x 3G-SDI and 2 x HDMI*1 inputs
• 2 x 3G-SDI and 1 x HDMI*1 output
• Input 4’s scaler now supports a wider range of video and VESA resolutions.*1 *2
• Quad input multi-viewer with source labelling and audio metering
• Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
• Capturing a still Image from Input Video on channel 4*3 [Ver.1.5]
• Full 14 channel audio mixer included
• Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection
• Sending a still image to the V-1SDI by V-1SDI RCS*3 [Ver.1.5]
SPECIFICATIONS
-
• Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit

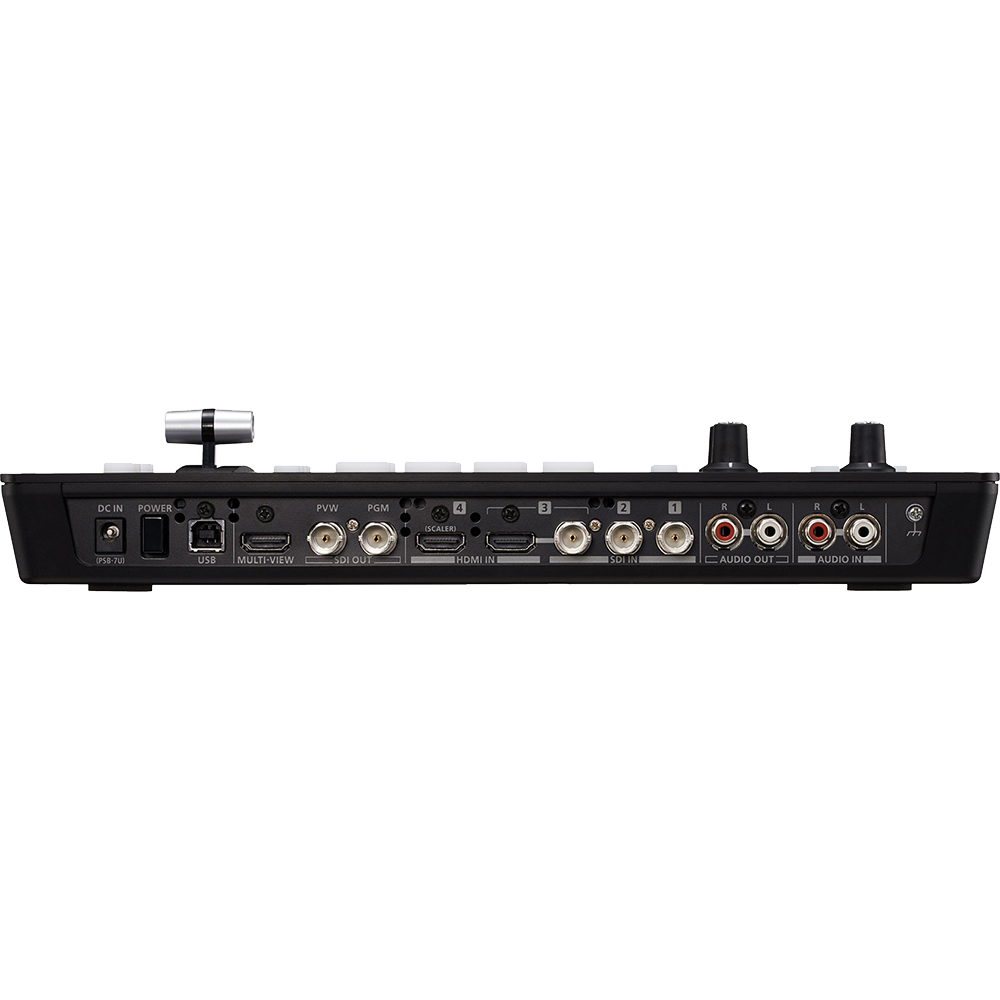

• Input Connectors (SDI INPUT 1--3): BNC x 3 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
• Input Connectors (HDMI INPUT 3--4): Type A (19 pins) x 2 * HDCP Supported * INPUT 3: SDI or HDMI selected.
• Output Connectors (SDI OUT PGM): BNC x 1
• Output Connectors (SDI OUT PVW): BNC x 1 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
• Output Connectors (HDMI OUT MULTI-VIEW): Type A (19 pins) x 1 * HDCP Supported
• Input Formats (SDI INPUT 1-3): Conforms to SMPTE 296M, SMPTE 274M
• Input Formats (HDMI INPUT 3): 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p), 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p) * The input interlaced video signal is converted to progressive video signal by internal processing. * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
• Input Formats (HDMI INPUT 4): 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p; VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking.
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
• Output formats: SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M; HDMI OUT MULTI-VIEW 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p), 1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i), 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p) * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
• Video Effects (Transition): CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)
• Video Effects (Composition): PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key)
• Audio Processing: Sampling rate: 24 bits/48 kHz
• Audio Formats (SDI): Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M
• Audio Formats (HDMI): Linear PCM, 24 bits/48 kHz, 2ch
• Input Connectors (Digital): SDI INPUT 1--3 (BNC) x 3 SMPTE 299M; HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2
• Input Connectors (Analog): AUDIO IN (RCA phono type)

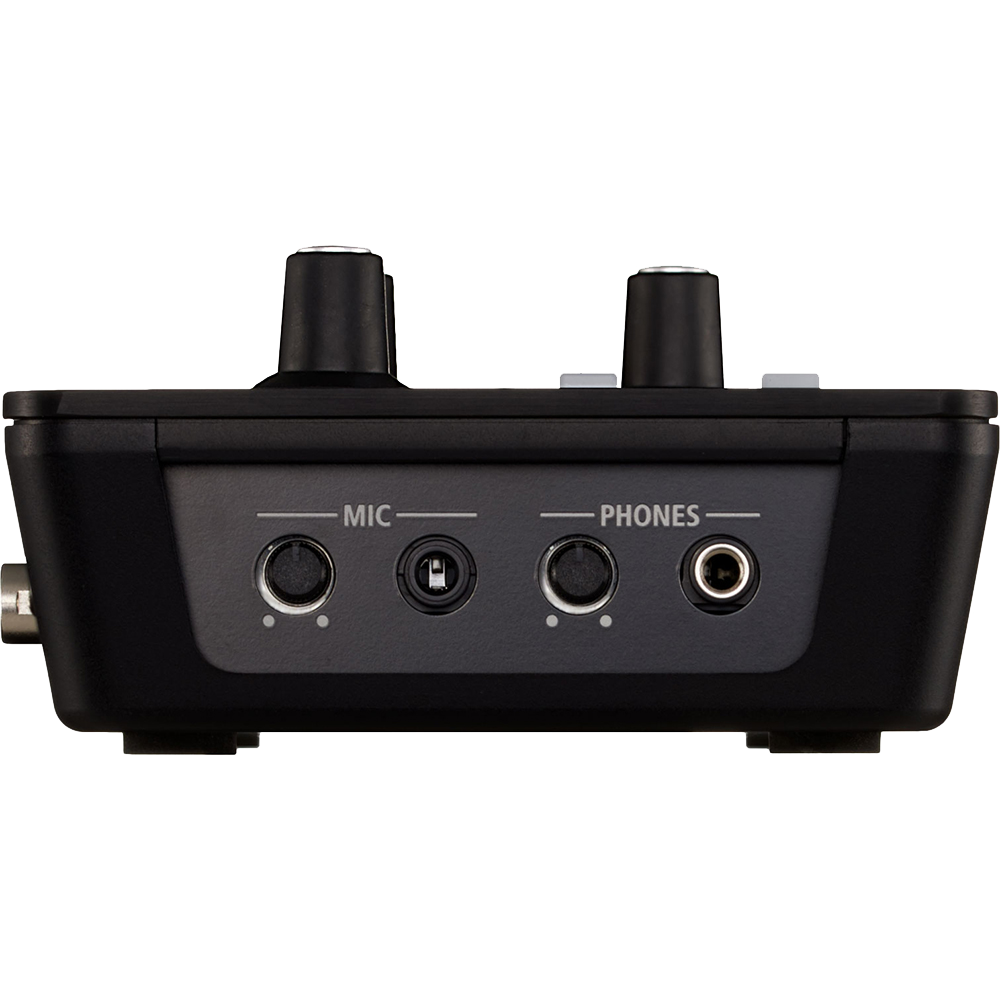

• Input Connectors (MIC): (Stereo mini type, plug-in power supported)
• Output Connectors (Digital): SDI OUT PGM: BNC x 1 SMPTE 299M
• Output Connectors (SDI OUT PVW): BNC x 1 SMPTE 299M
• Output Connectors (HDMI OUT MULTI-VIEW): Type A (19 pins) x 1
• Output Connectors (Analog): AUDIO OUT (RCA phono type)
• Output Connectors (PHONES): (Stereo mini type)
• Input Level (AUDIO IN): -10 dBu (Maximum: +8 dBu)
• Input Level (MIC): -41-- -13 dBu (Maximum: -1 dBu)
• Input Impedance (AUDIO IN): 15 k ohms
• Input Impedance (MIC): 10 k ohms
• Output Level (AUDIO OUT): -10 dBu (Maximum: +8 dBu)
• Output Level (PHONES): 92 mW + 92 mW (32 ohms)
• Output Impedance (AUDIO OUT): 1 k ohm
• Output Impedance (PHONES): 10 ohms
• Audio Effects: EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
• Other Connectors (USB): B Type (for remote control from PC)

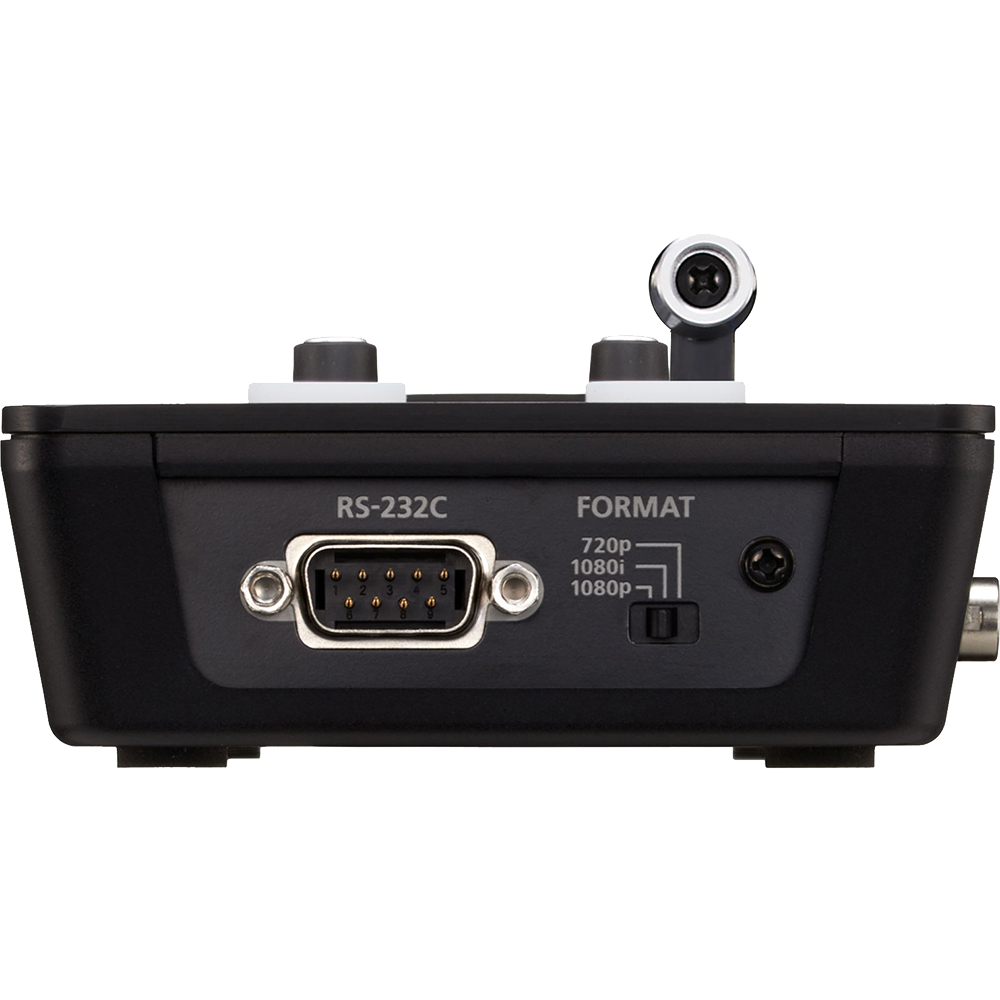

• Other Connectors (RS-232): DB-9 type
• Other Functions: MEMORY (8 types), FREEZE (input video captured) and OUTPUT FADE (Audio, Video: WHITE or BLACK)
• Power Supply: AC Adaptor
• Current Draw: 2.1 A
• Power Consumption: 25 W
• Operation Temperature: +0 to +40 degrees Celsius or +32 to +104 degrees Fahrenheit
• Dimensions: 313 (W) x 108 (D) x 59 (H) mm or 12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches
• Weight (excluding AC adaptor): 1.2 kg or 2 lbs 10-2/5 oz
CONTENTS
-
• (1) Roland V-1SDI Switcher
• (1) North American Power Supply
• (1) Power Cord
• (1) Cord Hook
• (1) Owner's Manual
