Product SKU
    28996

Roland V-8HD Video Switcher

$1,349.99

SEE PRODUCT IN STORE

PICK UP TODAY

recertifiedBYFP (1).png__PID:3dfb27ce-5af4-41e0-8bcb-81e313e4a56f
  • Used and Well Maintained
  • Performs Like New
  • 90 Day Guarantee

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

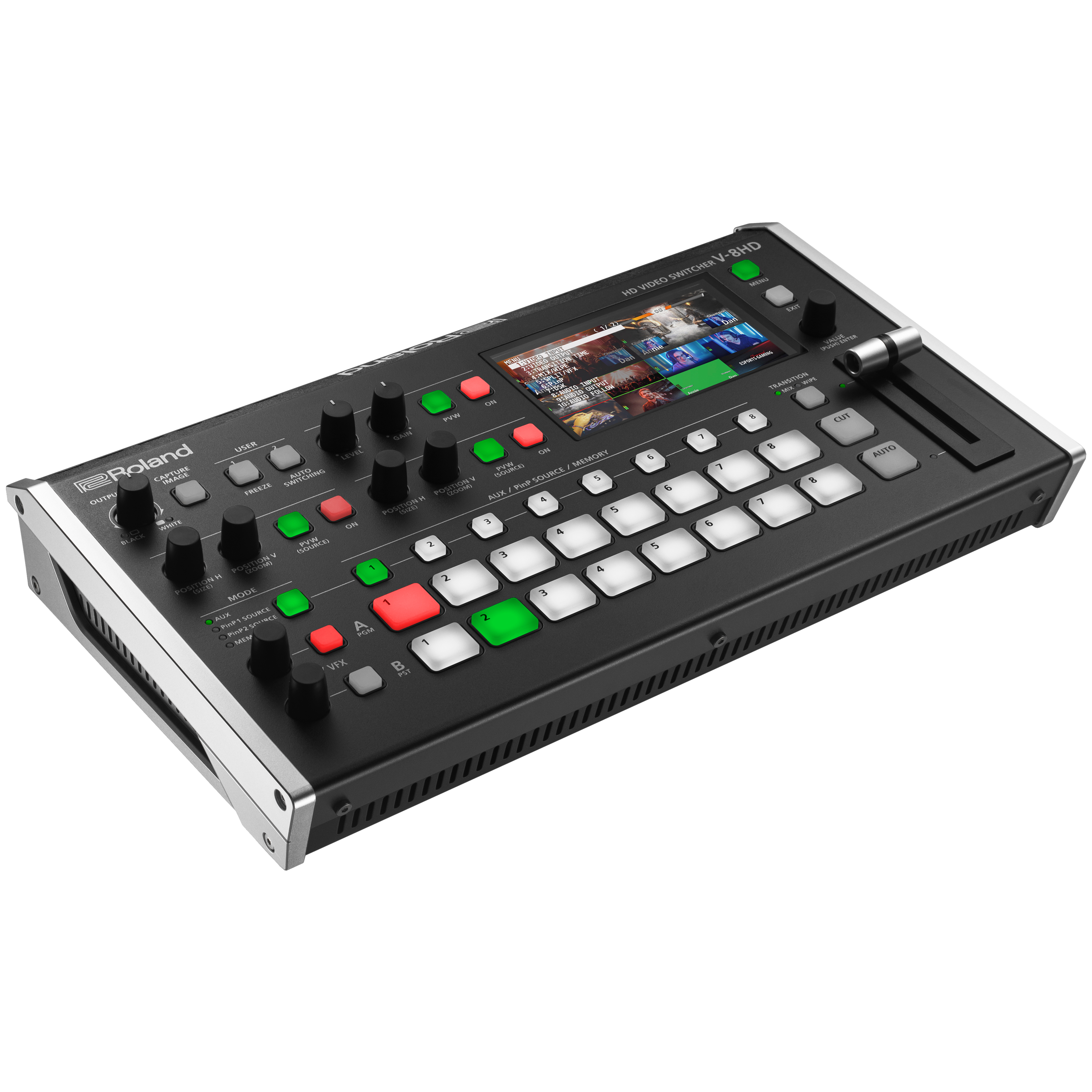

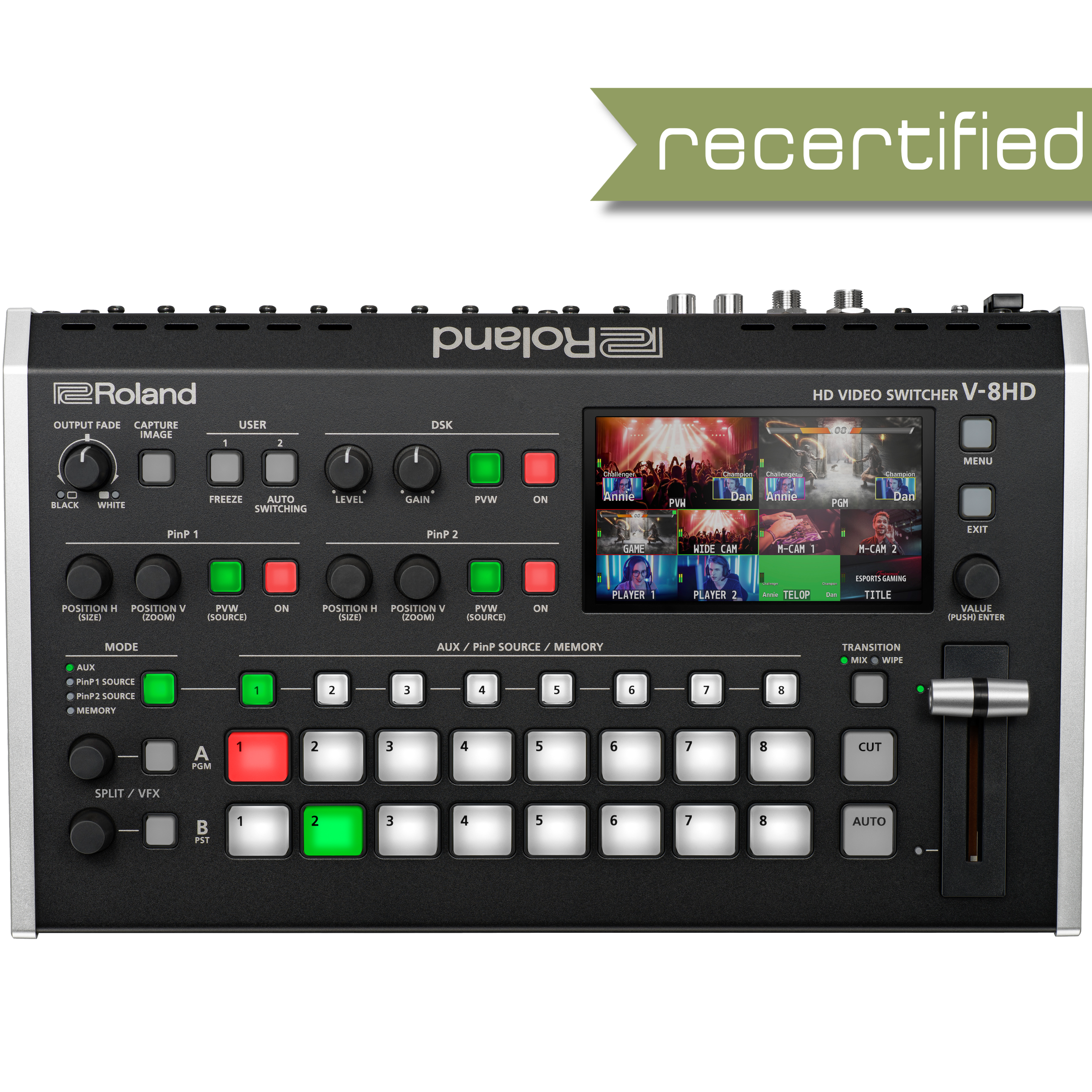

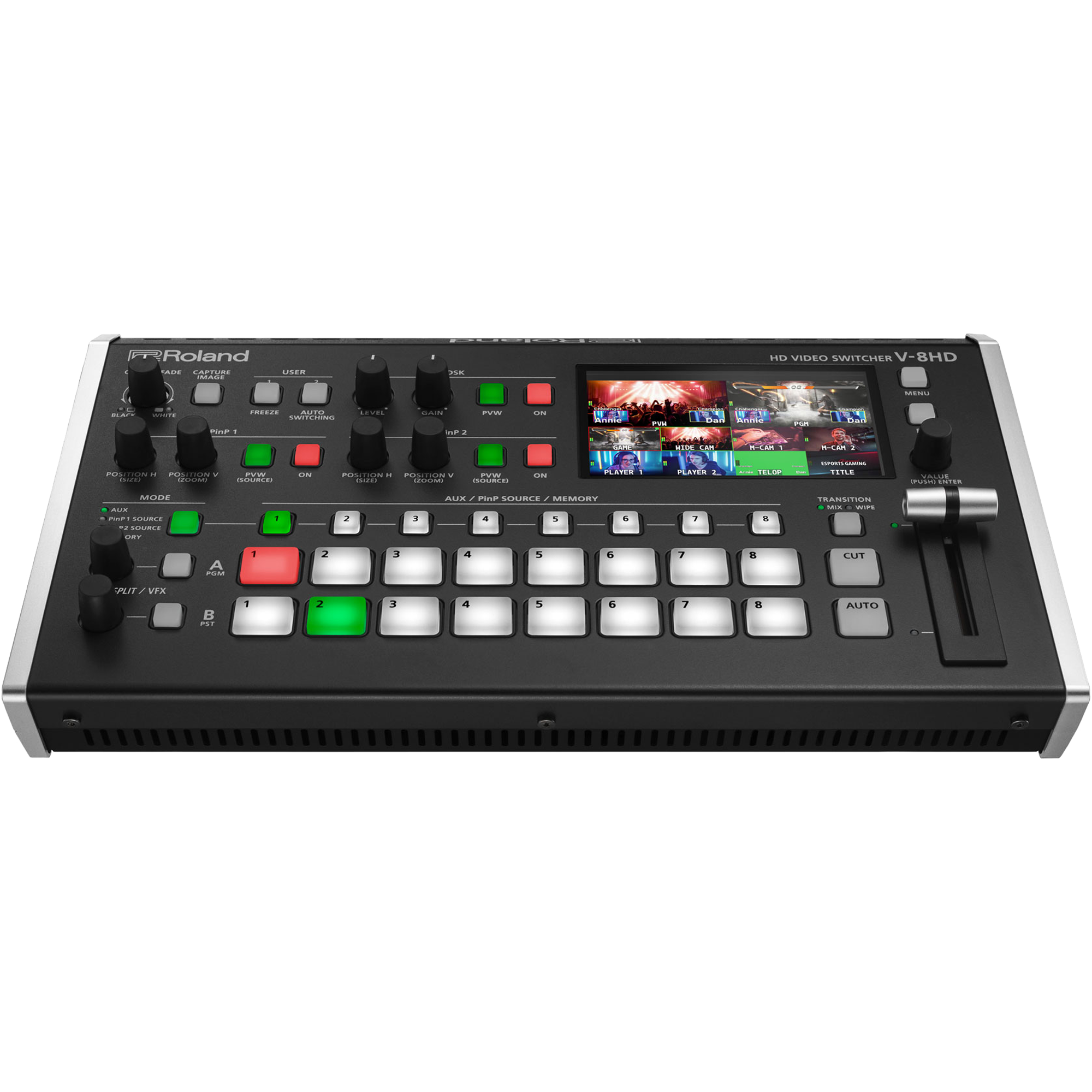

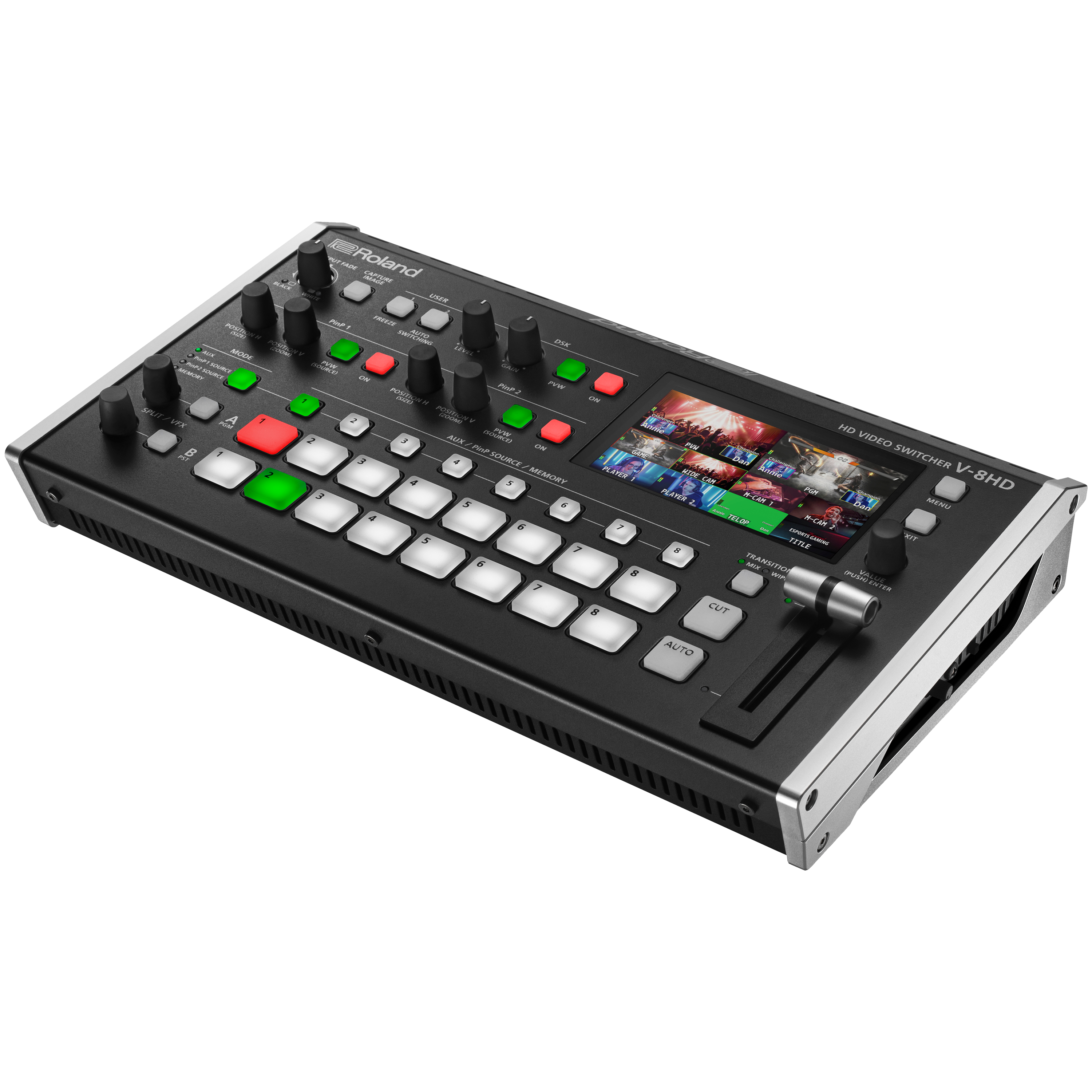

Versatile, portable, and reliable, the Roland V-8HD brings a world of creative options to live event switching. Its all-in-one hardware design eliminates computer setup hassles and software-based crashes, while the HDMI workflow and loaded professional toolset streamline production and reduce stress on the gig.

FEATURES
    • All HDMI workflow
    • Built-in multi-viewer preview monitor
    • Execute smooth transitions using the T-bar fader
    • Powerful live production automation with sequencing, macros, and preset memories
    • Eight-slot still store function supports screen capture and import of BMP, JPEG, and transparent PNG images to internal non-volatile memory
    • Ultra-mobile, lightweight, and efficient
    • Five-layer effects and keying engine
    • Aux output for a different video feed
    • Technology-assisted automatic video switching
    • Supports 23.98 Hz, 24 Hz, 25 Hz, 29.97 Hz, and 30 Hz output formats
    • 18-channel digital audio mixer with a wide range of effects, including sync delay on each channel
    • Remote start/stop of Atomos recorders
    • Remote control software for iPad, macOS, and Windows
SPECIFICATIONS
    • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
    • Number of video channels: 8 channels
    • Input formats (INPUT 1--6): 720/59.94p *1, *3; 720/50p *1, *4; 1080/59.94i, 1080/59.94p, 1080/60p *2, *3; 1080/50i, 1080/50p *2, *4; 1080/29.97p, 1080/30p *2, *5; 1080/25p *2, *6; 1080/23.98p, 1080/24p *2; * The input interlaced video signal is converted to progressive video signal by internal processing.; *1 SYSTEM FORMAT = 720p; *2 SYSTEM FORMAT = 1080i or 1080p; *3 FRAME RATE = 59.94 Hz, 60 Hz; *4 FRAME RATE = 50 Hz; *5 FRAME RATE = 29.97Hz, 30Hz, 59.94Hz, 60Hz; *6 FRAME RATE = 25Hz, 50Hz
    • Input formats (INPUT 7--8): 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1; 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2; 1080/23.98p, 1080/24p; VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
    * The refresh rate is the maximum value of each resolution.; * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.; * 1920 x 1200/60 Hz: Reduced blanking; * The input interlaced video signal is converted to progressive video signal by internal processing.; * The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit's frame rate setting is 50 Hz.; * INPUT 8 support Roland FILL+KEY signal; *1 FRAME RATE = 59.94 Hz, 60 Hz; *2 FRAME RATE = 50 Hz
    • Output formats (OUTPUT 1--2): 720/59.94p *1, *4; 720/60p *1, *5; 720/50p *1, *8; 1080/59.94i *2, *4; 1080/60i *2, *5; 1080/50i *2, *8; 1080/59.94p *3, *4; 1080/60p *3, *5; 1080/29.97p *3, *6; 1080/30p *3, *7; 1080/50p *3, *8; 1080/25p *3, *9; 1080/23.98p *3, *10; 1080/24p *3, *11; *1 SYSTEM FORMAT = 720p; *2 SYSTEM FORMAT = 1080i; *3 SYSTEM FORMAT = 1080p; *4 FRAME RATE = 59.94 Hz; *5 FRAME RATE = 60 Hz; *6 FRAME RATE = 29.97 Hz; *7 FRAME RATE = 30 Hz; *8 FRAME RATE = 50 Hz; *9 FRAME RATE = 25 Hz; *10 FRAME RATE = 23.98 Hz; *11 FRAME RATE = 24 Hz
    • Output formats (OUTPUT 3): 1080/59.94p *1; 1080/60p *2; 1080/29.97p *3; 1080/30p *4; 1080/50p *5; 1080/25p *6; 1080/23.98p *7; 1080/24p *8; *1 FRAME RATE = 59.94 Hz; *2 FRAME RATE = 60 Hz; *3 FRAME RATE = 29.97 Hz; *4 FRAME RATE = 30 Hz; *5 FRAME RATE = 50 Hz; *6 FRAME RATE = 25 Hz; *7 FRAME RATE = 23.98 Hz; *8 FRAME RATE = 24 Hz
    • Still Image: Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.; PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color; JPEG File (.jpg) Maximum 1920 x 1080 pixels, 24-bit color
    * It can be stored up to 8 files in the internal memory.
    * It can be exported in the USB memory.
    * PNG alpha channel supported (Exclusive with alpha bus or AUX bus)
    • Video Effects (Transition): CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types), SPLIT (2 types)
    • Video Effects (Composition): PinP x 2 (SQUARE, CIRCLE, DIAMOND), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key, Alpha Key *1 , External Key *1 , Roland FILL+KEY Mode)
    • Video Effects (Others): Multi-View, Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output *1 Exclusive with alpha bus or AUX bus
    • Audio Processing: Sample rate: 24 bits, 48 kHz
    • Number of audio channels: 18 channels
    • Audio formats: INPUT: Linear PCM, 24 bits, 48 kHz, 2 ch; OUTPUT: Linear PCM, 24 bits, 48 kHz, 2 ch
    • Audio Effects: Channel Effects: High pass filter, Noise gate, Compressor, 3-Band equalizer, Delay
    • Master Effects: Reverb, 3-Band equalizer, Multi-band compressor, Limiter; Others: Output fade, Test tone output
    • Other Functions: Preset Memory (24 types), Macro Control (100 types), Sequencer Control (1,000 steps), Panel lock function, EDID Emulator, Auto Switching, Auto Input Detect, External Rec Control

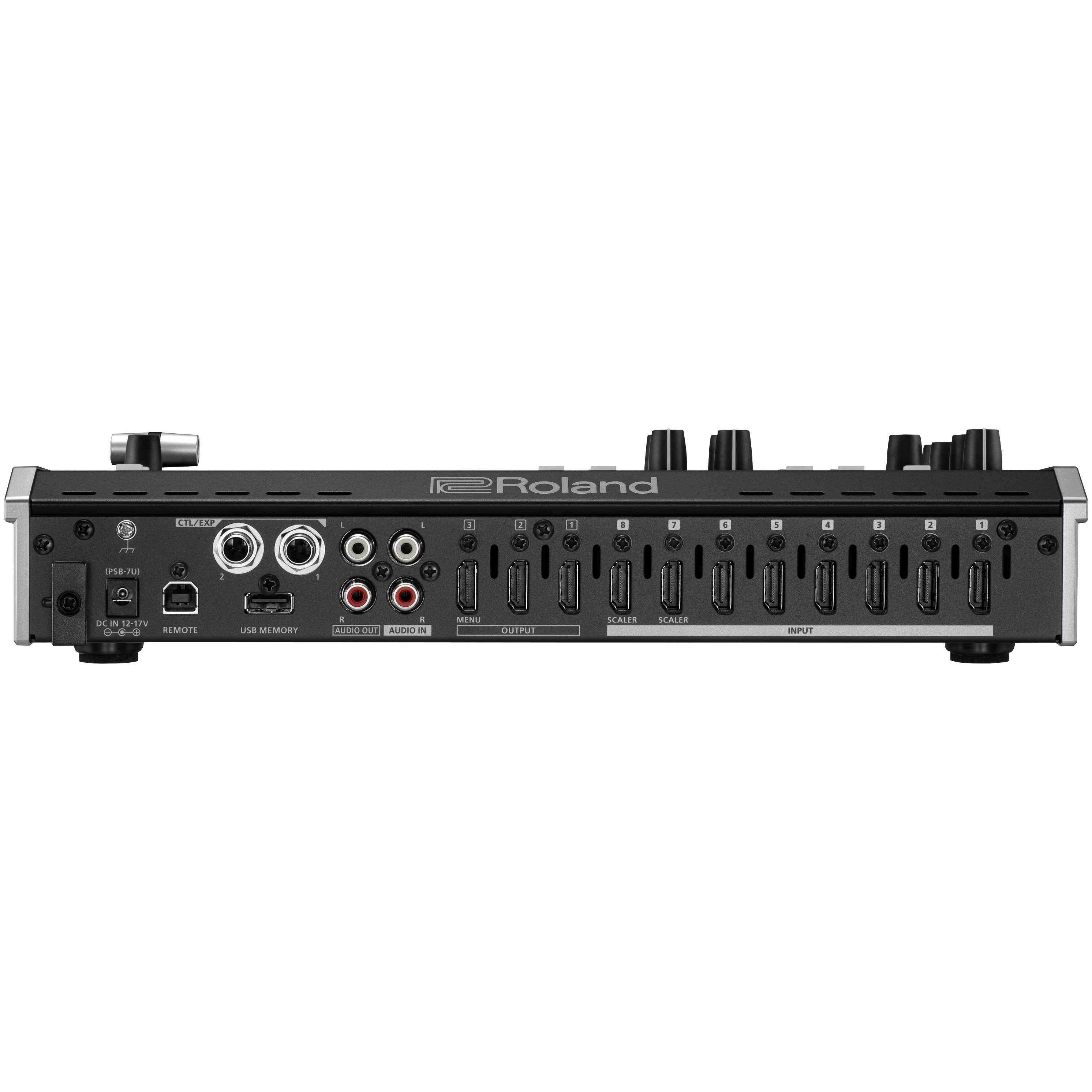

    • Video Input Connectors: INPUT 1--6: HDMI type A x 6, * HDCP Supported; INPUT 7--8: HDMI type A x 2, * HDCP Supported; * Multi-format Supported
    • Video Output Connectors: OUTPUT 1--3: HDMI type A x 3, * HDCP Supported
    • Audio Input Connectors: Analog: AUDIO IN: RCA phono type; Digital: INPUT 1--8: HDMI type A x 8

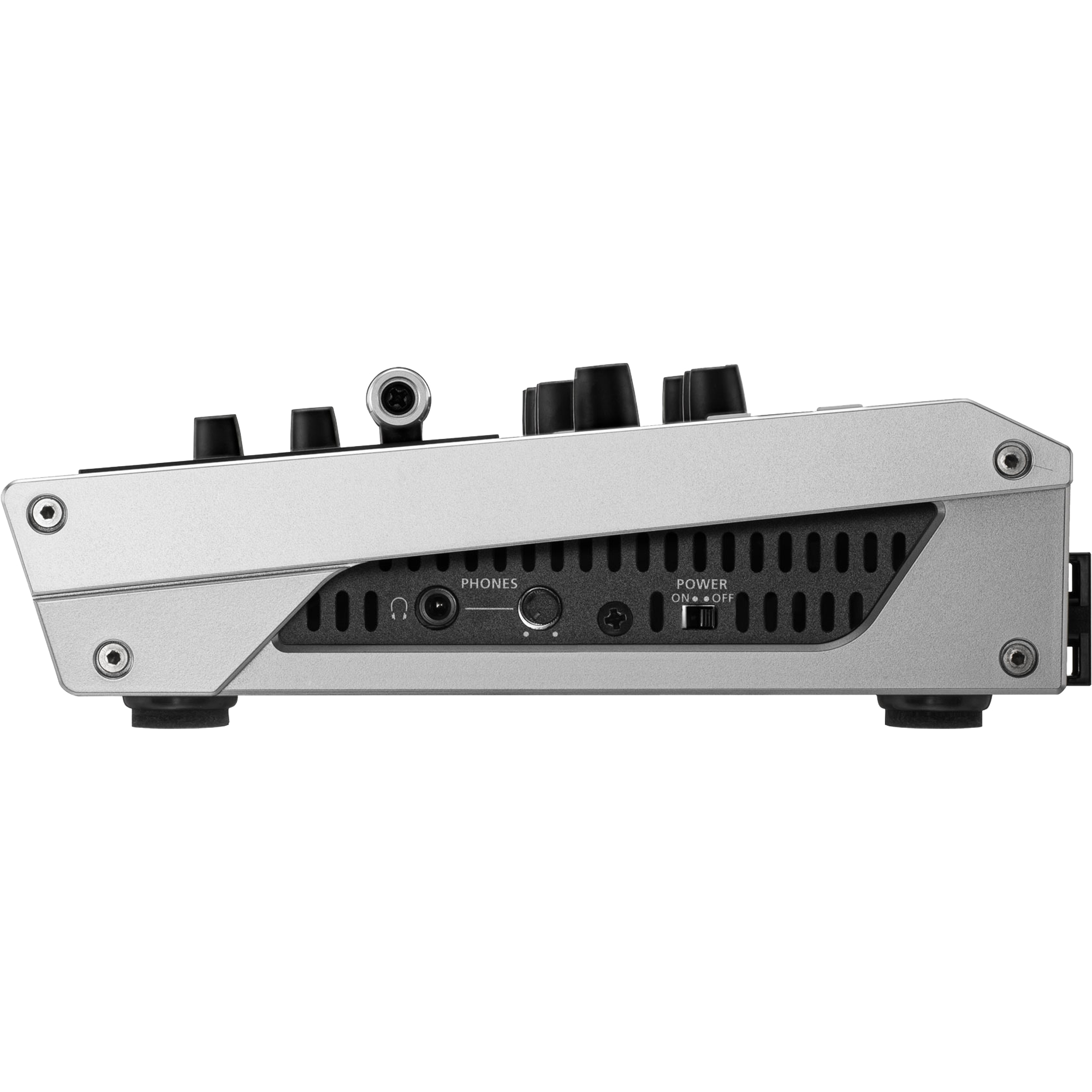

    • Audio Output Connectors (Analog): AUDIO OUT: RCA phono type; PHONES: Stereo miniature type
    • Audio Output Connectors (Digital): OUTPUT 1--3: HDMI type A x 3
    • Other Connectors (USB MEMORY): USB A type (for USB flash drive, for remote control from USB Numeric Keypad)
    • Other Connectors (REMOTE): USB B Type (for remote control from PC and iPad, Graphics Presenter)
    • Other Connectors (CTL/EXP): 1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
    • Input Level: AUDIO IN: -10 dBu (Maximum: +8 dBu)
    • Input Impedance: AUDIO IN: 38 k ohms
    • Output Level: AUDIO OUT: -10 dBu (Maximum: +8 dBu); PHONES: 92 mW + 92 mW (32 ohms)
    • Output Impedance: AUDIO OUT: 1 k ohm; PHONES: 10 ohms
    • Display: 4.3 inches TFT Color LCD: 480 x 272 dots
    • Power Supply: AC Adaptor
    • Current Draw: 3.3 A
    • Power Consumption: 39.6 W
    • Operation Temperature: +0 to +40 degrees Celsius; +32 to +104 degrees Fahrenheit
    • Dimensions: 317 (W) x 193 (D) x 70 (H) mm or 12-1/2 (W) x 7-5/8 (D) x 2-13/16 (H) inches
    • Weight (excluding AC adaptor): 2.0 kg or 4 lbs 7 oz
CONTENTS
    (1) Roland V-8HD Video Switcher
    (1) Startup Guide
    (1) Leaflet "USING THE UNIT SAFELY"
    (1) AC Adaptor
