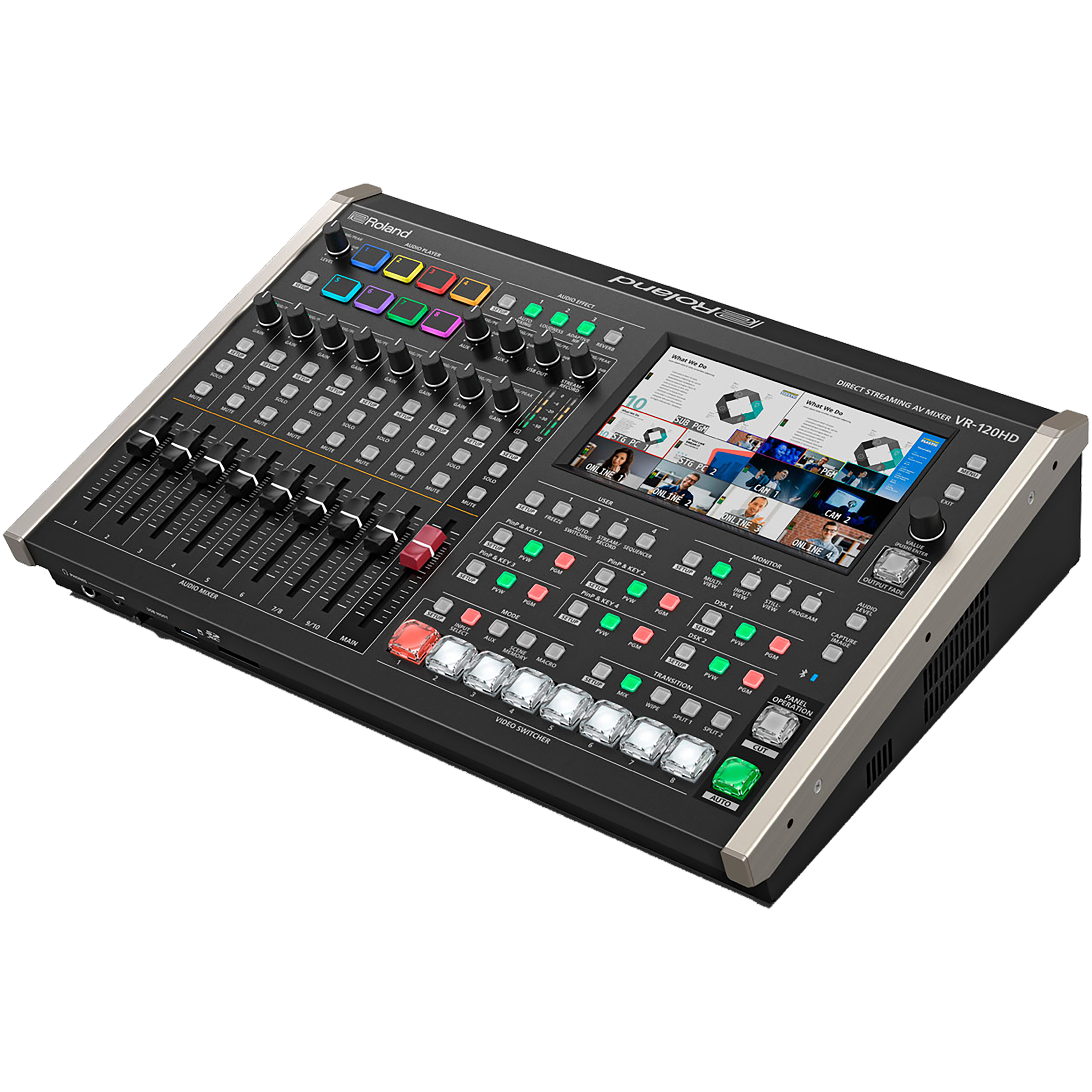

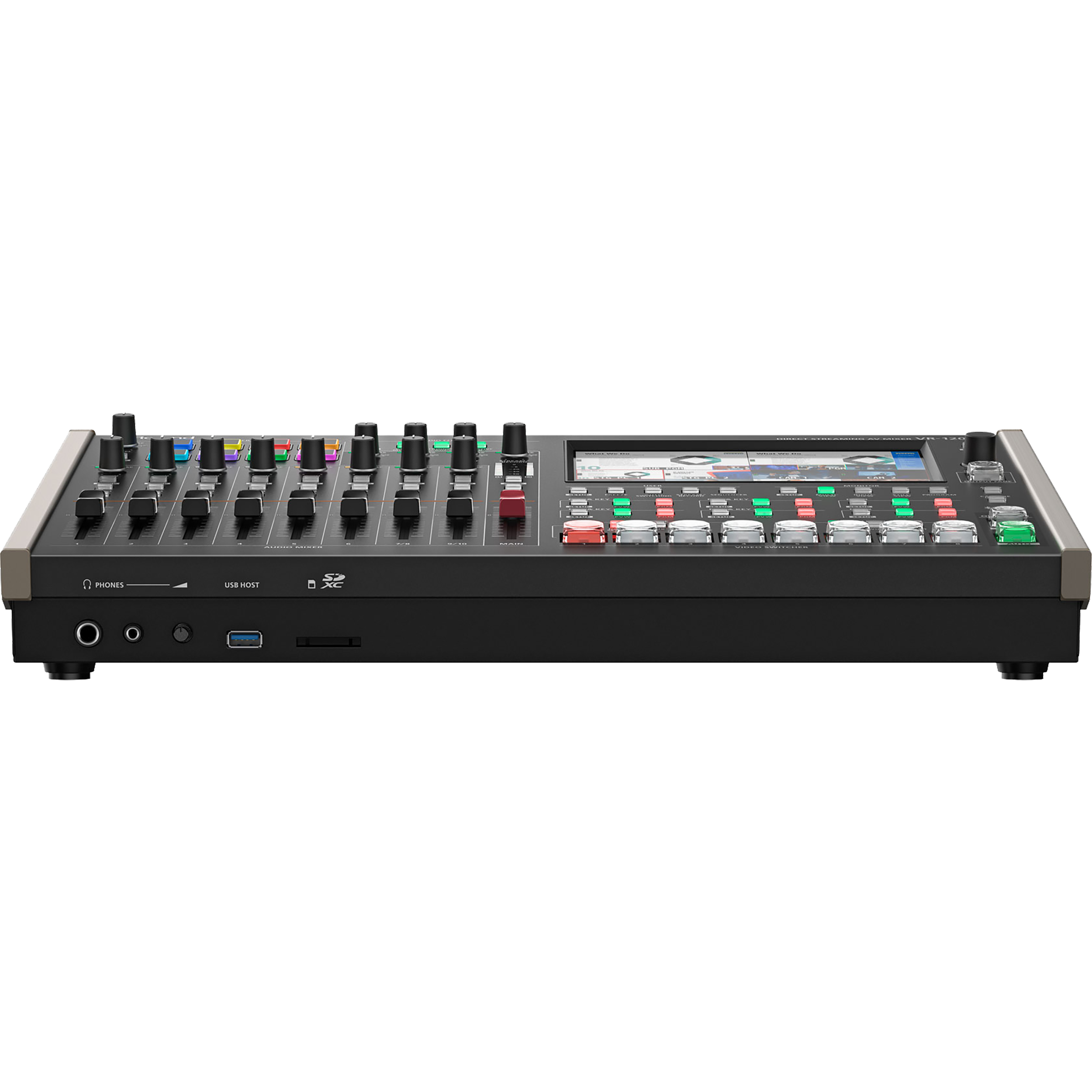

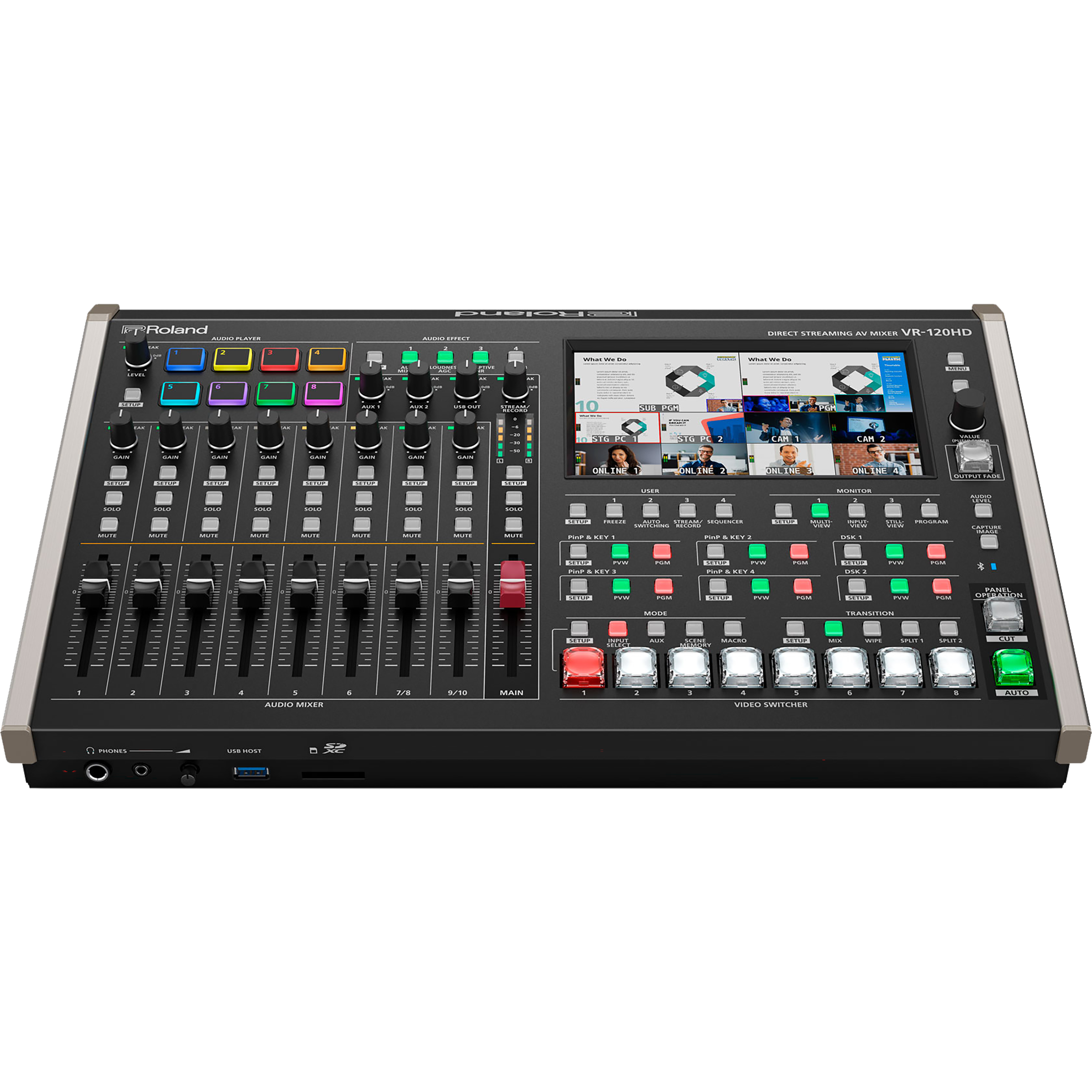

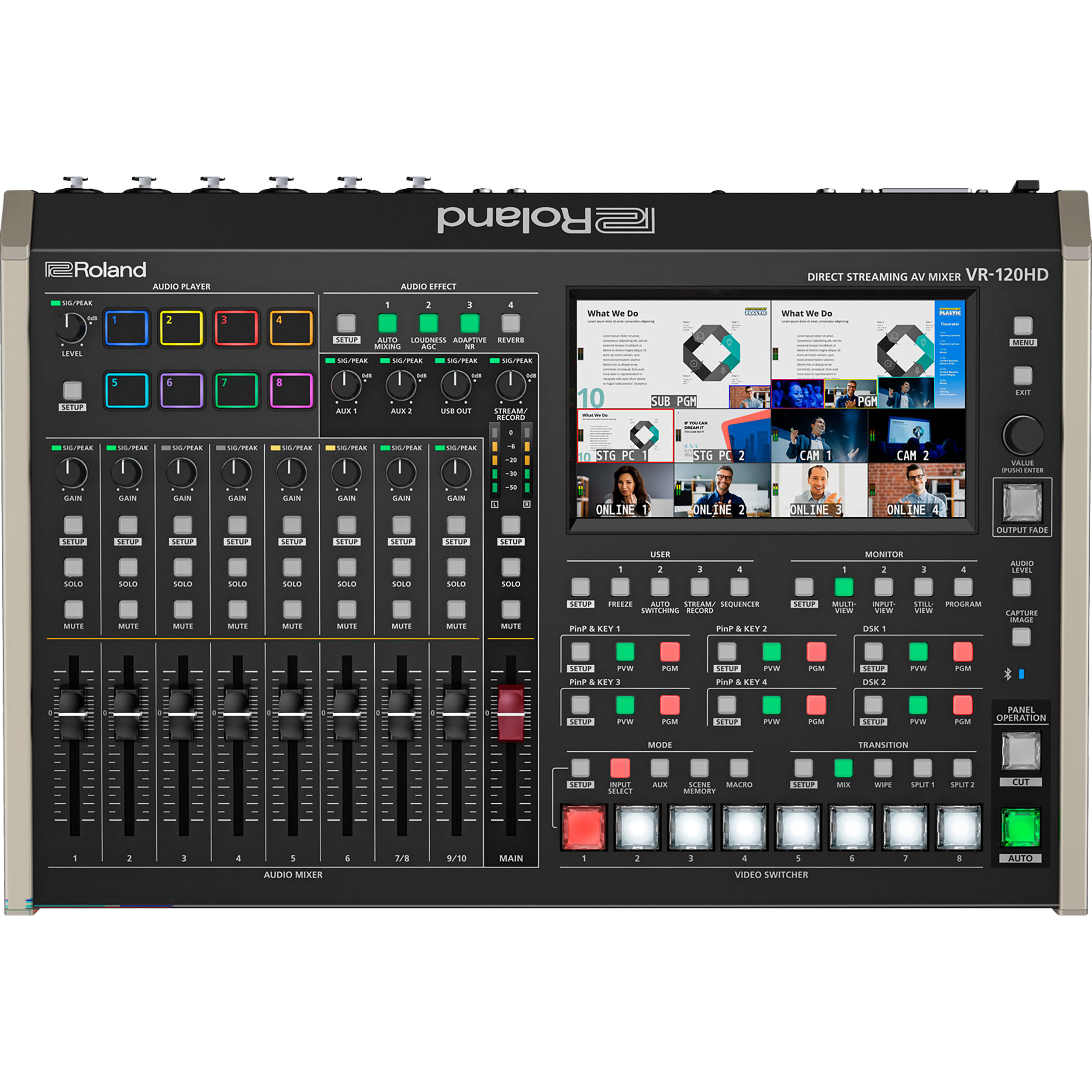

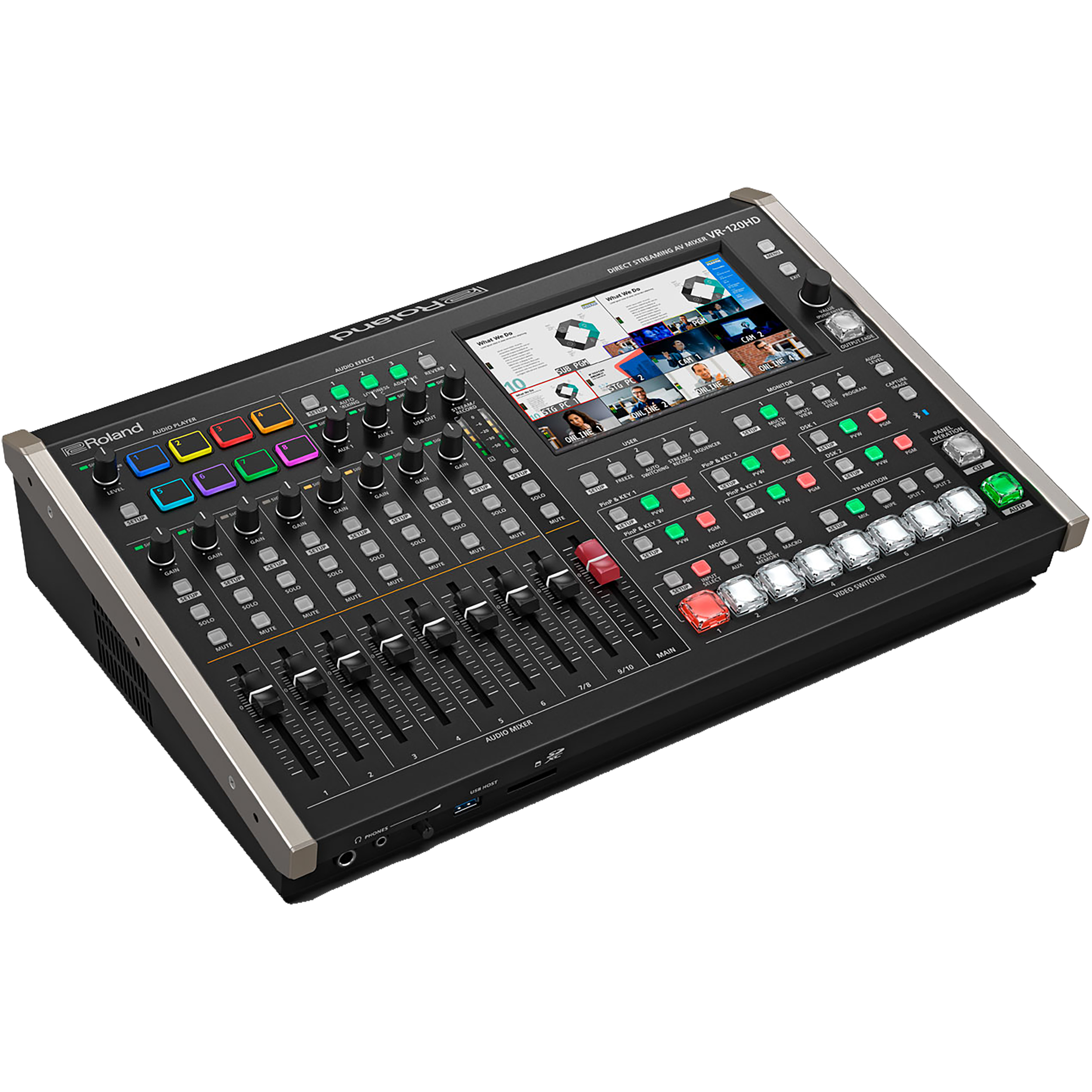

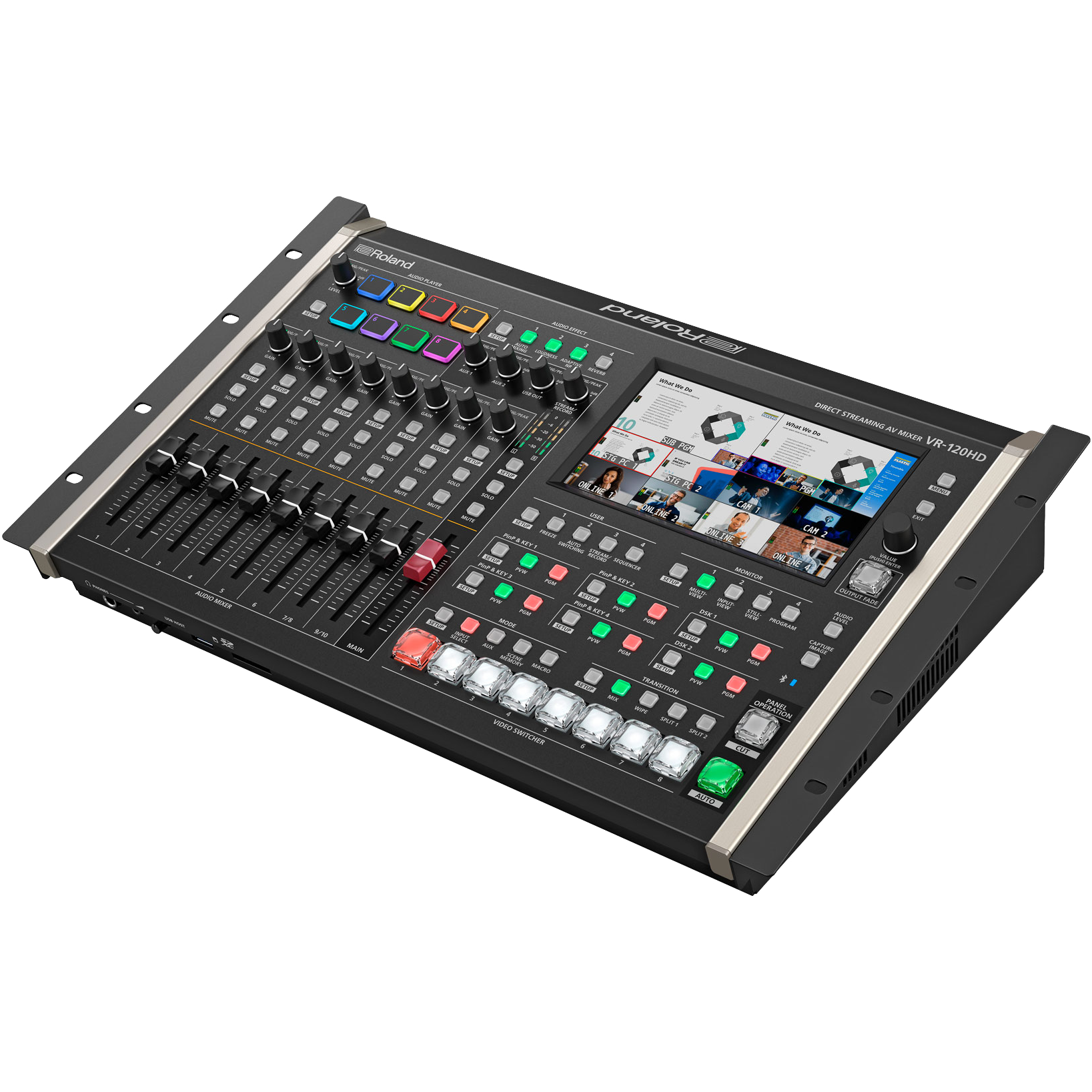

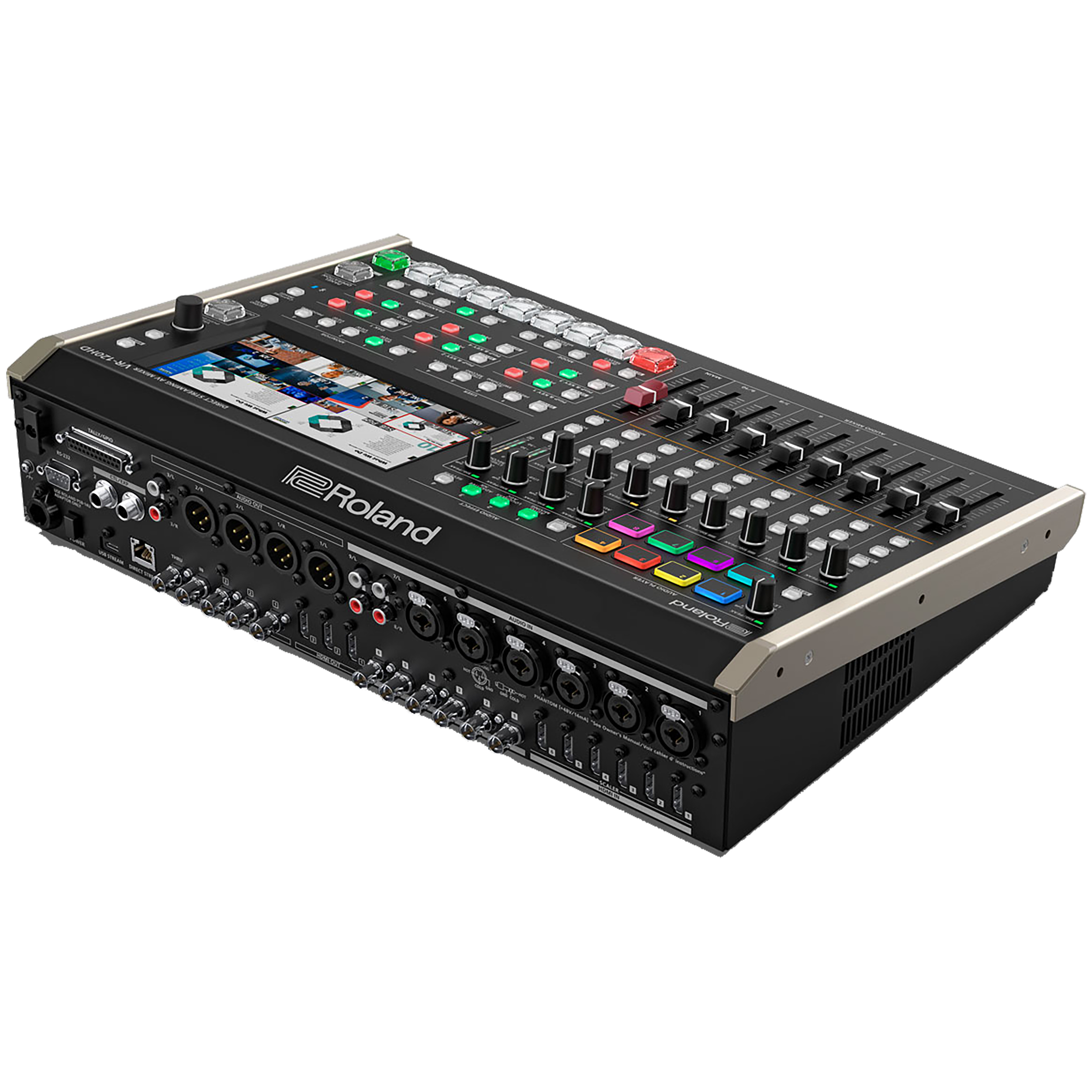

With the VR-120HD Direct Streaming AV Mixer, a single operator can confidently manage hybrid live and online productions without the need for external gear and the staff to run it. Offering extensive audio and video I/O, a large touchscreen, and hands-on controls, this portable powerhouse gives you the tools you need to take on any mid-level production. Advanced Roland AV features make difficult tasks simple with customizable workflows, deep automation functions, remote PTZ camera control, one-touch macro sequencing, streaming over LAN and USB, and much more.
FEATURES
-
• Portable hybrid event audio/video mixer with direct streaming encoders
• Powerful live production automation with sequencing, macros, and scene memories
• Built-in streaming encoders for transmitting two livestreams at rates up to 1080p/60 FPS
• Record streams directly to an SDXC card for archiving, editing, and distribution
• Six 3G SDI inputs with frame rate converters
• Six 1080p HDMI inputs with frame rate converters and real-time scalers
• Support for cinema and broadcast frame rates
• Eight-layer video effects engine
• Eight total outputs: three SDI, three HDMI, USB-C streaming, and a dedicated direct streaming output
• Seven selectable output modes: Program, Sub-Program, Aux, Preview, and three Multi-View options
42-channel digital audio mixer with advanced effects and processing
• 16-slot still store function supports screen capture or uploaded BMP, JPEG, and PNG images via alpha channel in the internal non-volatile memory
• Enhance your livestreams with sound effects, still images, and video sources stored on an SDXC card
• Audio Player function with eight trigger pads and onboard storage for 16 audio files
• PTZ control for 12 cameras with support for multiple brands and mixed protocols
• Large seven-inch touch screen with graphical menu
• Extensive device control with Bluetooth, USB, RS-232, and LAN
• Remote control software available for iPad, macOS, and Windows
• Wireless and wired camera tally support
SPECIFICATIONS
-
• Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
• Number of Video Channels: 12 channels
• Video Input Formats (HDMI IN 1--6): 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1; 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2 1080/23.98p,; VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) 1080/24p; WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz); FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz); UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit's frame rate setting is 50 Hz.
* HDMI IN 6 support Roland FILL+KEY signal
*1 Frame Rate =...1 Output Format = 720p, *2 Output Format = 1080p, *3 Frame Rate (Stream/Record) = 59.94 Hz, *4 Frame Rate (Stream/Record) = 60 Hz, *5 Frame Rate (Stream/Record) = 29.97 Hz, *6 Frame Rate (Stream/Record) = 30 Hz, *7 Frame Rate (Stream/Record) = 50 Hz, *8 Frame Rate (Stream/Record) = 25 Hz, *9 Frame Rate (Stream/Record) = 23.98 Hz, *10 Frame Rate (Stream/Record) = 24 Hz
• Stream and Record (Audio Video): Protocols: RTMP, RTMPS, SRT (Caller, Listener), Container: FLV (RTMP, RTMPS), MPEG2-TS (SRT), Recording File Format: MP4, Codec: H.264, target bitrate up to 20,000 kbps AAC-LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps
* When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
* When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
• Stream and Record (Audio): Recording File Format: WAV; Codec: Linear PCM, 16 bits, 48 kHz, stereo
• Video Player/SRT In (Video Player): File Format: MP4; Codec: H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p AAC-LC, 16 bits, 48 kHz, stereo
• Video Player/SRT In (SRT In): Protocol: SRT (Caller, Listener); Container: MPEG2-TS; Codec: H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p AAC-LC, 16 bits, 48 kHz, stereo
* When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
* When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
• Still Image: Bitmap File (.bmp) Up to 1920 x 1080 pixels, 24-bit color, uncompressed.; PNG File (.png) Up to 1920 x 1080 pixels, 24-bit color; JPEG File (.jpg, .jpeg) Up to 1920 x 1080 pixels, 24-bit color
* It can be stored up to 16 files in the internal memory.
* It can be exported to the SD Card and USB flash drive.
* PNG alpha channel supported
• Video Effects (Transition): Cut, Mix (Dissolve/FAM/NAM), WIPE (8 types), SPLIT (2 types)
• Video Effects (Composition): PinP x 4 (Square, Circle, Diamond), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key), Roland FILL+KEY Mode
• Video Effects (Others): Multi-View (3 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay
• Audio Processing: Sample rate: 24 bits, 48 kHz
• Number of Audio Channels: 42 channels
• Audio Formats (USB STREAM (input/output)): Linear PCM, 16 bits, 48 kHz, 2 ch
• Audio Formats (Bluetooth (input)): Linear PCM, 16 bits, 48 kHz, 2 ch
• Audio Formats (HDMI IN): Linear PCM, 24 bits, 48 kHz, 2 ch
• Audio Formats (HDMI OUT): Linear PCM, 24 bits, 48 kHz, 8 ch
• Audio Formats (SDI IN): Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)
• Audio Formats (SDI OUT): Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)
• Audio Player: File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)
* It can be stored up to 16 tracks in the internal memory.
• Audio Effects (Channel Effects): High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing
• Audio Effects (Master Effects): Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay
• Audio Effects (Others): Output fade, Test tone output
• Recording Media: SDHC/SDXC card (commercially available); USB Memory (commercially available)
* SDXC card is required for video recording.
• Other Functions: Scene Memory (32 types), Macro Control (100 types), Sequencer Control (1,000 steps), Sequencer Control, Panel lock function, EDID Emulator, Auto Switching, Auto Input Detect, Smart Tally, Remote Camera Control (Up to 12 units), External Rec Control, Menu language (English, Japanese, Simplified chinese)

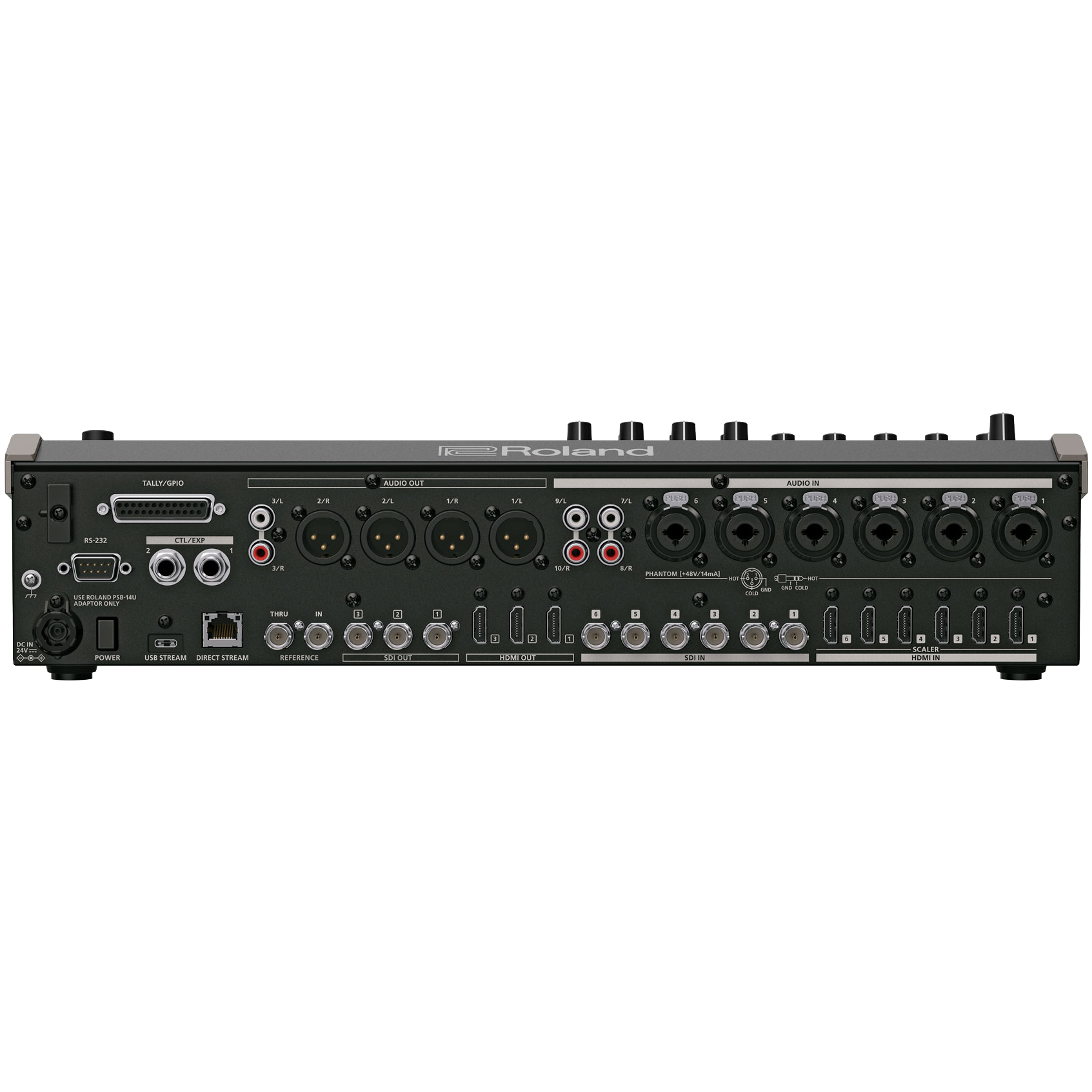

• Video Input Connectors (HDMI IN 1--6): HDMI type A x 6
* HDCP Supported
* Multi-format Supported
• Video Input Connectors (SDI IN 1--6): BNC type x 6
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
• Video Output Connectors (HDMI OUT 1--3): HDMI type A x 3
* HDCP Supported
• Video Output Connectors (SDI OUT 1--3): BNC type x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
• Video Output Connectors (USB STREAM): USB Type-C (R)
• Audio Input Connectors (Analog): AUDIO IN 1--6: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load); AUDIO IN 7/L, 8/R: RCA phono type; AUDIO IN 9/L, 10/R: RCA phono type
• Audio Input Connectors (Digital): USB STREAM: USB Type-C (R); Bluetooth; HDMI IN 1--6: HDMI type A x 6; SDI IN 1--6: BNC type x 6
• Audio Output Connectors (Analog): AUDIO OUT 1: XLR type; AUDIO OUT 2: XLR type; AUDIO OUT 3: RCA phono type; PHONES: Stereo 1/4-inch phone type, Stereo miniature phone type
• Audio Output Connectors (Digital): USB STREAM: USB Type-C (R); HDMI OUT 1--3: HDMI type A x 3; SDI OUT 1--3: BNC type x 3
• Other Connectors: USB HOST: USB A type (for USB flash drive, for remote control from USB numeric keypad); USB STREAM: USB Type-C (R) (for remote control from PC and iPad, Graphics Presenter); Bluetooth: for remote control from iPad; CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from footswitch and expression pedal); TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8); RS-232: DB-9 type (Male) (for Remote Control); DIRECT STREAM: RJ45, 1000BASE-T (for Live Streaming, SRT In/Out and Remote Control); Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-Level
• Input Level: AUDIO IN 1--6: -64--+4 dBu (Maximum: +24 dBu); AUDIO IN 7/L, 8/R: -10 dBu (Maximum: +10 dBu); AUDIO IN 9/L, 10/R: -10 dBu (Maximum: +10 dBu)
• Input Impedance: AUDIO IN 1--6: 30 k ohms; AUDIO IN 7/L, 8/R: 7 k ohms; AUDIO IN 9/L, 10/R: 7 k ohms
• Output Level: AUDIO OUT 1 (XLR): +4 dBu (Maximum: +24 dBu); AUDIO OUT 2 (XLR): +4 dBu (Maximum: +24 dBu); AUDIO OUT 3 (RCA): -10 dBu (Maximum: +10 dBu); PHONES: 92 mW + 92 mW (32 ohms)
• Output Impedance: AUDIO OUT 1 (XLR): 600 ohms; AUDIO OUT 2 (XLR): 600 ohms; AUDIO OUT 3 (RCA): 1 k ohm; PHONES: 56 ohms
• Residual Noise Level (IHF-A, typ.): -92 dBu (All faders: Min); -89 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 Connector, Analog gain: Min); -62 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 Connector, Analog gain: Max)
* Input 150 ohms terminate
* Output Connector: AUDIO OUT 1--2 (XLR)
• Residual Noise Level (IHF-A, typ.): -101 dBu (All faders: Min); -100 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 jack, Analog gain: Min); -75 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 jack, Analog gain: Max)
* Input 150 ohms terminate
* Output Connector: AUDIO OUT 3 (RCA)
• Bluetooth: Ver 5.0; Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy); Codec: SBC (Support to the content protection of the SCMS-T method)
• Display: Graphic Type, 7", Wide VGA (800 x 480 dots), backlite LCD (Color/Touch screen)
• Power Supply: AC Adaptor
• Current Draw: 3.0 A
• Power Consumption: 69 W
• Operation Temperature: +0 to +40 degrees Celsius / +32 to +104 degrees Fahrenheit
• Dimensions: 437 (W) x 304 (D) x 109 (H) mm / 17-1/4 (W) x 12 (D) x 4-5/16 (H) inches
• Dimensions (When rack mount angles are fitted): 482 (W) x 304 (D) x 109 (H) mm / 19 (W) x 10 (D) x 4-1/16 (H) inches
• Weight (excluding AC adaptor): 5.3 kg / 11 lbs 11 oz
• Options (sold separately): Footswitch: BOSS FS-5U, FS-6, FS-7; Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H
CONTENTS
-
• (1) Roland VR-120HD Direct Streaming Video Switcher
• (1) Startup Guide
• (1) Leaflet "USING THE UNIT SAFELY"
• (1) AC Adapter
• (1) Power Cord

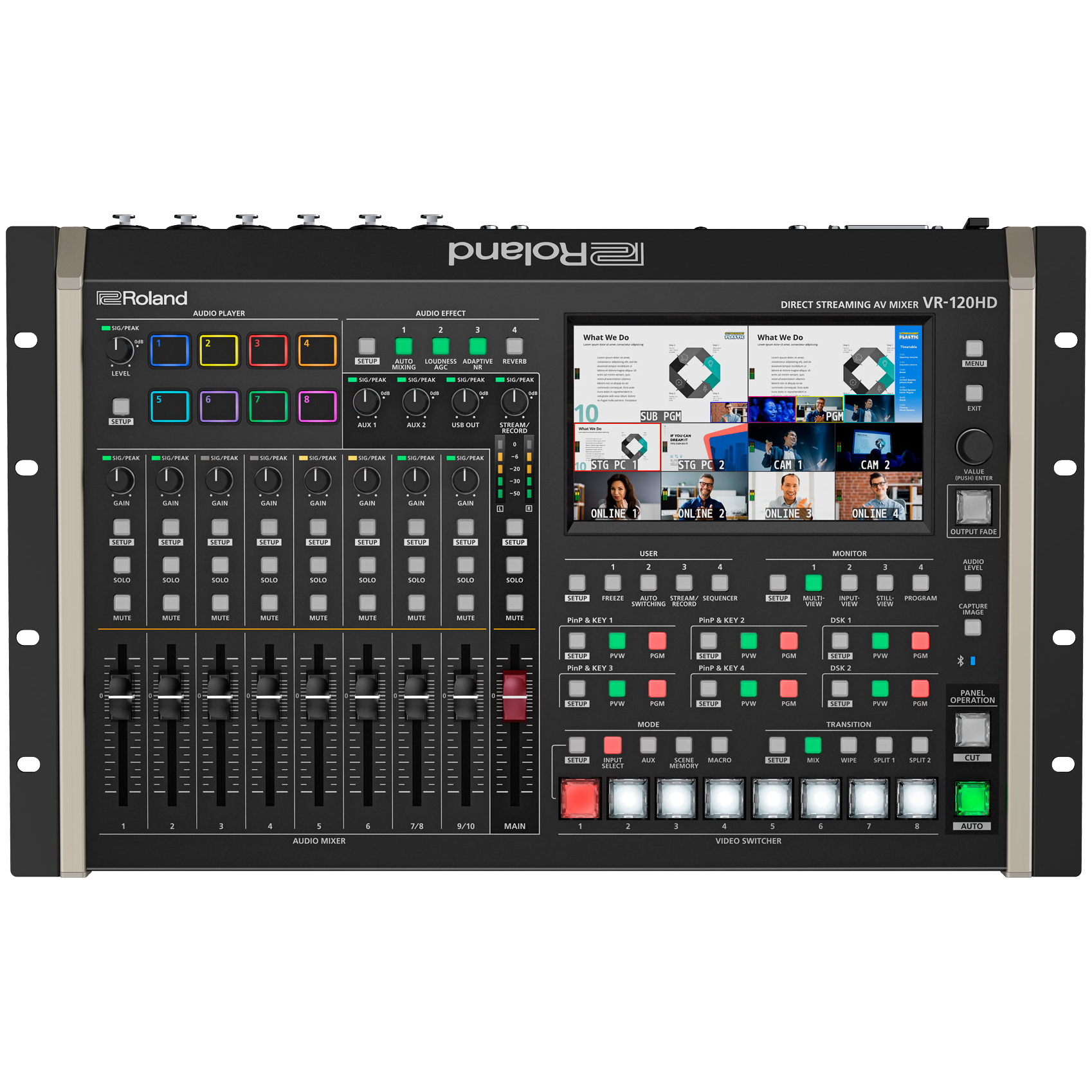

• (2) Rack-Mount Angle
• (6) Rack-Mount Angle Mounting Screw
