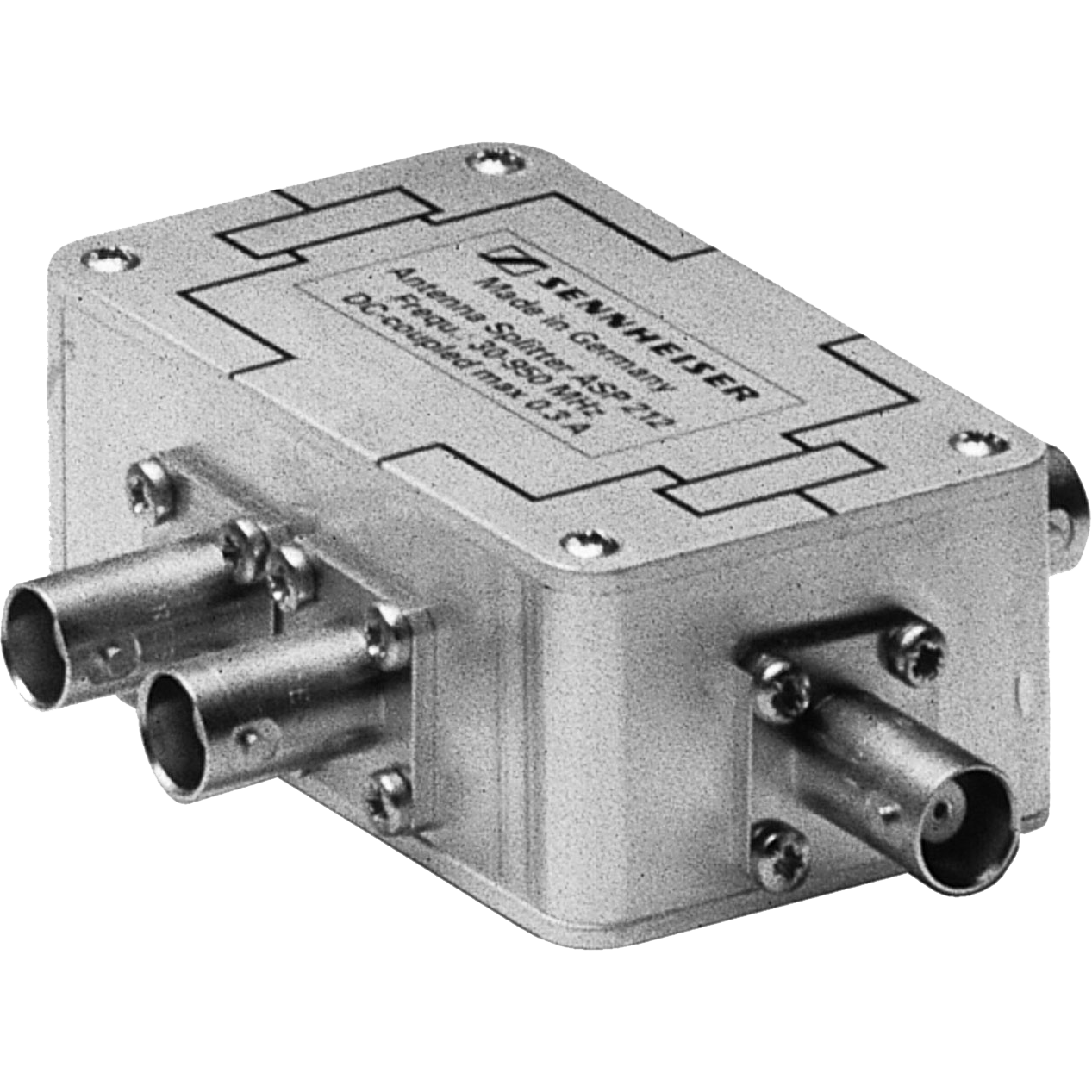

One dual two-way BNC passive splitter box with DC pass through, used for sharing two antennas with up to 16 receivers (requires using two 8-channel splitter kits)
FEATURES
• 2x 2-way antenna splitter, passive
SPECIFICATIONS
• Frequency range: 30 - 950MHz
• Attenuation: approx. 4 dB
• Power Supply: DC-coupled, 0.3A max.
• RF connectors: BNC
• Product Height: 53 mm
• Product Length: 139 mm
• Product Width: 98 mm
• Product Weight: 220 g
