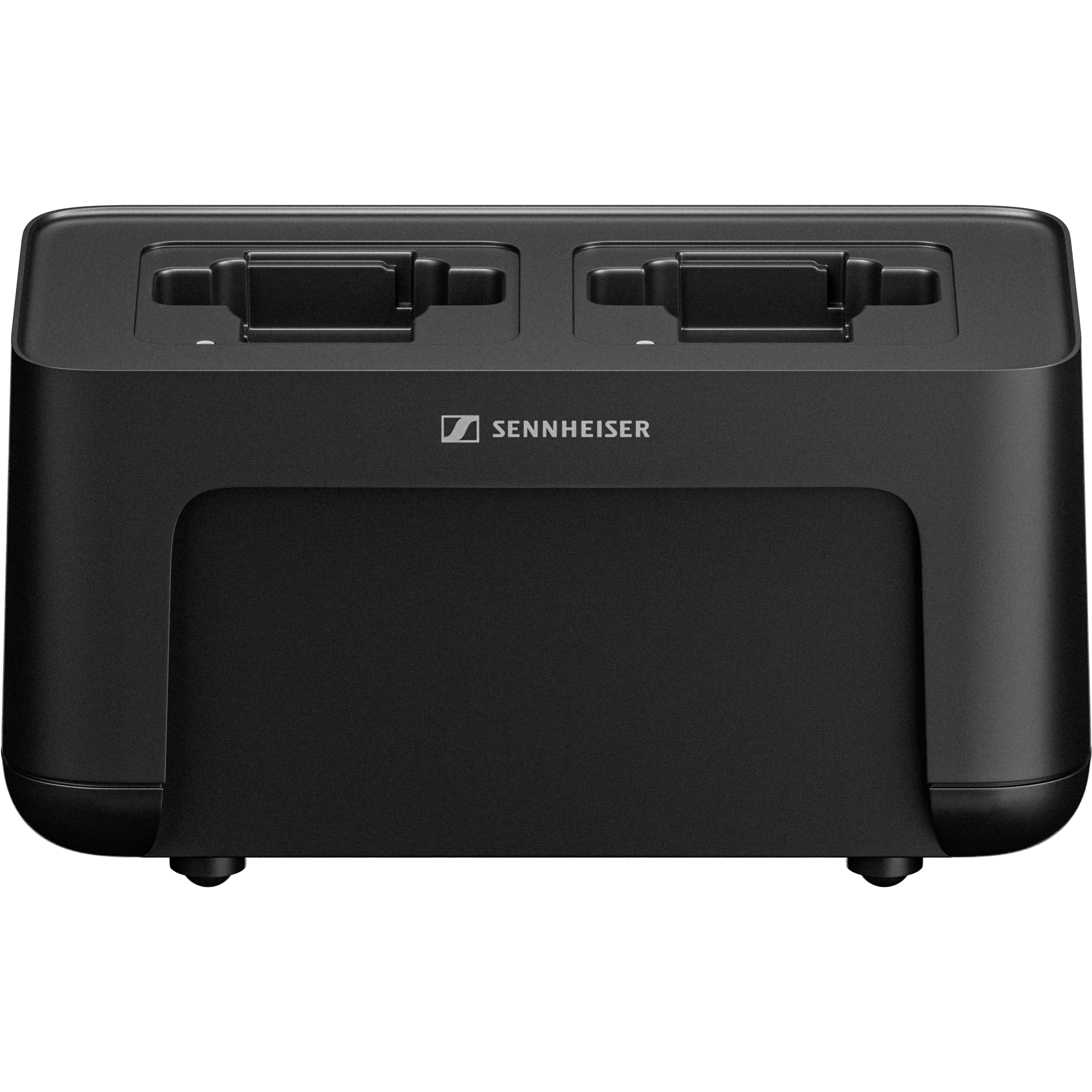

The CHG 70N-C is a network-enabled charger featuring two individual charging bays. It does not include a PSU and can either be powered via PoE or in conjunction with CHG 70N-C + PSU KIT.
FEATURES
-
• Control and Monitoring via the Sennheiser Control Cockpit and 3rd party applications
• 2 bays: charge EW-DX SKM, EW-DX SK, SPECTERA SEK or BA 70
• Power via PoE or power supply unit
• Cascade up to 5 CHG 70N-C (only one network connection and power supply needed)
• 2h charging time (0 ~ 80%), 3h till 100%
SPECIFICATIONS
-
• Power supply: 12 V DC (single device or cascade of up to 5 devices) or PoE IEEE 802.3af Class 0 (CAT5e or higher)
• Current consumption: max. 3.5 A for cascade of up to 5 devices
• Power consumption: max. 12 W
• Network socket: RJ-45, IEEE 802.3; 10base-T (half and full), 100base-TX (half and full)
• Dimensions: approx. 200 x 104 x 116 mm (7.9" x 4.1" x 4.6")
• Weight: approx. 640 g
• Charging bays: 2
• Charging capacity per bay: BA 70 rechargeable battery or EW-DX SK with BA 70 or EW-DX SKM with BA 70 or SPECTERA SEK with BA 70
• Charging voltage: 4.35 V
• Charging current: min. 344 mA, max. 860 mA
• Charging status indicator: 1 LED per bay (red, yellow, green)
• Charging time for full charge: max. 3.5h
• Charging temperature range: -10 °C - 50 °C (14 °F - 122 °F)
• Storage temperature range: -20 °C - 70 °C (-4 °F - 158 °F)
• Relative humidity: max. 95% non-condensing
CONTENTS
-
(1) Sennheiser CHG 70N-C Charging Cradle Add-On
(1) User Manual
