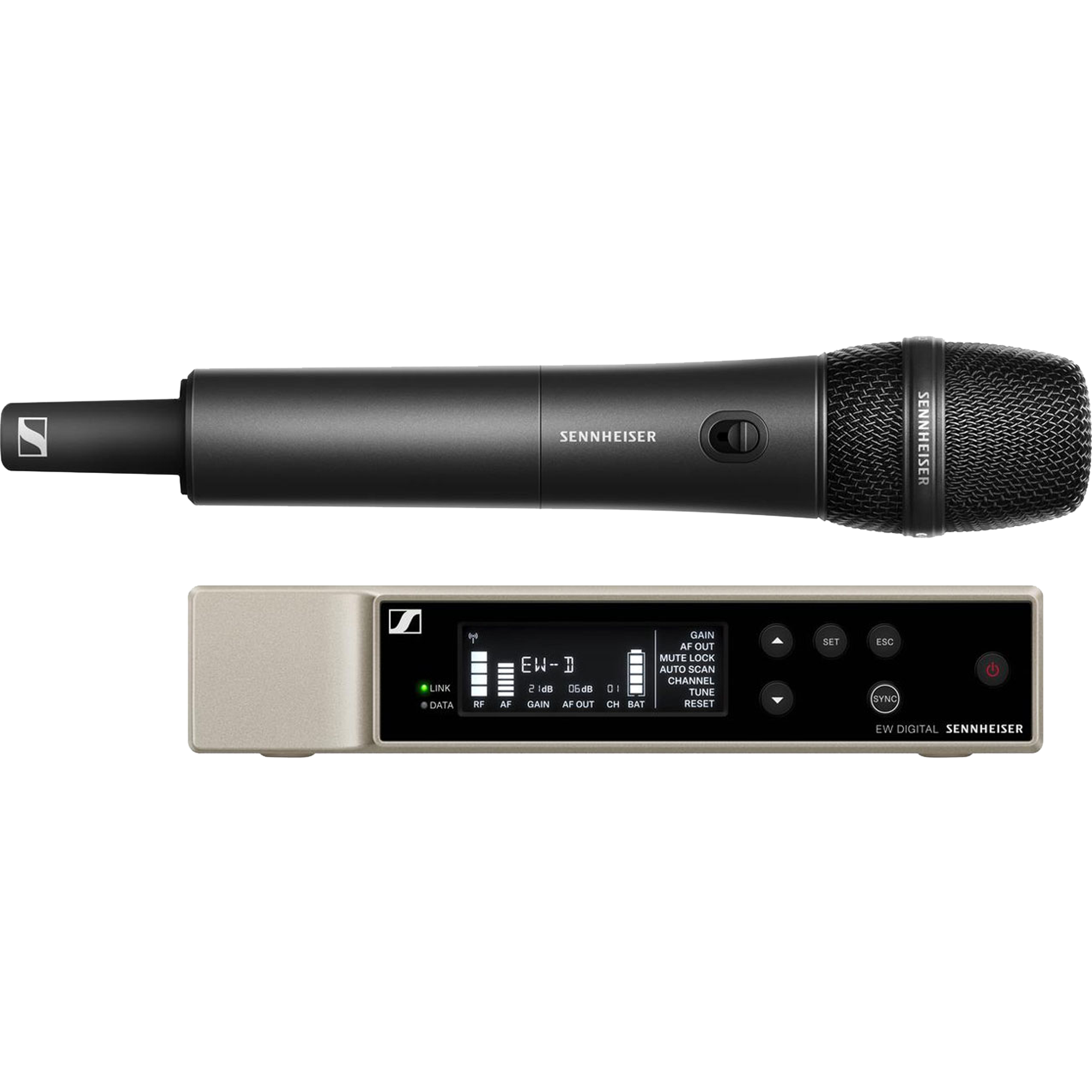

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.
FEATURES
- • Digital wireless eliminates noise, interference and static bursts.
• UHF transmission greatly enhances range, reliability and scalability
• Mobile App streamlines setup and operation and eliminates complicated menus
• Automated setup creates reliable connections with minimal time and effort
• Up to 2,240 selectable frequencies
• Transmission range: up to 100 m in an ideal environment (without obstacles)
• Lithium Ion battery pack delivers up to 12 hours of operation (up to 8 hours of operation with AA batteries)
• 56 MHz Bandwidth will allow for up to 90 channels
• Preserves every detail of even the most dynamic performances with 134 dB transmitter dynamic range
SPECIFICATIONS
- Audio link frequency range: 470.2 - 526 MHz
Bluetooth® Low Energy (BLE) frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range: 134 dB
System latency: 1.9 ms
Operating temperature: -10 °C - +55 °C; (14 °F - 131 °F)
Relative humidity: 5 - 95 % (non-condensing)
EW-D EM (Rack Receiver):
Input voltage: 11 - 13 V ⎓
Input current: ≤ 300 mA
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
Dimensions: 212 x 44 x 189 mm or (8.35" x 1.73" x 7.44")
Weight (without antennas and power supply): approx. 1000 g (2.2 lbs)
Set in packaging:
Dimensions: 405 x 350 x 73 mm or (15.91" x 13.78" x 2.87")
Weight: 3.0 kg (6.61 lbs)
EW-D SKM-S (Handheld Transmitter):
Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power (radiated): Audio link: 10 mW ERP,(Range Y1-3: 12 mW ERP) and BLE: max. 10 mW EIRP
Dimensions (ø x l) (incl. MMD 835 microphone module): 50 x 268 mm (1.97" x 10.55")
(without microphone module): 40 x 200 mm (1.57" x 7.87")
Weight (without batteries) (incl. MMD 835 microphone module): approx. 304 g (0.67 lbs)
(without microphone module): approx. 195 g (7.14 lbs)
MMD 835 (Microphone Module):
Transducer principle: Dynamic
Sensitivity: 2.1 mV/Pa
Sound pressure level: 154 dB SPL
Pick-up pattern: Cardioid
CONTENTS
- (1) EW-D EM Rack Receiver
(1) EW-D SKM-S Handheld Transmitter
(1) MMD 835 Microphone Module
(1) MZQ 1 Microphone Clamp
(2) Rod Antennas
(1) Power Supply With Country Adapters
(1) Rackmount Set
(4) Rubber Feet
(1) Quick Guide
(1) Safety Guide
(1) Manufacturer Declaration Sheet
