DESCRIPTION

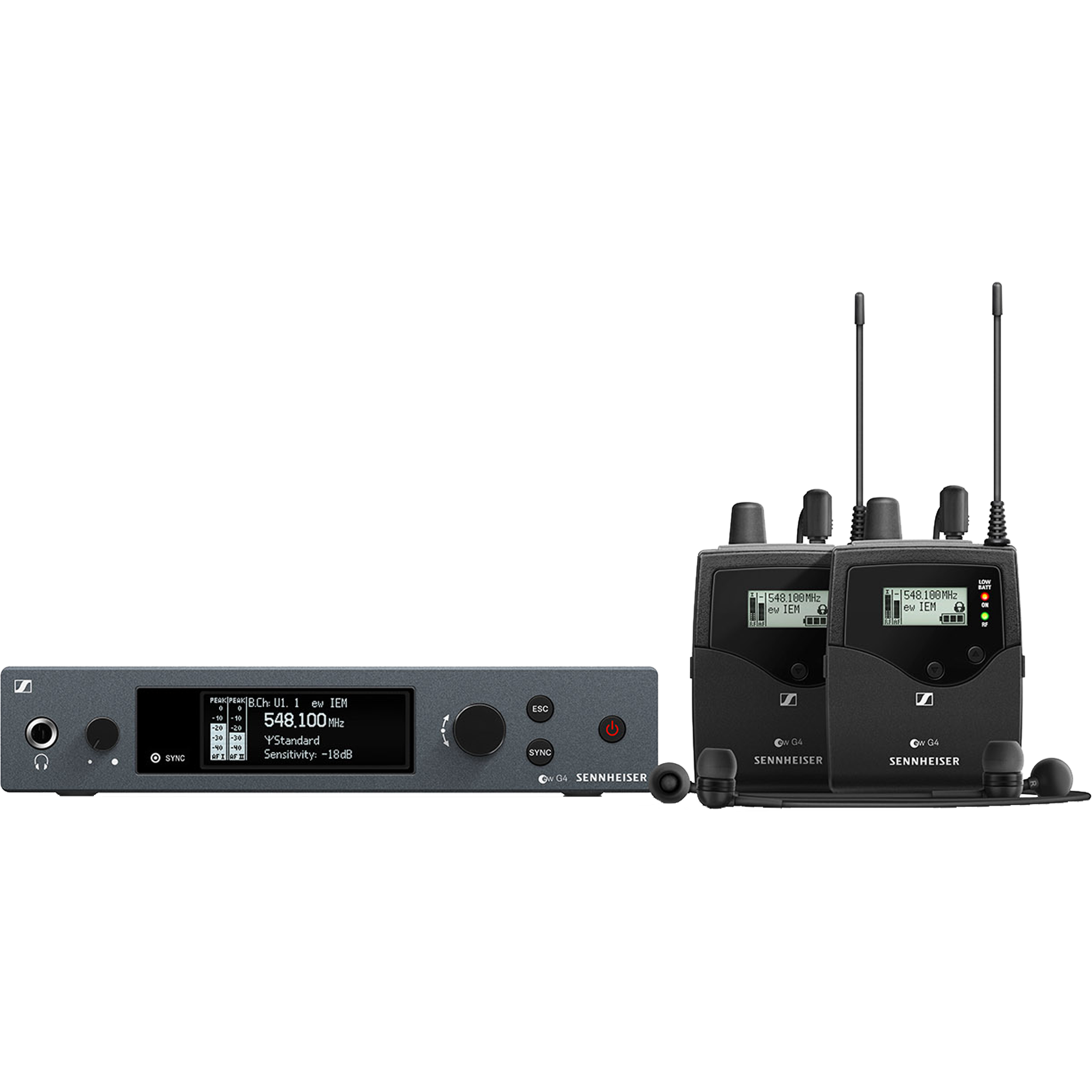

Full control over your performance – everywhere, every day. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you!

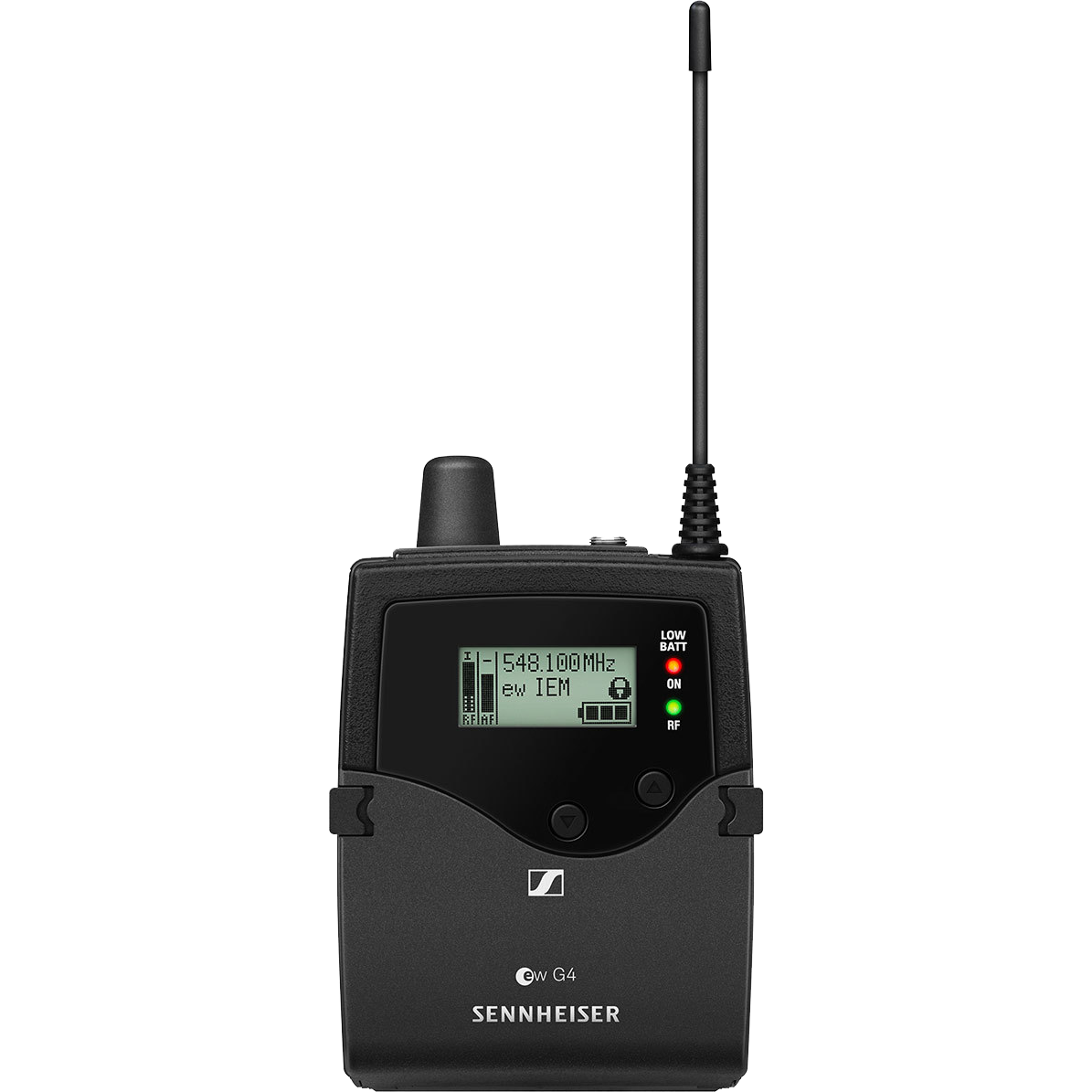

Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.

FEATURES
    • Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
    • Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage

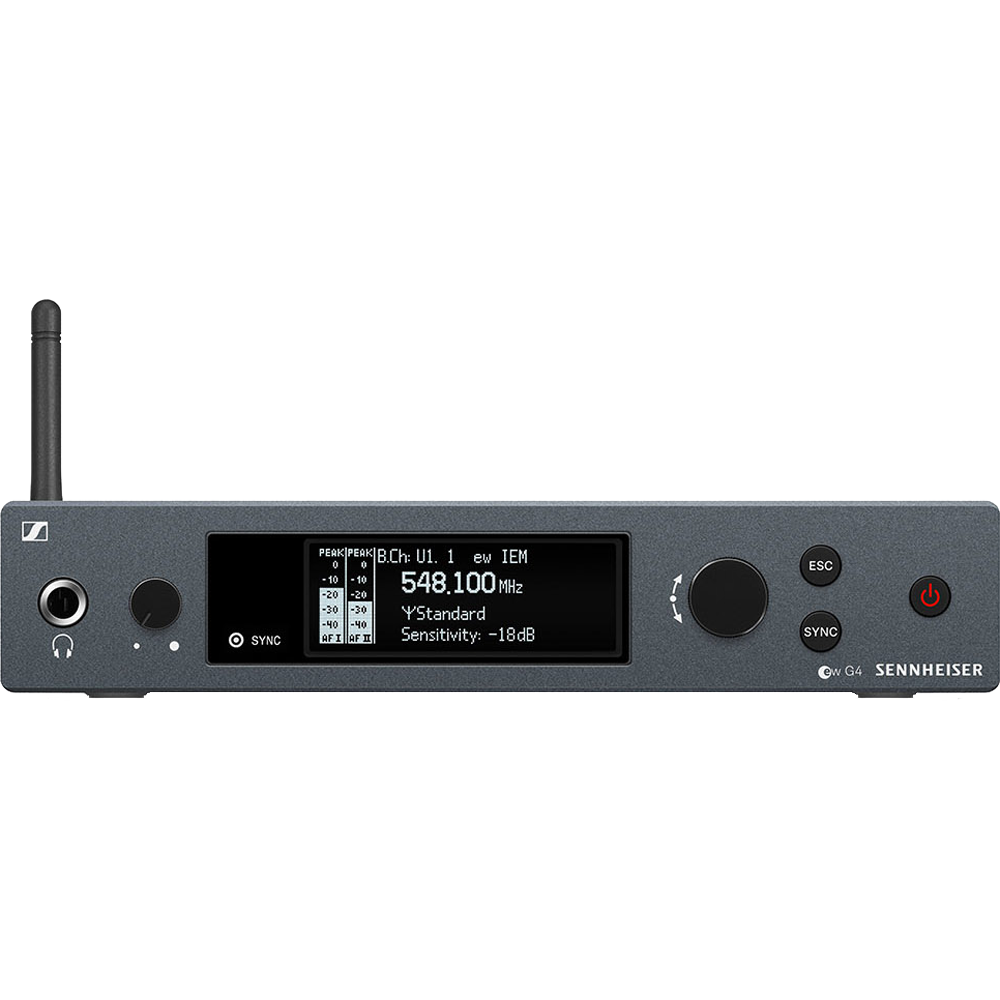

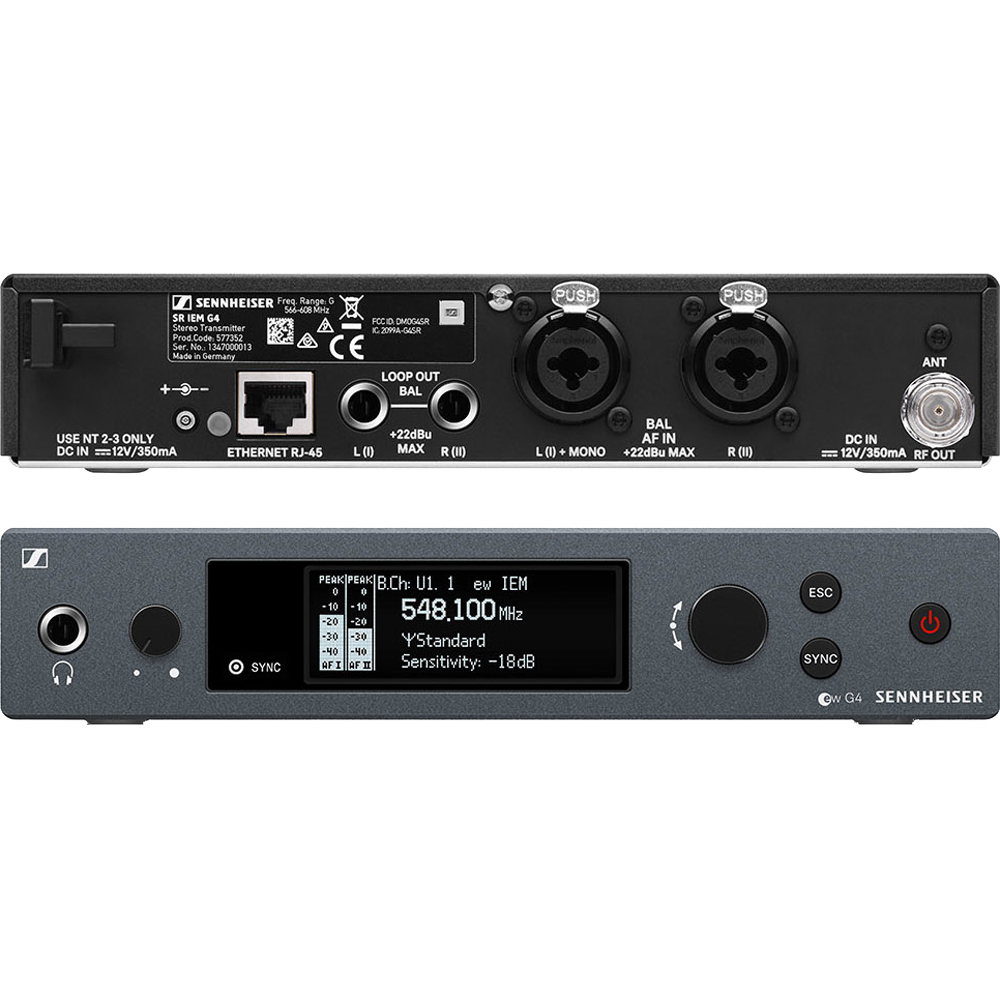

    • Half-rack stereo transmitter in a full-metal housing with OLED display for full control
    • Easy and flexible wireless synchronization between transmitter and receiver via infrared
    • Compatible with Sennheiser WSM control software for flexible frequency allocation
    • Up to 16 compatible channels
    • Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
    • Transmission Range: up to 100 meters / 300 feet
    • High RF output power (up to 50 mW) depending on country regulations
SPECIFICATIONS
    SR IEM G4:

    Modulation: Wideband FM stereo (MPX pilot tone)

    Frequency ranges: A: 516 - 558 MHz, A1: 470 - 516 MHz, G: 566 - 608 MHz

    Transmitting frequencies: Max. 1680 frequencies, adjustable in 25 kHz steps; 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation; 6 frequency banks with up to 16 programmable channels

    Switching bandwidth: up to 42 MHz

    Nominal/peak deviation: ±24 kHz / ±48 kHz

    MPX pilot tone (frequency/deviation): 19 kHz/±5 kHz

    Frequency stability: ±10 ppm

    Antenna output: BNC socket, 50 Ω

    RF output power at 50 Ω: switchable: Low: typ. 10 mW, Standard: typ. 30 mW and High: typ. 50 mW

    Compander system: Sennheiser HDX

    AF frequency response: 25 Hz to 15 kHz
    AF input BAL AF IN L (I) + MONO/ BAL AF IN R (II): 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced

    Max. input level: +22 dBu

    Total harmonic distortion (THD): <0.9 %

    Signal-to-noise ratio (at nominal load and peak deviation): >90 dB

    AF output LOOP OUT BAL L (I)/ LOOP OUT BAL R (II): ¼" (6.3 mm) stereo jack socket, balanced

    Temperature range: -10 °C to +55 °C

    Power supply: 12 V DC

    Current consumption: max. 350 mA

    Dimensions: Approx. 202 x 212 x 43 mm

    Weight: Approx. 980 g

    EK IEM G4:

    Modulation: Wideband FM

    Frequency ranges: A: 516 - 558 MHz, A1: 470 - 516 MHz, G: 566 - 608 MHz

    Receiving frequencies: Max. 1680 frequencies, adjustable in 25 kHz steps; 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation; 6 frequency banks with up to 16 programmable channels

    Switching bandwidth: up to 42 MHz

    Nominal/peak deviation: ±24 kHz / ±48 kHz

    Receiver principle: Adaptive diversity

    Sensitivity (with HDX, peak deviation): < 4 μV, typ. 1.6 μV for 52 dBA rms S/N

    Adjacent channel selection: Typically ≥ 65 dB

    Intermodulation attenuation: Typically ≥ 70 dB

    Blocking: ≥ 80 dB

    Squelch: 5 to 25 dBµV, adjustable in steps of 2 dB

    Pilot tone squelch: Can be switched off

    Compander system: Sennheiser HDX

    Signal-to-noise ratio (1 mV, peak deviation): approx. 90 dBA

    Total harmonic distortion (THD): ≤ 0.9 %
    Output power at 2.4 V, 5 % THD, nominal deviation: 2 x 100 mW at 32 Ω

    High Boost: +8 dB at 8 kHz

    Limiter: –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off

    Temperature range: -10 °C to +55 °C

    Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack

    Nominal voltage: 3 V battery / 2.4 V rechargeable battery

    Current consumption: at nominal voltage: approx. 140 mA with transmitter switched off: ≤ 25 µA

    Operating time: approx. 4 to 6 hours (depending on volume level)

    Dimensions: Approx. 82 x 64 x 24 mm

    Weight (incl. batteries): approx. 125 g
CONTENTS
    (1) SR IEM G4 Stereo Transmitter
    (2) EK IEM G4 Stereo Receiver

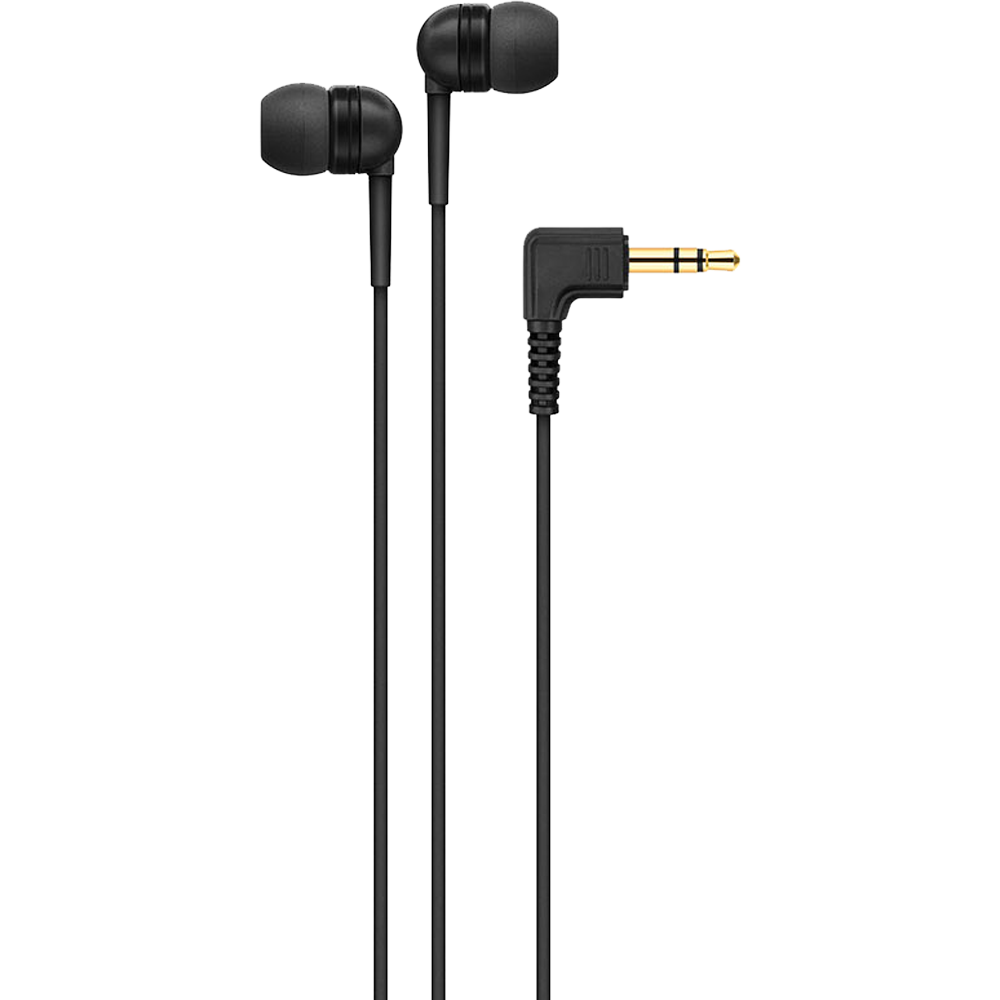

    (2) IE 4 Earphones
    (4) AA Batteries
    (1) Rod Antenna
    (1) GA 3 Rackmount Set
    (1) Power Supply
    (1) Operator's Instructions
