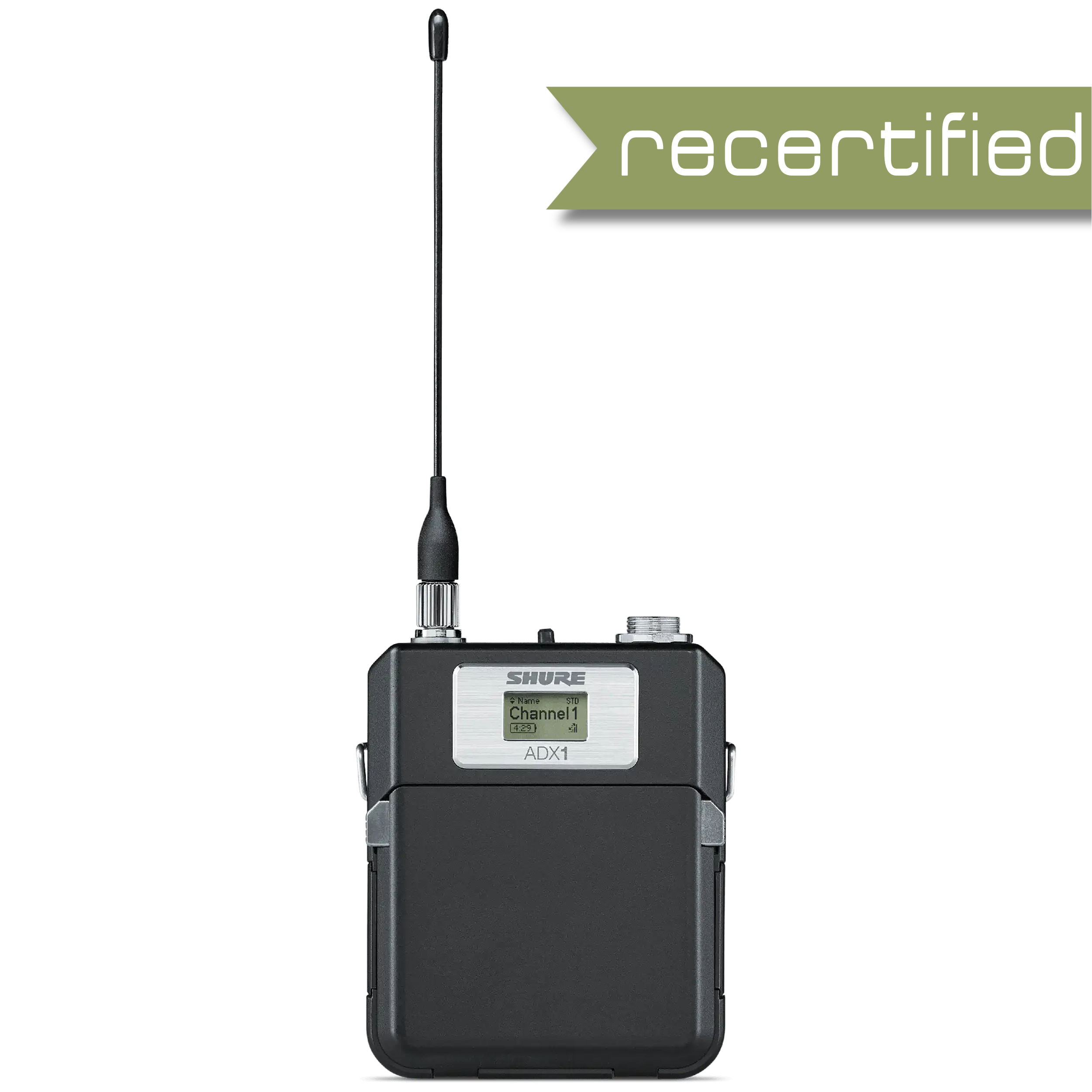

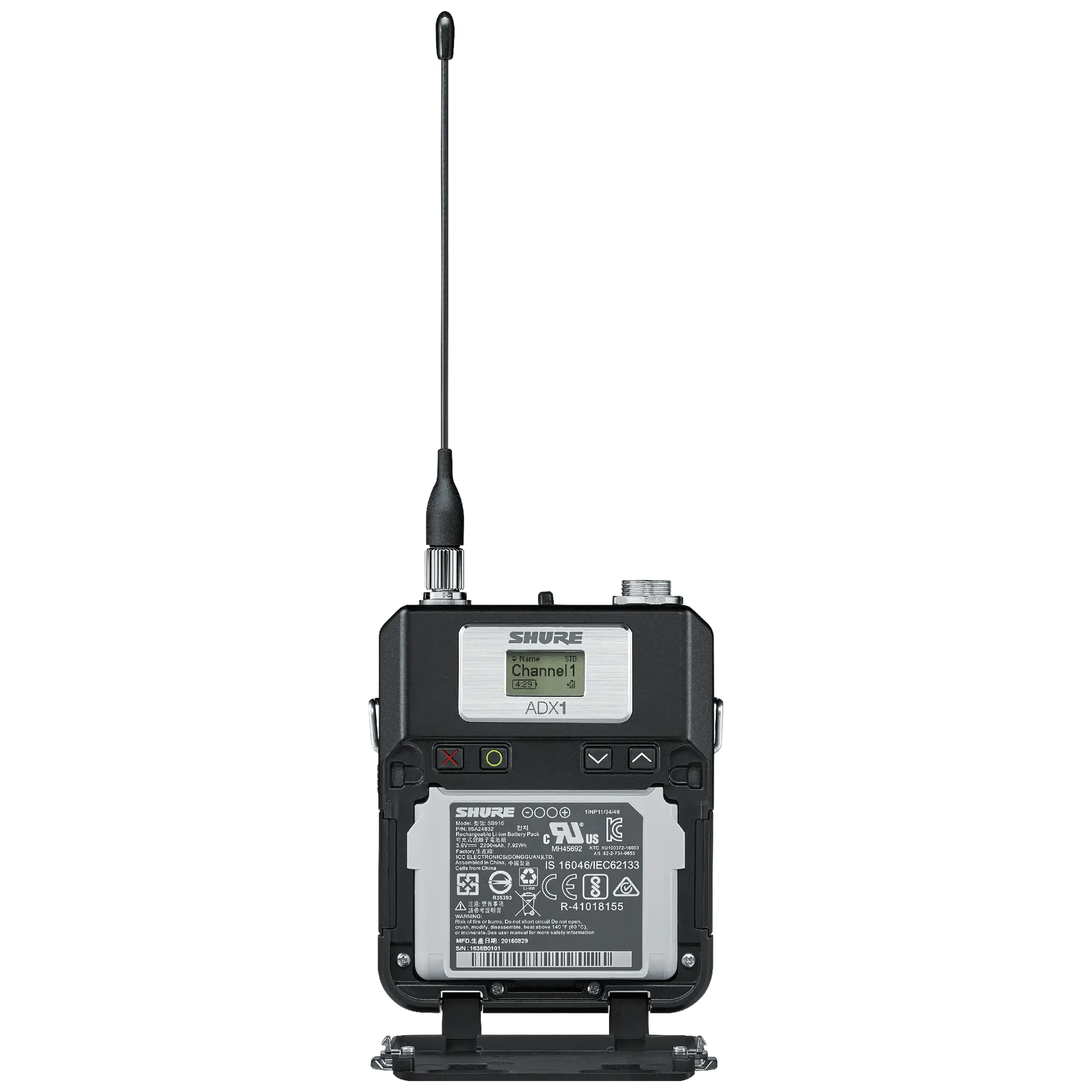

Shure ADX1LEMO3 Bodypack Transmitter
Shure ADX1LEMO3 Bodypack Transmitter
Shure ADX1LEMO3 Bodypack Transmitter
Shure ADX1LEMO3 Bodypack Transmitter
29%, only 0 left
Shure ADX1LEMO3 Bodypack Transmitter
Shure ADX1LEMO3 Bodypack Transmitter
Shure ADX1LEMO3 Bodypack Transmitter
Shure ADX1LEMO3 Bodypack Transmitter
Product SKU
    35493

Shure ADX1LEMO3 Bodypack Transmitter

$1,339.99

SEE PRODUCT IN STORE

PICK UP TODAY

recertifiedBYFP (1).png__PID:3dfb27ce-5af4-41e0-8bcb-81e313e4a56f
  • Used and Well Maintained
  • Performs Like New
  • 90 Day Guarantee

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.

With breakthrough RF performance and wide tuning up to 184 MHz, the ADX1 puts professional-quality wireless digital audio within reach.

This is the version of the AD1 with the 4-Pin male mini connector (TA4M)

FEATURES
    • Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
    • Encryption-enabled, secure transmission
    • Detachable 1/4-wave antenna
    • SB910 lithium-ion rechargeable battery
    • External contacts for docked charging
SPECIFICATIONS
    • RF Carrier Frequency Range: 470–616 MHz
    • Working Range: 330 ft (100 m)
    • RF Tuning Step Size: 25 kHz, varies by region
    • Image Rejection: >70 dB, typical
    • RF Sensitivity: -98 dBm at 0.0001 BER
    • Latency, Standard Mode: 2.08 ms
    • Audio Frequency Response: 20 – 20 kHz (+/-1 dB) Note: Dependent on microphone type
    • Total Harmonic Distortion: <0.01%
    • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output
    • Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
    • Storage Temperature Range: -29°C (-20°F) to 65°C (149°F)
    • Shure RF Carrier Band: G57
    • Latency, High Density Mode: 2.9 ms
    • Dimensions, L x W x H: 3.4" × 2.6" × 0.9" (86 mm × 66 mm × 23 mm)
    • Weight: 0.31 lbs (142 g), without antennas
    • Housing: Cast Aluminum
    • Gain Offset Range: –12 to 21 dB (in 3 dB steps)
    • Battery Type: Shure SB910 Rechargeable Li-Ion
    • Battery Runtime (@ 10 mW using Shure SB910): Up to 9 hours
    • Audio Input Configuration: Unbalanced
    • Occupied Bandwidth: <200 kHz
    • Modulation Type: Shure Axient Digital Proprietary
    • Power: 2 mW, 10 mW, 35 mW

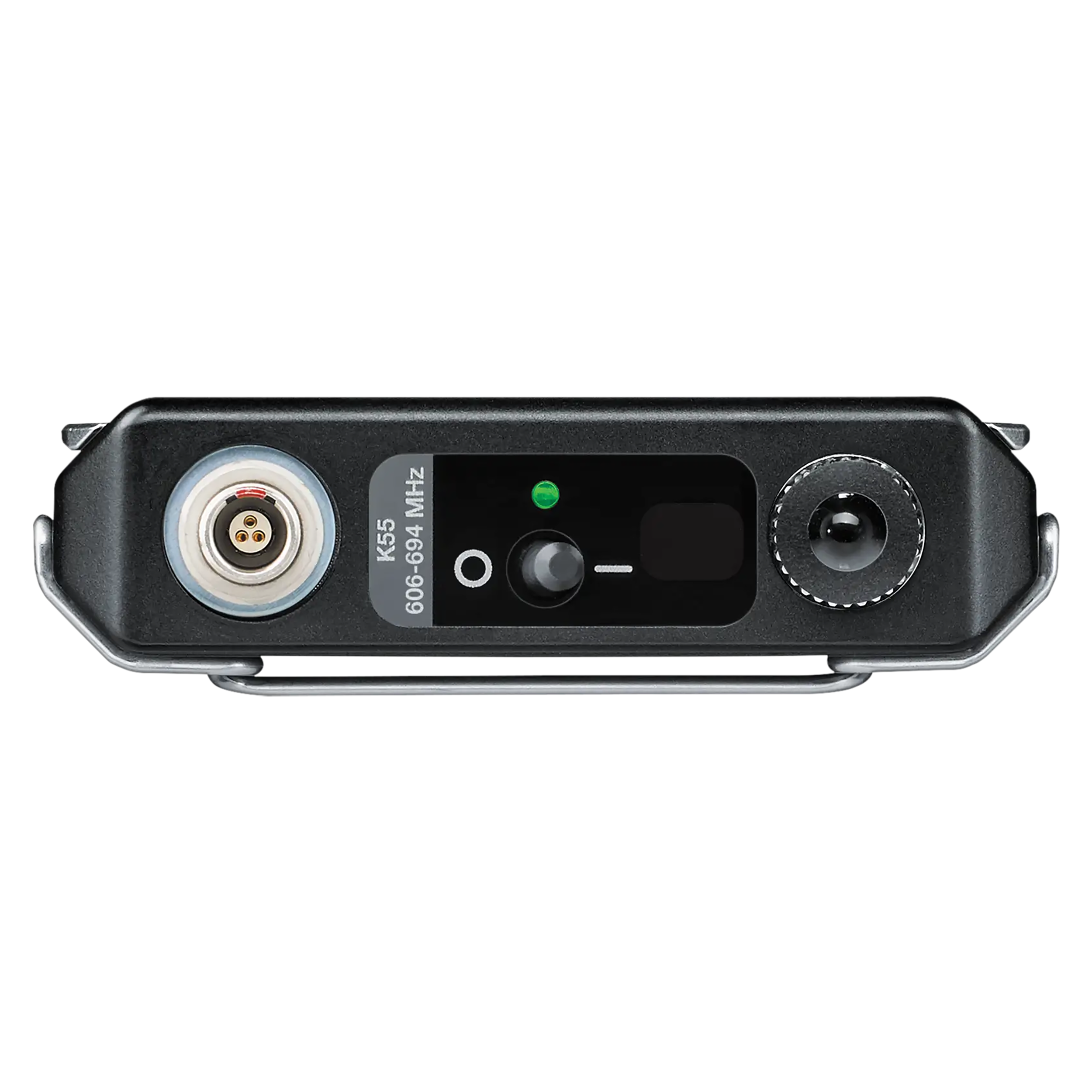

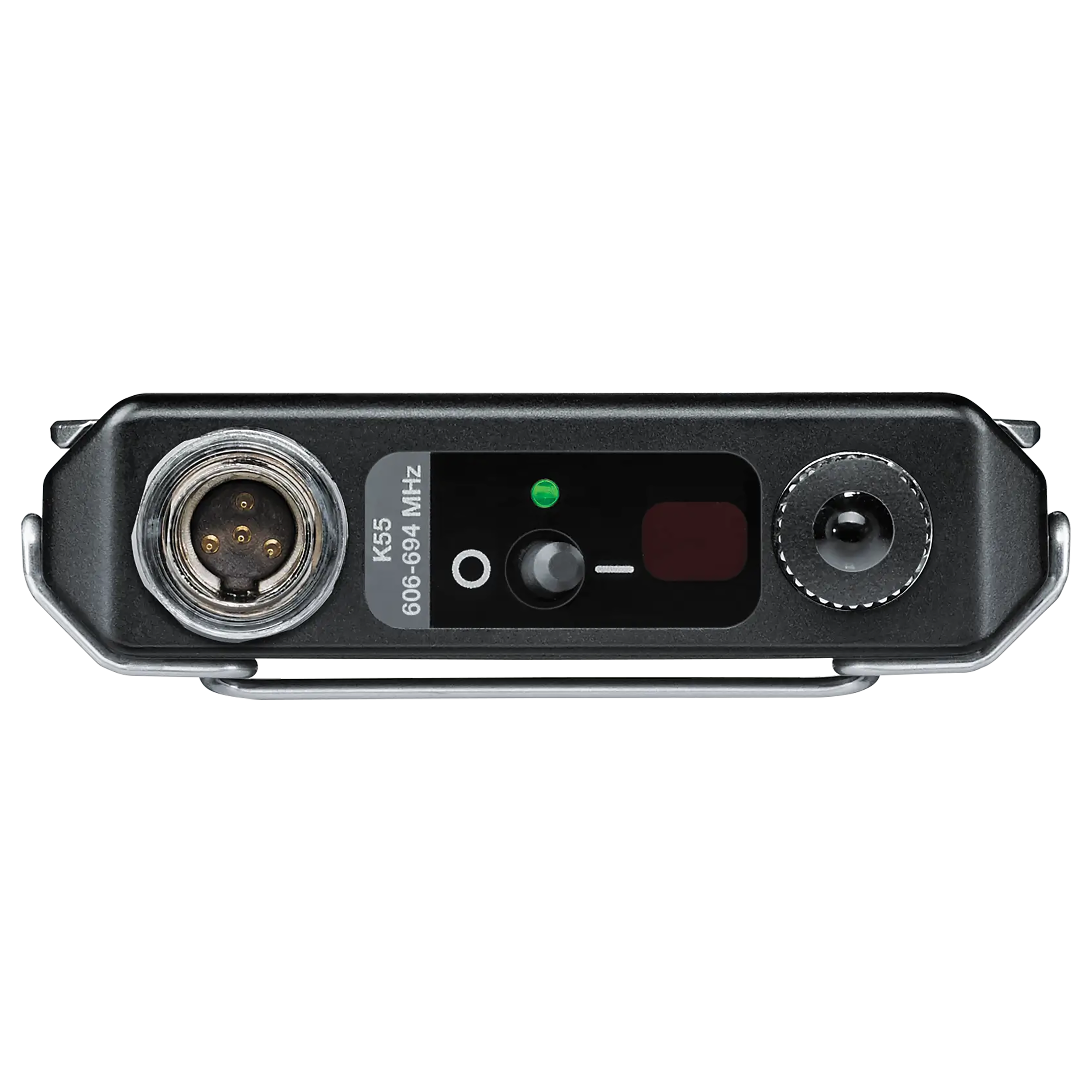

    • Audio Input Connector: 4-Pin male mini connector (TA4M)
    • Audio Input Imepedance: 1 MOhms
    • Preamplifier Equivalent Input Noise (EIN): 120 dBV, A-weighted, typical
    • RF Output Connector: SMA
    • Antenna Type: 1/4 wave
    • RF Output Impedance: 50 Ohms
    • Audio Dynamic Range (XLR Analog Output): 120 dB (A-weighted); 117 (unweighted) *System Gain @ +10
    • Audio Dynamic Range (Dante Digital Output): 130 dB (A-weighted); 126 (unweighted) * System Gain @ +10
CONTENTS
    (1) Shure ADX1 Wireless Bodypack Transmitter
    (1) 1/4 Wave Antenna
    (1) Threaded TAF4 Adapter
    (1) Transmitter Carrying Case
    (1) Zipper Bag
    (1) Belt Clip
    (1) SB910 Lithium-Ion Rechargeable Battery
    (1) Operator's Instructions
