The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Wireless Bodypack transmitter, and the GLXD6+ Guitar Pedal receiver. Go wireless without compromising your tone or complicating your rig. The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard (9V DC power). The included tuner with a new ¼” guitar input makes it easy to go from practice to live performance, whether you choose to plug directly into the pedal or go wireless. Easilyswitch between two or more transmitters linked to a single receiver.

FEATURES
    • New Dual Band technology provides reliable and consistent performance in 2.4 and 5.8GHz.
    • Rugged metal chassis design that can be completely integrated into your pedalboard.
    • GLXD6+ Guitar Pedal Receiver is compatible with 9V power supply in Pedalboards (minimum current: 400mA).
    • Transmitter battery life monitoring via highly visible LED segment display.
    • Included Tuner with adjustable mode (Strobe / Needle) and selectable reference pitch (432 – 447 Hz).
    • Included SB904 rechargeable battery delivers up to 12 hours of runtime.
    • New ¼" true bypass input allows you to switch between two instruments (one wired and one wireless guitar/bass) during live performance by toggling the push button on the pedal receiver. Integrated guitar input also enables easy transition from practice to live performance.
    • Output ¼" connector for easy daisy-chain connection with other pedals.
SPECIFICATIONS
    • Shure GLXD1+
    • Exceptional, Digital Wireless Audio: Always come through clear and captivate the audience with superior, transparent audio. GLX-D+ Dual Band intelligently avoids interference to give you total, reliable wireless freedom. Available in rack-mount, tabletop and guitar pedal receiver options with a wide selection of lavalier, headset and handheld microphone choices - including the legendary SM58®
    • New Dual Band Wireless Technology provides reliable and consistent signal by automatically scanning both 2.4 and 5.8GHz bands and selecting the cleanest channel. More than double the bandwidth ensures that dropouts won't stop the show
    • Easy, Worry-free Setup and Management: Transmitters and receivers pair up automatically making setup as simple as possible - plug in and you're ready to go. Smart frequency management continuously monitors the spectrum and seamlessly moves to a clean channel in case any interference appears. Go wireless without complication.
    • Smart Rechargeability: End battery life uncertainty with GLX-D+ Dual Band rechargeable battery. With up to 12 hours of runtime, the new lithium-Ion SB904 battery can be charged directly on the receiver or via USB-C connector on the handheld microphone or bodypack. A quick charge feature allows for 1.5 hours of use from a 15 minutes charge.
    • Rock-Solid RF Performance for Multiple System Installations: GLX-D+ Dual Band Wireless provides improved RF performance, antenna distribution and automatic frequency management for up to 11 half-rack systems in typical environments (16 under optimal conditions). Separately available Frequency Manager (GLXD+FM) required.
    • License-Free Frequency Range allows you to travel without worrying about licenses, frequency coordination and other technical hurdles.

    • Shure GLXD6+
    • Tuning Bandwidth: 2400 - 2483.5 MHz and 5725 - 5850 MHz
    • Transmit Mode: Shure proprietary digital
    • RF Output Power: 10 mW E.I.R.P. maximum
    • Operating Temperature Range: 0°C (32°F) to 50°C (122°F)
    • Polarity: Positive voltage applied to the tip of the guitar cable phone plug produces positive voltage at the tip of the high impedance ¼ inch output
    • Audio Frequency Response: 20 Hz – 20 kHz
    • Dynamic Range: 120 dB, A-weighted
    • RF Sensitivity: -88 dBm, typical
    • Total Harmonic Distortion: 0.02%, typical
    • Battery Life: Up to 11.5 hours
    • Power Requirements: 9 V – 15 V, 400 mA (efficiency level VI power supply)
    • Antenna Type: Dual-band PIFA
    • Dimensions: 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm)
    • Weight: 19.75 oz (560 g)
    • Housing: Aluminum alloy
    • Spurious Rejection: > 35 dB, typical
    • Gain Adjustment Range: -20 to 40 dB in 1 dB steps
    • Audio Input Modes: Tuner or True Bypass
CONTENTS

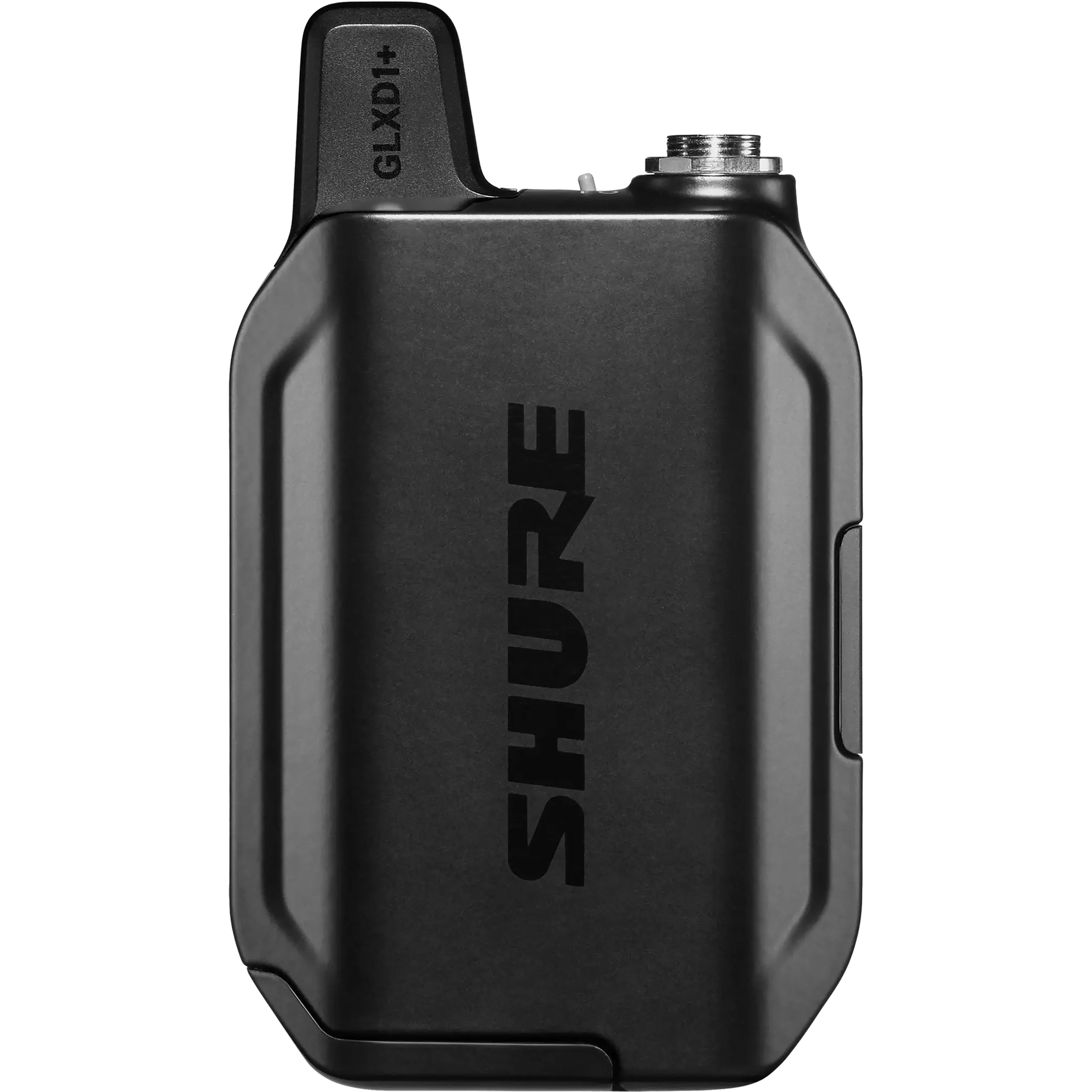

    (1) Shure GLXD1+ Bodypack Transmitter
    (1) Shure GLXD6+ Guitar Pedal Receiver
    (1) PS24 Power Supply
    (1) SB904 Lithium-Ion Rechargeable Battery

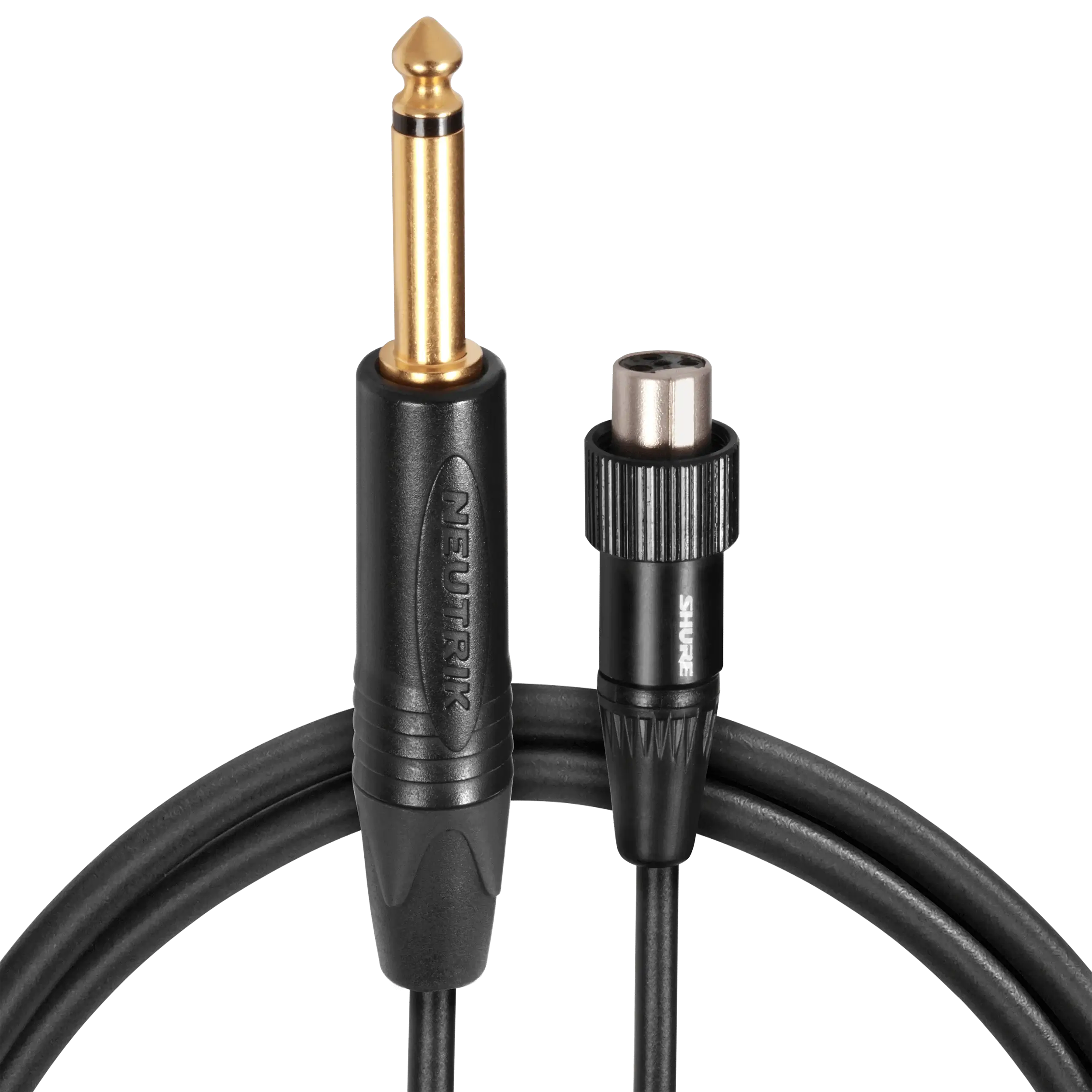

    (1) WA305 Premium Instrument Cable
    (1) SBC10-USBC Wall Charger
