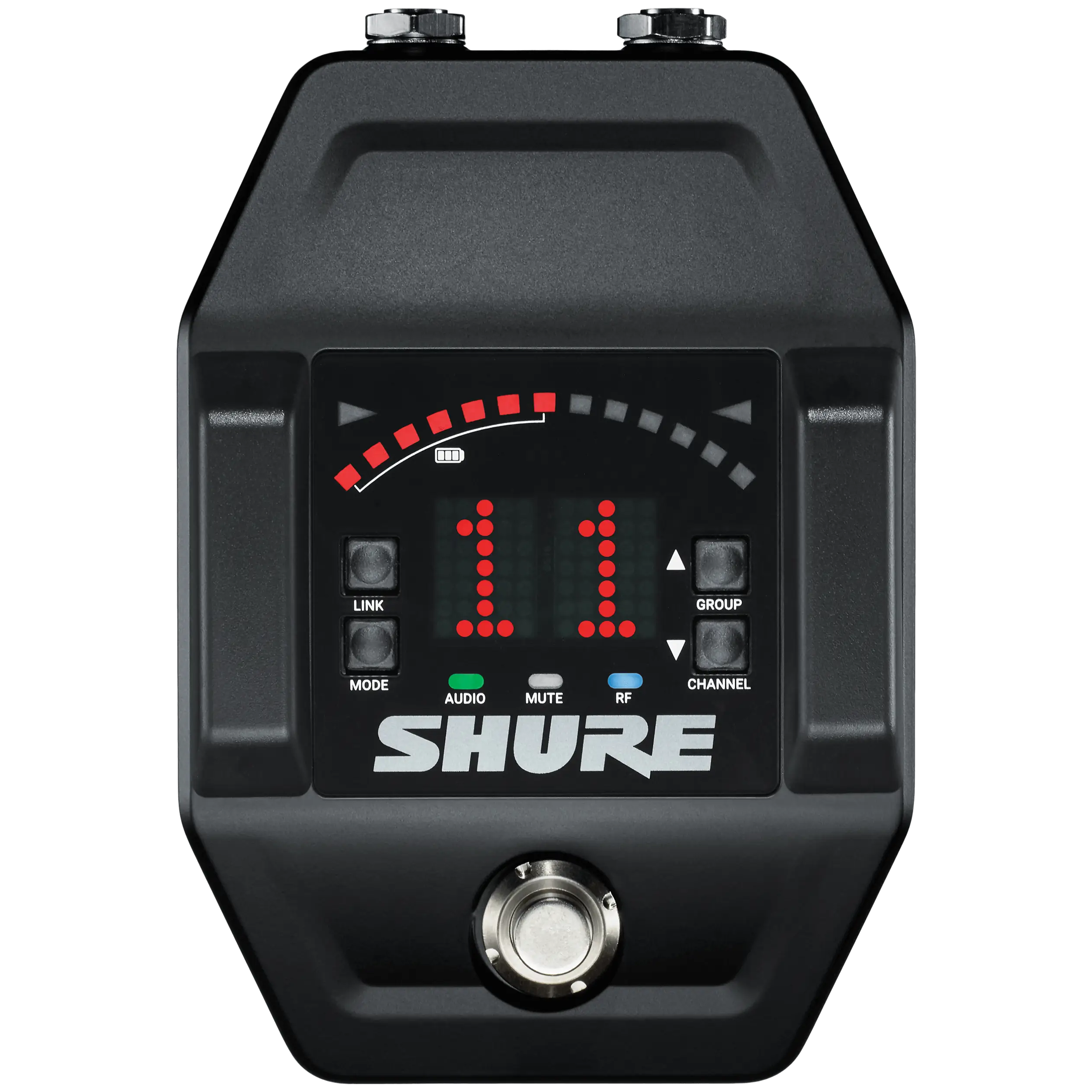

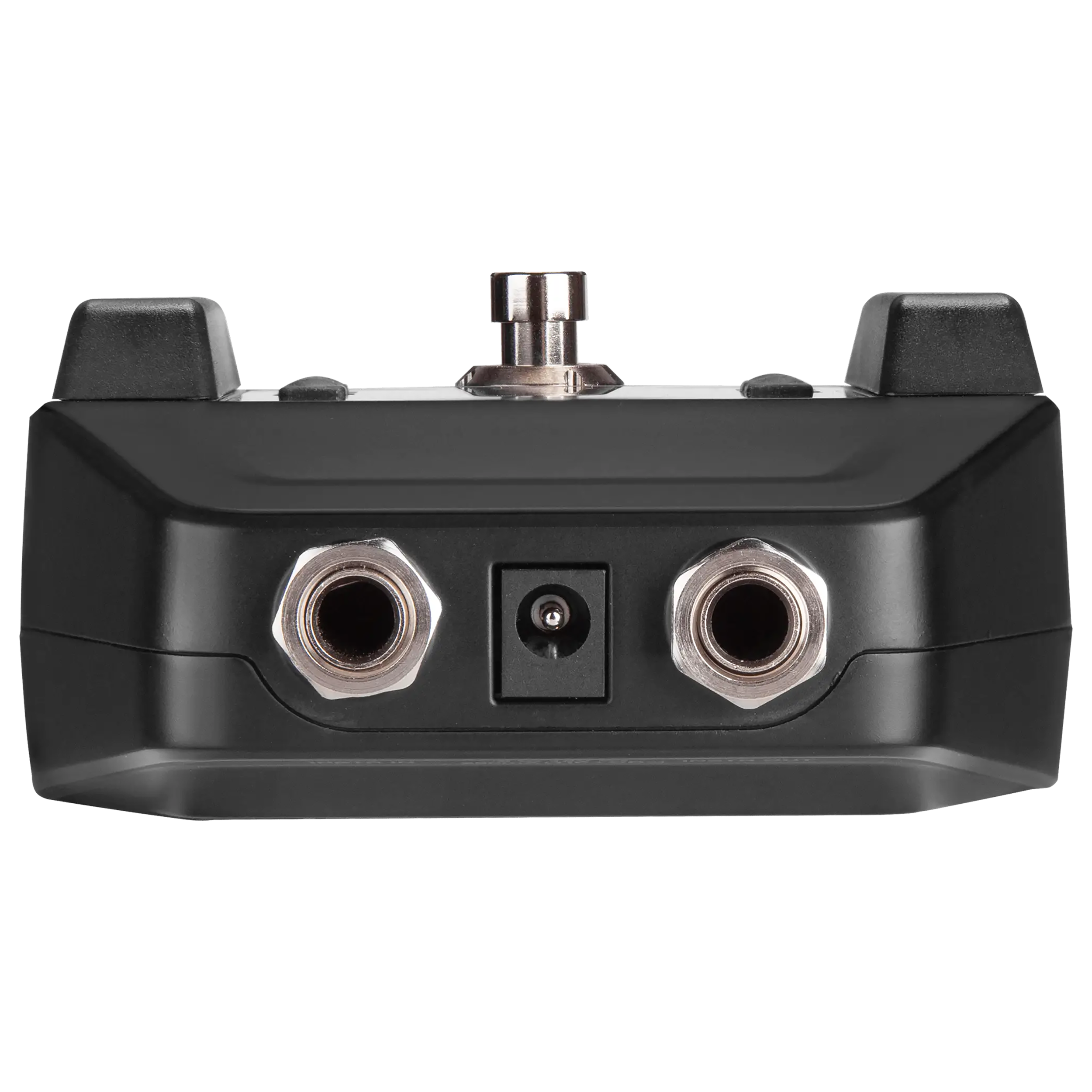

The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard. Go wireless without compromising your tone or complicating your rig.
FEATURES
-
• Exceptional digital audio clarity
• Compatible with multiple legendary microphone options
• Automatically moves away from interference without audio interruption
• Operates in 2.4 and 5.8 GHz spectrum*
• Rechargeable battery delivers up to 12 hours of runtime
• Rock-solid RF performance for multiple system installations
• License-free frequency range
SPECIFICATIONS
-
• Tuning Bandwidth: 2400 - 2483.5 MHz and 5725 - 5850 MHz
• Transmit Mode: Shure proprietary digital
• RF Output Power: 10 mW E.I.R.P. maximum
• Operating Temperature Range: 0°C (32°F) to 50°C (122°F)
• Polarity: Positive voltage applied to the tip of the guitar cable phone plug produces positive voltage at the tip of the high impedance ¼ inch output
• Audio Frequency Response: 20 Hz – 20 kHz
• Dynamic Range: 120 dB, A-weighted
• RF Sensitivity: -88 dBm, typical
• Total Harmonic Distortion: 0.02%, typical
• Battery Life: Up to 11.5 hours
• Power Requirements: 9 V – 15 V, 400 mA (efficiency level VI power supply)
• Antenna Type: Dual-band PIFA
• Dimensions: 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm)
• Weight: 19.75 oz (560 g)
• Housing: Aluminum alloy
• Spurious Rejection: > 35 dB, typical
• Gain Adjustment Range: -20 to 40 dB in 1 dB steps
• Audio Input Modes: Tuner or True Bypass
CONTENTS
-
(1) Shure GLXD6+ Guitar Pedal Receiver
(1) PS24 Power Supply
