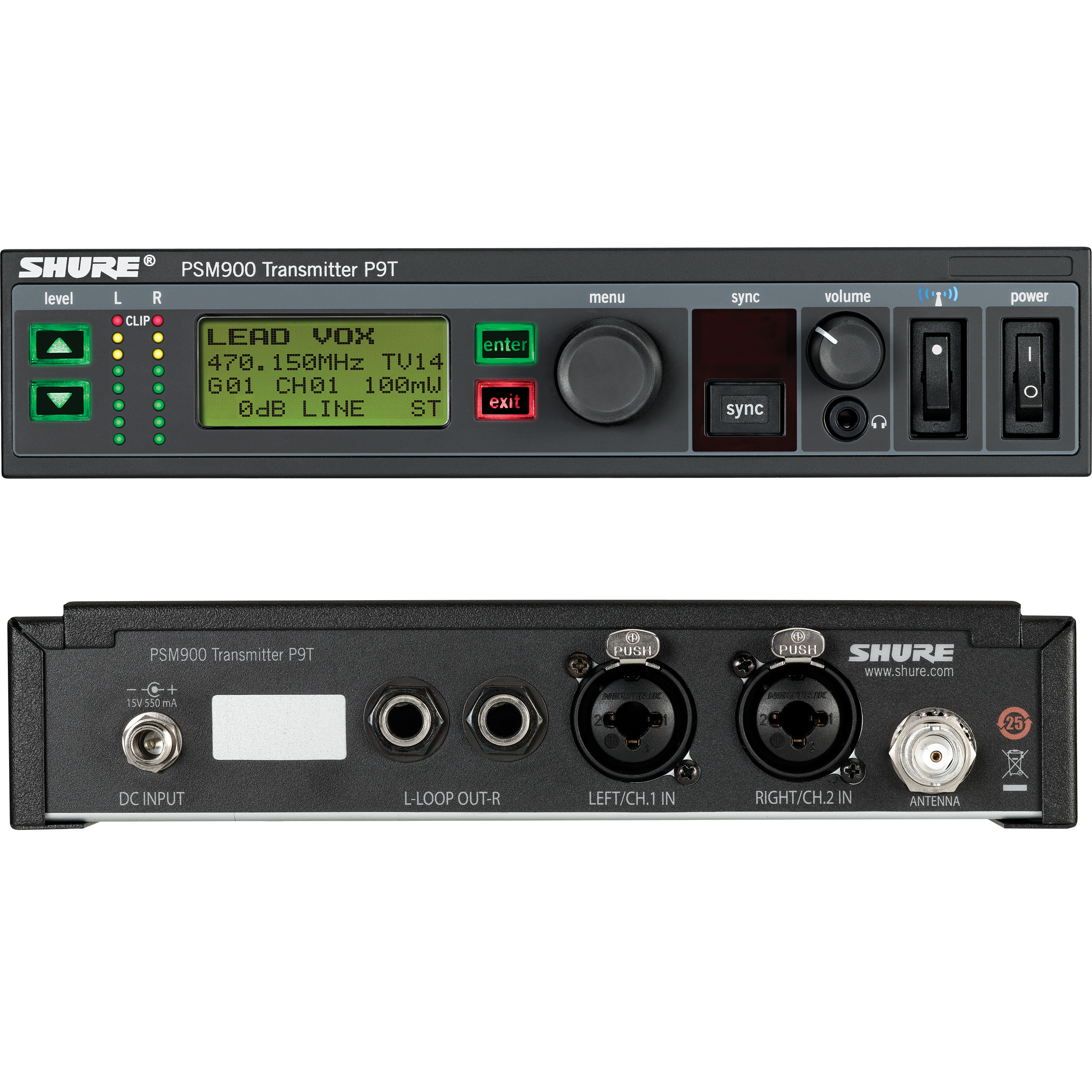

The P9T is a half-rack wireless transmitter used in conjunction with the P9R Bodypack receiver as part of the PSM®900 Wireless Personal Monitor System.
It offers state-of-art technology like CueMode (patent pending), Scan and Sync, and RF mute switch for easy setup and operation.
Connections include balanced 1/4” and XLR, loop out, and headphone out. Includes rack-mounting kit, front or back mountable antennas, and power supply.
RF Mute Switch allows system setup without causing RF interference
Syncs to a P9R bodypack quickly and easily over IR link using Scan and Sync
Front panel audio input gain adjustment and LED level meter with clipping indicator
Front or back mountable antennas
Compatible with PA421B and PA821B antenna combiners
Loop out connectors for multiple mix setups and easy installation
Switchable +4 dBu and -10 dBV input level
Balanced, 1/4” and XLR connectors
Bit-mapped, backlit LCD
Includes rack-mounting hardware
1/8” headphone out on the front panel for easy monitoring
Tuning Range (MHz)
36
RF Output Impedance (O)
50
RF Mute
Yes
Detachable Antennas
Yes
Input impedance (O)
70200
Transmission NOTE: NOTE: Frequency band availabili
Analog in UHF
Software Control
N/A
Rack Mount Accessories
Included Rack mounts brackets
Antenna Type
External 1/2 wave
Type Of Power Supply
External
Type Of Power Supply
XLR, 6, 3mm
Input Connectors
6, 3mm
Transmitter Housings
Metal
RF Output Power (Country Specific) (mW, E.I.R.P. m
100
(1) PSM900 Rack Unit Transmitter (1) Rack Mounting Kit (1) Power supply (2) Front or Back Mountable Antennas
