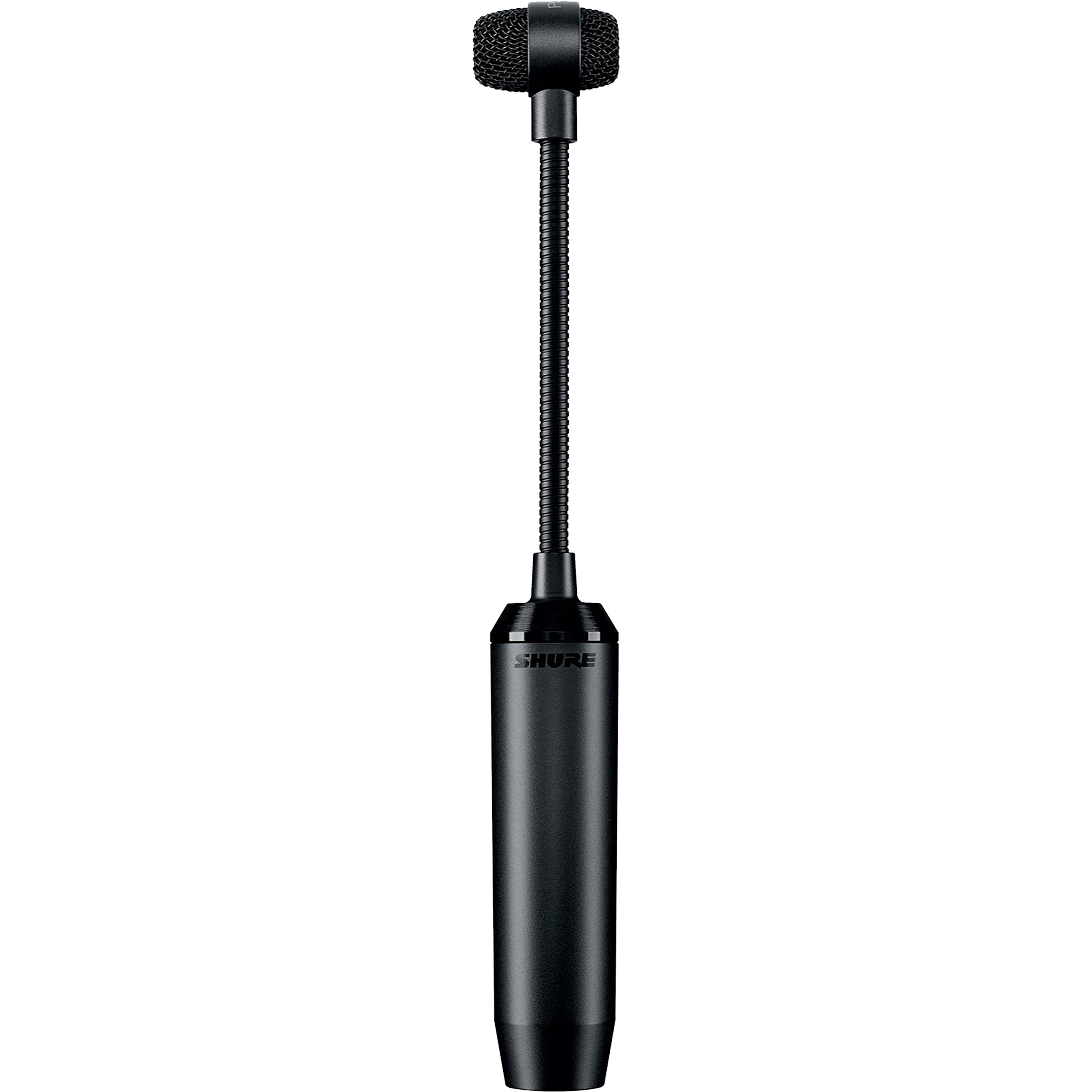

The PGA98D is a professional quality drum microphone with an updated industrial design that features a black metallic finish and grille offering an unobtrusive visual presence. Legendary Shure quality construction ensures exceptional performance in rigorous environments.
Additional features include a tailored microphone cartridge design for clear reproduction of drum and percussion sound sources.
Tailored microphone cartridge design for clear reproduction of drum and percussion sound sources.
Flexible gooseneck design makes accurate positioning quick and easy
Molded one-piece drum mount for fast, low-profile mounting and removal
Integrated preamplifier provides a direct XLR connection (11-52 VDC phantom power required)
Cardioid polar pattern picks up audio from the source while rejecting unwanted noise
Type
Electret condenser
Frequency Response
60 to 20,000 Hz
Polar Pattern
Cardioid
Output Impedance
850 Ohms
Sensitivity (At 1 kHz, Open Circuit Voltage)
-52 dBV/Pa (2.51 mV); 1 Pa=94 dB SPL
Maximum SPL
1 kHz at 1% THD, 1 k Ohms 130 dB SPL
Self-Noise
A-weighted, typical 27 dB SPL-A
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
