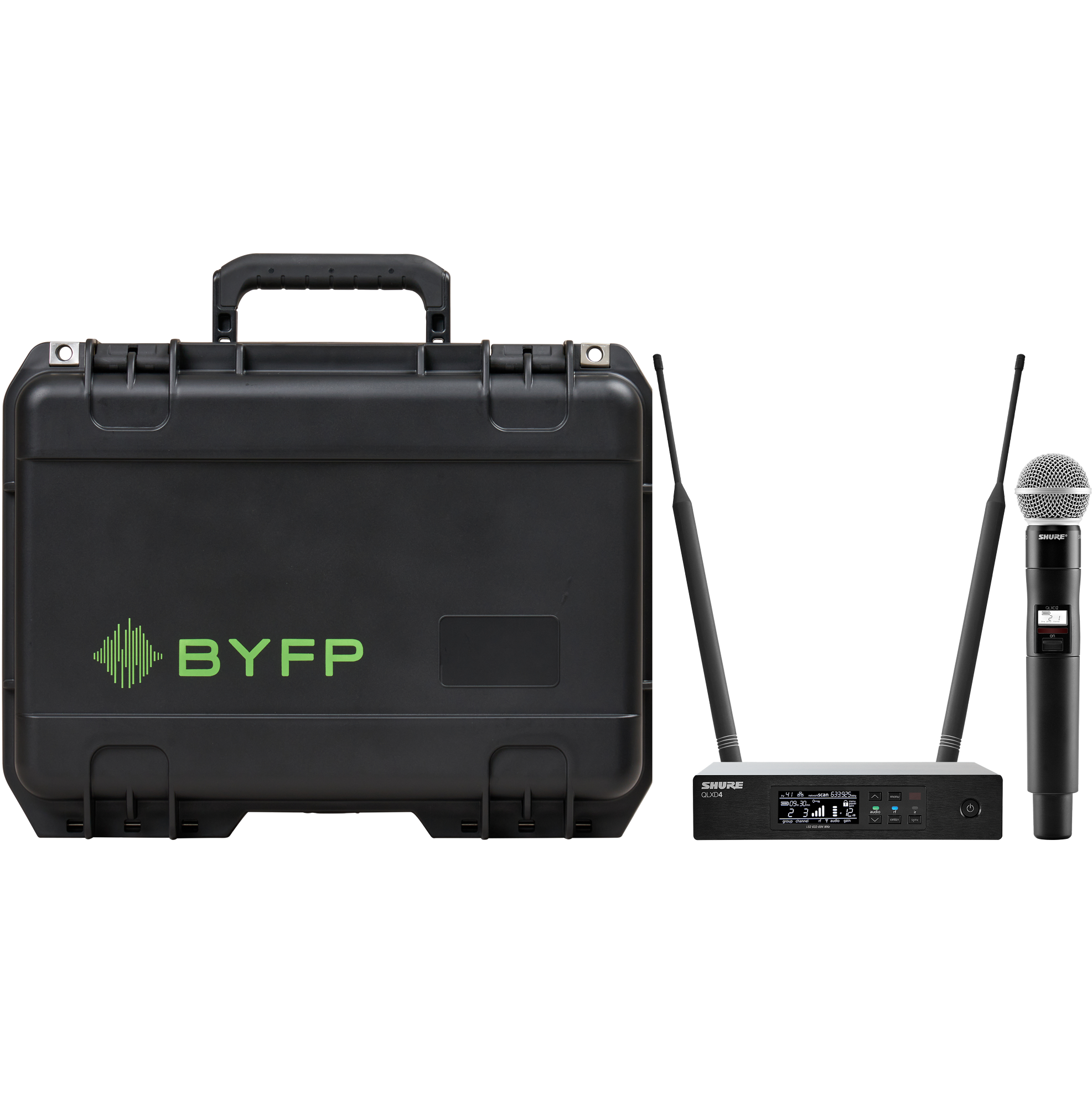

Introducing the Shure QLX-D Transmitter and Handheld Microphone Receiver with SM58 cartridge, a premium wireless microphone system, paired with the BYFP Waterproof ipCase for unparalleled audio performance and equipment protection.
Professional Wireless Microphone System:
The Shure QLX-D series is a testament to uncompromised audio quality and professional-grade wireless technology. This system offers crystal-clear audio transmission and a reliable signal, making it the perfect choice for live performances, presentations, and any application where pristine sound is essential.
SM58 Cartridge for Legendary Vocal Quality:
The included SM58 cartridge is renowned for its exceptional vocal clarity and durability. It is the go-to choice for many vocalists and performers worldwide. With its cardioid polar pattern, the SM58 rejects unwanted background noise and feedback, ensuring that your voice takes center stage.

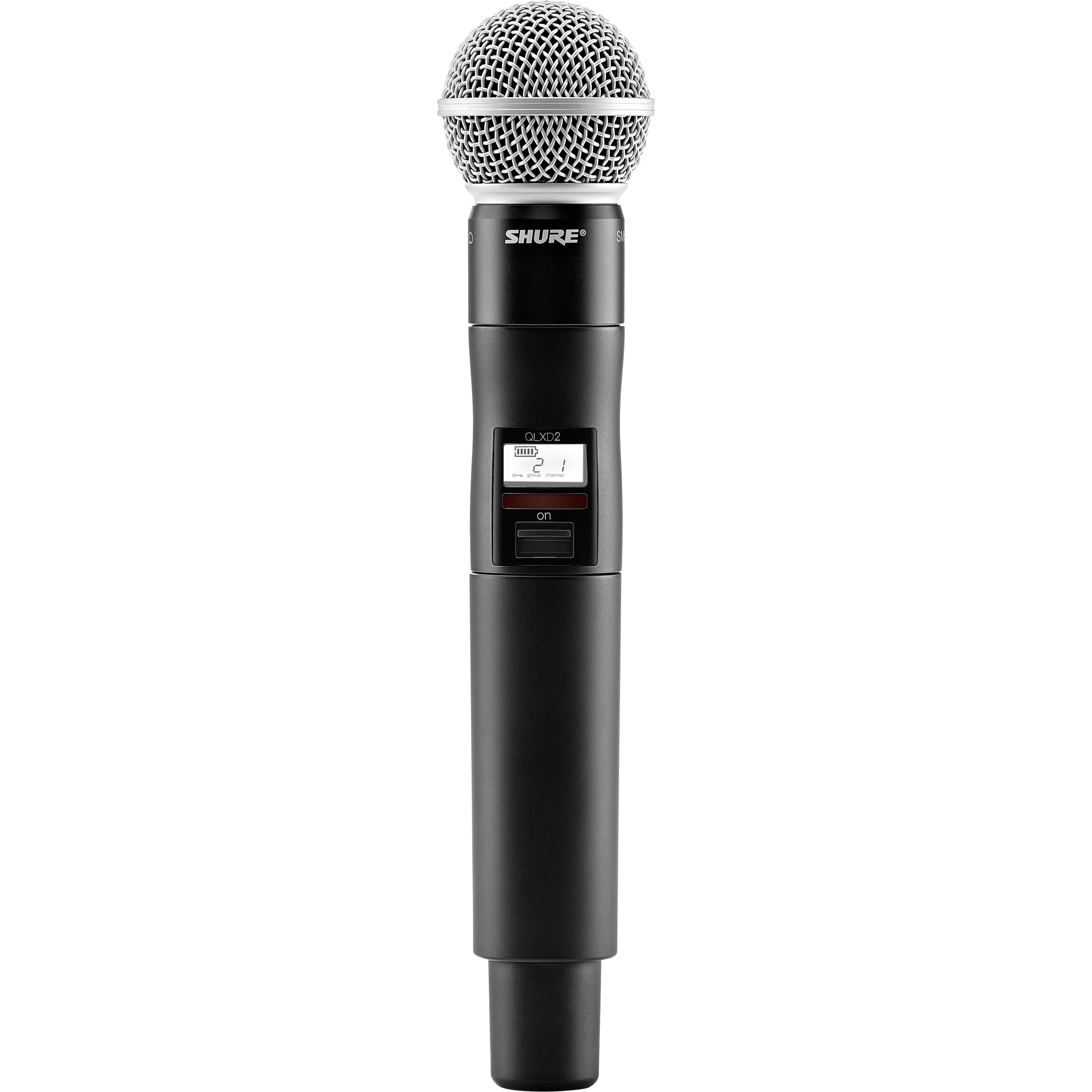

Sturdy and Ergonomic Transmitter:
The QLX-D handheld transmitter is designed with a robust and ergonomic build that feels comfortable in your hand. It features an intuitive user interface with easy-to-read display, allowing you to control settings with ease.
Reliable Wireless Technology:
Operating in the 2.4 GHz spectrum, the QLX-D system offers exceptional wireless reliability and signal stability. It employs digital predictive switching technology to ensure uninterrupted performance even in challenging RF environments.
Multiple Channels and Easy Setup:
With a wide selection of available channels, you can find the optimal frequency for your location and reduce interference. The system's quick and simple setup process gets you up and running in no time.
BYFP Waterproof ipCase:
Rugged Waterproof Protection:
The BYFP Waterproof ipCase is the perfect companion for the Shure QLX-D system, offering rugged protection against water, dust, and impacts. With an IP67 waterproof rating, your valuable audio equipment remains safe in any environment.

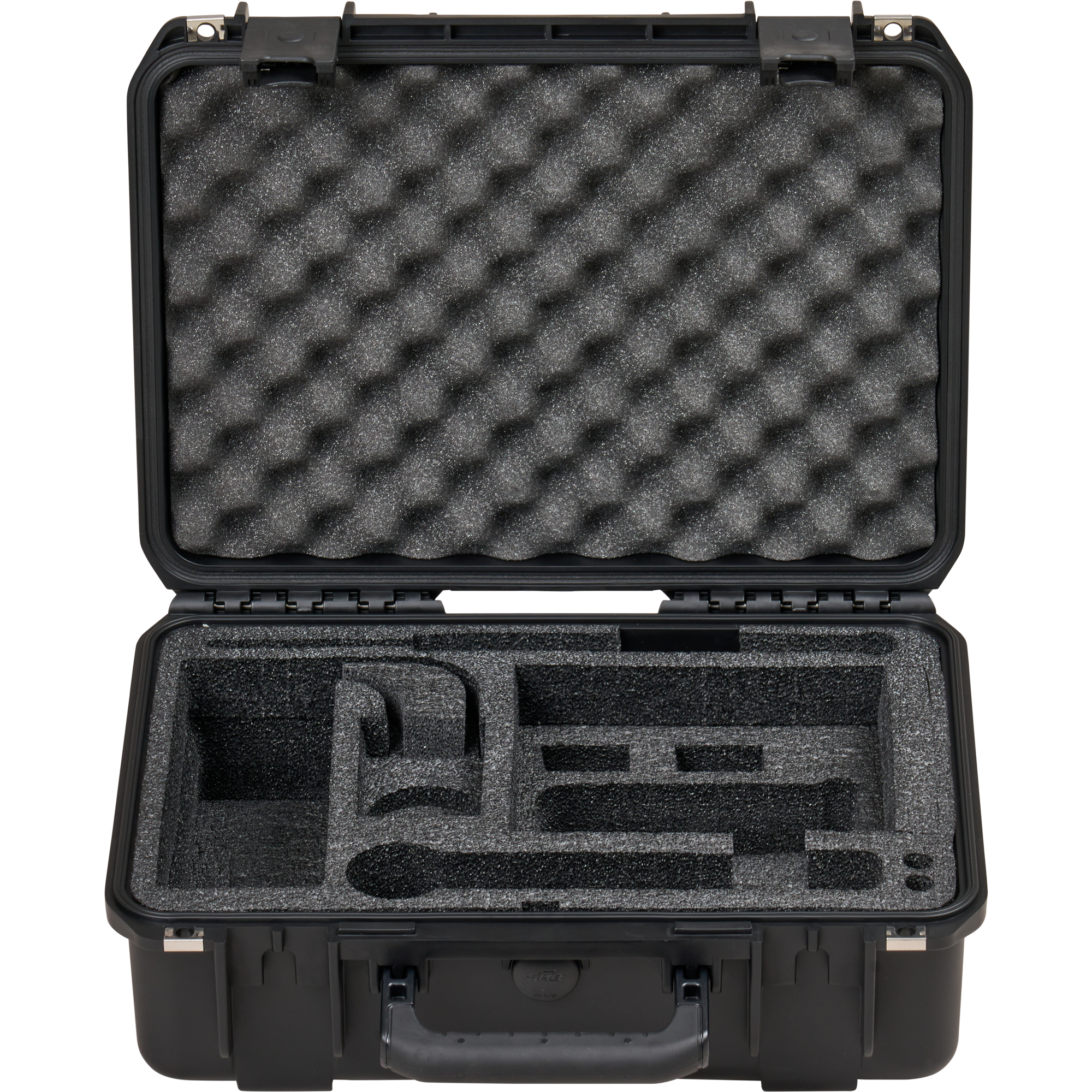

The interior of the BYFP Waterproof ipCase features customizable foam inserts that can be tailored to the shape of your Shure QLX-D components, ensuring a secure and snug fit. This prevents damage during transportation.
Secure Latching System:
Equipped with a secure latching system, the case keeps your equipment safely locked inside. The double-throw latches are easy to operate and provide a tight seal for additional protection.
Ergonomic Handle and Portability:
Designed with portability in mind, the BYFP Waterproof ipCase features a comfortable molded handle for easy transportation. Its compact size and lightweight construction make it convenient for musicians and professionals on the move.
The Shure QLX-D Transmitter and Handheld Microphone Receiver with SM58 cartridge tourPack, combined with the BYFP Waterproof ipCase, offers a superior wireless microphone solution with exceptional audio quality, user-friendly operation, and rugged equipment protection. Whether you're a vocalist, presenter, or performer, this system ensures that your voice is heard with the utmost clarity, and your gear remains safe and dry during your most demanding gigs and performances.
• Automatic channel scan quickly and easily finds a clean frequency
• Networked channel scan configures open frequencies for connected receivers
• Remote monitoring and control from iOS devices via ShurePlus™ Channels Mobile App
• 24-Bit digital audio quality
• Incredibly efficient RF spectrum usage
• Quick syncing with a wireless receiver over IR at the push of a button
• Clear, uninterrupted signal over the entire operating range
• AES 256-bit encryption for secure transmission
Over 120 dB of dynamic range: no transmitter gain adjustment needed 1, 10 mW selectable RF output power
• Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
• External charging contacts for docked charging
• Backlit LCD with easy to navigate menu and controls
• Selectable display mode showing group/channel, frequency, or battery runtime
• Rugged metal construction
• Frequency and power lockout
Shure QLXD4-G50 Digital Wireless Receiver
• 64 MHz tuning bandwidth (region dependent)
• More than 60 preset compatible channels per frequency band (region dependent)
• Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
• Digital predictive switching diversity ensures solid RF connection
• AES-256 encryption comes standard for secure wireless transmission
• Up to 60 dB of adjustable audio gain
• Detachable 1/2 wave antennas
• Mic / line switchable XLR output
• High-contrast LCD menu and controls with lockout feature
• Audio and RF LED meters with peak indicator
• 1/4" Instrument output
• Durable aluminum construction with brushed finish
Dimensions: 256 mm x 51 mm (10.1 in. x 2.0 in.) L x Dia.
Weight: 347 g (12.2 oz.), without batteries
Housing: Machined aluminum
Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V
Battery Runtime (@ 10 mW): Shure SB900 rechargeable: up to 10 hours, Alkaline: up to 9 hours
RF Output Power: 1 mW or 10 mW
Occupied Bandwidth: < 200 kHz
Modulation Type: Shure proprietary digital
Mic Offset Range: 0 to 21 dB (in 3 dB steps)
Frequency Range: G50 Band (470.125 – 533.925 MHz)
Shure QLXD4-G50 Digital Wireless Receiver
Dimensions: 41 mm × 197 mm × 151 mm (1.63 in. × 7.75 in. × 5.94 in.), H × W × D
Weight: 777 g (1.71 lbs), without antennas
Power requirements: 12 V DC @ 0.4 A, supplied by external power supply (tip positive)
Spurious Rejection: >80 dB, typical
Connector Type: BNC
Impedance: 50 Ohm
Gain Adjustment Range: -18 to +42 dB in 1 dB steps
Audio Configuration: 1/4" (6.35 mm): Impedance balanced (Tip=audio, Ring=no audio, Sleeve=ground), XLR: Balanced (1=ground, 2=audio +, 3=audio -)
Impedance 1/4" (6.35 mm): 100 Ohm (50 Ohm Unbalanced) XLR: 100 Ohm
Full Scale Output: 1/4" (6.35 mm): +12 dBV XLR: LINE setting= +18 dBV, MIC setting= -12 dBV
Mic/Line Switch: 30 dB pad
Phantom Power Protection: 1/4" (6.35 mm): Yes, XLR: Yes
Network Interface: Single Port Ethernet 10/100 Mbps
Network Addressing Capability: DHCP or Manual IP address
Maximum Ethernet Cable Length: 100 m (328 ft)
BYFP Waterproof ipCase
Exterior: Hard Case
Interior Dimensions (L x W x D): 17" x 11.5" x 4.25"
Exterior Dimensions (L x W x H): 18.25" x 14" x 7"
Product Weight: 6.74 lb
