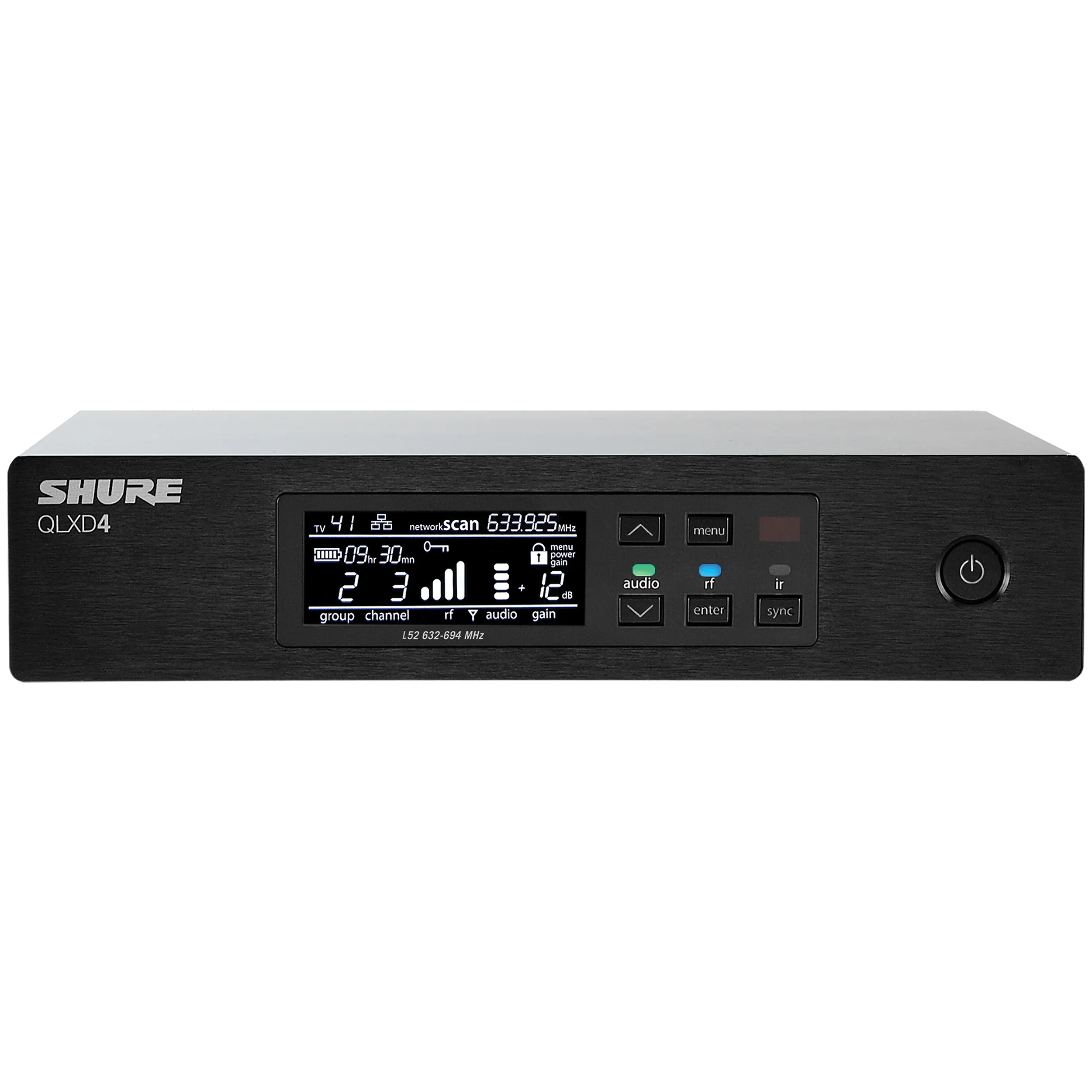

Half-rack QLXD4 Digital Wireless Receiver quickly finds open frequencies and deploys them to transmitters via the one-touch sync function.
With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation.
Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters.
Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench® software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus™ Channels Mobile App.
64 MHz tuning bandwidth (region dependent)
More than 60 preset compatible channels per frequency band (region dependent)
Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
Digital predictive switching diversity ensures solid RF connection
AES-256 encryption comes standard for secure wireless transmission
Up to 60 dB of adjustable audio gain
Detachable 1/2 wave antennas

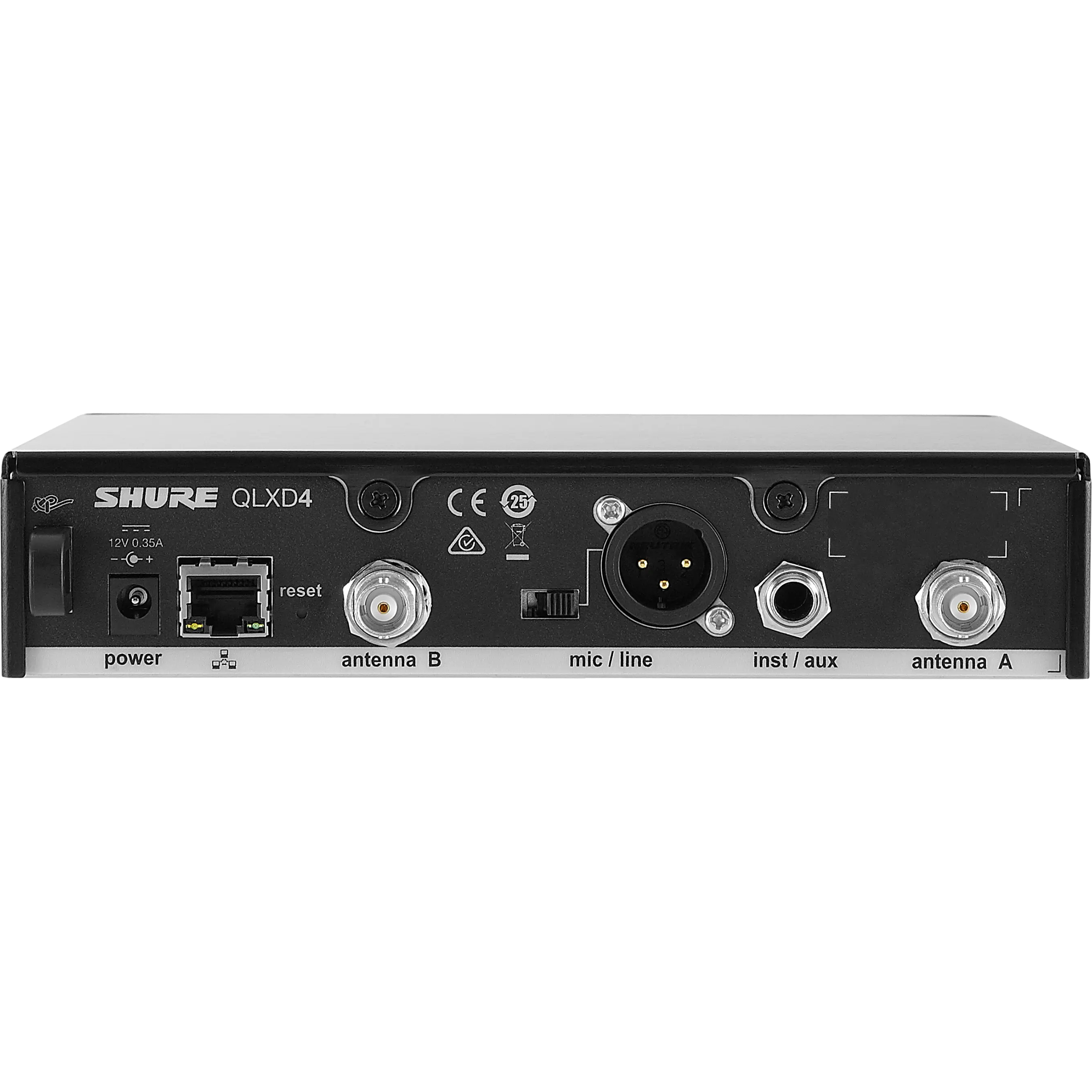

Mic / line switchable XLR output
High-contrast LCD menu and controls with lockout feature
Audio and RF LED meters with peak indicator
1/4" Instrument output
Durable aluminum construction with brushed finish
41 mm × 197 mm × 151 mm (1.63 in. × 7.75 in. × 5.94 in.), H × W × D
777 g (1.71 lbs), without antennas
12 V DC @ 0.4 A, supplied by external power supply (tip positive)
