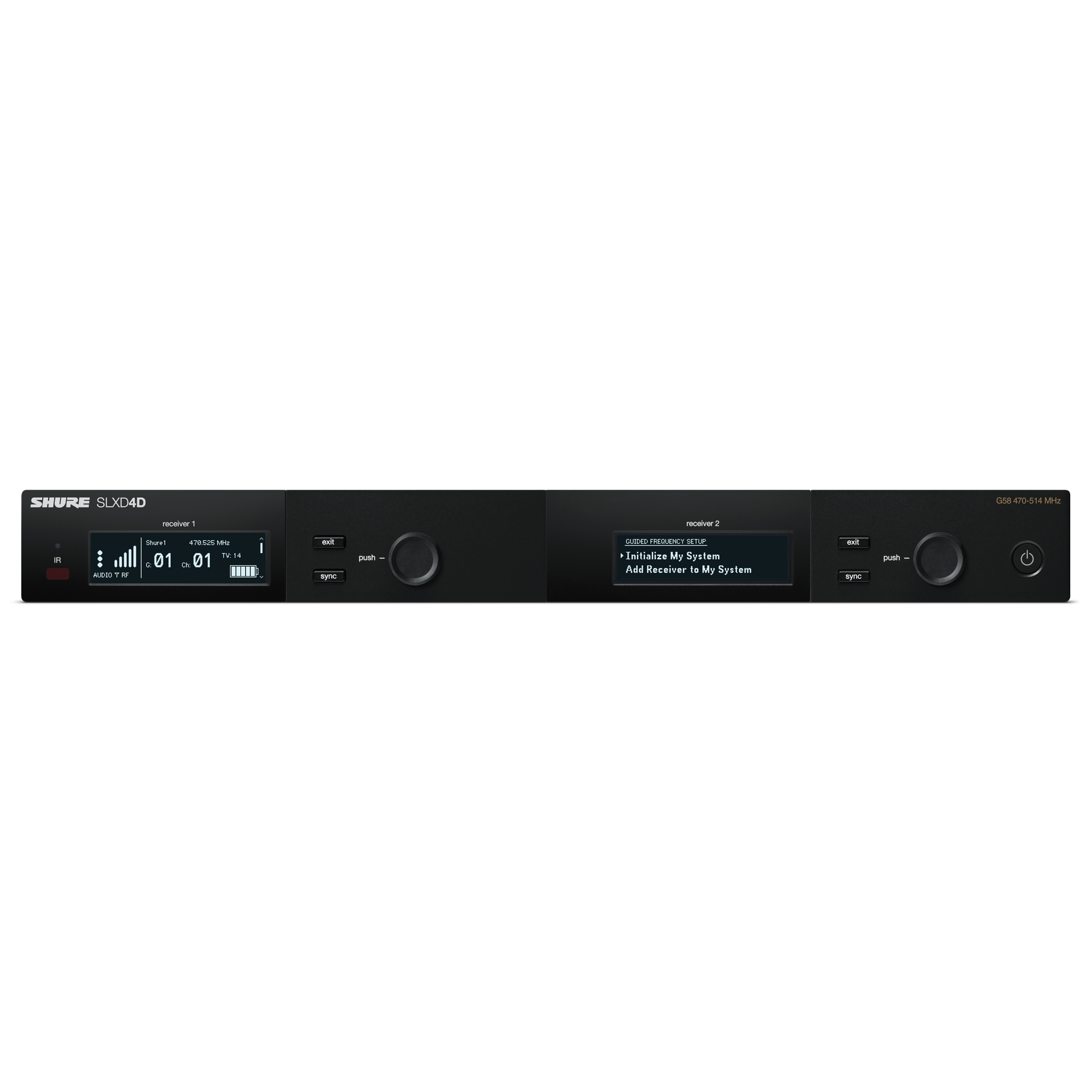

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industryleading digital wireless technology and design, the SLXD4D easily syncs wireless transmitters. A variety of interchangeable vocal microphone choices guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.
Transparent 24-bit digital audio
Extended 20 Hz to 20 kHz frequency range (microphone dependent)
120 dB dynamic range
Digital predictive switching diversity
44 MHz tuning bandwidth (region dependent)
32 available channels per frequency band (region dependent)
Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
Easy pairing of transmitters and receivers over scan and IR sync
Rugged metal construction
RF Carrier Frequency Range
470–937.5 MHz
Working Range
100 m (328 ft)
RF Tuning Step Size
JB Band: 125 kHz; All Other Bands: 25 kHz
Image Rejection
>70 dB
RF Sensitivity
-97 dBm at 10-5 BER
Latency
3.2 ms
Audio
RF
Audio Frequency Response
20 Hz–20 kHz (+1, -2 dB)
Audio Dynamic Range A-weighted, typical
120 dB
Total Harmonic Distortion
<0.02%
System Audio Polarity

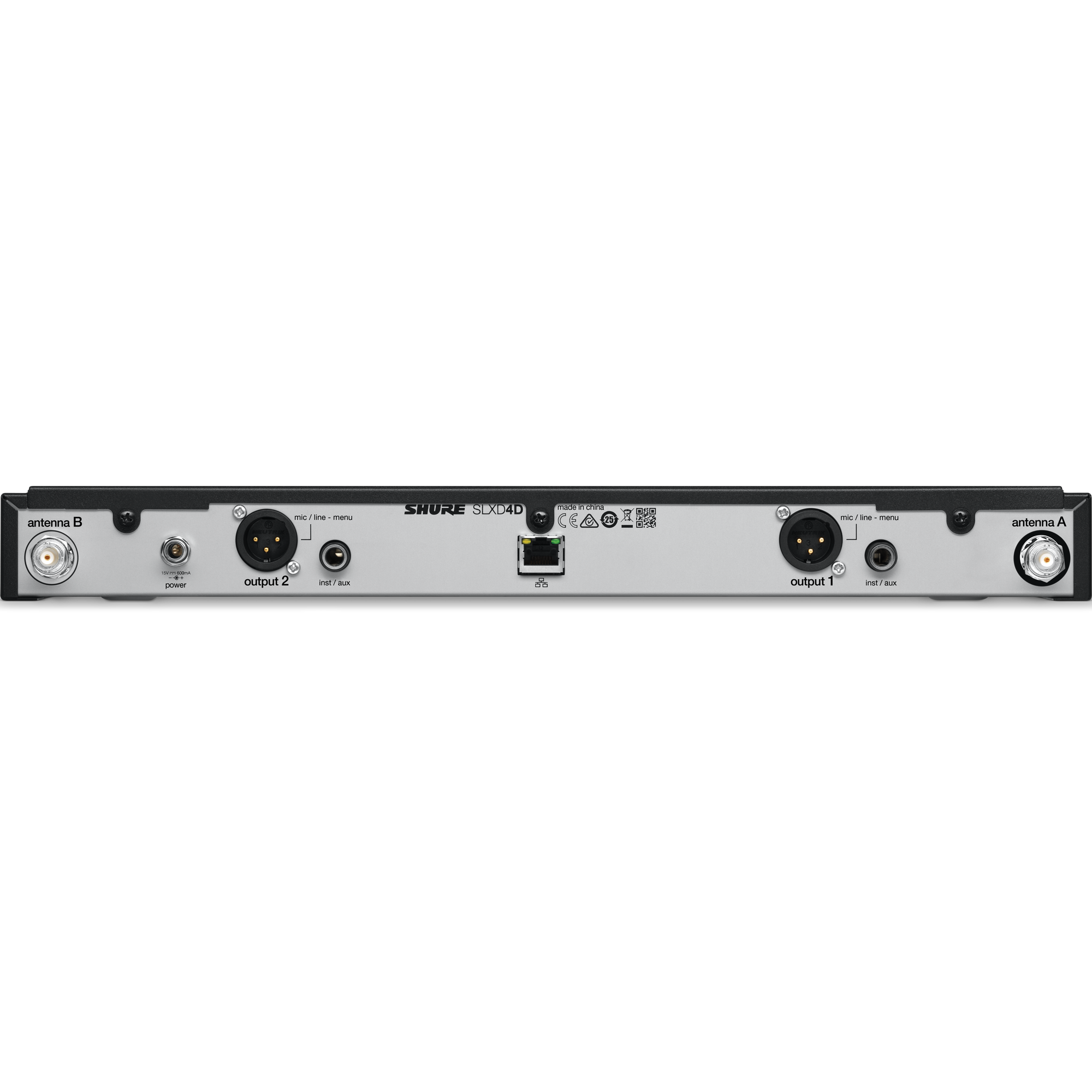

XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
