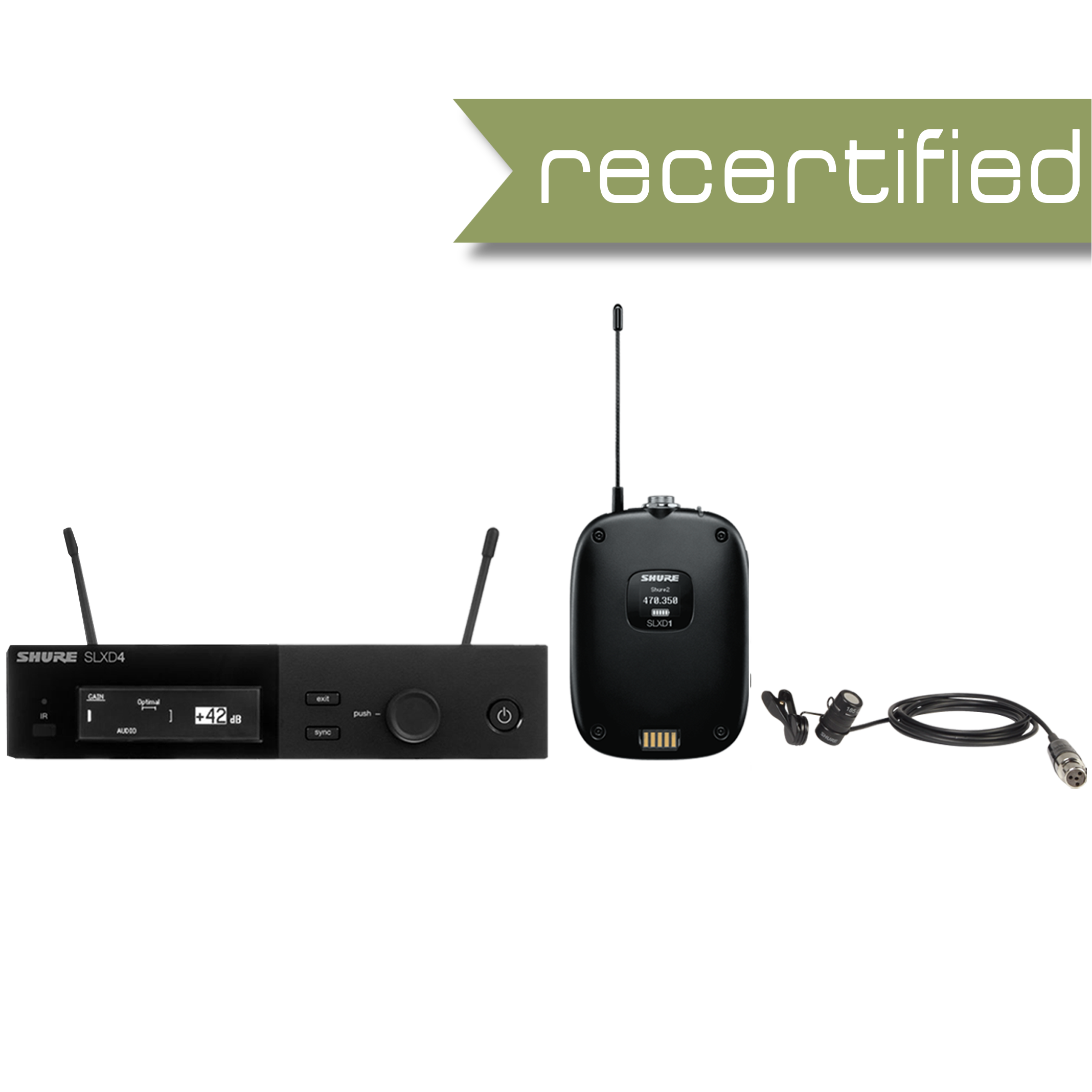

Shure SLXD14/85 Wireless Lavalier Microphone System
19%, only 0 left
Shure SLXD14/85 Wireless Lavalier Microphone System
Product SKU
    34886

Shure SLXD14/85 Wireless Lavalier Microphone System

$699.99

PICK UP TODAY

recertified+.png__PID:7672a0bd-1cf7-4ba8-9841-5171b10f1ebf
  • Like New Condition
  • Original Packaging
  • Full Factory Warranty

Have a question?

Need help finding something?

Talk to a PRO

855-772-2937

_EBP9032_SQ.jpeg__PID:828e756e-5126-4f82-9136-2bf92b17727c

Expertly tested refurbished and open box products

Backed by the BYFP satisfaction guarantee

Copy of Untitled Design (3).png__PID:0d4aaa6e-815d-4b5a-879b-7bd16634732b

Free Shipping

1.png__PID:3c5bc891-9c7e-4dda-94a6-30ba47708c69

Professionally Inspected

2.png__PID:5bc8919c-7ecd-4a14-a630-ba47708c69eb

Satisfaction Guaranteed

3.png__PID:c8919c7e-cdda-44a6-b0ba-47708c69eb73

Expert Support

DESCRIPTION

The SLXD14/85 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long conferences to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required.

FEATURES
    Shure SLXD1 Bodypack Transmitter:
    • Transparent 24-bit digital audio
    • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
    • 120 dB dynamic range
    • Digital predictive switching diversity
    • Operating range of 100 m (300 ft.)
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
    • Easy pairing of transmitters and receivers over IR scan and sync
    • Up to 8 hours from 2 AA batteries. Upgrade to the optional Shure SB903 Lithium-ion rechargeable battery to monitor battery charge status in hours and minutes, as well as battery life and health statistics.
    • Choice of instrument cable or lavalier, headworn and instrument microphones
    • Ergonomic and durable plastic construction

    Shure SLXD4 Single-Channel Receiver:
    • Transparent 24-bit digital audio
    • Extended 20 Hz to 20 kHz frequency range (microphone dependent)
    • 120 dB dynamic range
    • Digital predictive switching diversity
    • 44 MHz tuning bandwidth (region dependent)
    • 32 available channels per frequency band (region dependent)
    • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
    • Easy pairing of transmitters and receivers over IR scan and sync
    • Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
    • Interchangeable microphone capsules
    • Rugged metal construction
SPECIFICATIONS
    Shure SLXD1 Bodypack Transmitter:
    • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
    • Housing: PC/ABS
    • Audio Input Connector: 4-Pin male mini connector (TA4M)
    • Configuration: Unbalanced
    • Impedance: 1 MΩ
    • Maximum Input Level: 8.2 dBV
    • Preamplifier Equivalent Input Noise (EIN): –118 dBV
    • RF Output Antenna Type: 1/4 Wave
    • Occupied Bandwidth: <200 kHz
    • Modulation Type: Shure Proprietary Digital
    • Power: 1 mW/10 mW

    Shure SLXD4 Single-Channel Receiver:
    • RF Carrier Frequency Range: 470–937.5 MHz
    • Working Range: 100 m (328 ft)
    • RF Tuning Step Size: JB Band: 125 kHz; All Other Bands: 25 kHz
    • Image Rejection: >70 dB
    • RF Sensitivity: -97 dBm at 10-5 BER
    • Audio Latency: 3.2 ms
    • Audio Frequency Response: 20 Hz–20 kHz (+1, -2 dB)
    • Audio Dynamic Range A-weighted, typical: 120 dB
    • Total Harmonic Distortion: <0.02%
    • System Audio Polarity: XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output.
    • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
    • RF Input Spurious Rejection: >75 dB
    • Connector Type: BNC
    • Impedance: 50 Ω
    • Audio Output Gain Adjustment Range: –18 to +42 dB in 1 dB steps
    • Configuration: 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground) XLR: Balanced (1=ground, 2=audio +, 3=audio –)
    • Impedance: 1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced) XLR (line): 400 Ω (200 Ω Unbalanced) XLR (mic): 150 Ω
    • Full Scale Output: 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single) XLR (LINE setting): +15 dBV XLR (MIC setting): –15 dBV
    • Mic/Line Switch: 30 dB pad
    • Phantom Power Protection: 1/4" (6.35 mm): Yes XLR: Yes
    • Network Interface: Single Port Ethernet 10/100 Mbps
    • Network Addressing Capability: DHCP or Manual IP address
    • Maximum Cable Length: 100 m (328 ft)
CONTENTS
    (1) Shure SLXD4 Single-Channel Receiver
    (1) Shure SLXD1 Bodypack Transmitter
    (1) Shure WL185 Lavalier Microphone
    (1) Rackmount Accessories
    (2) AA Batteries
