DESCRIPTION
The SLXD14/93 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long conferences to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required.
FEATURES
-
• Transparent 24-bit digital audio for clear, detailed sound
• 20 Hz–20 kHz frequency response for wide-range audio reproduction
• 118 dB dynamic range for clean audio with excellent headroom
• Digital predictive switching diversity for stable RF performance
• 44 MHz tuning bandwidth for flexible frequency coordination
• Up to 32 available channels per frequency band, region dependent
• Up to 10 compatible systems per 6 MHz TV band; 12 systems per 8 MHz band
• Automatic channel scan for quick and easy frequency setup
• IR scan and sync for simple transmitter-to-receiver pairing
• Ethernet connectivity for group scanning, firmware updates, and third-party system control
• Wireless Workbench® compatibility for system monitoring and management
• ShurePlus™ Channels app compatibility for remote monitoring and control
• High-contrast LCD interface for easy system configuration
• Guided setup mode built into the SLX-D receiver
• Up to 8 hours of operation from two AA batteries
• Compatible with Shure SB903 rechargeable Li-ion battery and charging accessories
• WL93 omnidirectional miniature lavalier microphone included with the system
SPECIFICATIONS
-
• RF Carrier Frequency Range: 470–514 MHz (G58)
• Transmitter Output Power: 1 / 10 mW
• Working Range: 100 m (328 ft)
• RF Tuning Step Size: 25 kHz
• Image Rejection: >70 dB, typical
• RF Sensitivity: –97 dBm at 10⁻⁵ BER
• System Audio Latency: 3.2 ms
• High-Pass / Low-Cut Filter: 150 Hz @ –12 dB/oct
• Audio Frequency Response: 20 Hz–20 kHz (+1, –2 dB)
• Audio Dynamic Range: 118 dB at 1% THD, A-weighted, typical
• Total Harmonic Distortion: <0.02%
• Mic Offset Range: 0–21 dB, in 3 dB steps
• Operating Temperature Range: –18°C to 50°C (0°F to 122°F)
• Storage Temperature Range: –29°C to 74°C (–20°F to 165°F)

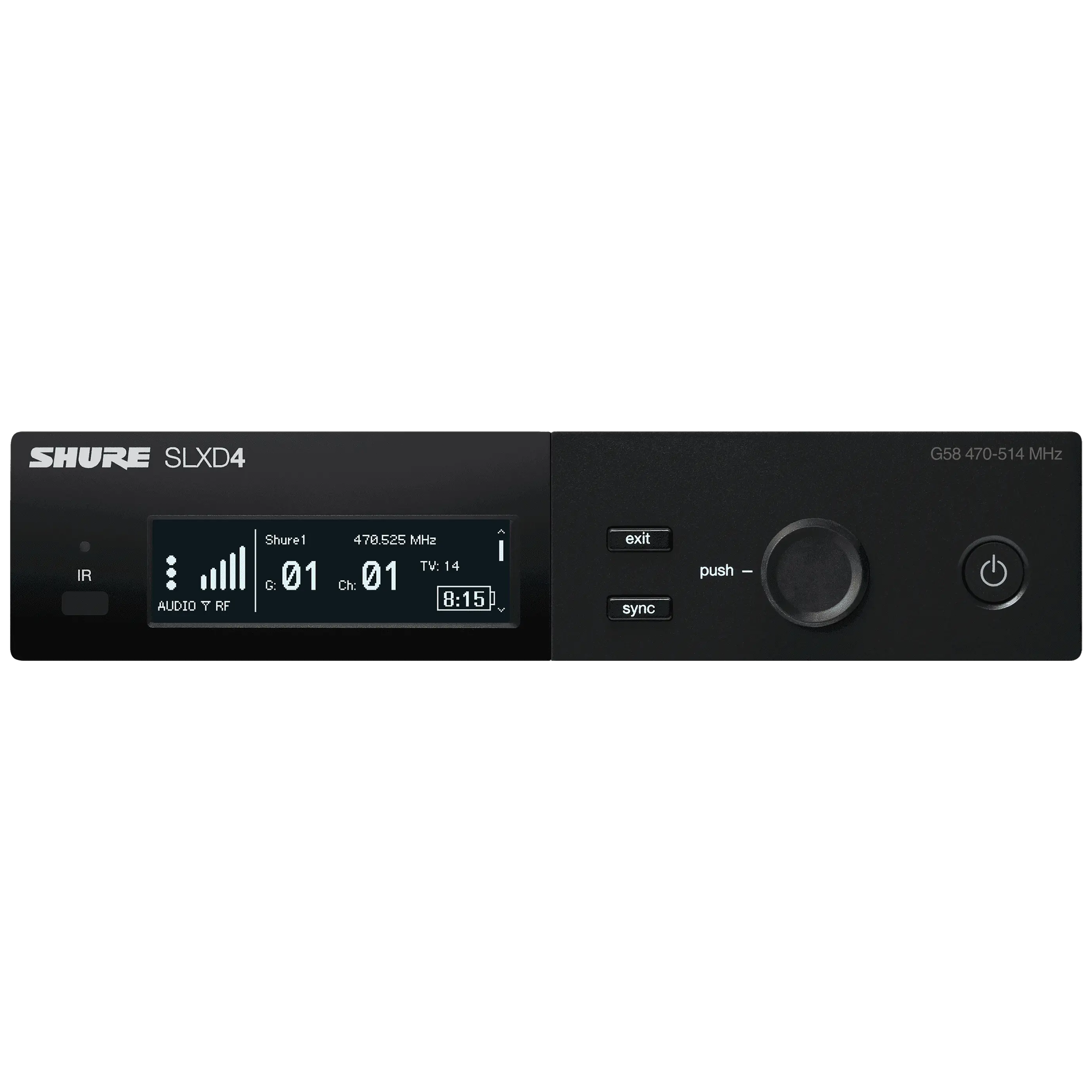

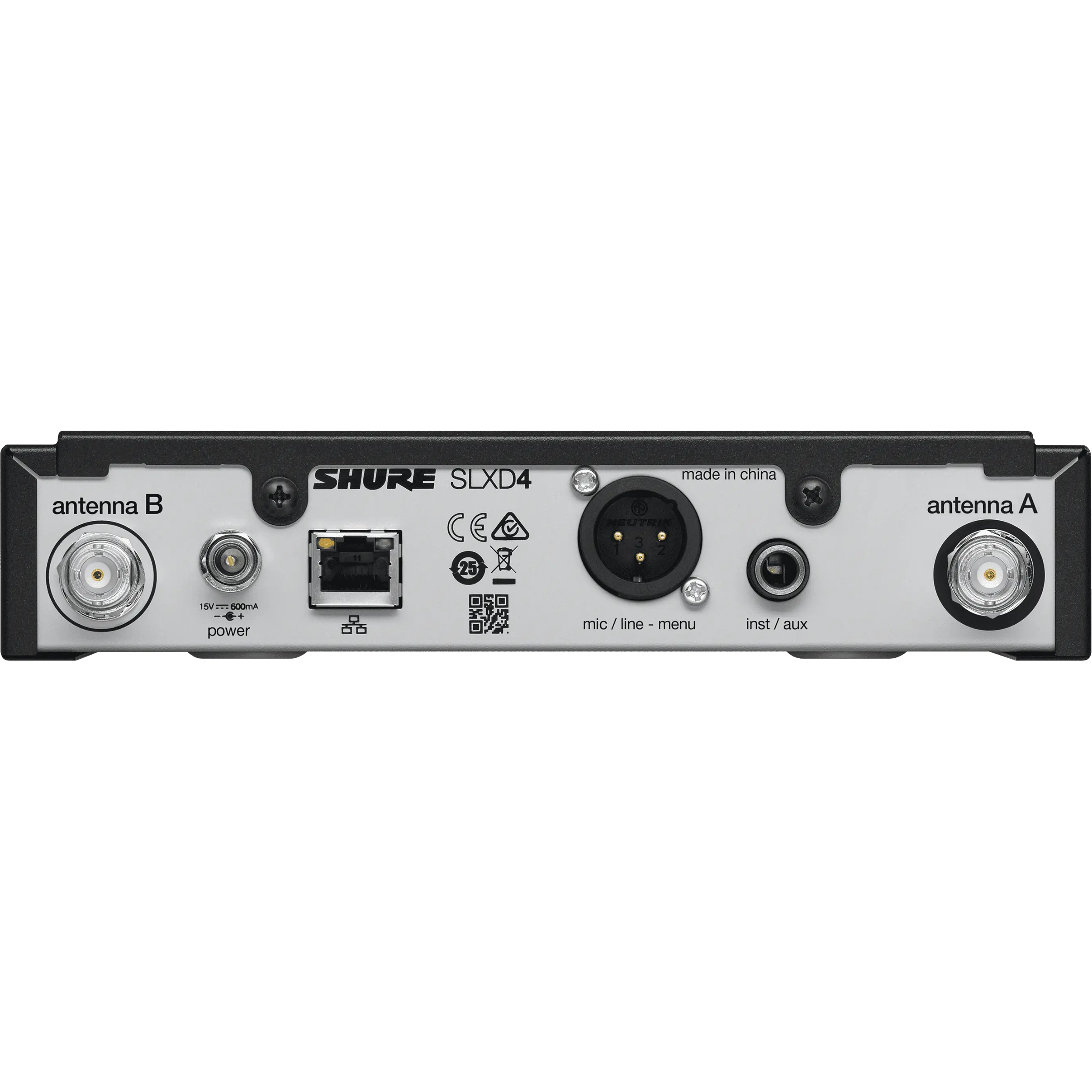

Shure SLXD4 Single-Channel Receiver:
• RF Input Connector: BNC
• RF Input Impedance: 50 Ω
• Spurious Rejection: >75 dB, typical
• Phantom Power Protection: Yes
• Audio Output Connectors: XLR and 1/4" (6.35 mm) TRS
• Audio Output Configuration: Balanced
• Full Scale Output: 1/4": +15 dBV differentially (+9 dBV single); XLR Line: +15 dBV; XLR Mic: –15 dBV
• Mic/Line Switch: 30 dB pad
• Network Interface: Single-port Ethernet, 10/100 Mbps
• Network Addressing: DHCP or Manual IP Address
• Maximum Network Cable Length: 100 m (328 ft)

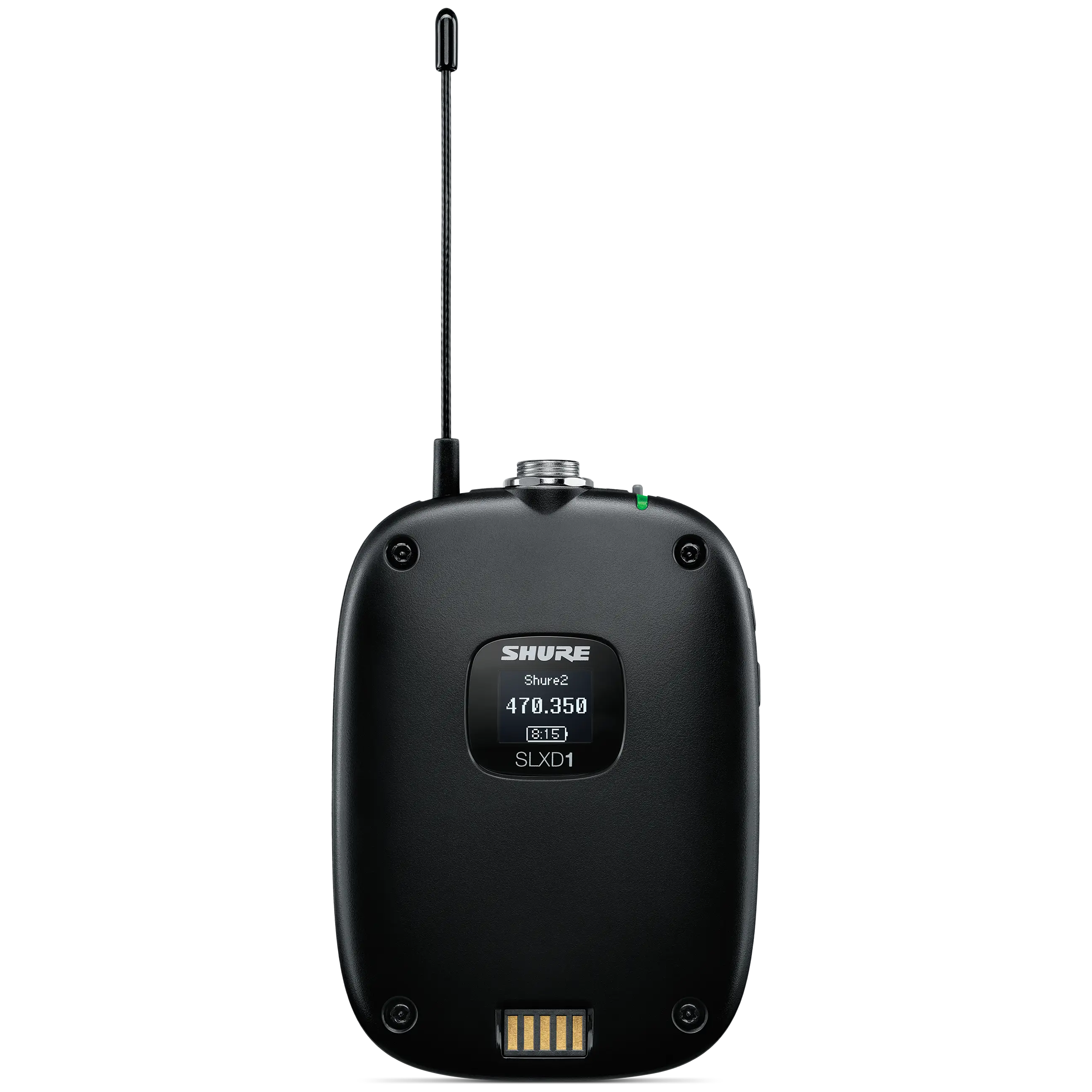

Shure SLXD1 Bodypack Transmitter:
• Battery Type: Rechargeable Li-ion or 1.5 V AA batteries
• Dimensions (H × W × D): 98 × 68 × 25.5 mm (3.86 × 2.68 × 1 in.)
• Weight: 89 g (3.1 oz.)
• Housing: PC/ABS
• Audio Input Connector: 4-pin male mini connector (TA4M)
• Audio Input Impedance: 1 MΩ
• Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
• Preamplifier Equivalent Input Noise: –118 dBV
• RF Output Power: 1 mW or 10 mW
• RF Output Antenna: 1/4-wave
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure proprietary digital

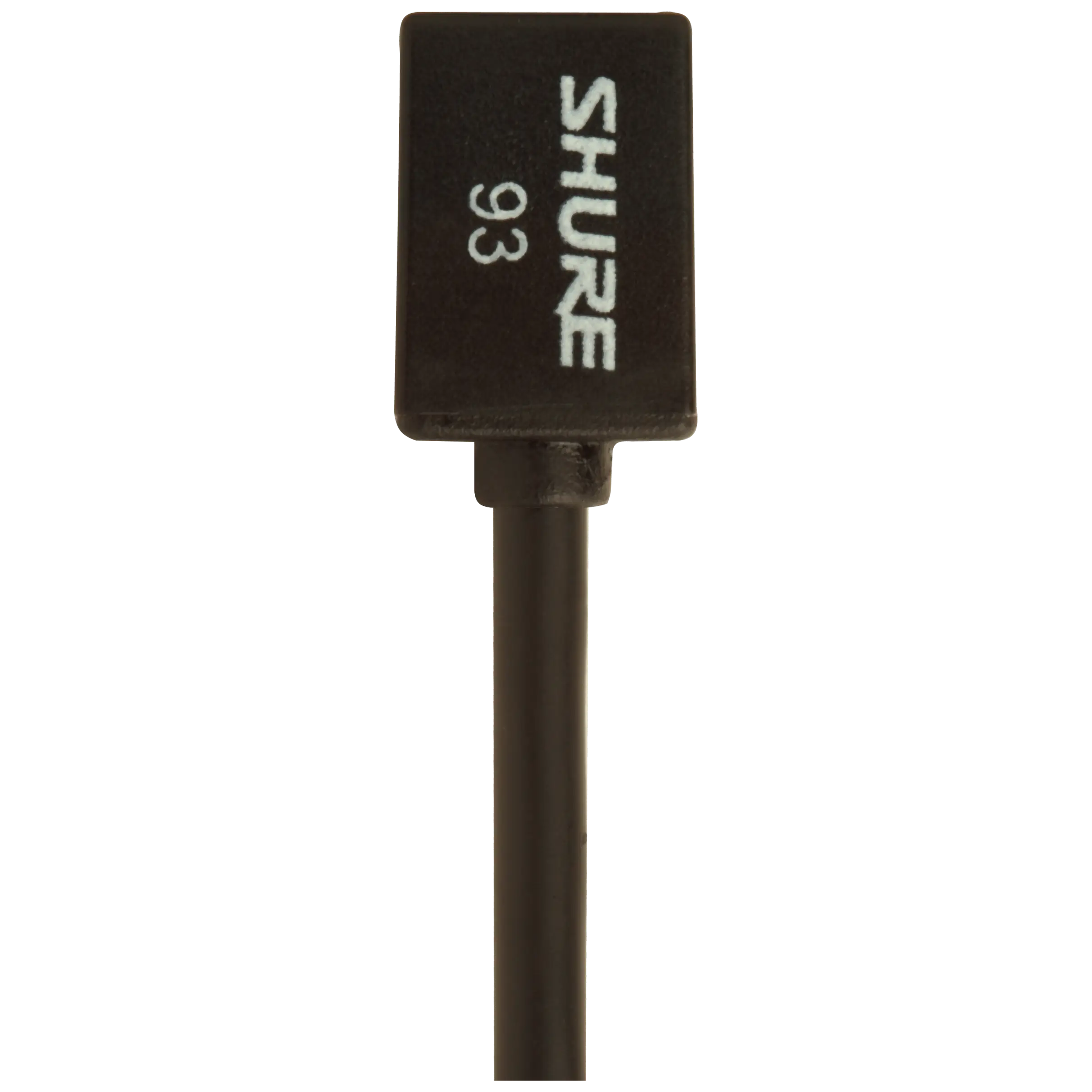

Shure WL93 Lavalier Microphone:
• Microphone Type: Electret condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 80 Hz–20 kHz

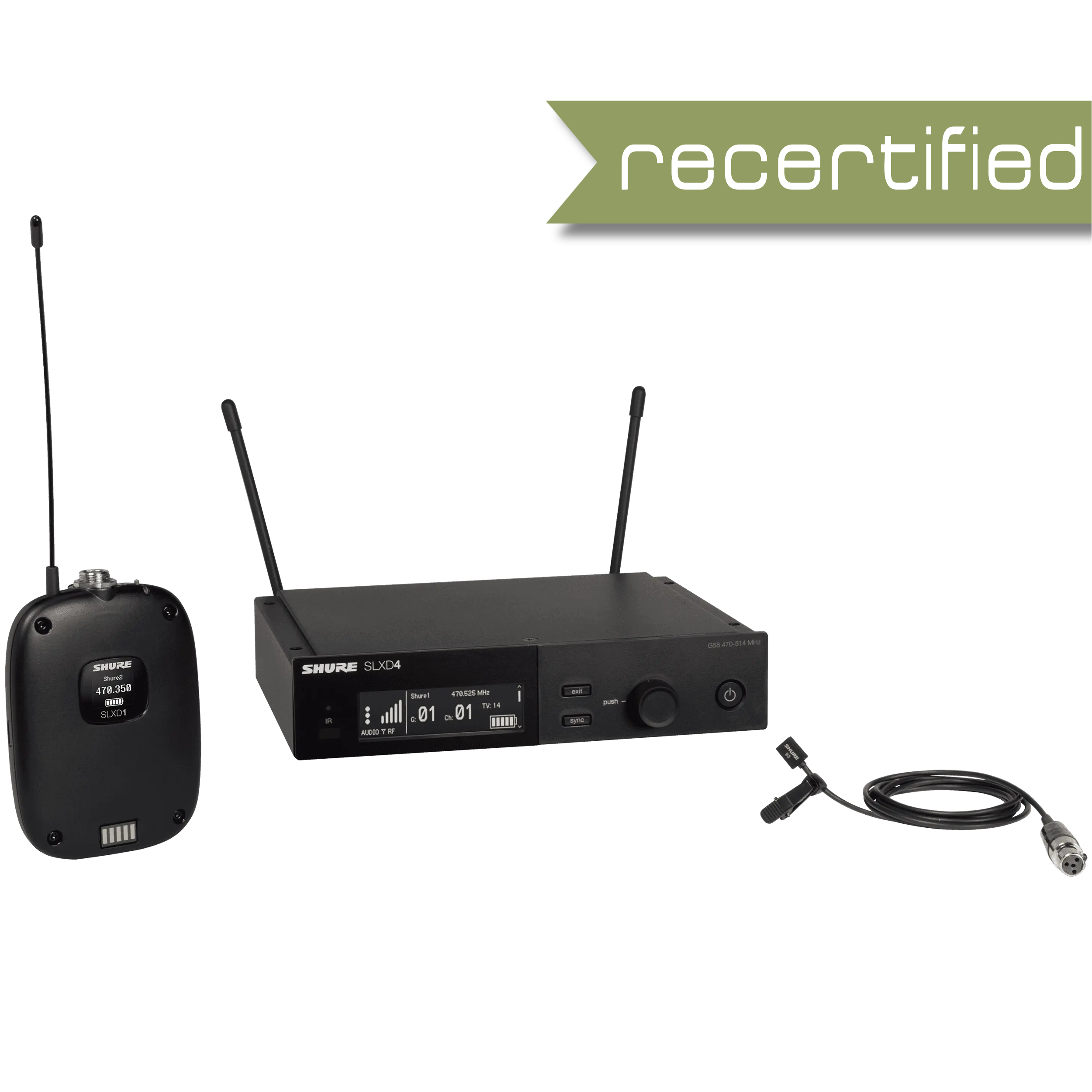

CONTENTS
-
(1) Shure SLXD4 Single-Channel Receiver
(1) Shure SLXD1 Bodypack Transmitter
(1) Shure WL93 Lavalier Microphone
(1) Rackmount Hardware Kit
(2) AA Batteries
