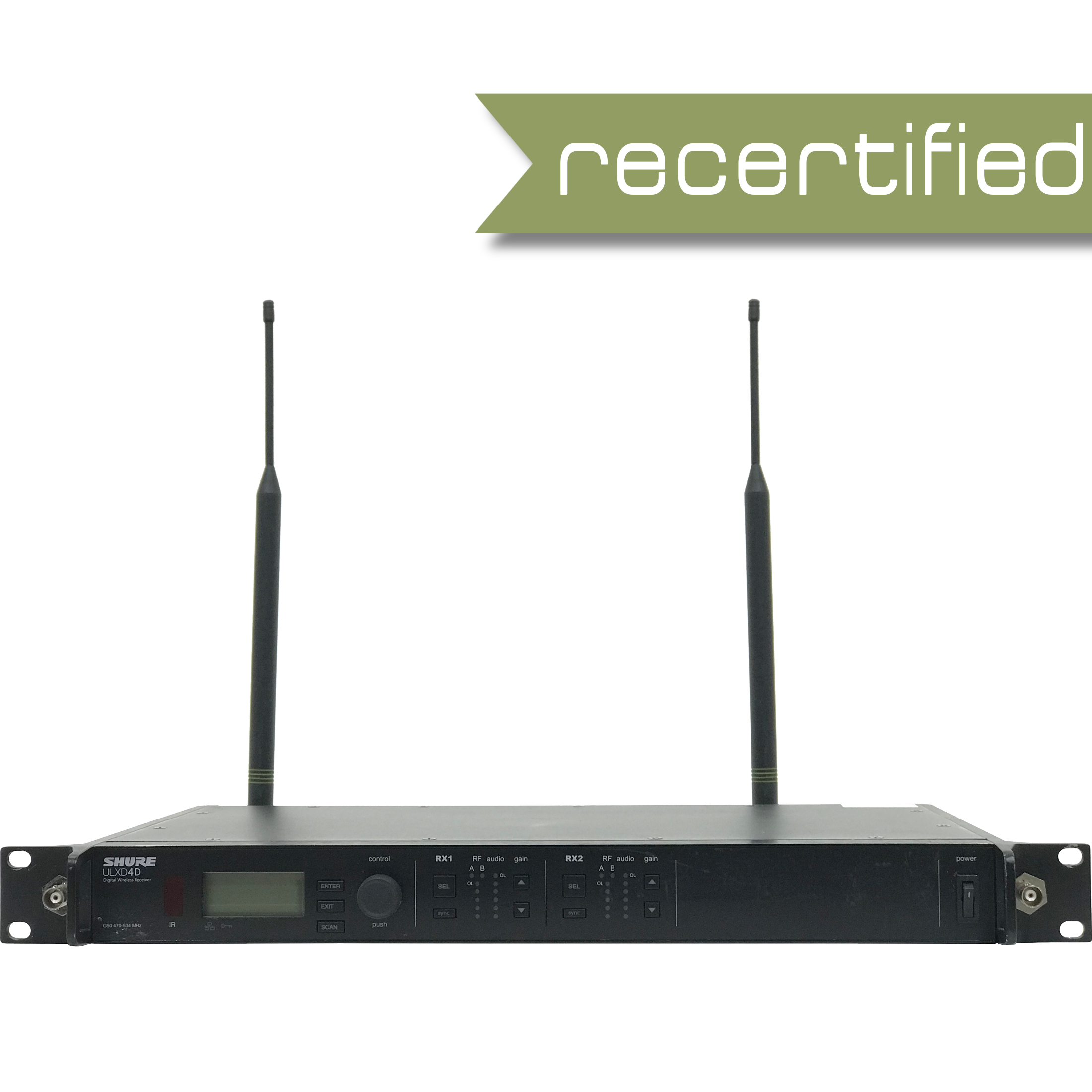

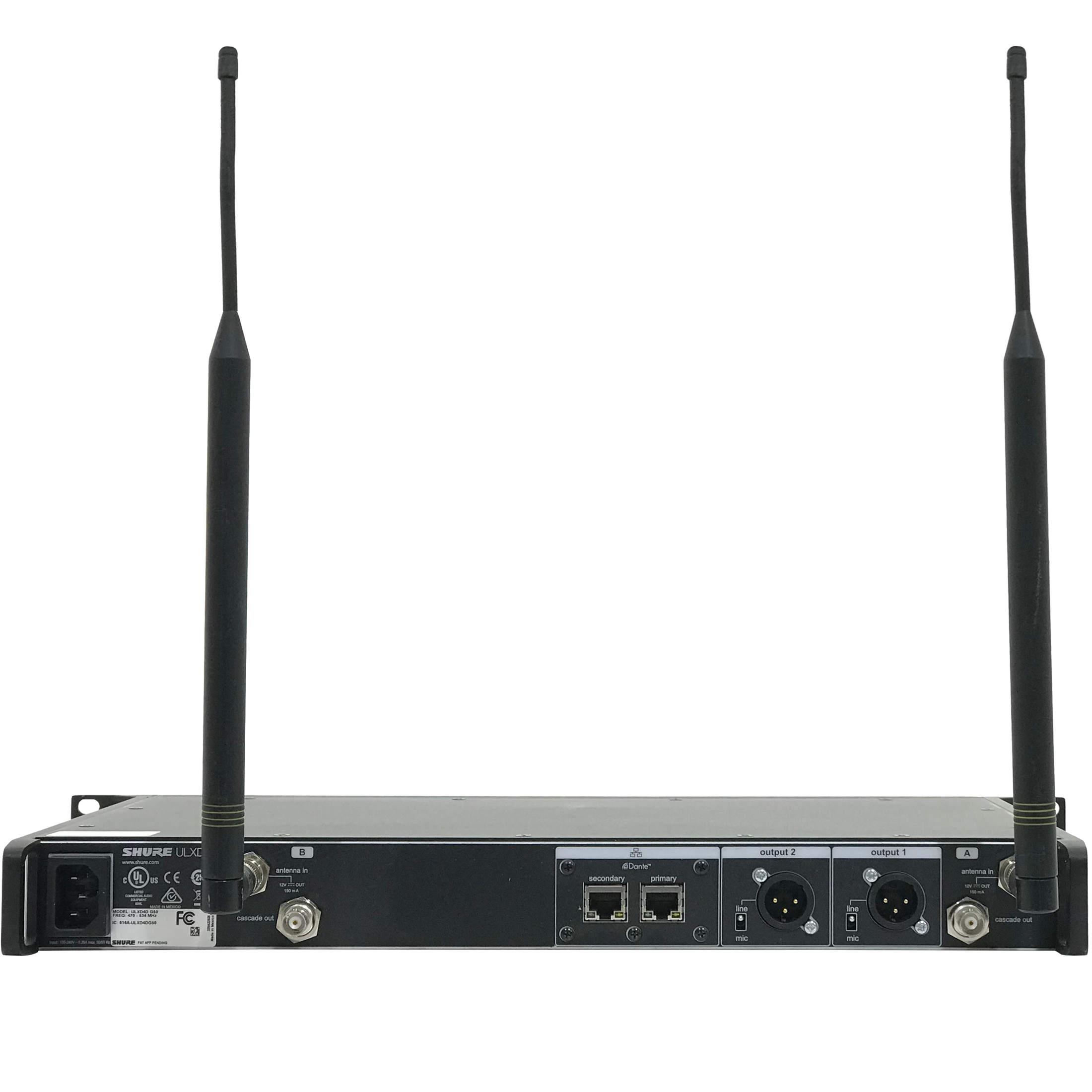

Shure ULX-D Dual Channel Receiver G50 Band Certified Used
The Shure ULXD4D Dual Channel Digital Wireless Receiver offers two channels of uncompromising audio quality, RF signal stability and efficiency, and advanced setup features in a single rack unit. Rugged, yet lightweight and compact, the all-metal chassis houses two independent receivers, each with its own audio and RF meters, gain control, and receiver outputs that can be either direct or summed for flexible signal routing.
With RF cascade and two Ethernet ports, units easily can share RF signal and be networked together for simplified frequency coordination and deployment. For networked audio applications, Dante™ digital networking allows multiple channels of audio to be transmitted and received over a single Ethernet cable. When more compatible frequencies over shorter distances, High Density mode can be enabled to dramatically increase the number of available open frequencies.
With the suite of features and benefits ULX-D® Digital Wireless Systems offer, the ULXD4D is truly generations ahead of any other dual digital receiver in its class, and brings a new level of performance to professional sound reinforcement.
Two receivers in a rugged 1RU metal chassis with internal power supply
Individual gain controls, LED meters, and XLR outputs for each channel
Up to 64 MHz tuning range (region dependent)
Digital predictive switching diversity
High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
RF cascade ports allow distribution of RF signal to another unit
Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
AES 256-bit encryption-enabled for secure transmission
Audio summing routes both audio channels to each XLR receiver output
Dante digital networked audio over Ethernet
Up to 60 dB independently adjustable gain for each channel
Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
Wireless Workbench 6 (WWB6) software integration for advanced coordination, monitoring, and control
Interference detection and alerts provided on both the receiver and WWB6
AXT600 Axient Spectrum Manager compatible
Yamaha device ID allows simplified channel patching on CL consoles
Intuitive front panel LCD menu and controls with lockout feature
Audio and RF LED meters with peak indicator
XLR connectors with switchable mic/line output level
Removeable 1/2 wave antennas
3.36 kg (7.4 lbs), without antennas
(1) Shure ULXD4D Dual Digital Wireless Receiver (2) 1/2 Wave Antenna (1) IEC Power Cable (2) 1' BNC - BNC Antenna Cables with Bulkhead Adapters
