DESCRIPTION

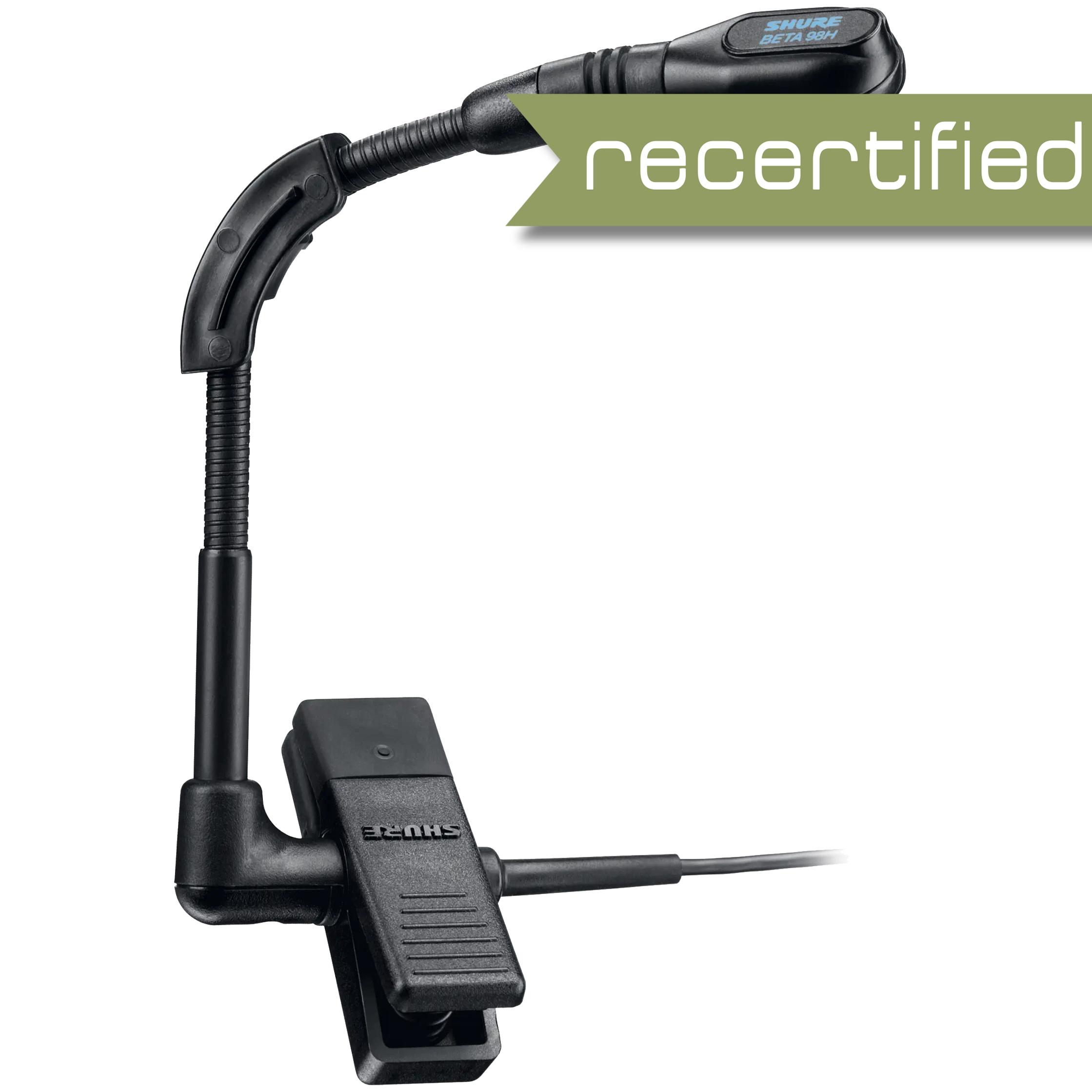

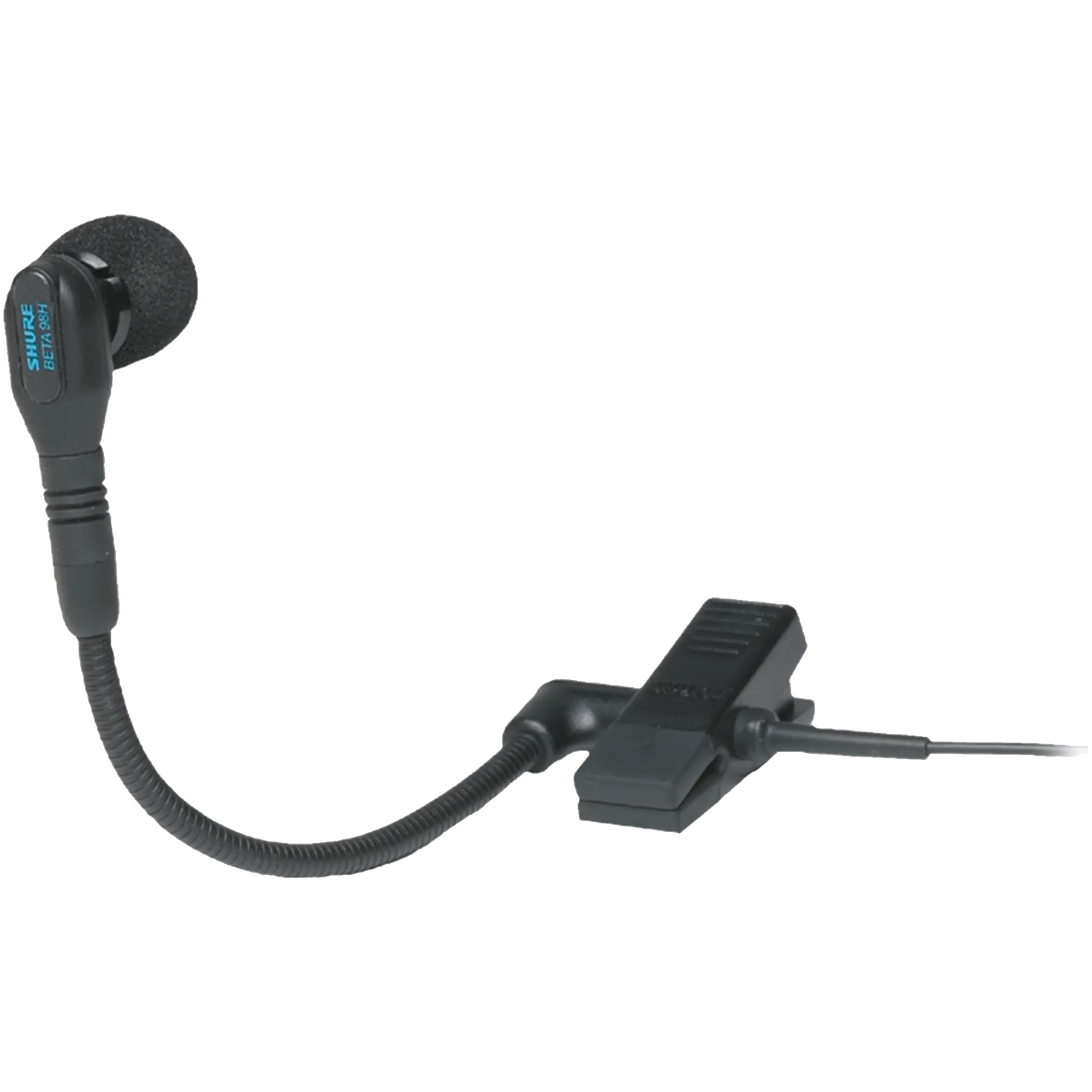

The Shure WB98H/C (the wireless version of the BETA®98H/C) is a premium cardioid condenser instrumental microphone that clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allow the microphone to be easily positioned and secured in place, and an isolation shock mount reduces the transmission of instrument 'key noise' and other mechanical noise. A gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.

WB98H/C with 5.3 ft. cable terminated to 4-Pin Mini-Connector.

FEATURES
    • The WB98H/C features transformerless preamplifier circuitry, which improves linearity across the full frequency range
    • The pickup pattern of the Beta 98H/C provides high gain-before-feedback and excellent rejection of unwanted noise
    • Its high maximum sound pressure level (SPL) enables it to handle the extreme demands of brass, woodwind and percussion instruments
    • Tailored frequency response for studio quality performance
    • Wide dynamic range for use in high SPL environments
    • Uniform supercardioid pattern for high gain before feedback and superior rejection of off-axis sound
    • Optional A98D drum mount is unobtrusive and versatile--allows precise positioning of the microphone while holding it firmly in place
    • Compact design reduces stage clutter
    • Detachable cable for easy storage
    • Interchangeable microphone cartridges with different polar patterns are available
    • Legendary Shure quality, ruggedness, and reliability
SPECIFICATIONS
    • Type: Electret Condenser
    • Frequency Response: 20 to 20,000 Hz
    • Polar Pattern: Cardioid
    • Output Impedance: 150 Ω
    • Sensitivity (at 1 kHz, open circuit voltage): -56 dBV/Pa (1.6 mV) 1 Pascal=94 dB SPL
    • Maximum SPL (1 kHz at 1% THD, 1kΩ load): 155 dB SPL (typical)
    • Equivalent Output Noise (A-weighted): 31 dB SPL (typical)
    • Signal-to-Noise Ratio: 63 dB, referenced at 94 dB SPL; difference between 94 dB SPL and the equivalent SPL of self-noise, A-weighted
    • Dynamic Range (at 1 kHz, 1 kΩ load): 124 dB 132 dB
    • Preamplifier Output Clipping Level (1% THD): 3 dBV (1.4 V)
    • Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
    • Power Requirements: 11 to 52 Vdc phantom
CONTENTS
    (1) Shure WB98H/C Instrument Microphone
