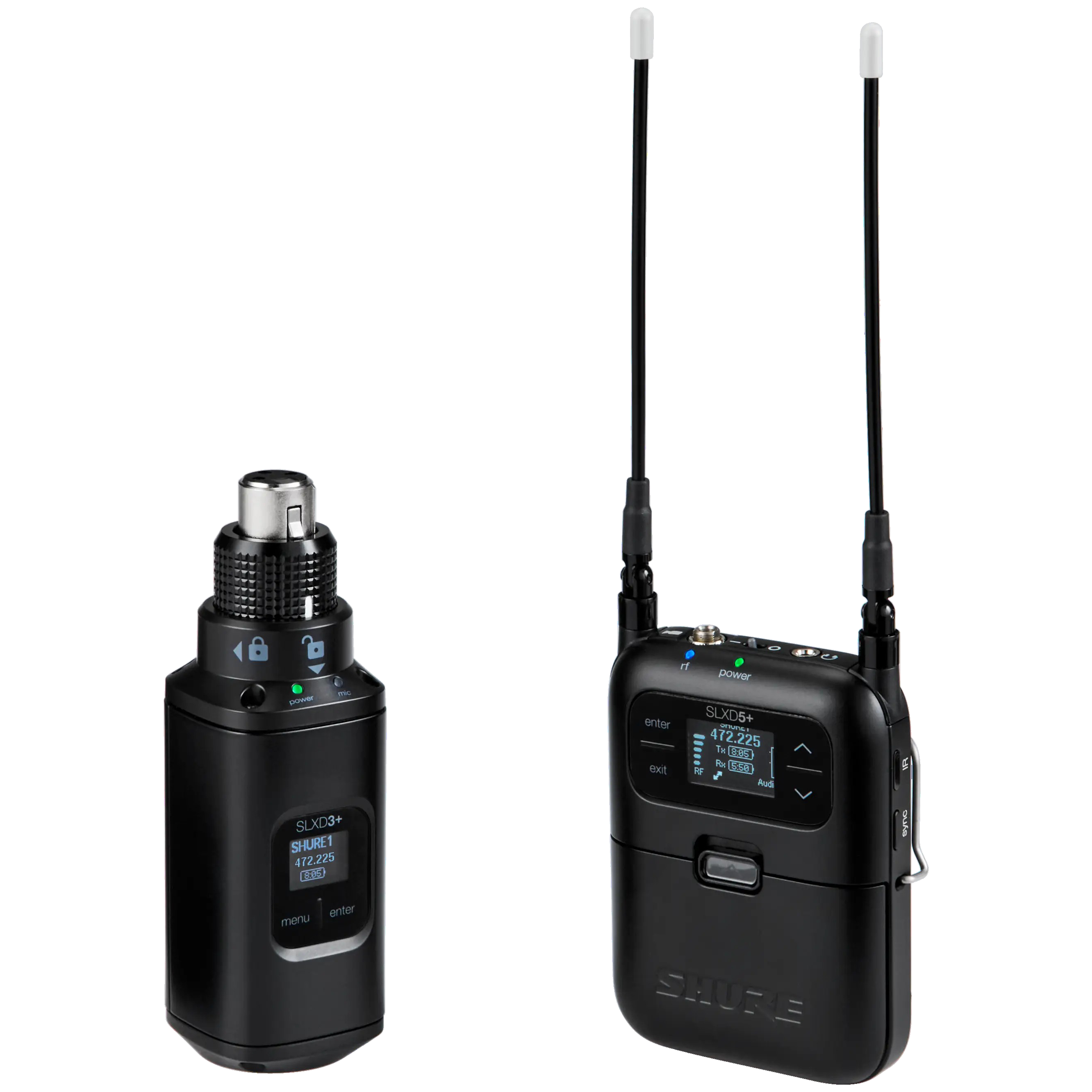

The SLXD35+ portable plug-on wireless system features the SLXD5+ portable receiver and the SLXD3+ plug-on transmitter for use with XLR microphones. Deliver wireless excellence, wherever required, in videography, ENG and field production, and film and location sound applications. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink® Ease control link. Manage interference, scan for new channels, and update for clear transmission automatically. Also monitor and configure via a paired mobile device.
FEATURES
-
• Powerful, portable digital wireless system for on-camera cold shoe mounting and audio bag use
• Transparent 24-bit digital audio quality with >118 dB dynamic range
• Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage: Up to 11 simultaneous systems in 6 MHz TV bands, Up to 14 simultaneous systems in 8 MHz TV bands
• Dual 1/8” outputs including a headphone monitor out and switchable line/mic output
• Automatic Setup – once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
• With ShowLink® Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including: Changing the transmitter frequency once open frequency is identified, Adjust power output level, Lock and unlock transmitter controls, Transmitter firmware updates
• Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
• Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
• Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occur.
• Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind
• Up to 8 hours (SLXD1+) / up to 5.5 hours (SLXD5+) of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories
• Portable ergonomic design with rugged metal construction
SPECIFICATIONS
-
• Shure SLXD5+ Single-Channel Portable Wireless Receiver:
• Dimensions (H × W × D): 4.21 × 2.68 × 1.0 in (107 × 68 × 25.3 mm)
• Weight: 1.8 lb (182 g)
• Housing: Aluminum
• Power Requirements: Battery: Rechargeable Li-Ion or 1.5 V AA batteries; Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
• RF Input Spurious Rejection: >75 dB Typical
• Impedance: 50 Ω
• Phantom Power Protection: Yes
• Antenna Type: 1/4 Wave Whip
• Audio Output Audio Frequency Response: 20 Hz – 20 kHz (+1, -3 dB)
• Connector Type: Balanced (Mono): Tip=audio +, Ring=audio –, Sleeve=ground; Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
• Impedance (Camera): Balanced (Mono) Line: 450 Ω, Balanced (Mono) Mic: 240 Ω, Dual Mono Line: 400 Ω, Dual Mono Mic: 200 Ω
• Full Scale Output: Camera (Balanced Line): 15 dBV, Headphone: 13 mW @ 64 Ω Load
Shure SLXD3+ Plug-On Transmitter with Locking XLR:
• Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
• Dimensions (L x W x D): 4.9 × 1.6 × 1.6 in (126 × 41 × 41 mm)
• Weight: 7.0 oz. (200 g)
• Housing: Aluminum, Zinc Alloy, PC/ABS
• Audio Input Configuration: XLR
• Maximum Input Level 1 kHz @ 1% THD: Pad -12 dB: 20.5 dBV, 0 dB: 8.5 dBV, Boost +12 dB: -3.5 dBV
• Phantom Power: +48 V (7 mA maximum), +12 V (15 mA maximum)
• RF Output Antenna Type: Dipole
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure Proprietary Digital
• Power: 1 mW/10 mW/30 mW
• Specific Absorption Rate (SAR): <0.17 W/kg
CONTENTS
-
(1) Shure SLXD5+ Single-Channel Portable Wireless Receiver
(1) Shure SLXD3+ Plug-On Transmitter with Locking XLR Connector
(2) Zippered Carrying Pouches
(4) AA Batteries
(1) Leather Protective Sleeve with Integrated Belt Clip
(1) WA311 Non-Conductive Cold Shoe Mount Adapter
