Three models. Three incredible approaches to low frequency sound reinforcement.

KS112

Ultra-Compact

  • High output in an ultra-compact form factor
  • 2000 Watt Class D amplifier
  • 12-inch, long-excursion driver; 6th order band-pass design
  • Refined, professional appearance looks great in any
        application
  • Vertical or horizontal deployment with dual M20
        loudspeaker pole fittings

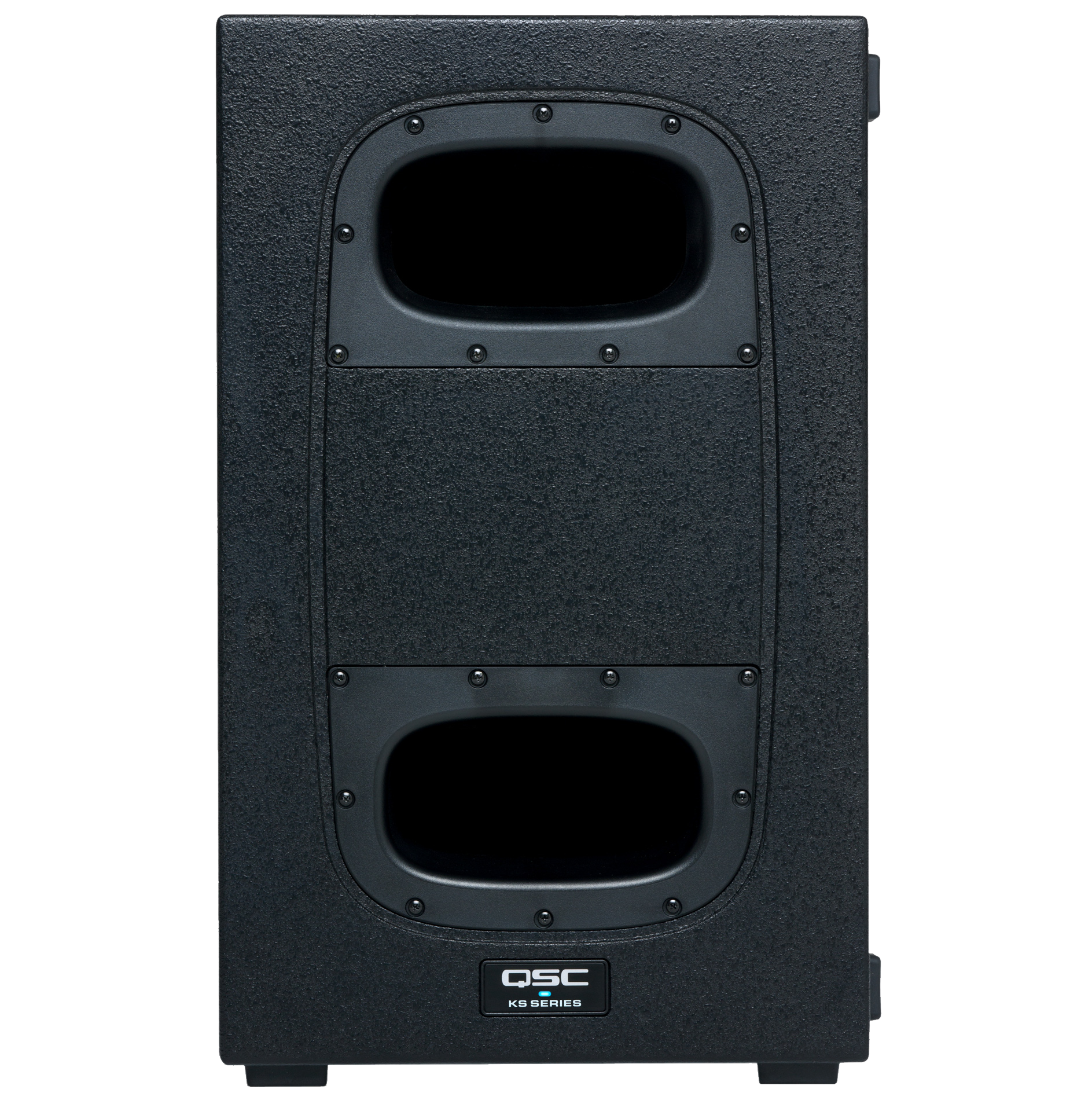

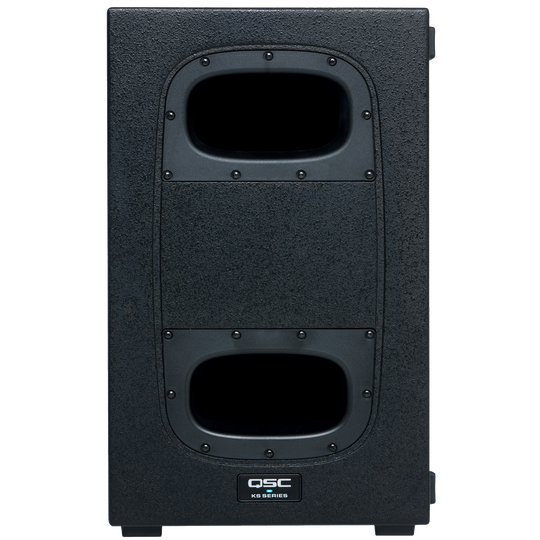

KS212C

Directional

  • World’s first-in-class single-box active cardioid subwoofer
  • 2000 Watt Class D amplifier
  • 3600 Watt Class D amplifier
  • Dual 12-inch, long-excursion drivers;
        Dual 6th order band-pass design
  • 15 dB SPL front-to-rear attenuation

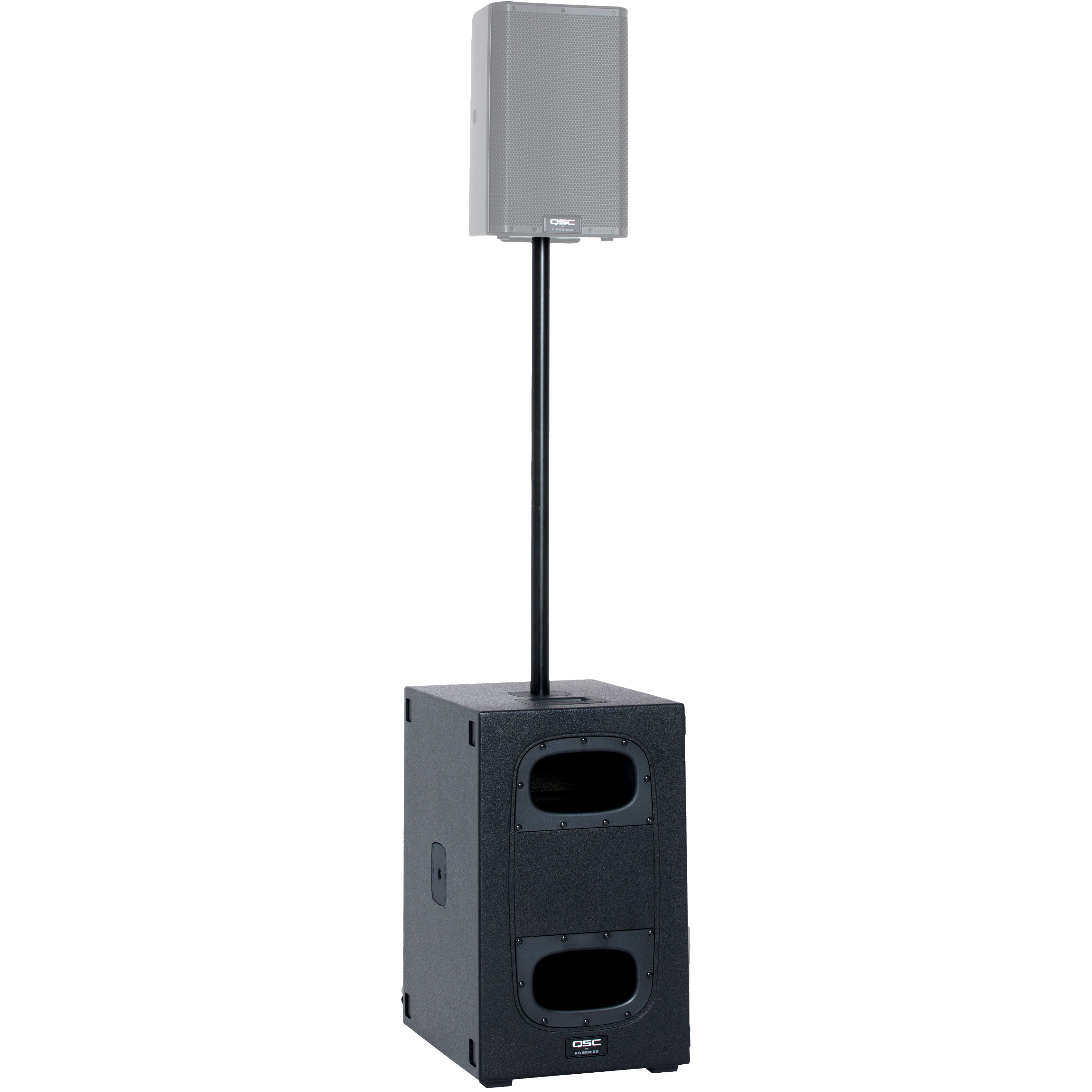

  • Vertical or horizontal deployment with dual M20 loudspeaker pole
        fittings

KS118

Directional

  • Impressive low frequency performance
  • 3600 Watt Class D amplifier
  • 18-inch, long-excursion direct radiating driver
  • Omni-directional or cardioid radiation modes
  • Selectable DEEP™ mode for extremely
        lowfrequency extension
  • Vertical or horizontal deployment (M20
        threaded pole receiver for vertical setup)
Model KS112 K212C KS118
Configuration 6th-order bandpass Dual 6th-order bandpass cardioid Direct radiating
LF Transducer 12-inch (305 mm), cone 2 x 12-inch (305 mm), cone 18-inch (460 mm), cone
Frequency Response
(-6 dB)
41 Hz - 108 Hz 44 Hz - 104 Hz 41 Hz - 98 Hz
Frequency Response
(-10 dB)
38 Hz - 121 Hz 39 Hz - 118 Hz 41 Hz - 98 Hz
Dimensions (HWD) inches 24.5 x 15.5 x 24.25 24.5 x 15.5 x 33.5 25.2 x 20.5 x 30.9
