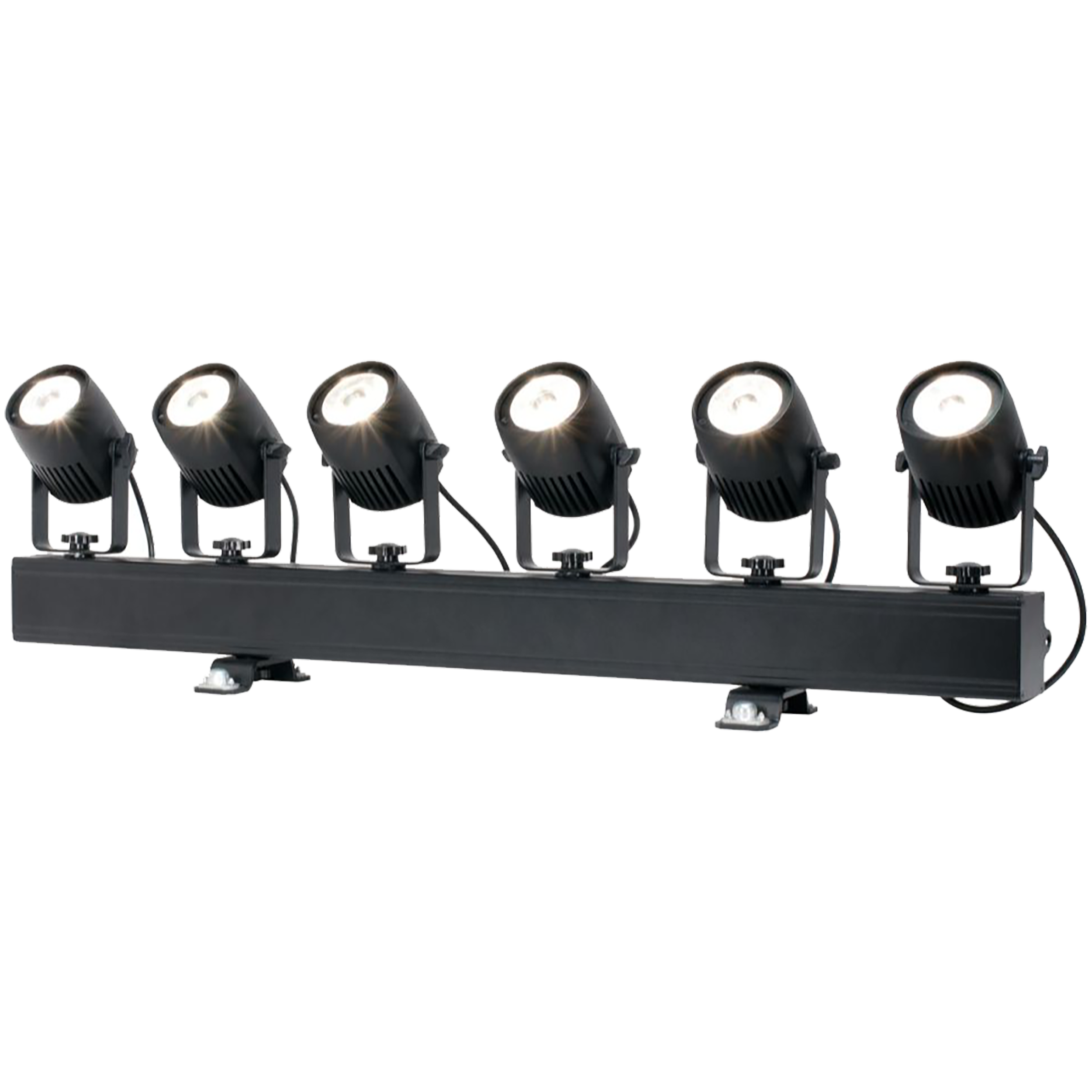

The Saber Bar 6 is a 6-head pinspot lighting system mounted on a 1-meter linear base with built-in power and DMX connections. Each pinspot is similar to the Saber Spot WW with a 15W Warm White LED (3100K) and an ACL lens that produces a razor sharp 5-degree beam. Each fixture’s X/Y axis may be individually adjusted manually for precision angling of the beams. The fixture includes a 10-degree and 45-degree lens kits so that designers can change the beam angle depending on the application. There are two heavy duty adjustable brackets to mount the fixture to a ceiling or truss.
The rear panel features a display with function buttons, 3-pin and 5-pin DMX In/Out to link data and power locking In/Out connections to daisy chain power. There are multiple DMX channel modes to choose from, built-in programs and 6 dimming curve modes. The Saber Bar 6 is s ideal for performance stages, installations, table spotting and lighting in retail stores.
Light Source: LED: 6x 15W Warm White LEDs (50,000 hrs.); Color Temperature: 3100K; CRI: 96; Beam Angle: 5-degrees (includes 10-degree and 45-degree lens kits)
All metal construction with black housing
ACL lens for razor sharp beams
Includes heavy duty adjustable brackets for hanging
Individually adjust X/Y axis of each fixture manually
Construction: Display with function buttons; Data In/Out: 3-pin and 5-pin DMX In/Out to link data; Power locking In/Out connections to daisy chain power; Daisy chain up to 11 fixtures @ 120V; 12 fixtures @ 240 V
Control: Multiple DMX Channel modes; Control Modes: dMX512, RDM; Built-in internal programs; 0-100% Dimming + smooth 16-bit fine dimming; 6 Dimming Curve Modes; Adjustable LED refresh rate; Strobe & Pulse Effects; With Wired Digital Communication Network
Power Voltage
AC 100-240V, 50/60Hz (Multi-voltage);
Dimensions (LxWxH)
39.5" x 11.5" x 3.75" / 1005 x 292 x 95mm
Power Consumption
85W max
Weight
25 lbs / 11.3 kg
(1) powerCON cable (1) Safety Cable (2) Omega Brackets (6) 10-degree frost filters (6) 45-degree frost filters (1) ADJ Saber Bar 6 LED Pinspot Bar
