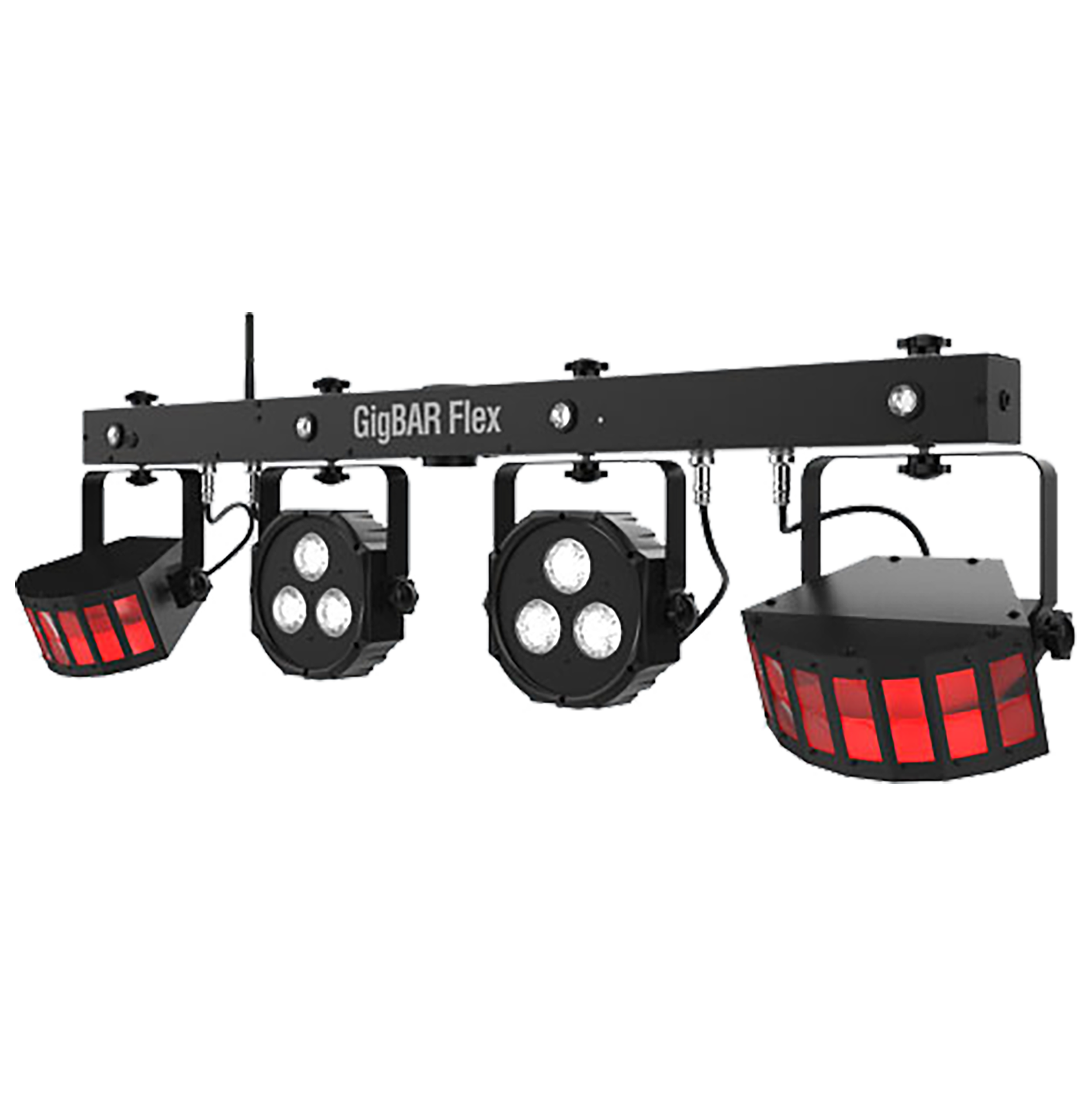

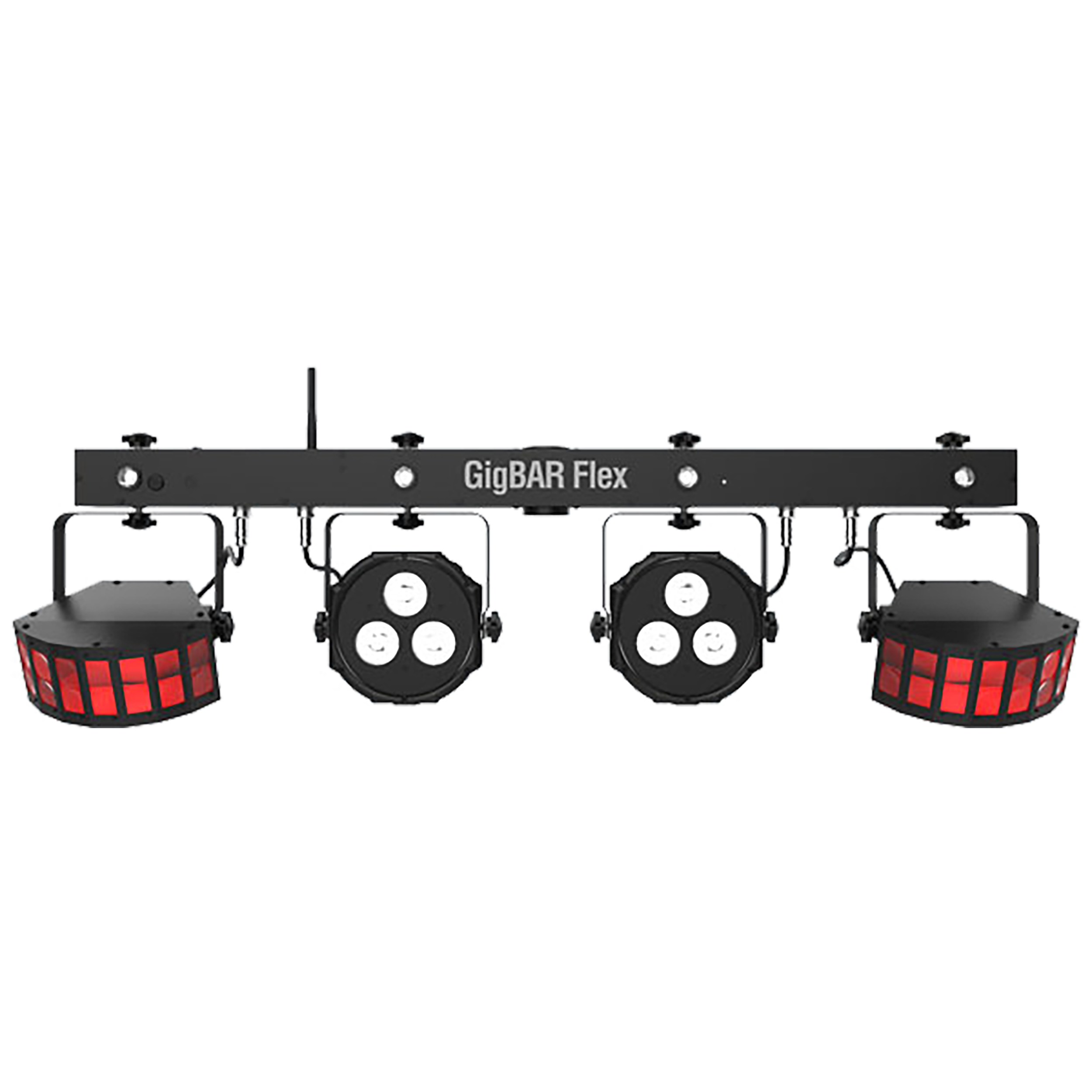

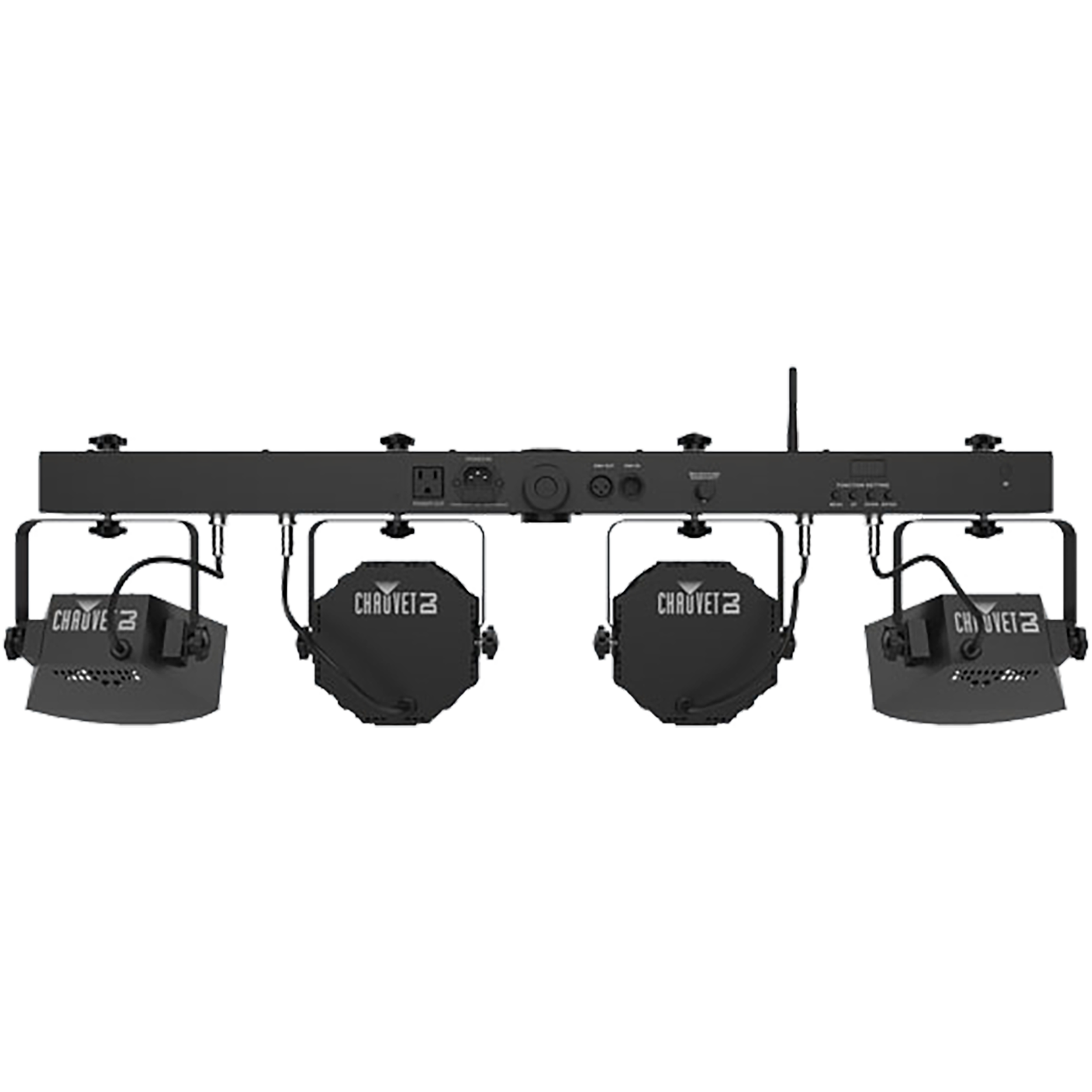

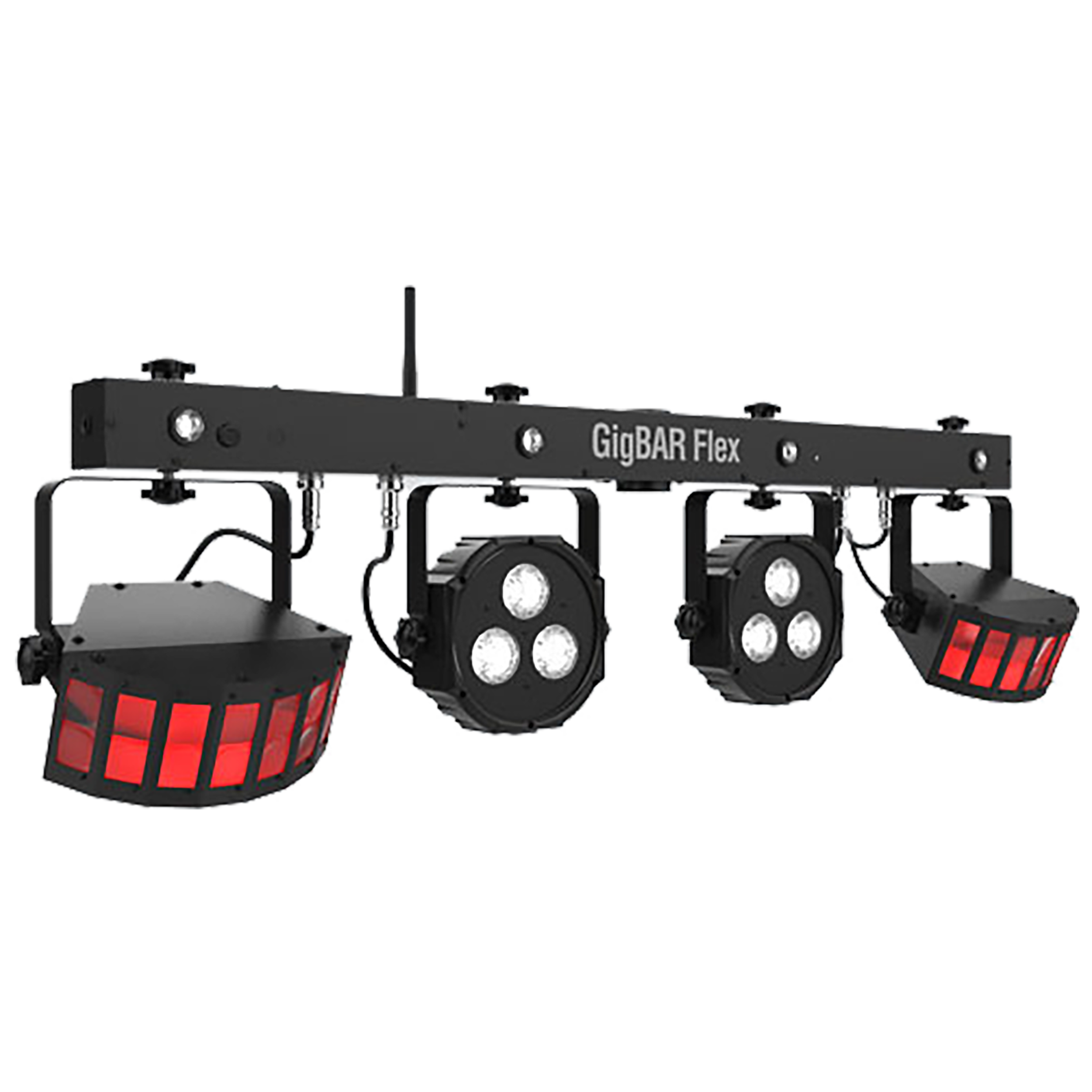

GigBAR Flex is an ultra-convenient 3-in-1 Pack-n-Go lighting system with a pair of LED Derbys, LED Quad-color pars (RGB + UV for increased color mixing and effects) and strobes. A pass-through mounting hole for flexible mounting options with various stage and speaker stands and adjustable leg brackets adds versatility.
• 3-in-1 fixture includes a pair of LED Derby, LED pars and strobe effect for ultimate convenience
• Pass-through mounting hole for flexible mounting options with various stage and speaker stands
• Built-in UV (blacklight) for increased color mixing and effects
• Four individually adjustable heads provide wide room coverage and lighting versatility
• Wireless footswitch for convenient hands-free control
• Built-in automated and sound-activated programs make dynamic light shows easy
• Get in and get out quickly with the included wireless footswitch and FREE carry bag
• Master/slave multiple units under the control of a single IRC-6 or wireless foot switch
DMX Channels: 3, 8 or 20
DMX Connectors: 3-pin XLR
Light Source:
(pars): 6 LEDs (quad-color RGB + UV) 3.5 W (1 A), 50,000 hours life expectancy
(strobe): 4 LEDs (white & UV) 5 W (1.5 A), 50,000 hours life expectancy
(derby): 6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A), 50,000 hours life expectancy
Strobe Rate: 0 to 18 Hz
Beam Angle: (pars): 13°, (strobe): 8°
Field Angle: (pars): 24°, (strobe): 18°
Coverage Angle: (derby): 114°
Illuminance:
(pars): 1,078 lux @ 2 m (per head)
(strobe): 86 lux @ 2 m (per zone)
Power Linking: 12 units @ 120 V; 22 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 45 W, 0.7 A @ 120 V, 60 Hz, 46 W, 0.4 A @ 230 V, 50 Hz
Weight: 11 lb (5 kg)
Size: 37 x 4 x 15 in ( 949 x 110 x 388 mm)
Approvals: CE
Foot Switch Operating Frequency: 433 MHz
Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
Footswitch Battery: 12 V A 23
(1) Chauvet DJ GigBAR Flex
(1) Power Cord
(1) Carrying Bag
(1) Wireless Footswitch
(1) IRC-6
