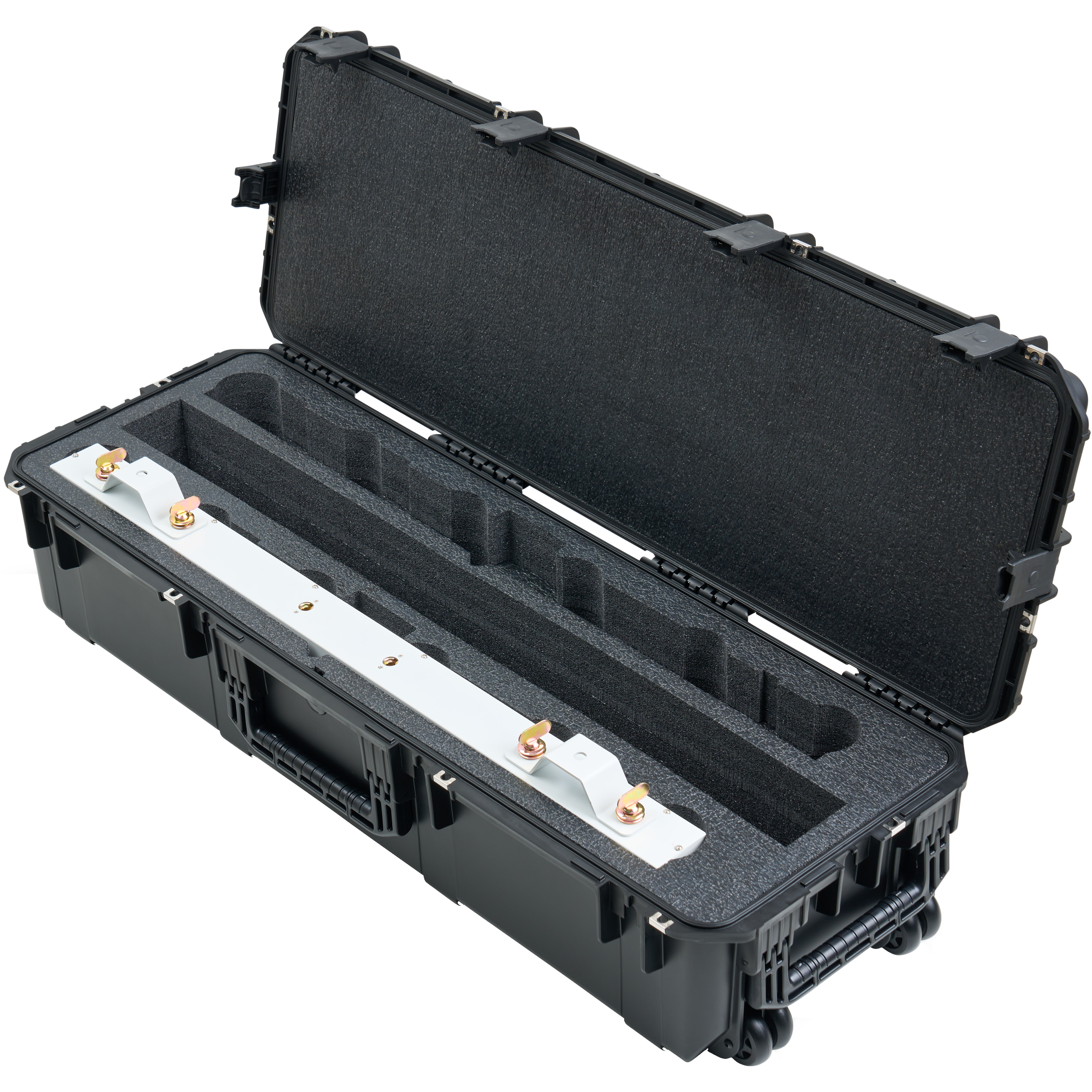

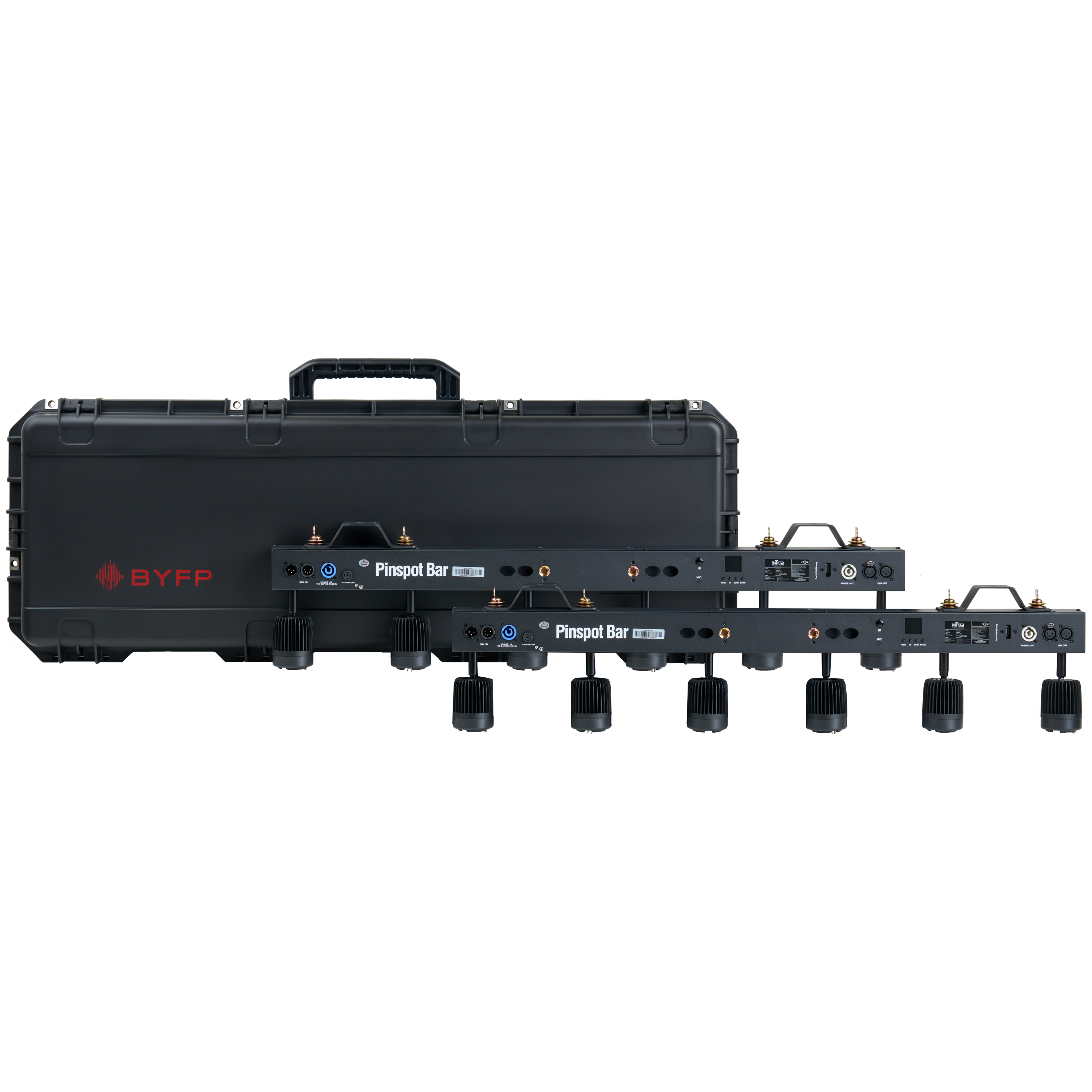

Chauvet DJ Pinspot Bar Six Head Warm White LED Spotlight tourPack with

MADE iN THE USA

ipCase is designed, manufactured, assembled, and finished in Orange County, California

MILITARY GRADE

MIL-STD 810G design that is resistant to corrosion and impact damage.

WATER AND DUST PROOF

Molded of ultra high-strength polypropylene copolymer resin, the ipCase features a gasket-sealed, water and dust tight design for your peace of mind

LIFETIME WARRANTY

Fully warranted against defects in materials and craftsmanship for the life of the case to the original owner

Perfect Fit

Precision-measured for a flawless fit, this case cradles your item with meticulous perfection.

Padlock Loop

Padlock loop system, providing enhanced theft protection

Tracking

Most ipCases have been equipped with a slot where you can add your tracking device for your peace of mind

Perfect Grip

Featuring latches and handles designed to effortlessly serve you, never compromising on functionality or ease

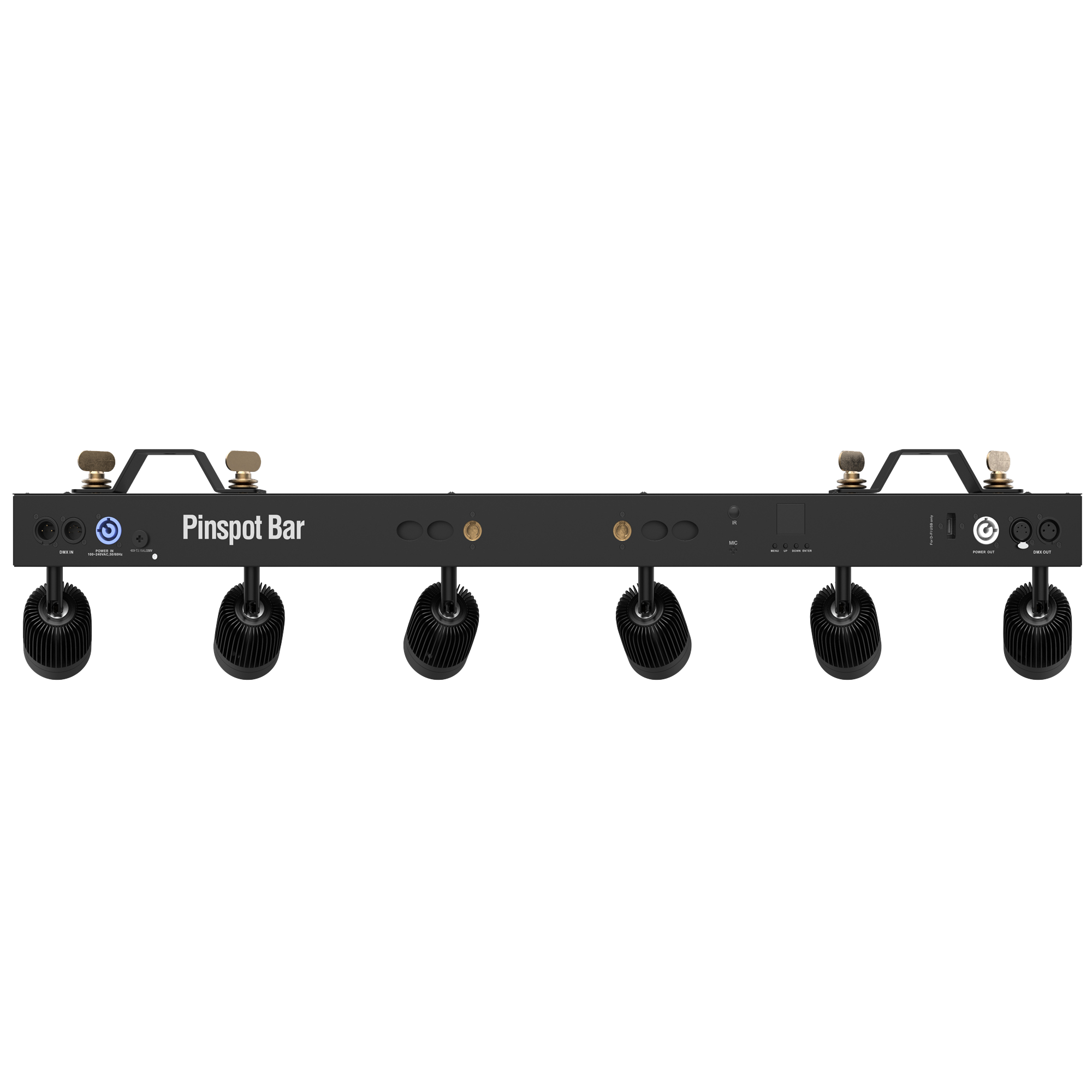

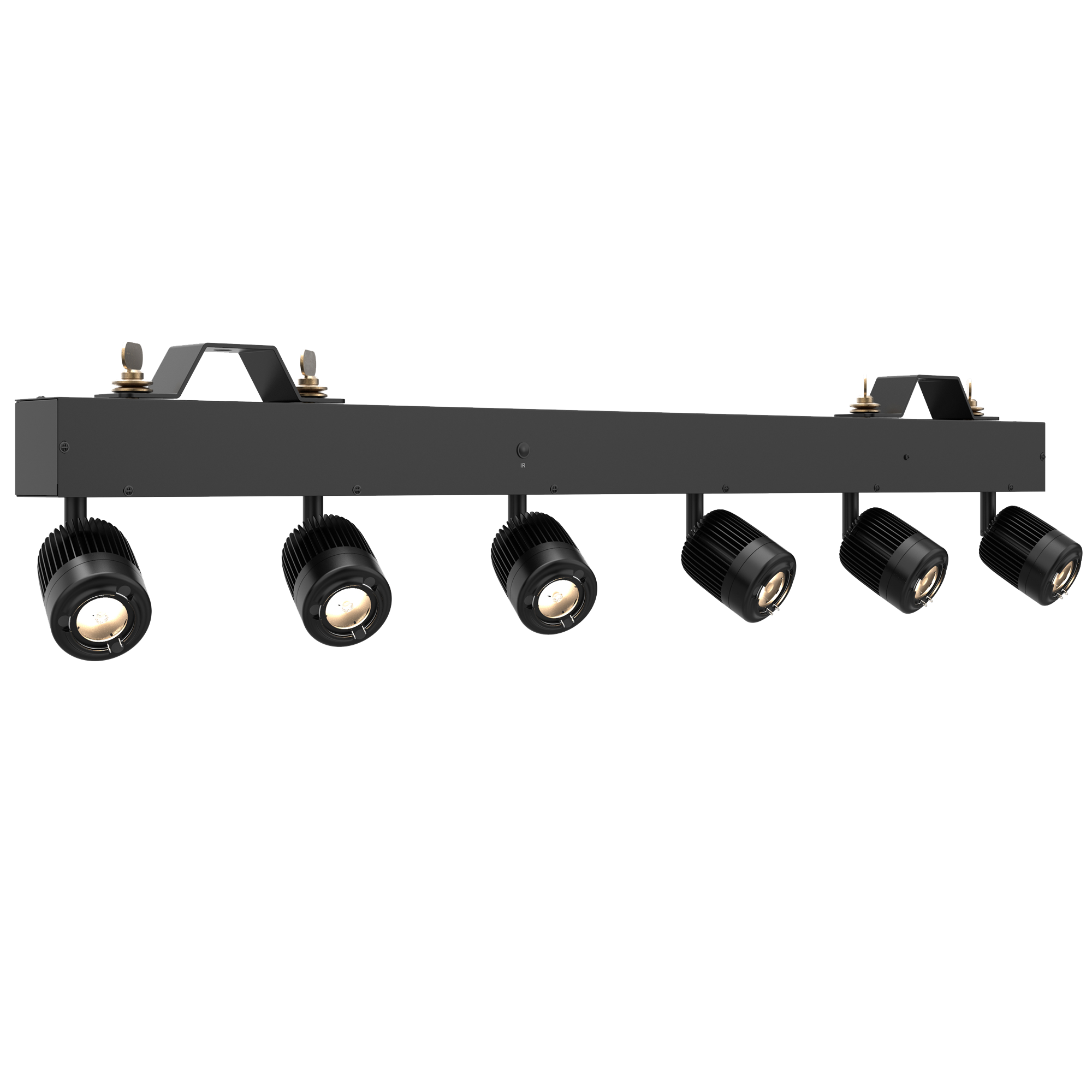

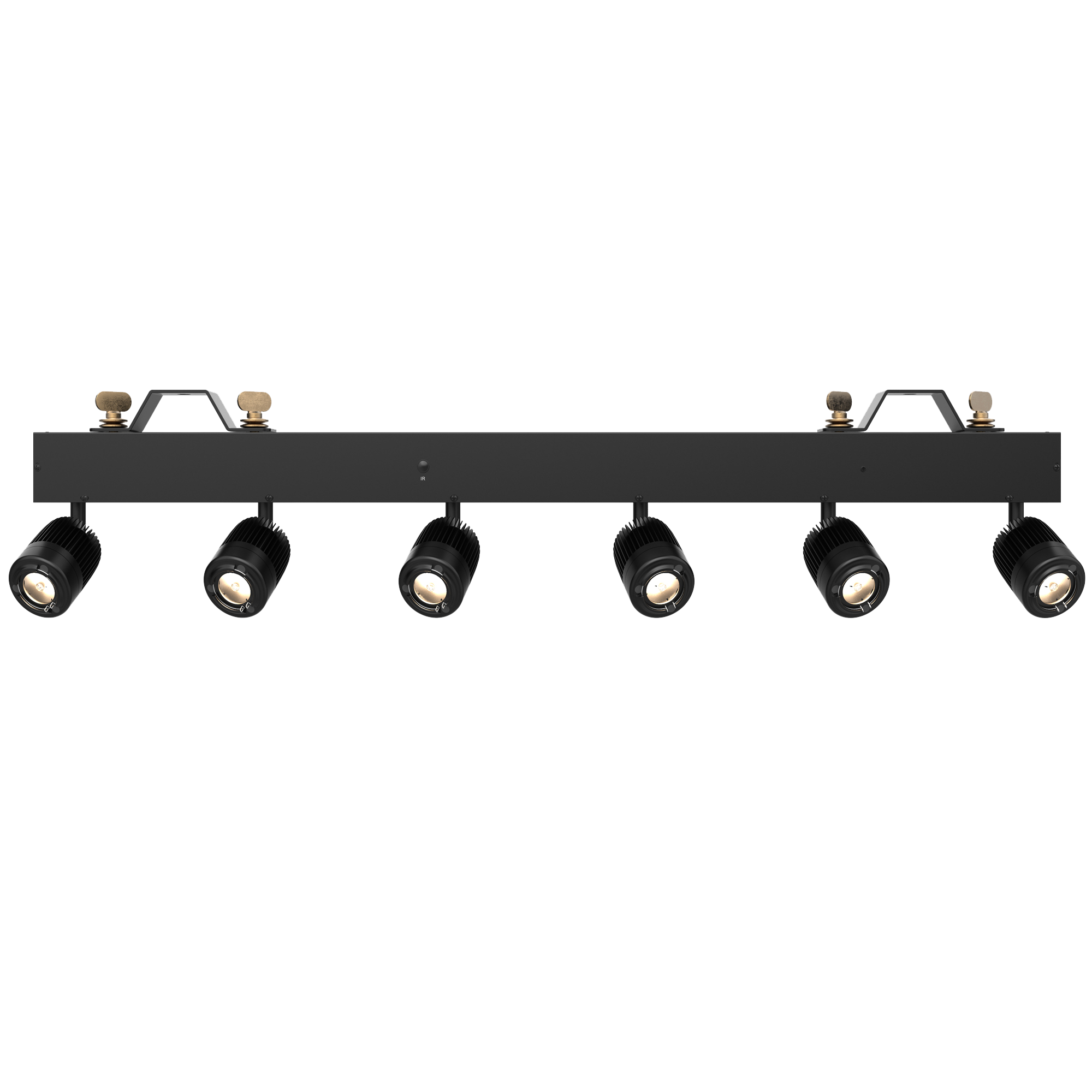

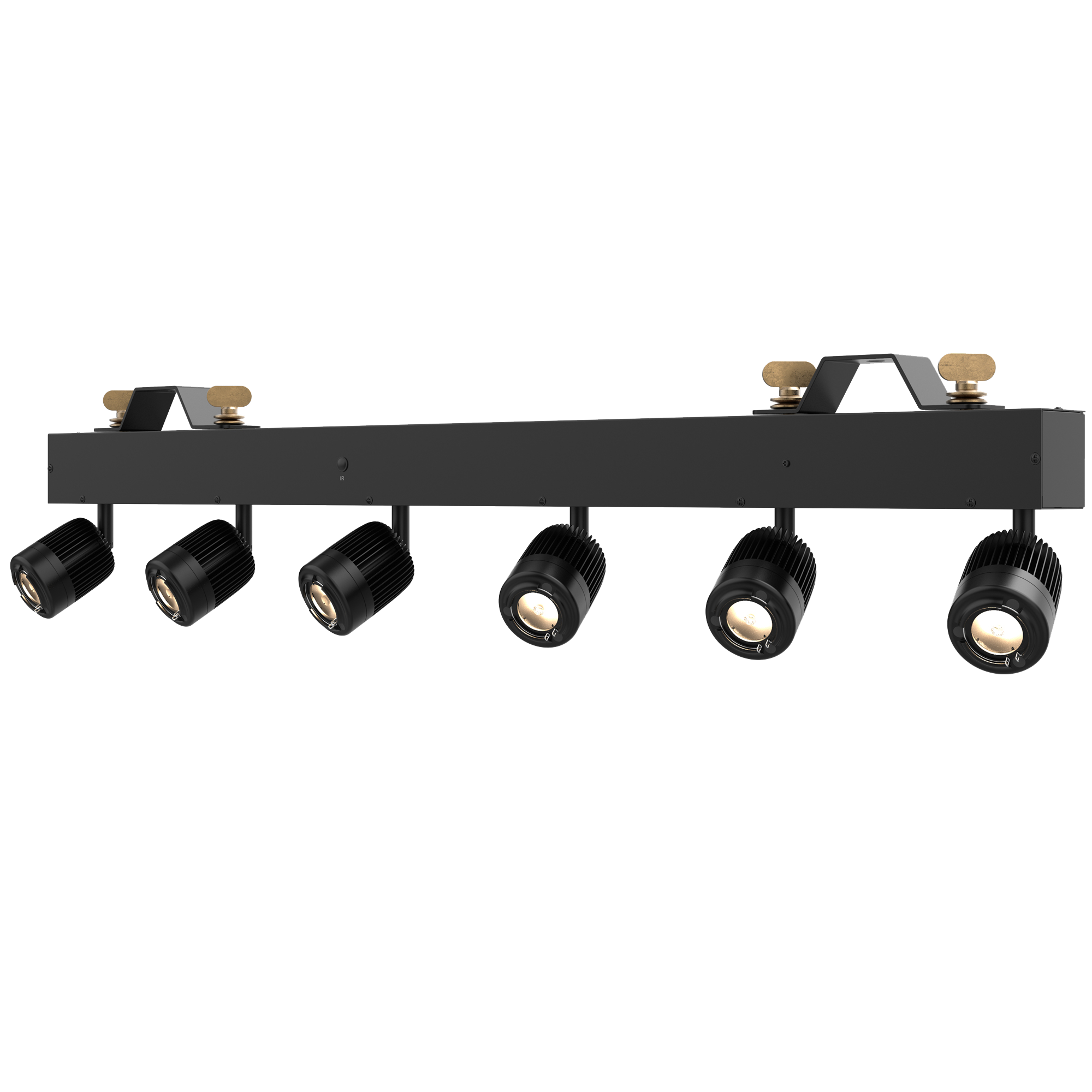

From creating subtle glows for appetizing buffets to lighting inspiring exhibits and highlighting special event elements, harness pinspotting power with Pinspot Bar. Pinspot Bar is a high-output bar with 6 independent pinspots designed to replicate traditional incandescent lamps. Independent control of each head offers true flexibility and programming capabilities. Achieve a clean and elegant look for any upscale event with only a single PowerCon-compatible power input—no messy cables—along with power linking capabilities that save time running cables to other fixtures. Pinspot Bar includes various beam diffusers and CTO filters to help achieve your desired look. A pair of included Omega brackets allow for multiple mounting options including pipe and drape. Control Pinspot Bar via the on-board digital display, DMX, wireless IRC-6 remote, or D-Fi USB dongle.

High-output bar with 6 independent pinspots designed to replicate traditional incandescent lamps
No messy cables ensure a clean and elegant look for any upscale event
Independent control of each head offers true flexibility and programming capabilities
Includes various beam diffusers and 2700 K filters to help achieve the desired look
Control via the on-board digital display, DMX, a wireless IRC-6 remote or D-Fi USB dongle
A pair of included Omega brackets allow for multiple mounting options including pipe and drape
PowerCon compatible power input and power linking saves time running cables

DMX Channels	1, 6 and 11
DMX Connectors	3- and 5-pin XLR
Light Source	6 LEDs (warm white) 15 W, (3.6 A), 50,000 hours life expectancy
Light Source	6 LEDs (warm white) 15 W, (3.6 A), 50,000 hours life expectancy
PWM Frequency	1000 Hz
Beam Angle	5°
Field Angle	11°
Field Angle	11°
Illuminance	7,707 lux @ 2 m (per pod)
Power Linking	8 units @ 120 V; 13 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	171 W, 1.4 A @ 120 V, 60 Hz - 191 W, 0.8 A @ 230 V, 50 Hz
Weight	9.4 lb (4.3 kg)
Size	39 x 4.6 x 5 in (1000 x 119 x 131 mm)
Approvals	CE, RoHS
Color Temperature	4000 K
CRI	81
Bracket Mounting Hole	13 mm
Optional Controllers	IRC-6, D-Fi USB
