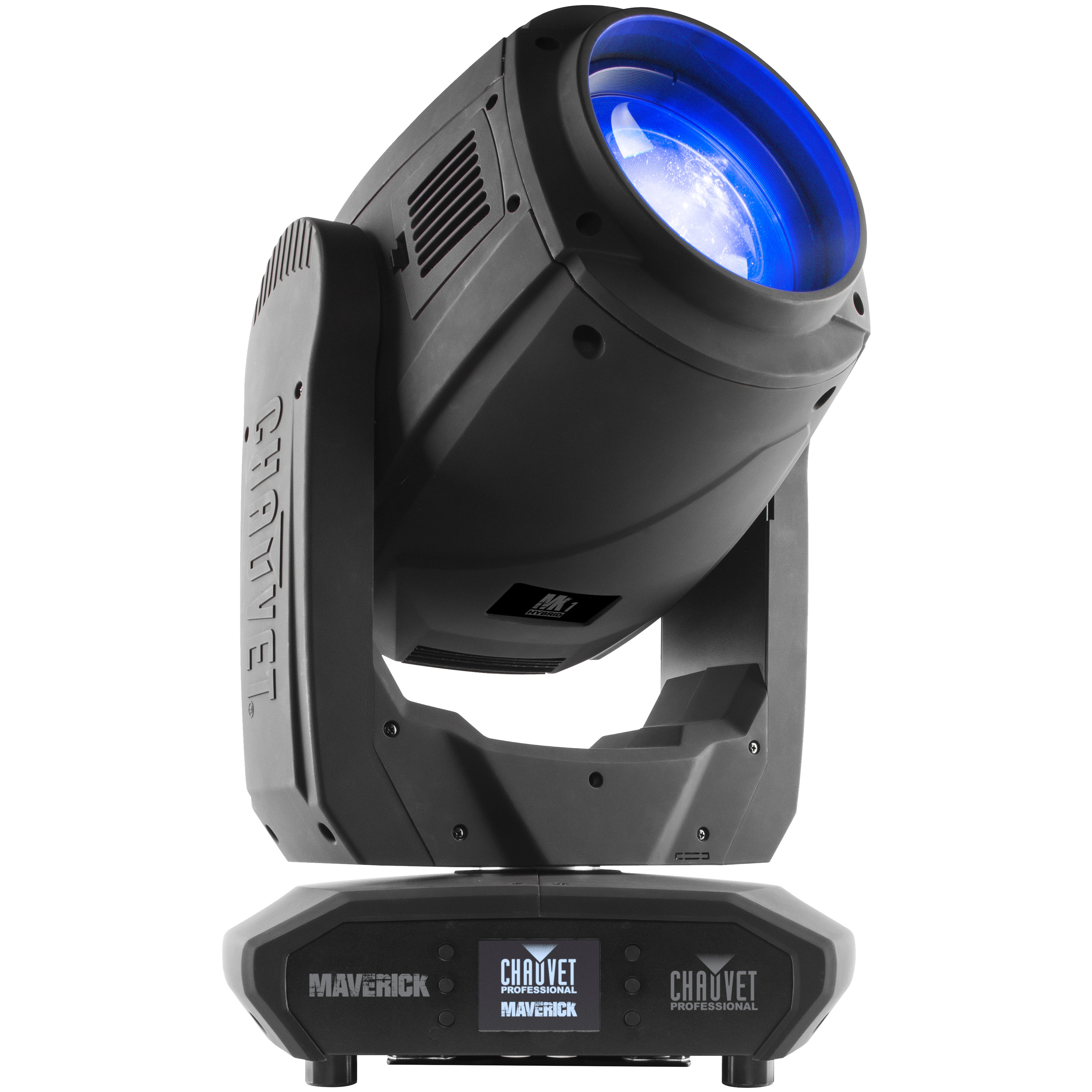

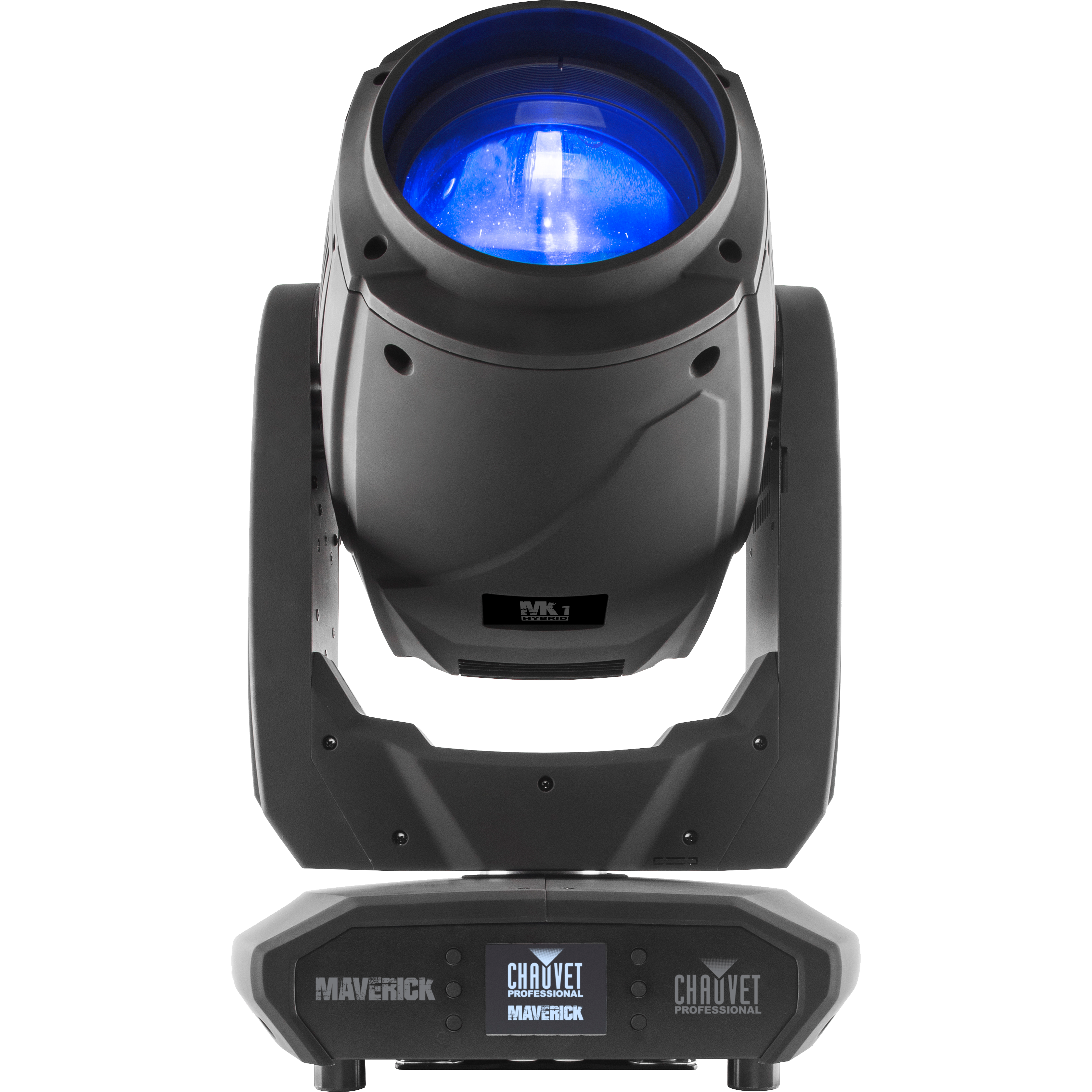

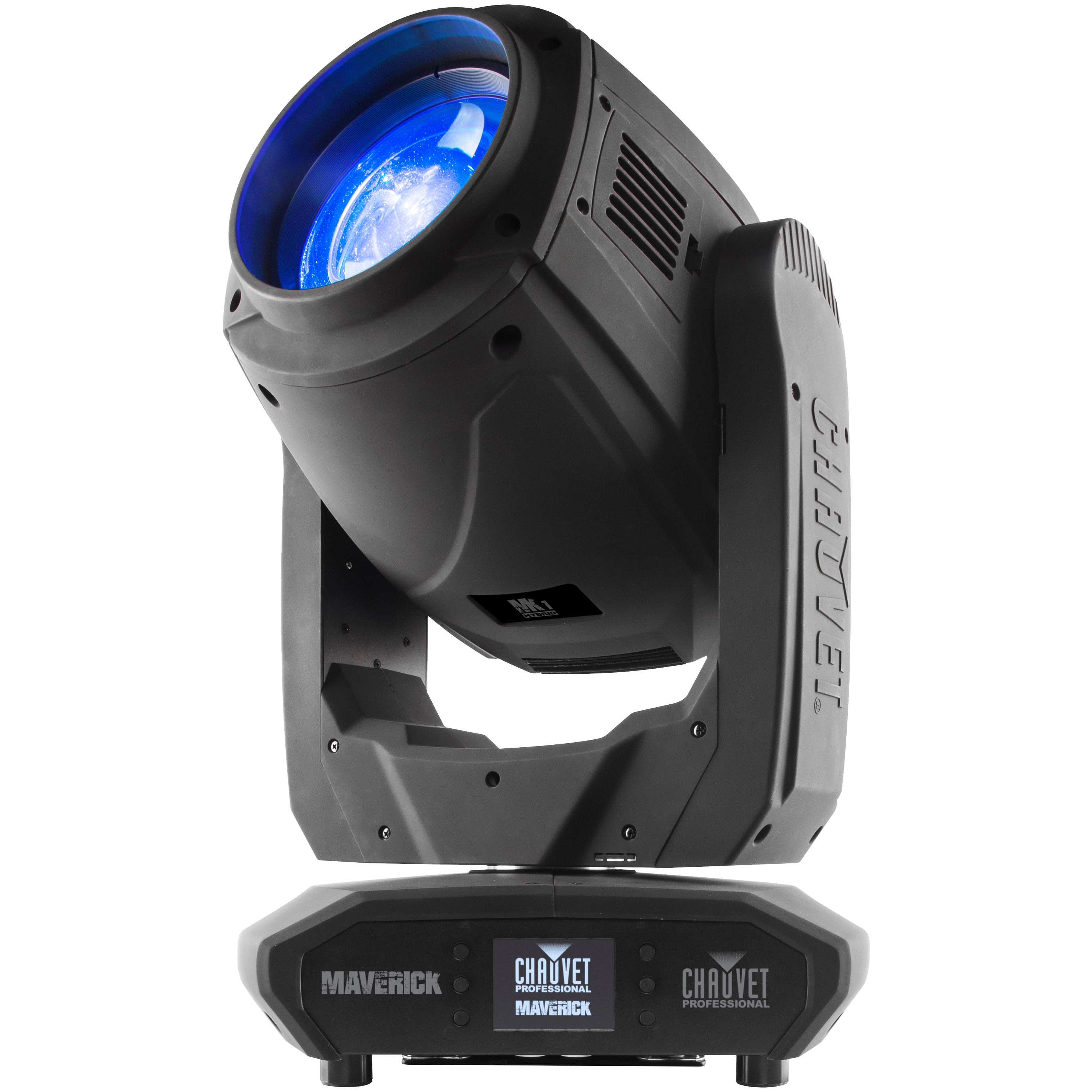

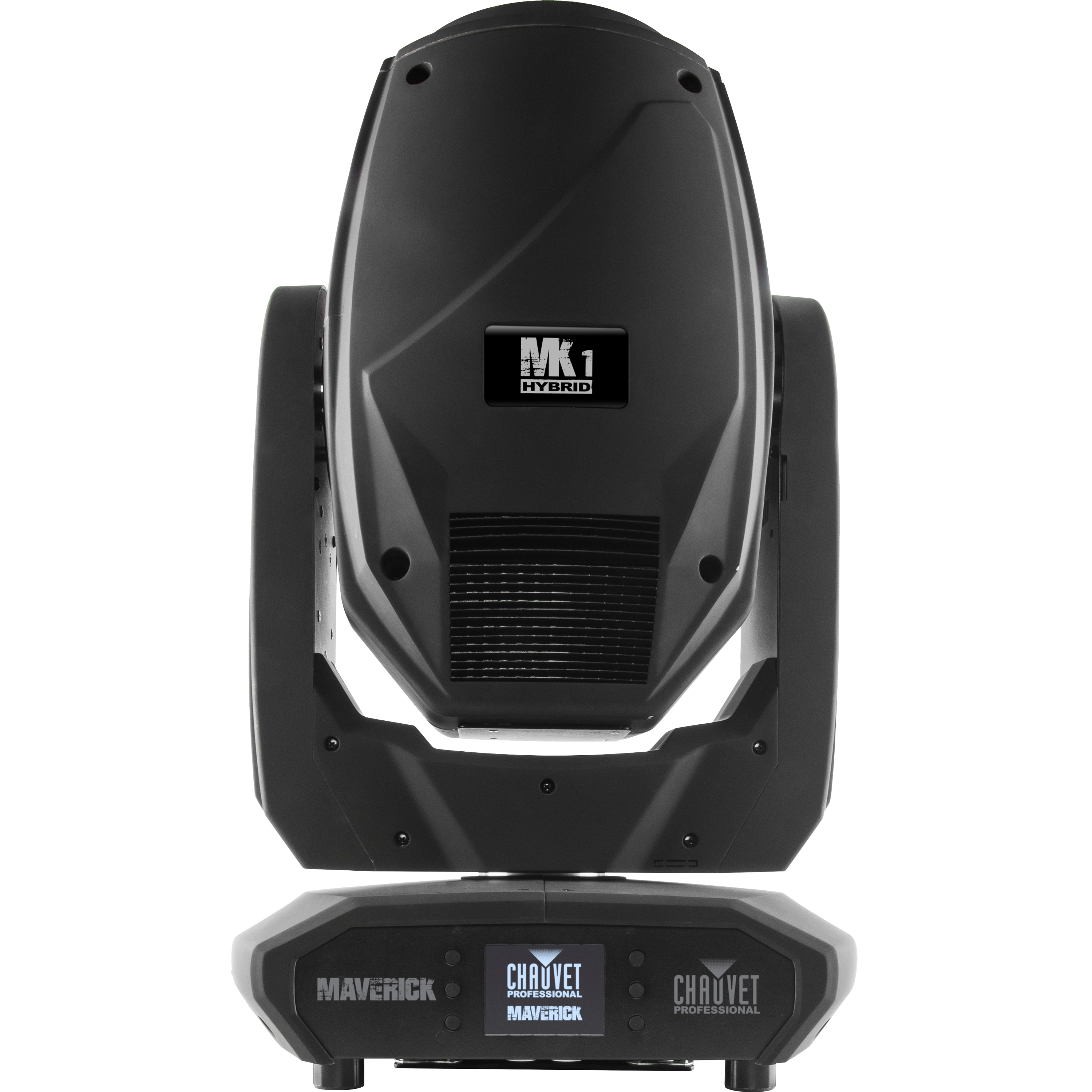

Maverick MK1 Hybrid puts a world of options at your fingertips with advanced optics, overlapping 8 and 4-facet prisms, a versatile gobo package, a 3° – 18° zoom range in spot mode and 19° – 41° in wash mode, and a robust CMY color system. Powered by a 440 W Osram Sirius reflector lamp, this supercharged hybrid awaits your command to dazzle with stunning output and effects. Choose from DMX, sACN, Art-Net, or W-DMX for control.
• Fully featured, high powered Spot/Beam combination fixture with CMY color mixing and overlapping prisms
• Fast and precise movement of Pan and Tilt functions
• Variable CMY color mixing and static colors to create a wide range of color options
• Individually controllable and overlappable 8 and 4-facet prisms
• Frost and beam flattening options for even light distribution
• Zoom angle of 3° to 18° in spot mode and 19° to 41° in wash mode for multiple coverage options
• Tight 1° beam for extremely focused areal effects
• 6 rotating and 18 static gobos for massive visual impact
• DMX , W-DMX, sACN, and Art-Net for full flexibility of control options
• True 1 compatible power input
• Battery backup display with auto rotate depending on fixture orientation.
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
OPTICAL
Light Source: Osram Sirius 440W lamp, 7000 K (Color Temp), 1,500 hours life expectancy
Color Temperature (at full): 6207 K
Front Lens diameter: 174 mm
Beam Angle: 1° to 6° (Spot mode)
Field Angle: 3° to 18° (Spot mode)
Beam Angle: 1° (Beam mode)
Field Angle: 2° (Beam mode)
Beam Angle: 9° to 22° (Wash mode)

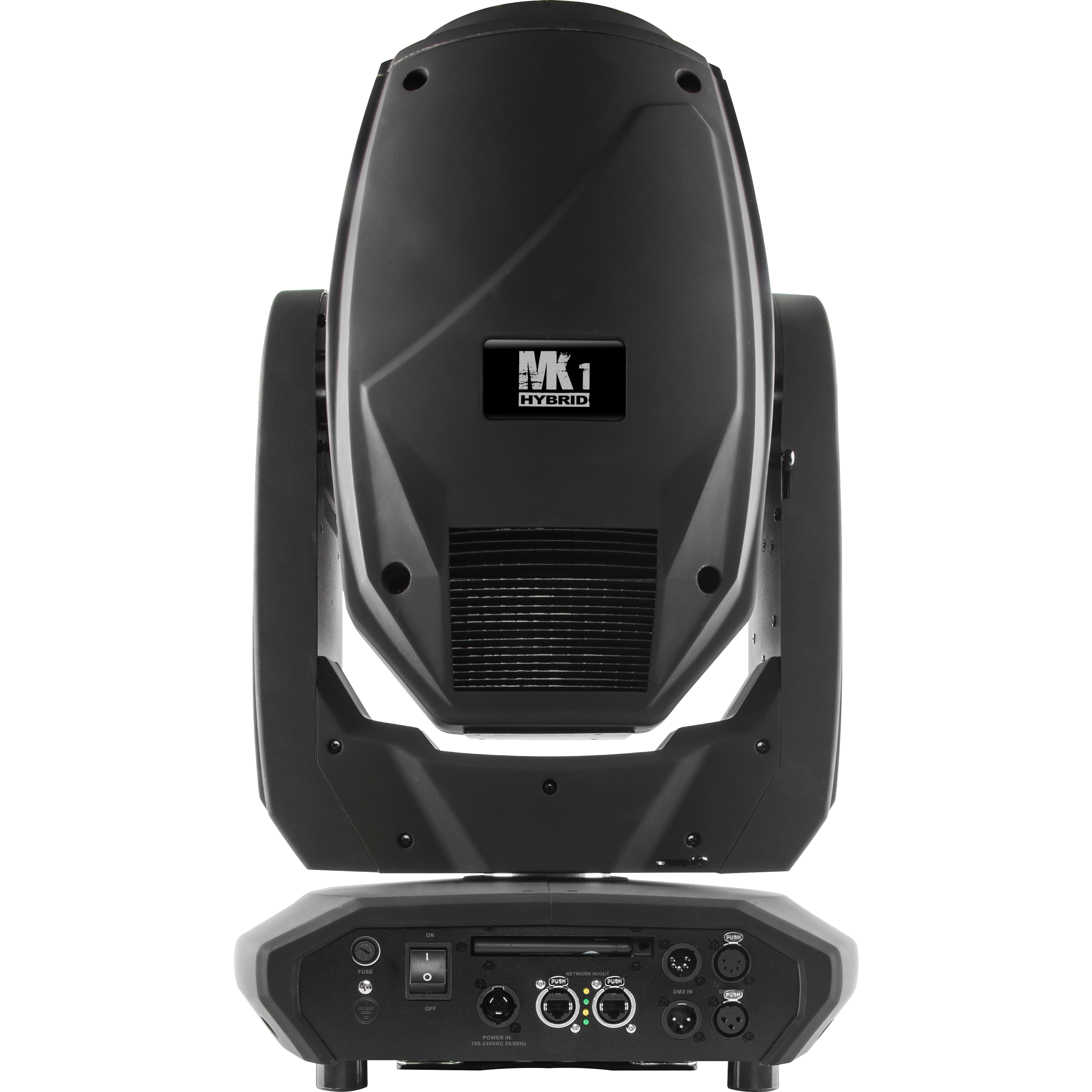

CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: Art-Net, DMX, W-DMX, sACN
DMX Channels: 27 or 30
Art-Net Channels: 27 or 30
Modes/Personalities: 2 personalities (27, 30)
(1) Chauvet Maverick MK1 Hybrid
(1) Seetronic Powerkon IP65 power cord
(1) Omega bracket with mounting hardware
