The V-600UHD lets you transition to 4K workflows as demand and budgets allow. Roland’s Ultra Scaler technology is provided on every input, so you can use Full HD and 4K sources simultaneously and output at multiple resolutions. You can also leverage the high pixel density of 4K camera sources in Full HD workflows for productions that are visually impressive and problem-free.
FEATURES
- • Uses High Dynamic Range [HDR], more dynamic-looking pixels that preserve the details in the darkest and brightest areas of an image.
• With full 60 Hz frame rate support, the V-600UHD delivers a smooth, crisp video image without the blur that’s common when fast motion is displayed at 30 Hz refresh rates.
• Supports Rec.2020—the highest-specification Wide Color Gamut (WCG)—as well as RGB and Rec.709 standards to display the widest range of visible colors. This provides an increased level of realism and improved color accuracy, especially for red and yellow color ranges.
• Internal 10-bit Color Depth processing reduces color banding and sharpens high-detail sources from computers.
• Support for DCI Cinema 4K Resolution
• Every input supports independent scaling of HD, Full HD, UHD 4K, and DCI 4K, as well as PC resolutions from UXGA to DCI 4K—with no converters needed.
• Covered with built-in Region of Interest [ROI]. This allows you to point a single 4K camera at the stage and use the V-600UHD’s input sharing and scaling functions to crop out up to eight “camera shots” and assign them to cross points.
• Automatic ROI is a technology-assisted 4K to HD camera workflow blending facial tracking technology with Roland's multi-shot ROI feature.
• Supports two picture-in-picture (PnP) windows that offer so much more than simple fixed inset windows.
• Seamless Audio System Integration
• Connect and Control Multiple PTZ Cameras. Seamlessly integrate Canon, JVC, Panasonic, Sony, PTZ Optics, Avonic, and VISCA-compatible professional pan-tilt-zoom robotic cameras to streamline workflow without needing a dedicated controller.
• With the V-600UHD’s support for DCI Cinema 4K resolution, you can display images up to 4096 pixels wide.
SPECIFICATIONS
- VIDEO:
Video Processing: 4:4:4 (Y/Pb/Pr), 10-bit

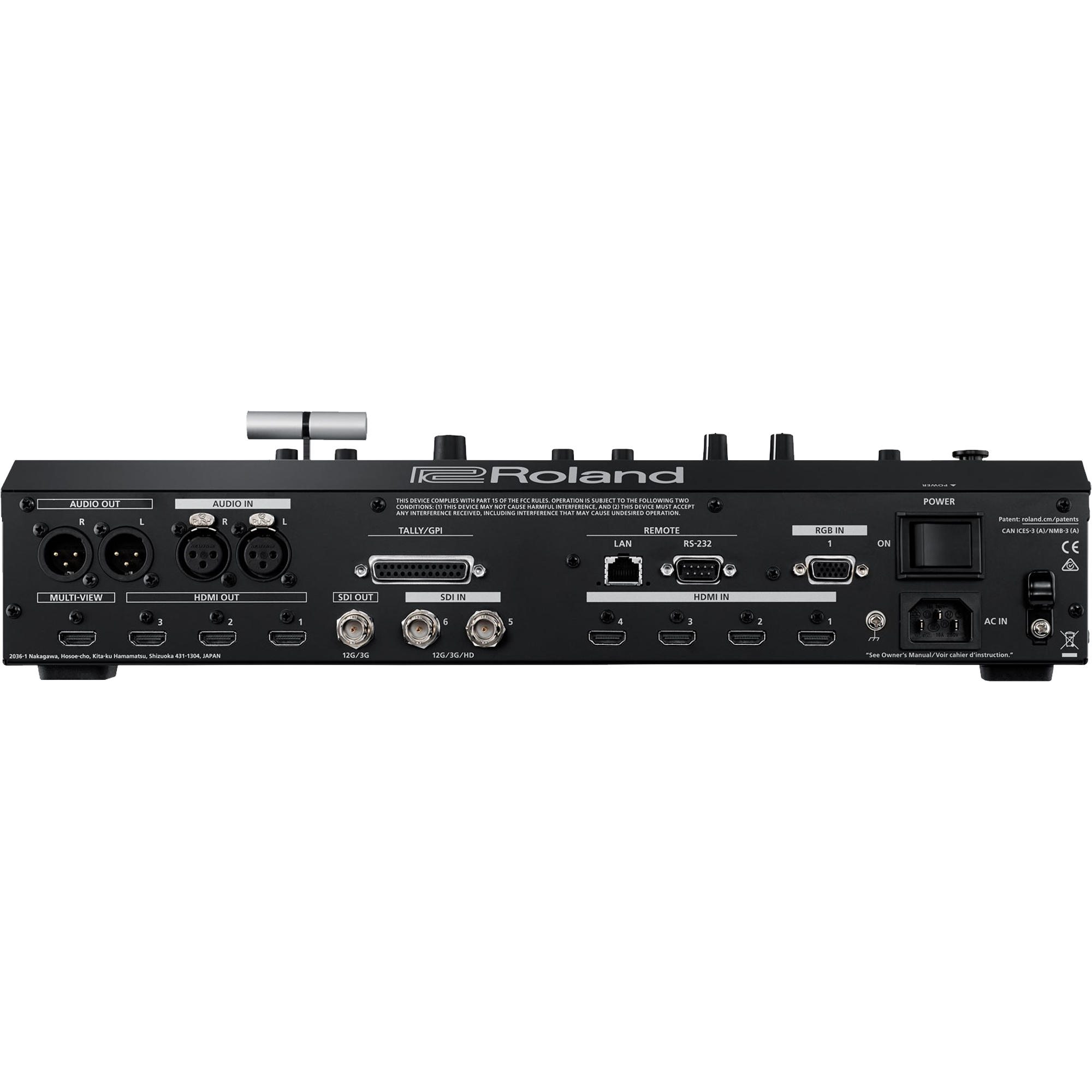

Input Connectors: HDMI IN 1--4 connectors: HDMI type A (HDMI 2.0); SDI IN 5--6 connectors: BNC type (12G/3G/HD-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B), 292M); RGB IN 1 connector: HD DB-15 type (Analog RGB, Select HDMI IN 1 or RGB IN 1 using menu)
Output Connectors: SDI OUTPUT connector: BNC type (12G/3G-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B)); HDMI OUT 1--3 connectors: HDMI type A (HDMI 2.0); MULTI-VIEW connector: HDMI type A (HDMI 1.4)
Input Formats: HDMI (Video, CEA-861-F): 720/50p, 720/59.94p; HDMI (Video, CEA-861-F): 1080/50i, 1080/59.94i; HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p; HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K); HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K); HDMI (PC, VESA DMT): 1024 x 768/60Hz (XGA); HDMI (PC, VESA CVT): 1280 x 768/60Hz (WXGA); HDMI (PC, VESA DMT): 1280 x 1024/60Hz (SXGA); HDMI (PC, VESA CVT): 1400 x 1050/60Hz (SXGA+); HDMI (PC, VESA DMT): 1600 x 1200/60 Hz (UXGA); HDMI (PC, CEA-861-F): 1920 x 1080/30 Hz (FHD), 1920 x 1080/60 Hz (FHD); HDMI (PC, VESA CVT): 1920 x 1200/60 Hz (WUXGA, Reduced blanking); HDMI (PC, CEA-861-F): 3840 x 2160/24 Hz (UHD 4K), 3840 x 2160/30 Hz (UHD 4K), 3840 x -2160/60 Hz (UHD 4K); HDMI (PC, CEA-861-F): 4096 x 2160/24 Hz (DCI 4K), 4096 x 2160/30 Hz (DCI 4K), 4096 x -2160/60 Hz (DCI 4K); RGB (PC, VESA DMT): 1600 x 1200/60Hz (UXGA); RGB (PC, CEA-861-F): 1920 x 1080/60Hz (FHD); SDI (Video, SMPTE ST274): 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p; SDI (Video, SMPTE ST2036): 2160/59.94p (UHD 4K), 2160/50p (UHD 4K); SDI (Video, SMPTE ST2048): 2160/59.94p (DCI 4K), 2160/50p (DCI 4K); Still Image: Windows Bitmap File (.bmp), Maximum 4096 x 2160 pixels, 24-bit per pixel, uncompressed; Still Image: PNG File (.png), Maximum 4096 x 2160 pixels (*1); *1 Alpha channel of PNG file is not loaded.
Output Formats: HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p; HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K); HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K); HDMI (PC, CEA-861-F): 1920 x 1080/30Hz (FHD) (*2), 1920 x 1080/60Hz (FHD); HDMI (PC, CEA-861-F): 3840 x 2160/30Hz (UHD 4K), 3840 x 2160/60Hz (UHD 4K); HDMI (PC, CEA-861-F): 4096 x 2160/30Hz (DCI 4K), 4096 x 2160/60Hz (DCI 4K); *2 Available when Down Convert of HDMI OUT 1-3 is set to "Enabled".; SDI (Video, SMPTE ST274):1080/59.94p, 1080/50p; SDI (Video, SMPTE ST2036):2160/59.94p (UHD 4K), 2160/50p (UHD 4K); SDI (Video, SMPTE ST2048):2160/59.94p (DCI 4K), 2160/50p (DCI 4K); * Conforms to VESA DMT, VESA CVT, CEA-861-F; * Color Gamut: Rec.709, Rec.2020; * Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG
Video Effects: Transition: Mix, Cut, Wipe (9 patterns); Composition: PinP, Key (*1), PinP + Key (*1); DSK: PinP, Key (*1), PinP + Key (*1); Others: Output Fade, Output Freeze, Output Capture; *1 Luminance Key, Chroma Key
AUDIO:
Audio Processing: 24 bits/48 kHz
Audio formats: SDI IN/OUT: Linear PCM, 24 bits/48 kHz, 16 ch (Conforms to SMPTE 299M); HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2 ch
Input Connectors: AUDIO IN L/R connectors: XLR-3-31 type (balanced)
Output Connectors: AUDIO OUT L/R connectors: XLR-3-32 type (balanced); PHONES jack: Stereo miniature phone type
Nominal Input Level: AUDIO IN L/R: +4 dBu (Maximum: +24 dBu)
Input Impedance: AUDIO IN L/R: 15 k ohms
Nominal Output Level: AUDIO OUT L/R: +4 dBu (Maximum: +24 dBu); PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance: AUDIO OUT L/R: 600 ohms; PHONES: 10 ohms
Audio Effects: Matrix mixer; Delay (1 ms units, max 500 ms); Test tone output
OTHERS:
Other Connectors: USB MEMORY port: USB A type (for USB flash drive); RS-232 connector: DB-9 type (Male) (for Remote Control); LAN port: RJ45 type, 100BASE-TX (for Remote Control); TALLY/GPI port: DB-25 type (Female) (Tally: 16, GPI: 8); * XLR type: 1 GND, 2 HOT, 3 COLD
Power Consumption: 80 W
Operation Temperature: +0 to +40 degrees Celsius; +32 to +104 degrees Fahrenheit
Dimensions: 482 (W) x 300 (D) x 109 (H) mm; 19 (W) x 11-13/16 (D) x 4-5/16 (H) inches; * When rack mount angles are fitted.
Weight (excluding AC adaptor): 5.3 kg; 11 lbs 11 oz; * Including rack mount angles.
Accessories: Owner's Manual; Power cord; Rack-mount angle x 2; * 0 dBu = 0.775 Vrms; * This product is a Class A digital device under FCC part 15.
CONTENTS

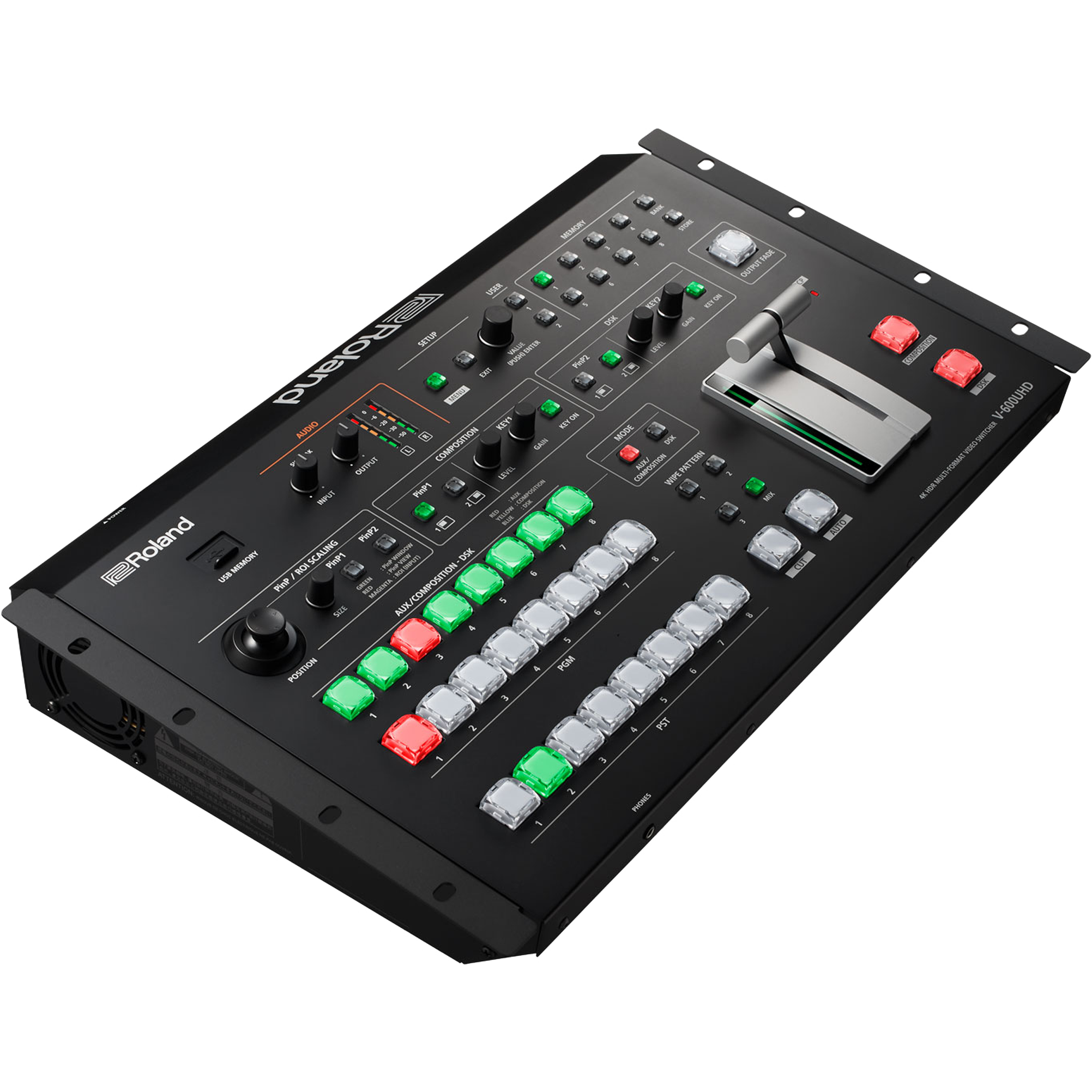

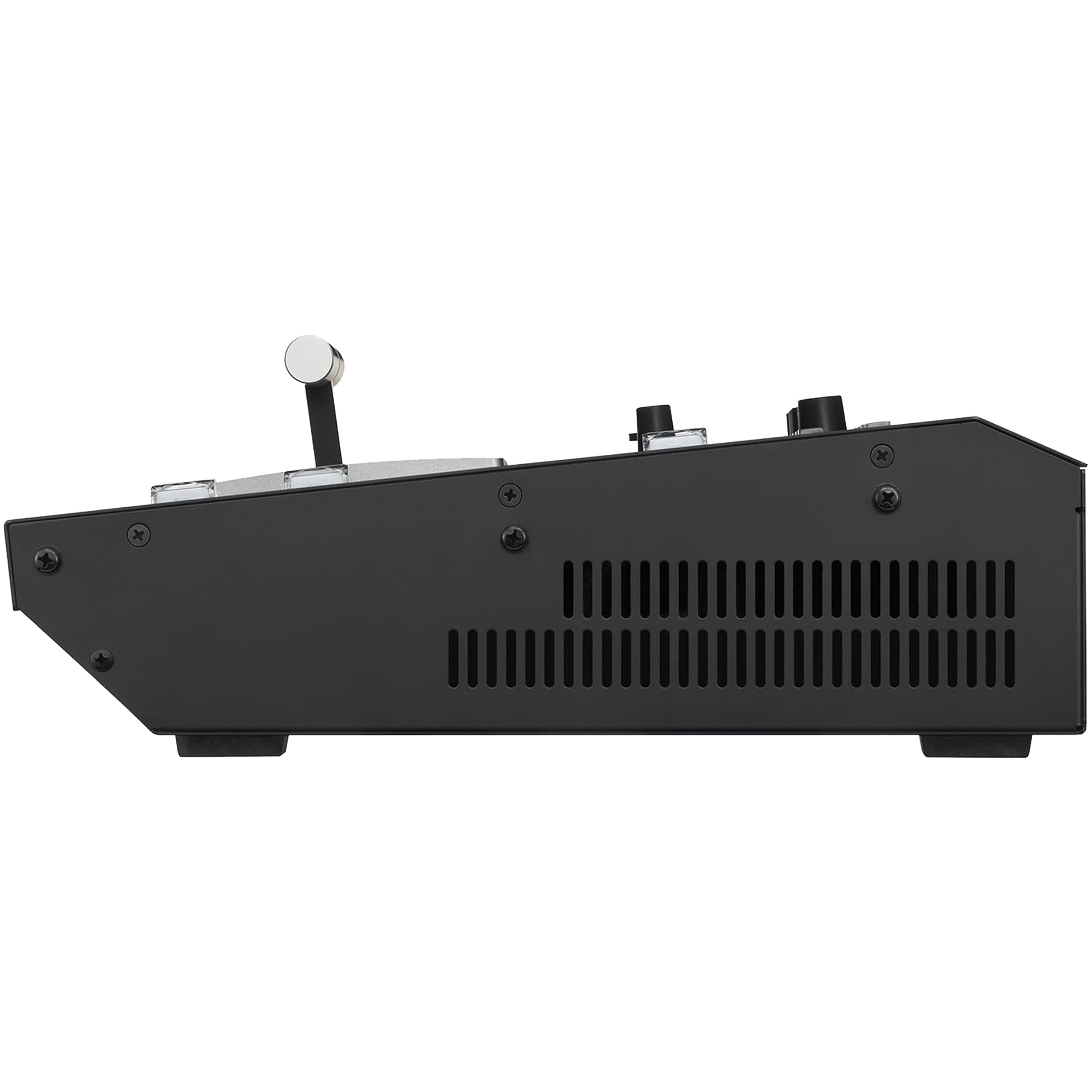

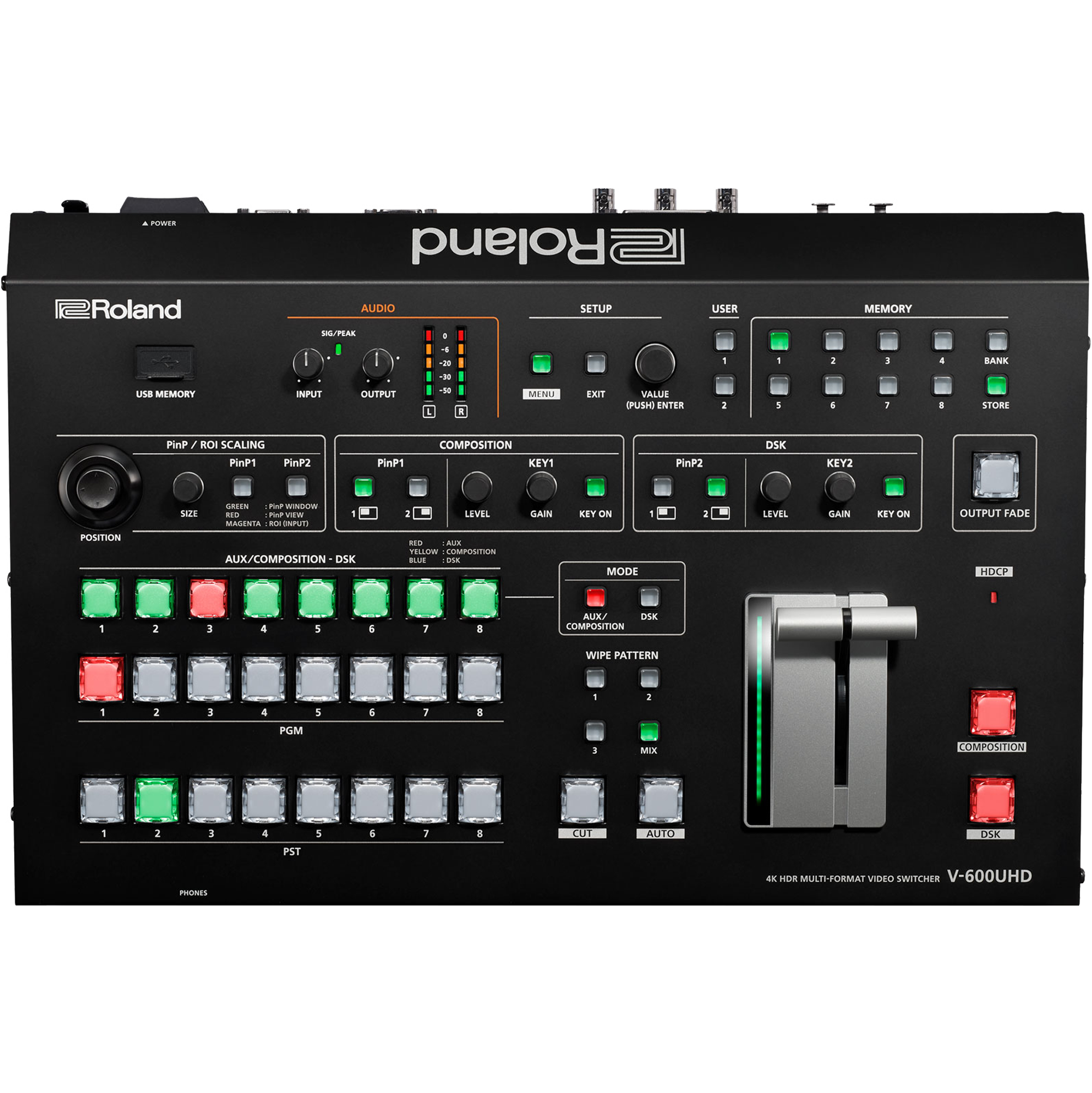

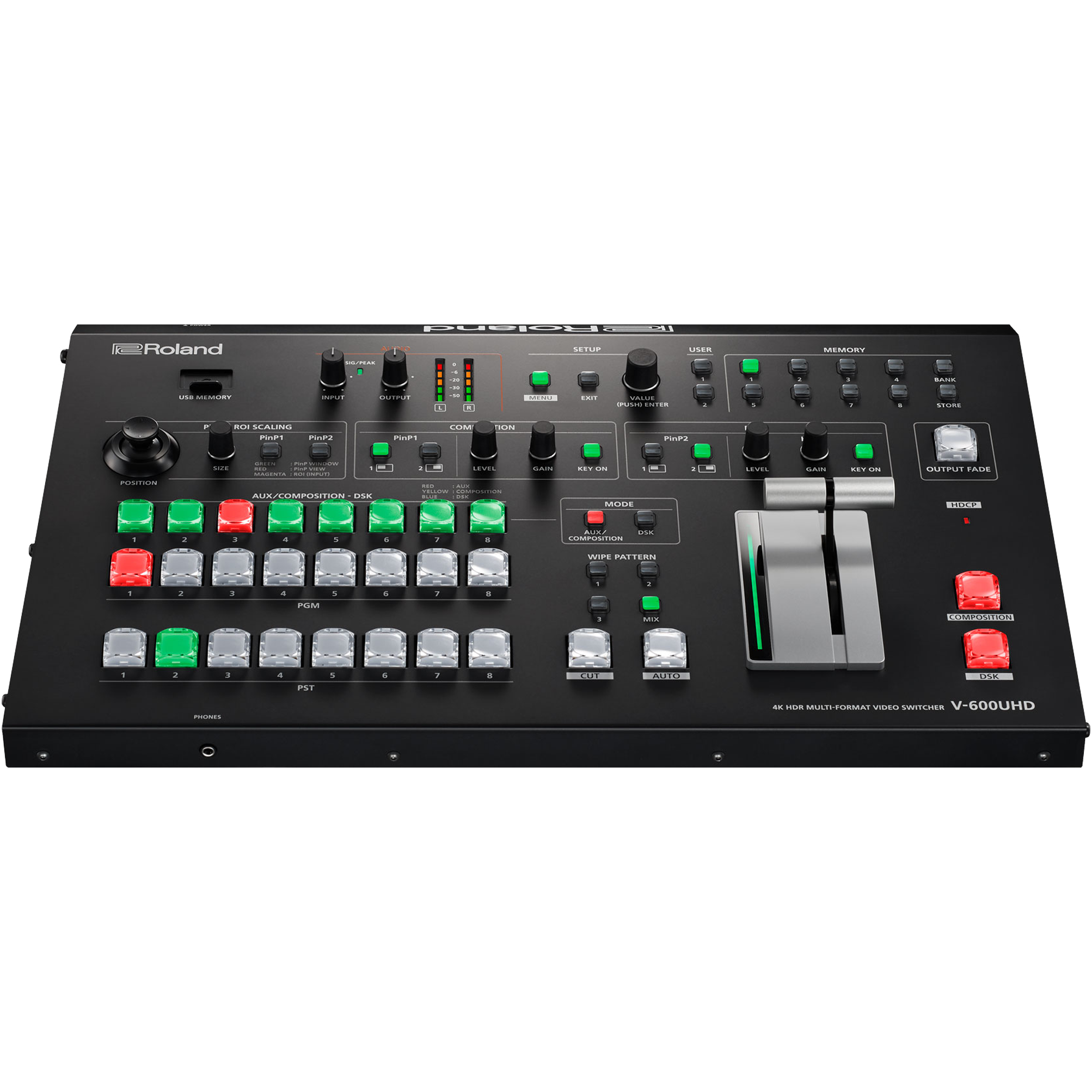

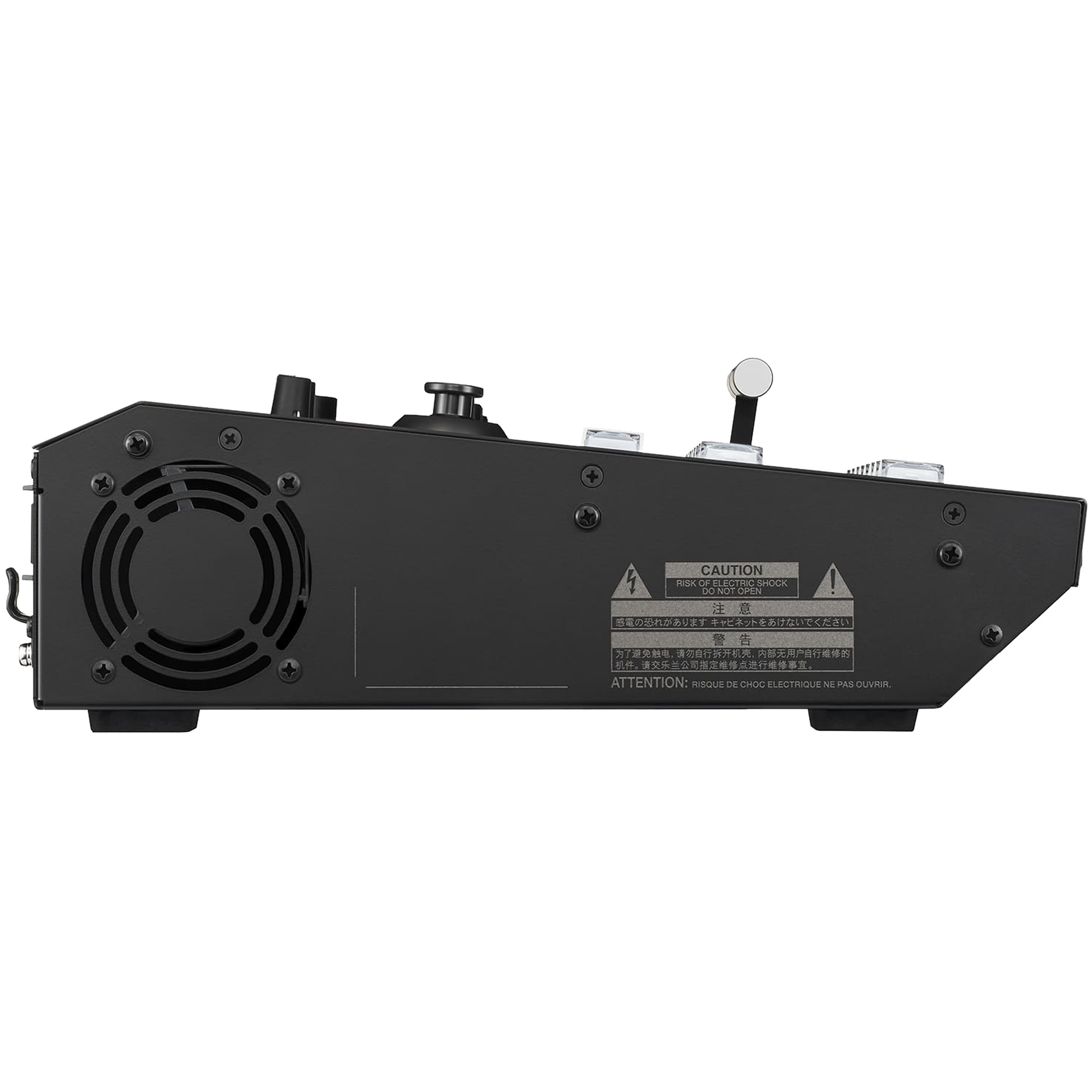

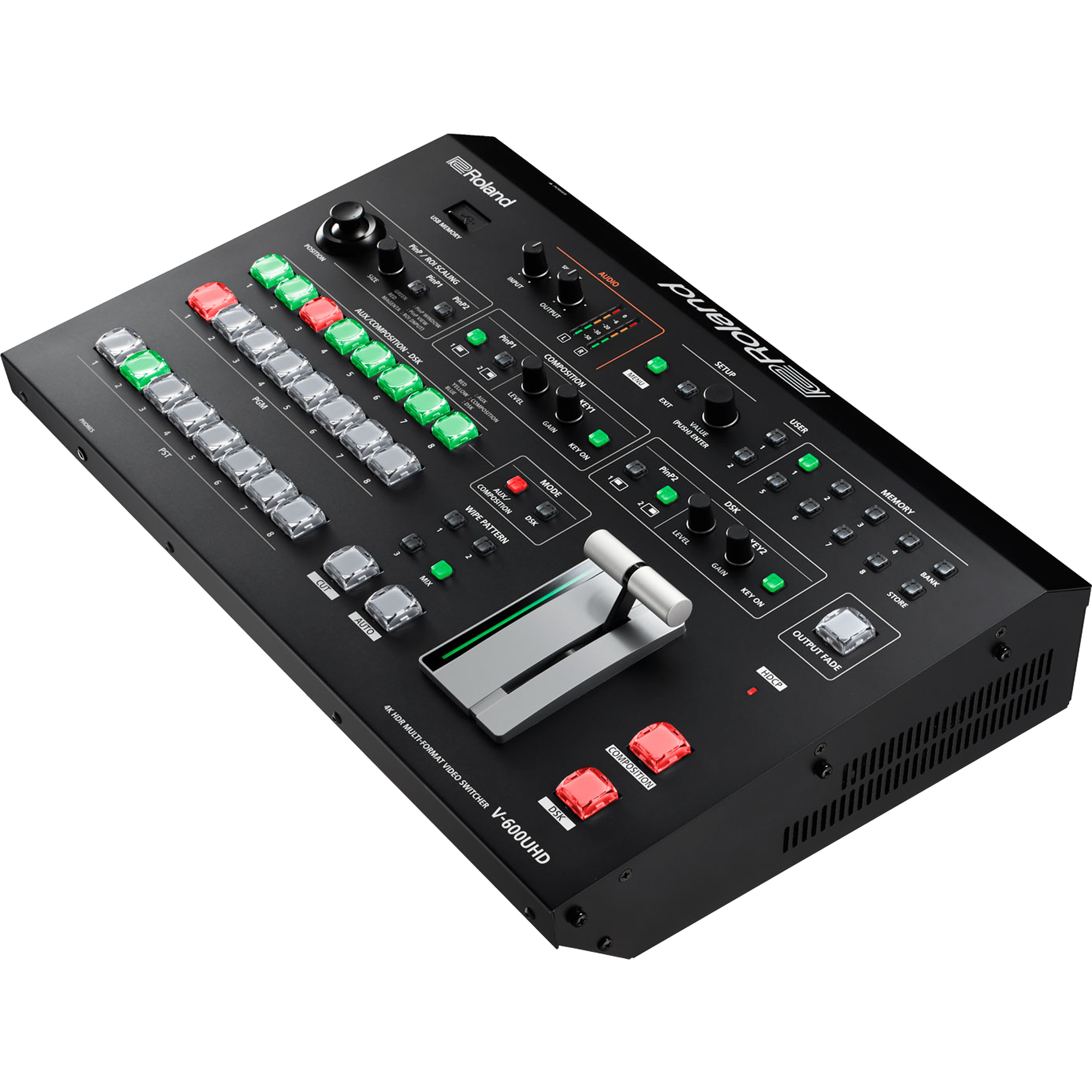

- (1) Roland V-600UHD 4K HDR Video Switcher
(1) Owner's Manual
(1) Power cord
(1) Rack-mount angle x 2
